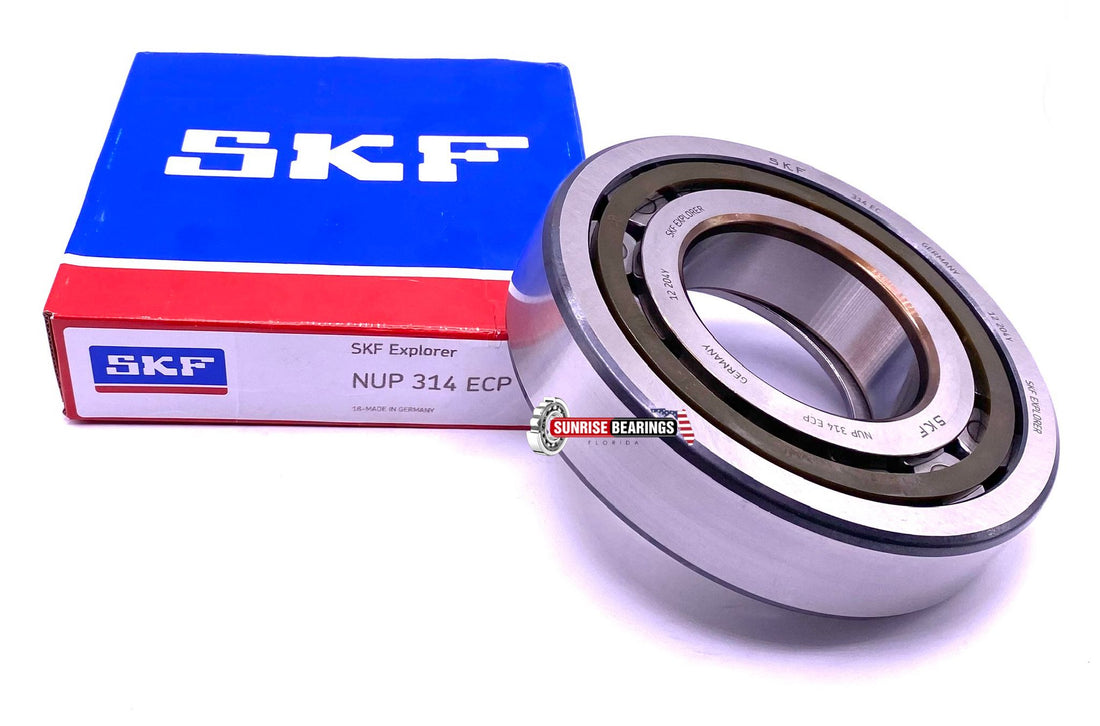

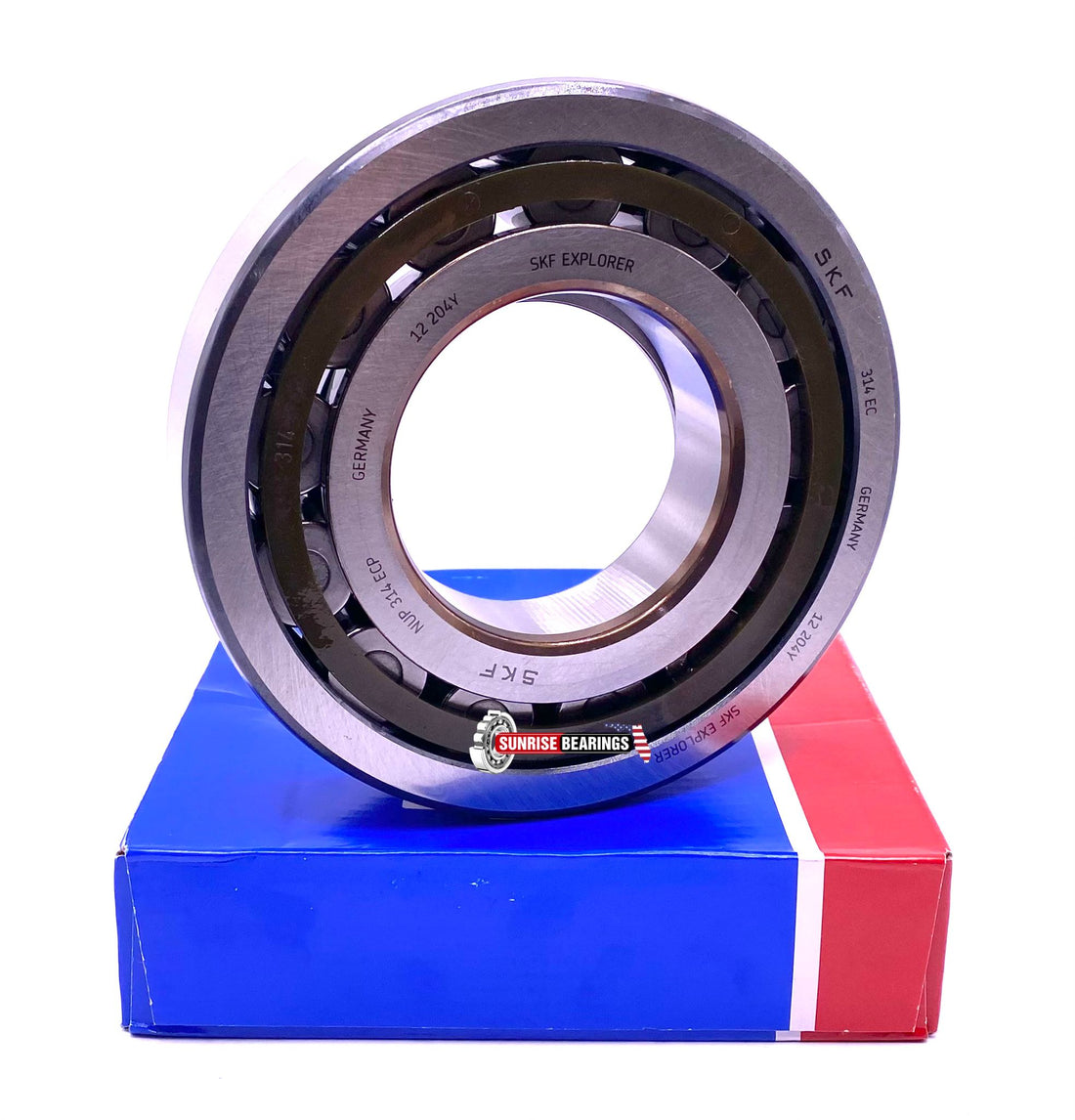

SKF NUP314ECP/C3 — Cylindrical Roller Bearing (Single Row), NUP Design, Open, C3 Clearance

Specifications

• Brand: SKF
• Item Number / MPN: NUP314ECP/C3
• EAN: 7316577035646
• Category: Cylindrical Roller Bearing — Single Row

Dimensions & Weight

• Bore (d): 70 mm (2.7559 in)
• Outside Diameter (D): 150 mm (5.9055 in)
• Width (B): 35 mm (1.3780 in)
• Weight: 2.89 kg (≈ 6.37 lb) (some catalogs list ~2.696 kg)

Product Characteristics

• Seal: None (open bearing)
• Bore: Cylindrical bore
• Cage: Polyamide cage (plastic molded)
• Radial Internal Clearance: C3 (greater than normal / slightly increased clearance)
• Tolerance Class: Dimensional accuracy P0/PN (ABEC 1); running accuracy P6 (ABEC 3)
• Operating Temperature Range: -30°C to +120°C
• Heat Stabilization: None (up to 120°C)
• Outer Ring: Without groove / lubrication holes
• Current Insulation: None

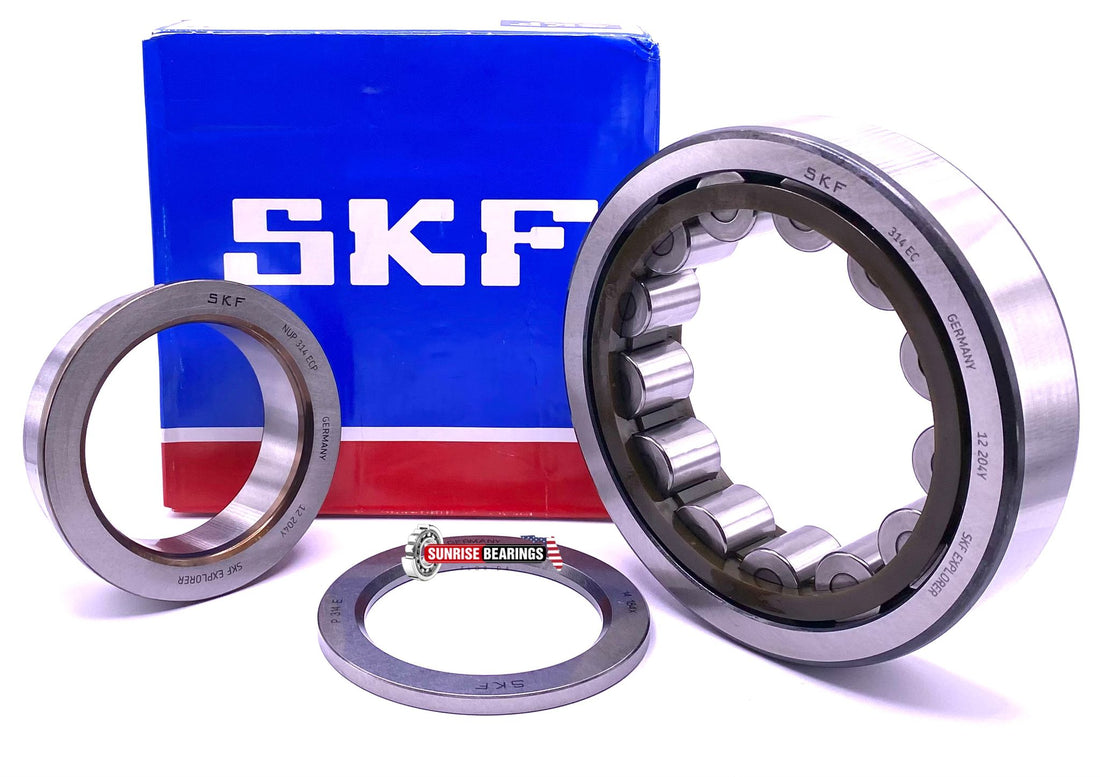

• Design / Construction: Improved interior construction; single row; inner ring removable on both sides

Suffix / Design Meaning

• EC: Optimized internal design (more and/or larger rollers; modified roller/end-flange contact)
• P: Injection-molded cage of glass-fiber reinforced polyamide 6,6, roller-centered
• C3: Internal clearance larger than normal
• NUP design: Outer ring with two fixed ribs; inner ring with one fixed rib + one loose rib, allowing axial load in both directions (locating bearing)

SKF NUP314ECP/C3 single-row cylindrical roller bearing with cage, size 70 x 150 x 35 mm. Open bearing (no seals) with EC optimized internal design and polyamide cage for high rigidity and high radial load capacity. C3 internal clearance for applications with higher operating temperatures, shaft expansion, or tighter fits. NUP design supports axial loads in both directions and is commonly used as a locating bearing to position the shaft axially. Typical applications include gearboxes, pumps, compressors, electric motors, agricultural machinery, and industrial equipment.
