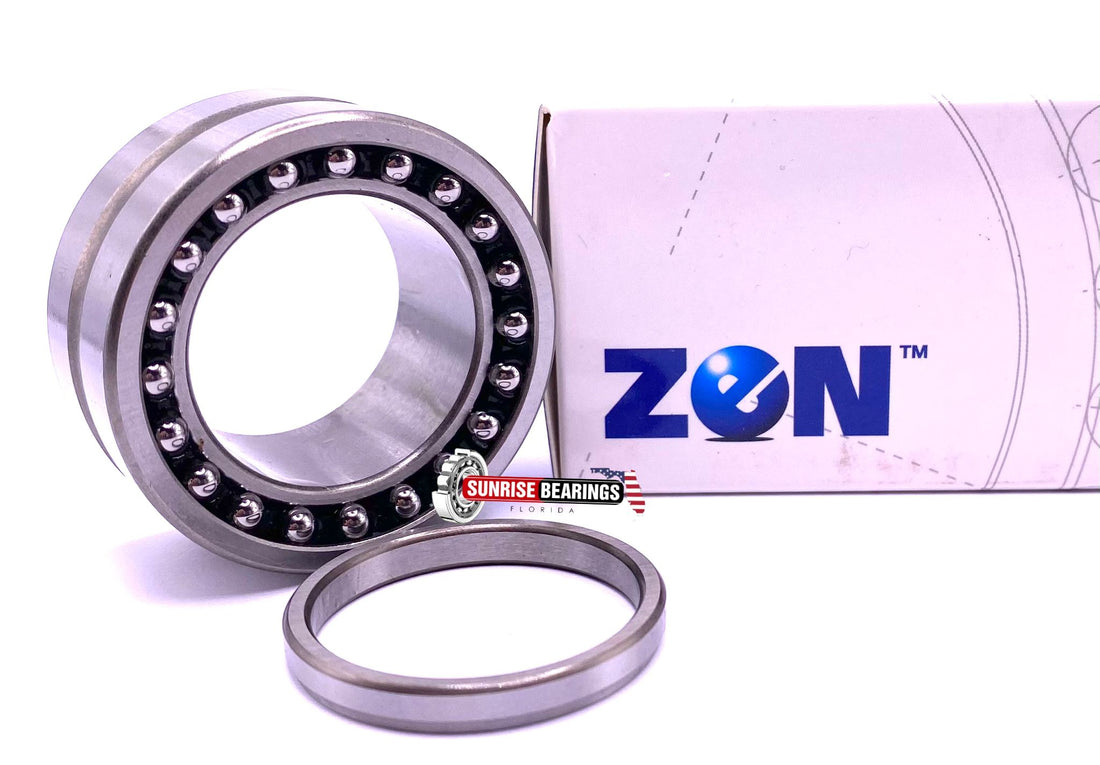

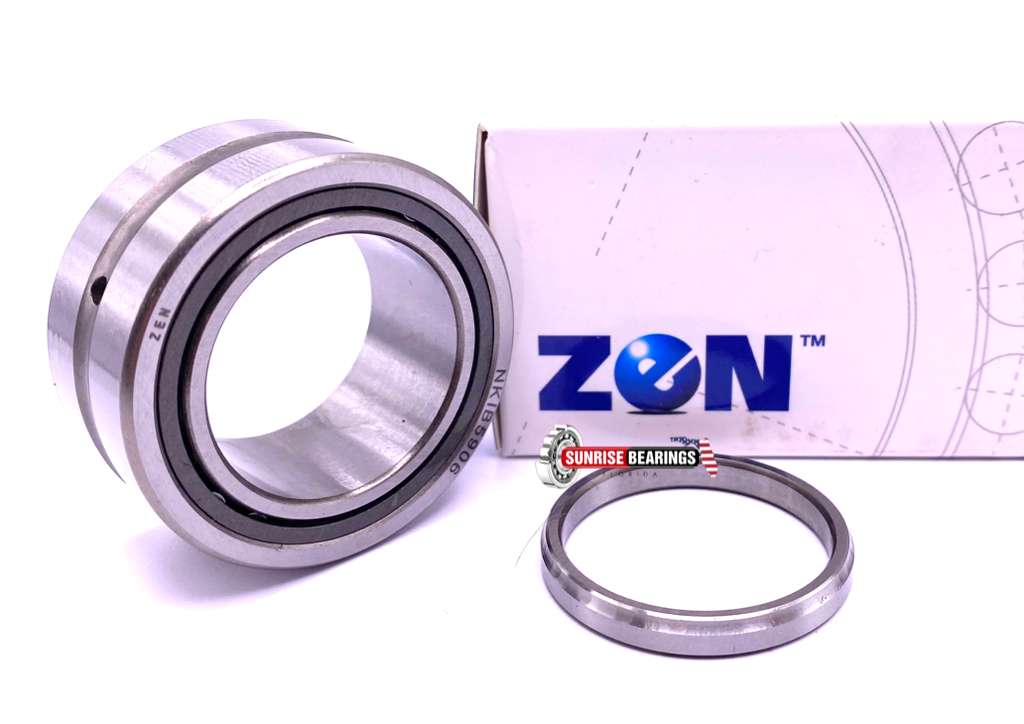

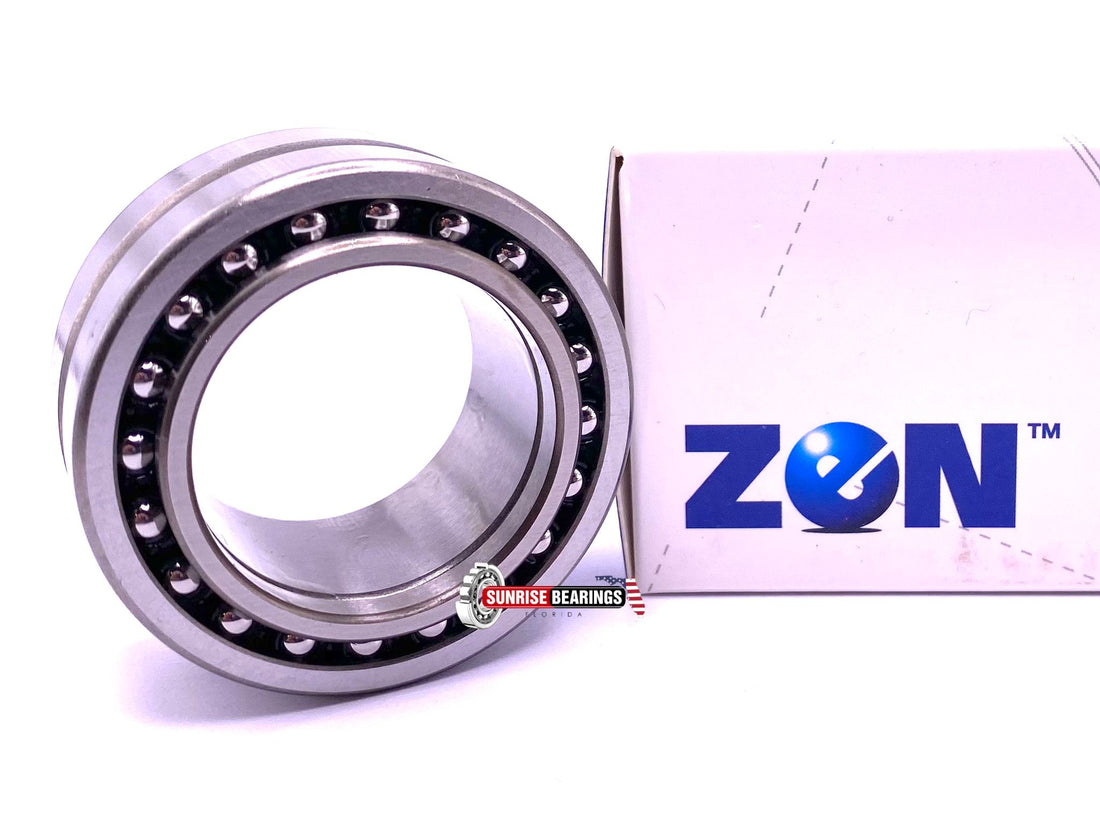

Needle Roller / Angular Contact Bearing — Double Direction (30×47×25 mm)

Item specifics

• Category / Type: Needle roller / angular contact bearing (double direction)
• Operating direction: Axial load capability in both directions
• Inner ring: Two-part
• Material: Standard bearing steel
• Cage: Sheet steel cage
• Seal / Shield: Open (no seal)
• Tolerance class: P0 / PN2 / ABEC 1
• Temperature range: -20 to +120 °C
• Customs tariff number: 8482 8000
• Product ID: 10129350

Dimensions & weight

• Bore / ID (d): 30.000 mm (1.1811 in)
• Outside Diameter (D): 47.000 mm (1.8504 in)
• Width (B): 25.000 mm (0.9843 in)
• Weight: 0.151 kg (151 g / ~0.333 lb)

Listing description

This double-direction needle roller / angular contact bearing is designed to support radial loads and axial loads in both directions. The open design (no seals) is suitable for applications where lubrication is provided by the system and external sealing is handled by the housing. The two-part inner ring and sheet steel cage support stable operation within the specified -20 to +120 °C temperature range.

   PACKAGE INCLUDES: ONE (1) ZEN Bearing NKIB5906
