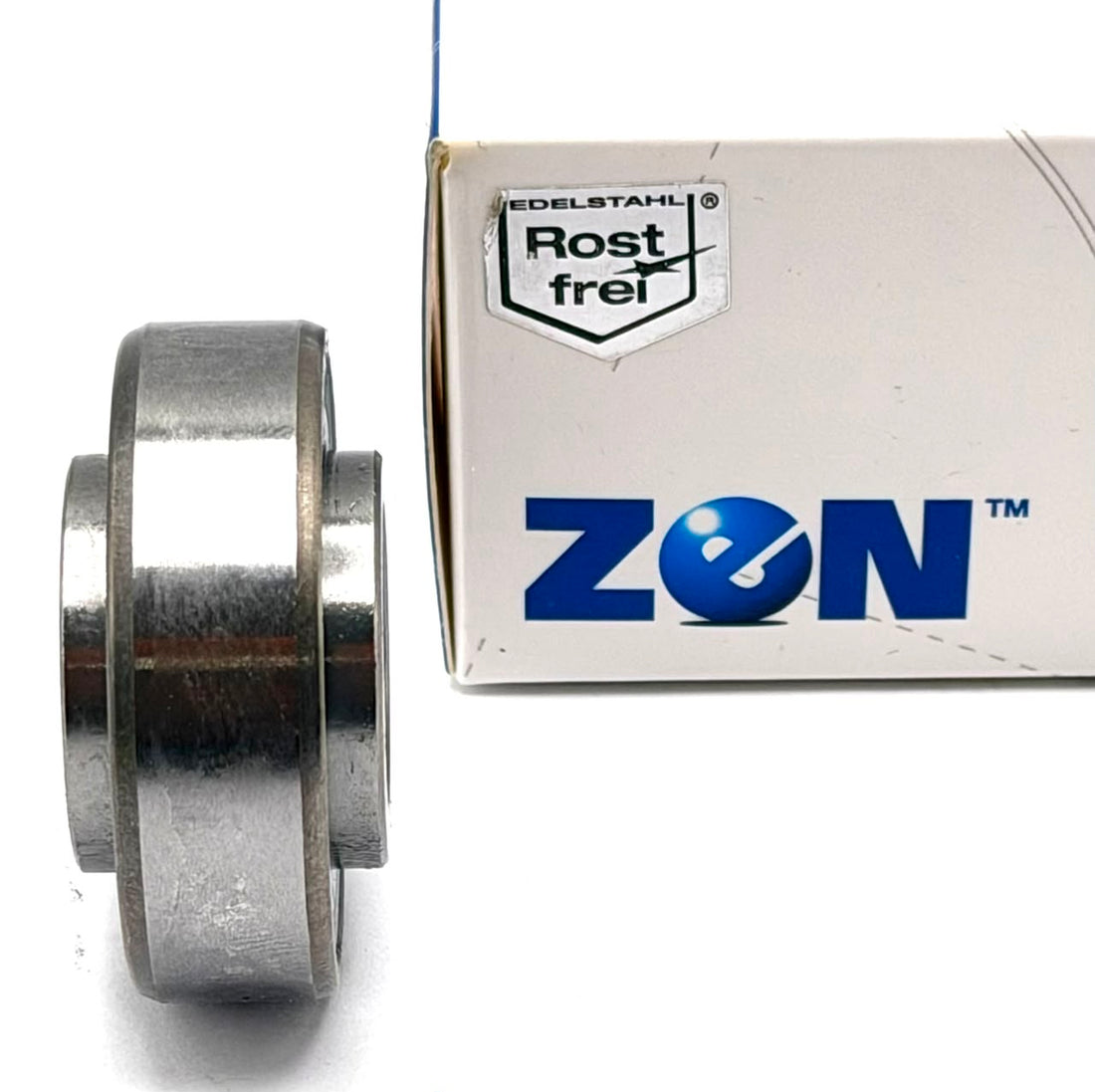

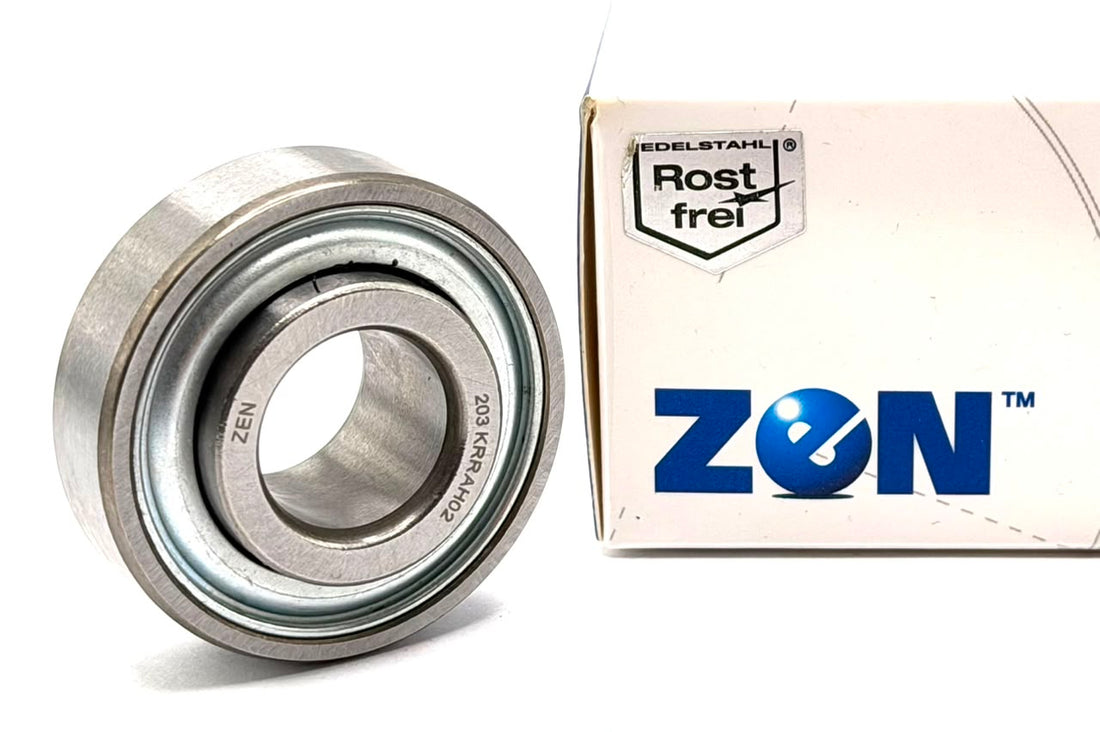

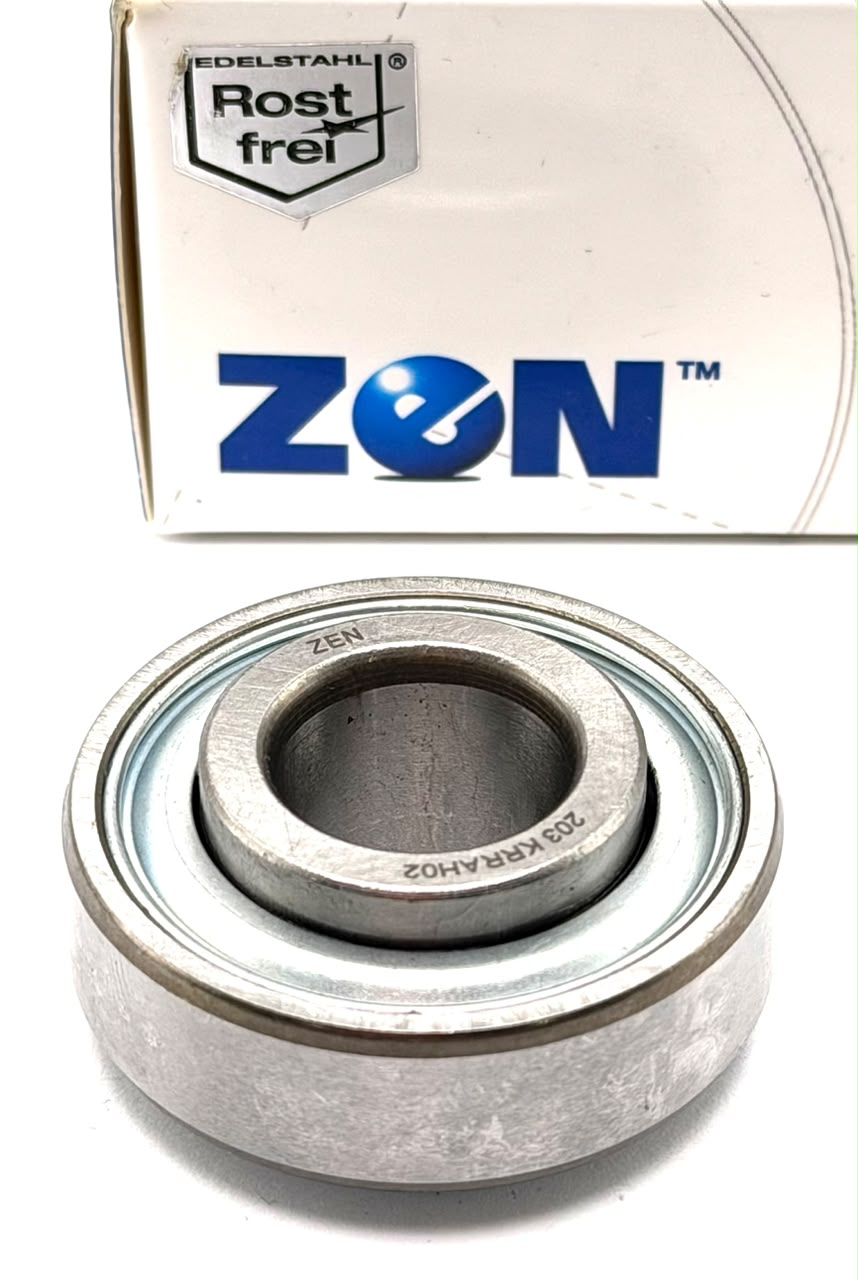

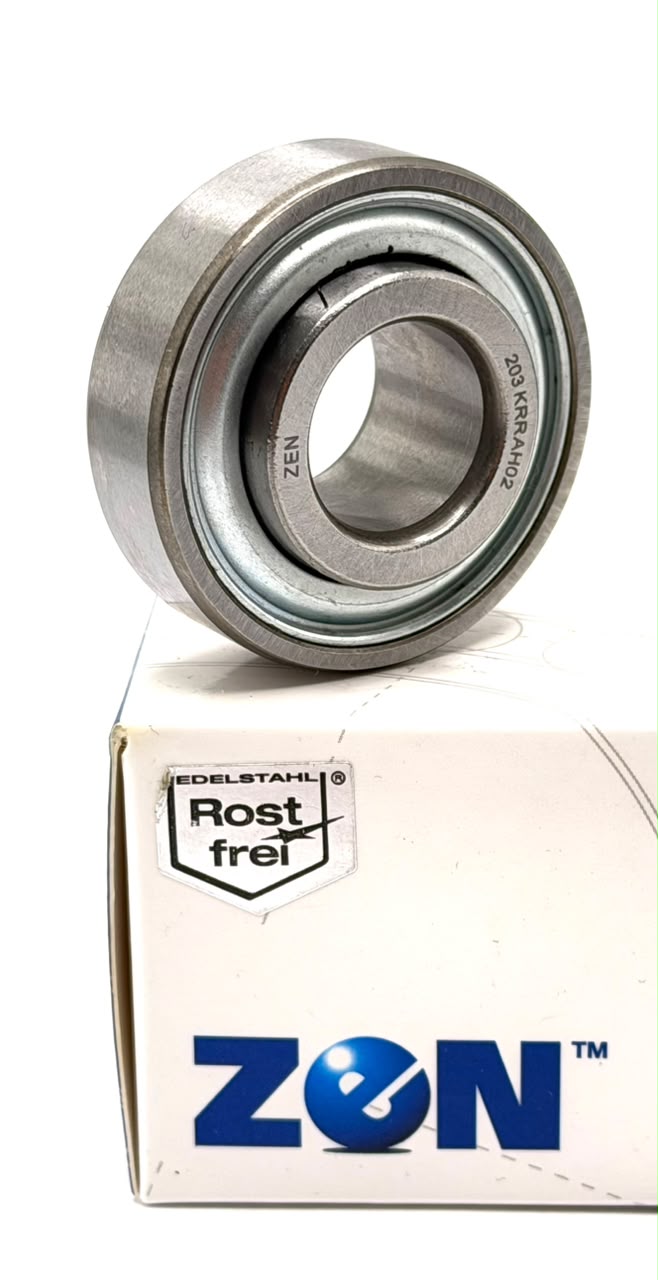

ZEN 203KRR AH02 Radial Insert Ball Bearing 2RS 16.2x40x18.3 mm

Item Specifics:
Brand: ZEN
Model / Item Number: 203KRR AH02
Category: Deep Groove Ball Bearing / Radial Insert Ball Bearing
Bearing Type: Radial Insert Ball Bearing
Material: Standard Bearing Steel
Outer Ring: Cylindrical Outer Ring
Bore Type: Cylindrical Bore
Seal Type: 2RS / Lip Seals on Both Sides
Cage Type: Steel / Standard Cage
Fixing Method: No Additional Mounting Option
Inner Ring: Widened Inner Ring on Both Sides
Radial Internal Clearance: CN Normal Internal Play
Precision: Standard Precision
Tolerance Class: P0 / PN2 / ABEC 1
Lubrication: Standard Lubrication
Heat Stabilization: No Heat Stabilization, temperatures up to 120°C
Temperature Range: -20°C to +120°C
External Modification: No External Modification
Special Treatment: No Special Treatment
Customs Tariff Number: 8482 1090
Quantity Available: 1 pc
Weight: 0.060 kg approx.

Dimensions:
Inner Diameter: 16.2 mm / 0.6378"
Outer Diameter: 40 mm / 1.5748"
Width: 18.3 mm / 0.7205"

Suffix Description:
AH02: Different inner diameter from the basic part number

Description:
This listing is for one ZEN 203KRR AH02 radial insert ball bearing.

The 203KRR AH02 is a sealed radial insert ball bearing with a cylindrical bore, cylindrical outer ring, widened inner ring on both sides, and rubber lip seals on both sides. The 2RS seals help retain lubricant while protecting the bearing from dust, dirt, and contamination.

The AH02 suffix indicates a different inner diameter from the basic part number. This bearing has a 16.2 mm bore, 40 mm outside diameter, and 18.3 mm width.

Radial insert ball bearings are commonly used in agricultural equipment, conveyors, machinery, light industrial equipment, mounted bearing applications, and general mechanical assemblies.

Main Features:

·         Neutral 203KRR AH02 bearing

·         Radial insert ball bearing

·         Rubber seals on both sides

·         Cylindrical outer ring

·         Cylindrical bore

·         Widened inner ring on both sides

·         16.2 mm bore size

·         40 mm outside diameter

·         18.3 mm width

·         CN normal internal clearance

·         Standard lubrication

·         Helps retain lubricant and protect against contamination

·         Suitable for agricultural, industrial, and mechanical applications

Please verify all dimensions, part number, seal type, bore size, and specifications before purchasing to make sure this item fits your application.

Package Includes: One (01)  ZEN Bearing 203 KRRA H02
