SKF YAT205-100 Insert Ball Bearing 1" Bore GAY100 NPP-B-AS2/V  25.4x52x27.2 mm

Item Specifics:
Brand: SKF
Model / Item Number: YAT205-100
Also Known As: GAY100-NPP-B-AS2/V
EAN: 7316571504582
Manufacturer Part Number: 7316571504582
Category: Bearings for Housings
Bearing Type: Radial Insert Ball Bearing / Insert Ball Bearing
Outer Ring Design: Spherical / Rounded Outer Ring
Bore Type: Cylindrical Bore
Fixing Method: Threaded Pins / Set Screws
Inner Ring: Widened Inner Ring on One Side
Seal Type: 2F - Standard Seal for Y-Bearings
Sealing: Double-Sided Lip Seal Covered with a Plate
Material: Standard Bearing Steel
Tolerance Class: P0 / PN2 / ABEC 1
Lubrication: Standard Lubrication
Special Treatment: No Special Treatment
Country of Origin: Italy
Customs Tariff Number: 8482 1090
Quantity Available: 34 pcs
Weight: 0.13 kg approx.

Dimensions:
Bore Diameter: 25.4 mm / 1"
Outside Diameter: 52 mm / 2.0472"
Overall Width: 27.2 mm / 1.0709"
Outer Ring Width: 15 mm

Load & Speed Ratings:
Dynamic Load Rating: 14,000 N
Static Load Rating: 7,800 N
Limiting Speed: 7,000 rpm

Description:

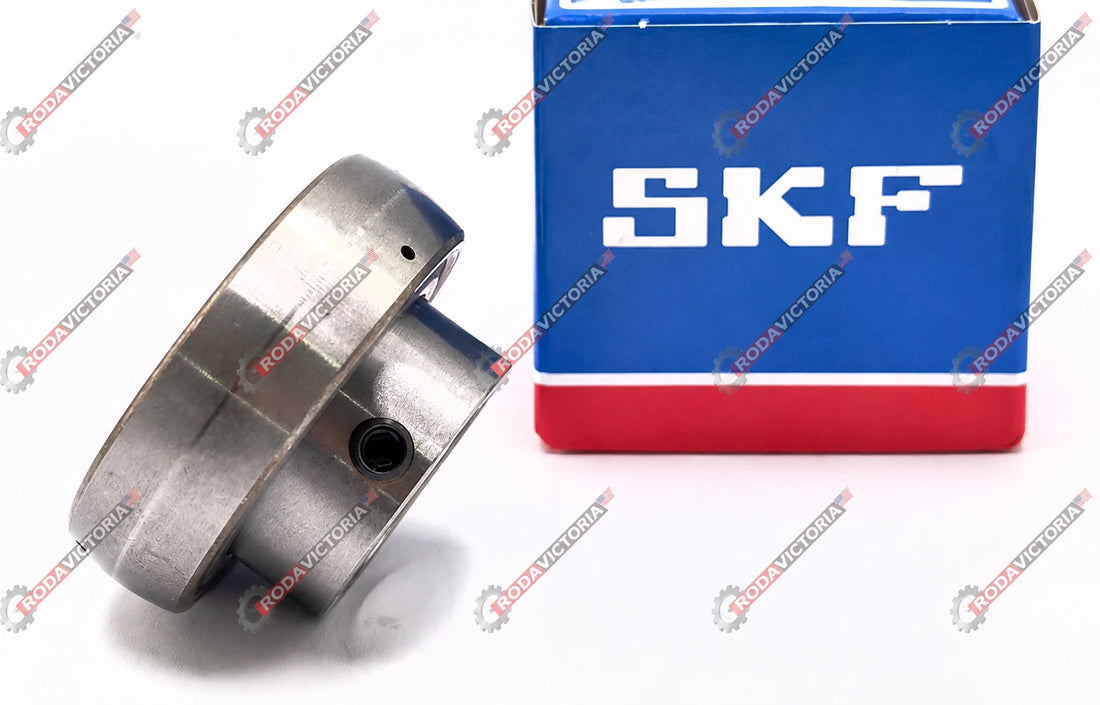

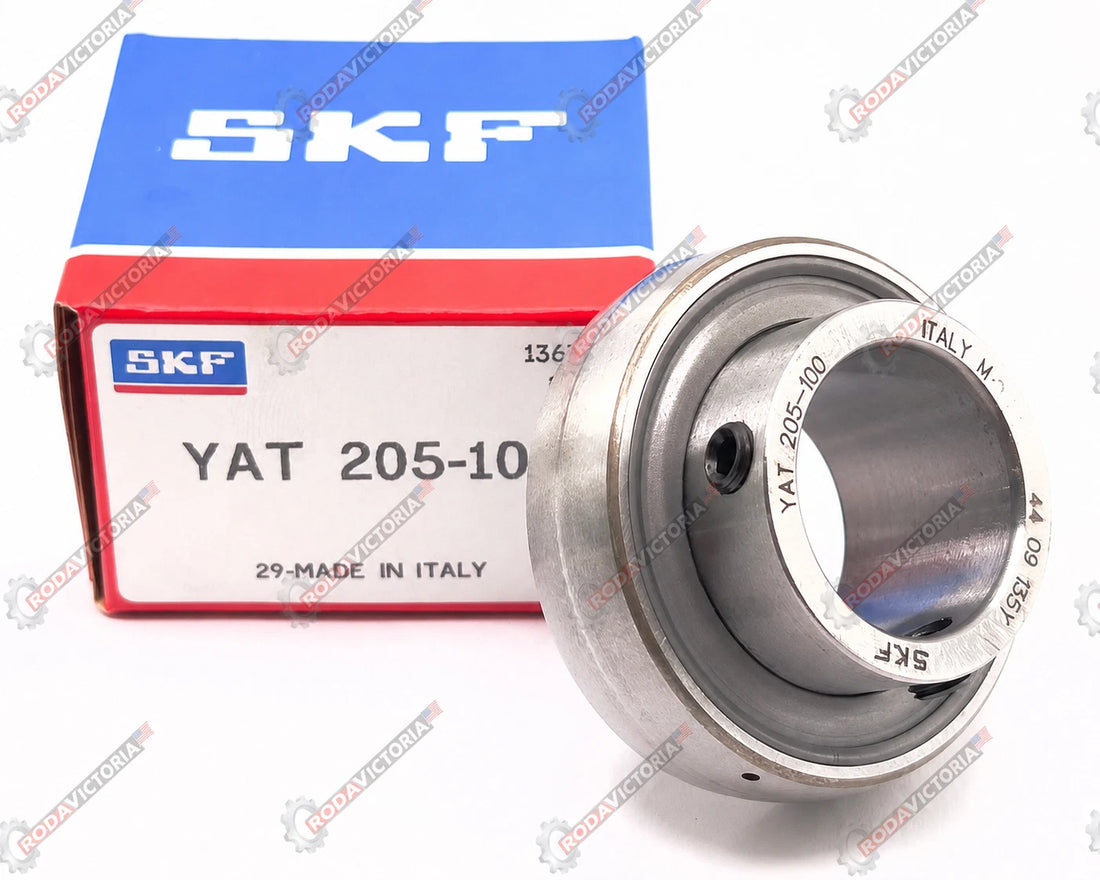

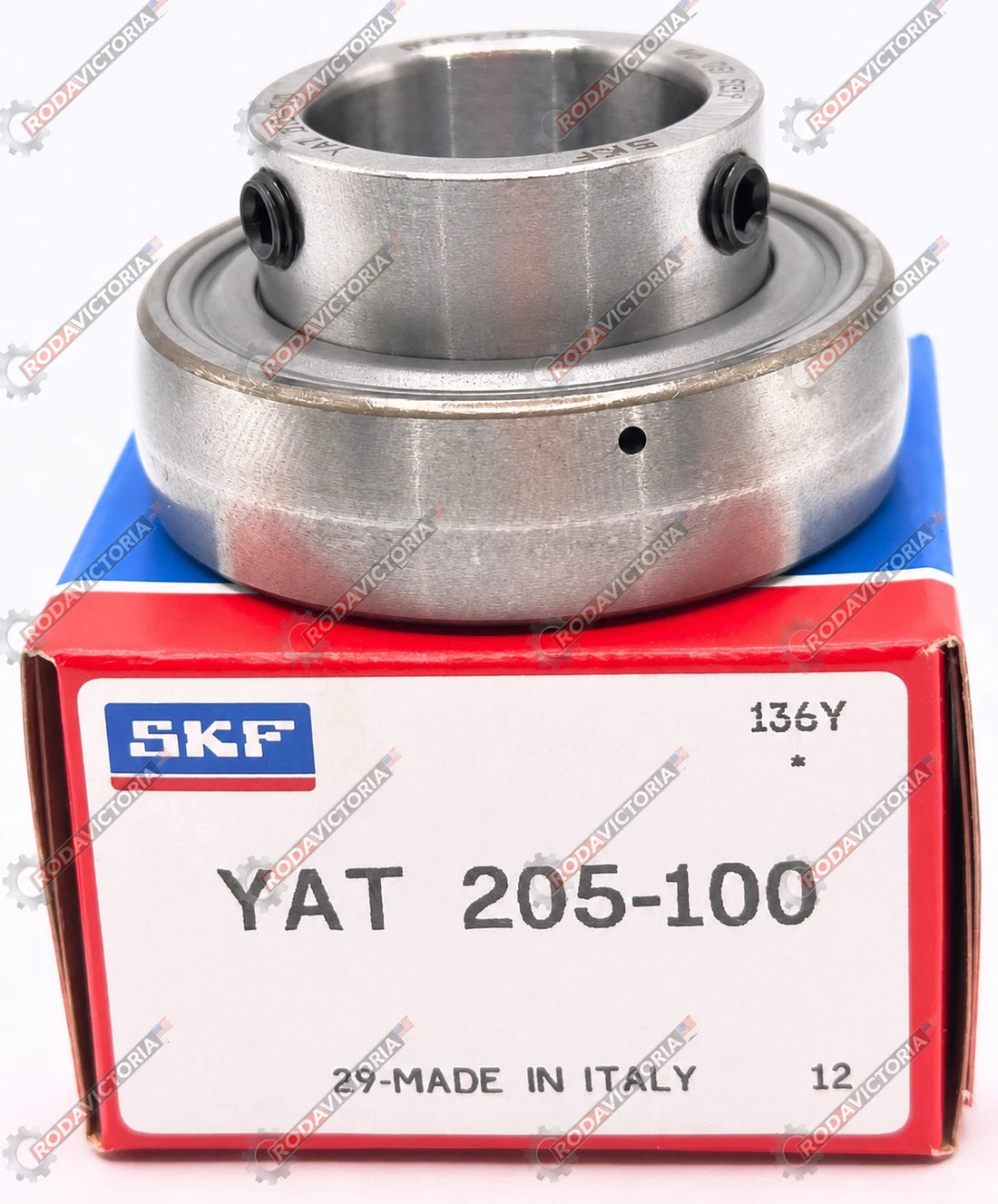

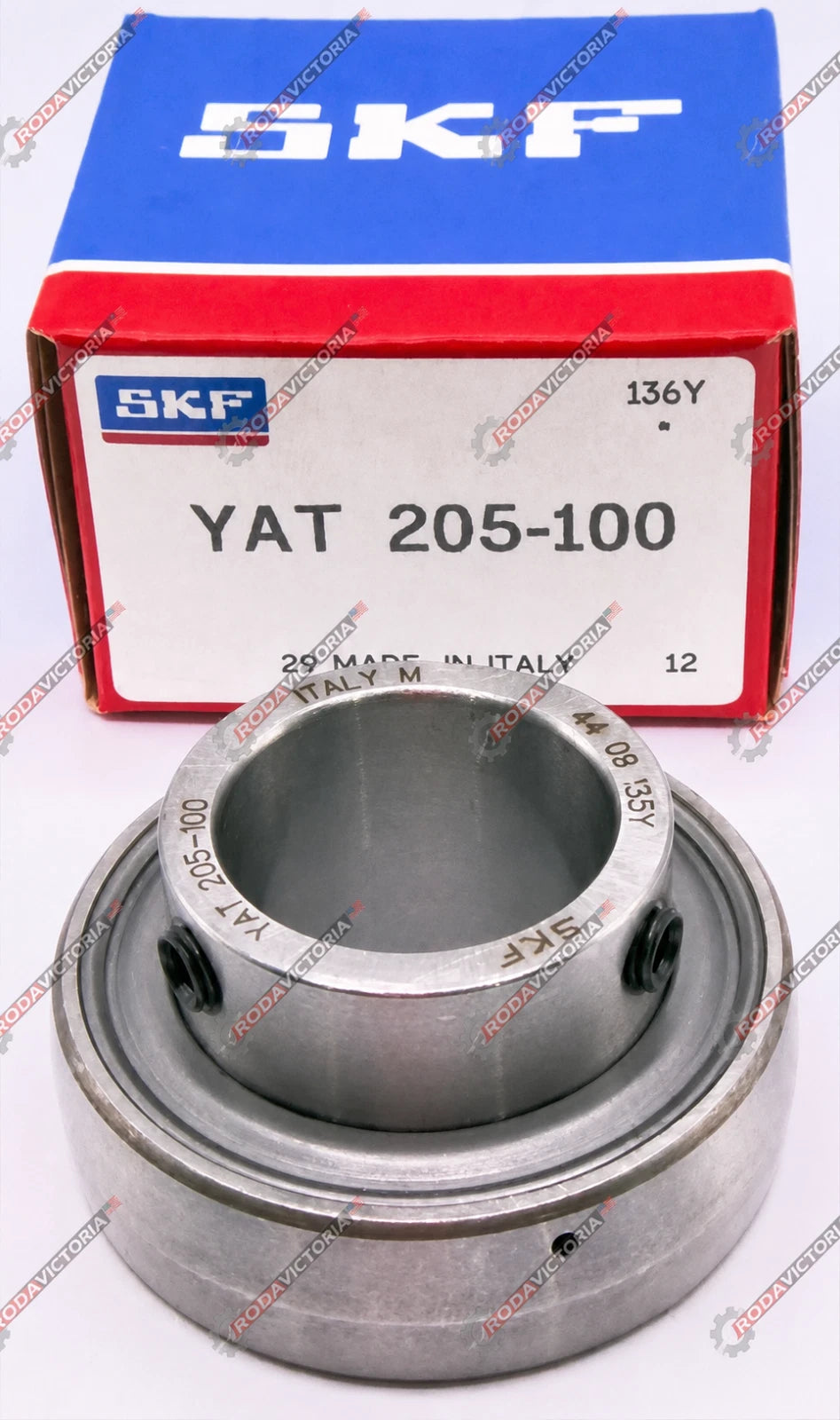

This listing is for one SKF YAT205-100 insert ball bearing.

The YAT205-100 is a 1" bore radial insert ball bearing designed for use in compatible bearing housings. It features a spherical / rounded outer ring, cylindrical bore, widened inner ring on one side, and threaded pins for shaft fixing.

This SKF insert bearing includes double-sided lip seals covered with a plate to help protect the bearing from contamination and retain lubricant during operation. It is commonly used in mounted bearing units for agricultural equipment, conveyors, fans, material handling equipment, industrial machinery, and general mechanical applications.

Main Features:

·         Genuine SKF YAT205-100 insert bearing

·         1" bore size

·         Also known as GAY100-NPP-B-AS2/V

·         Radial insert ball bearing

·         Spherical / rounded outer ring

·         Widened inner ring on one side

·         Threaded pin / set screw locking

·         Double-sided lip seal covered with plate

·         Standard lubrication

·         25.4 mm bore size

·         52 mm outside diameter

·         27.2 mm overall width

·         Dynamic load rating: 14,000 N

·         Static load rating: 7,800 N

·         Limiting speed: 7,000 rpm

·         Suitable for bearing housings and mounted bearing units

·         Made in Italy

Please verify all dimensions, part number, bore size, locking style, seal type, housing compatibility, and application requirements before purchasing to make sure this item fits your application.



 PACKAGE INCLUDES: ONE (1) SKF Bearing YAT205-100
