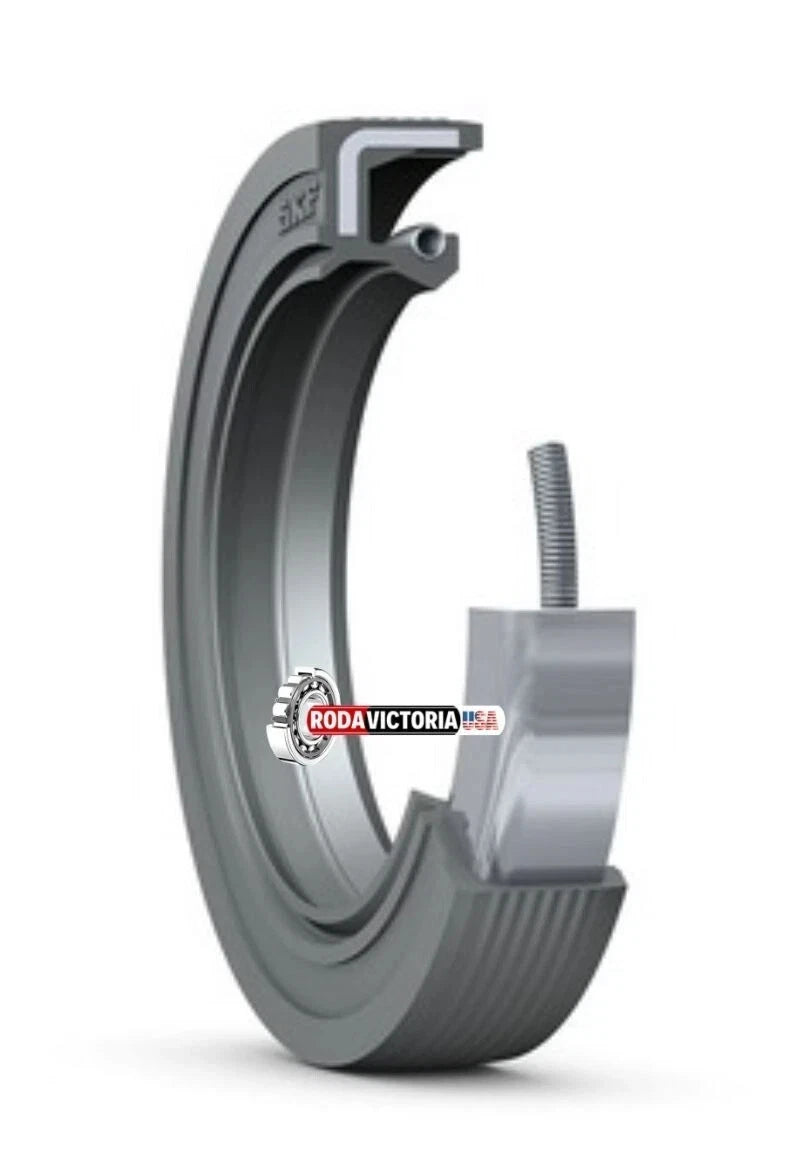

SKF 44X65X10 HMSA10 RG Double Lip Oil Seal NBR 44x65x10mm

Item Specifics:
Brand: SKF
Model / Item Number: 44X65X10HMSA10RG
Also Written As: 44X65X10 HMSA10 RG
EAN: 7316572551349
Category: CR Axle Repair / Seal
Seal Type: Double Lip Radial Shaft Seal
Design: HMSA10
Material: RG - Nitrile Rubber / NBR
Outside Diameter Type: Rubber Outside Diameter
Lip Design: Main Sealing Lip with Auxiliary Lip
Spring Type: Garter Spring
Application Type: Rotating Shaft / Radial Shaft Sealing
Weight: 0.029 kg approx.

Dimensions:
Shaft Diameter / Inner Diameter: 44 mm / 1.7323"
Housing Bore / Outer Diameter: 65 mm / 2.5591"
Width: 10 mm / 0.3937"

Operating Data:
Maximum Speed: 3,180 rpm
Permissible Circumferential Speed: 7.32 m/s
Operating Temperature: -40°C to +100°C
Sealing Material Temperature Range: Nitrile Rubber / NBR, -30°C to +100°C

Suffix Description:
HMSA10: SKF radial shaft seal design with rubber outside diameter, conventional sealing lip, garter spring, and auxiliary lip
RG: Acrylonitrile-butadiene rubber / NBR, suitable for -40°C to +100°C

Description:
This listing is for one SKF 44X65X10 HMSA10 RG double lip radial shaft oil seal.

The HMSA10 RG seal is designed for use between rotating and stationary machine components, or between components in relative motion. It features a rubber outside diameter, a conventional elastomer sealing lip, a garter spring, and an auxiliary lip to help improve sealing performance in contaminated or polluted environments.

The nitrile rubber sealing material provides reliable lubricant retention and contaminant exclusion in many standard automotive, axle, industrial, gearbox, motor, pump, and mechanical shaft sealing applications.

This seal measures 44 mm shaft diameter, 65 mm housing bore diameter, and 10 mm width.

Main Features:

·         Genuine SKF 44X65X10 HMSA10 RG oil seal

·         Double lip radial shaft seal

·         HMSA10 seal design

·         Nitrile rubber / NBR sealing material

·         Rubber outside diameter

·         Auxiliary lip for added protection

·         Garter spring for improved shaft sealing

·         44 mm shaft size

·         65 mm outside diameter

·         10 mm width

·         Maximum speed: 3,180 rpm

·         Operating temperature: -40°C to +100°C

·         Helps retain lubricant

·         Helps exclude dirt, dust, moisture, and contaminants

·         Suitable for axle repair, gearbox, motor, pump, and industrial shaft sealing applications

Please verify all dimensions, part number, seal design, material, speed rating, temperature range, and application compatibility before purchasing to make sure this item fits your application.

 Package Includes: One (01)  SKF Seal 44x65x10 HMSA10 RG
