Description:





•

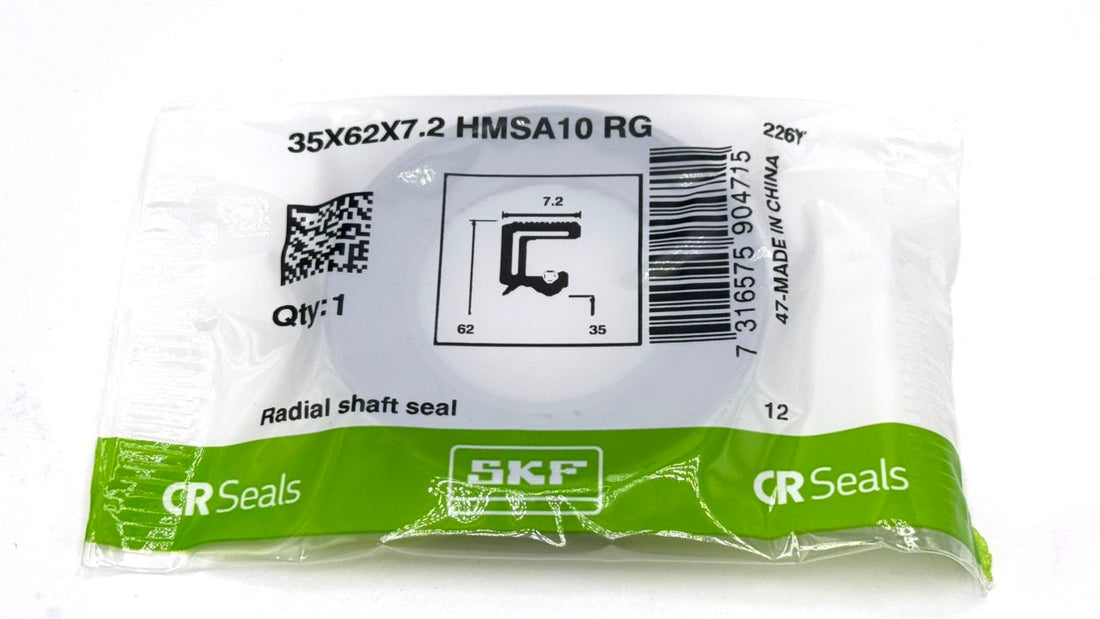

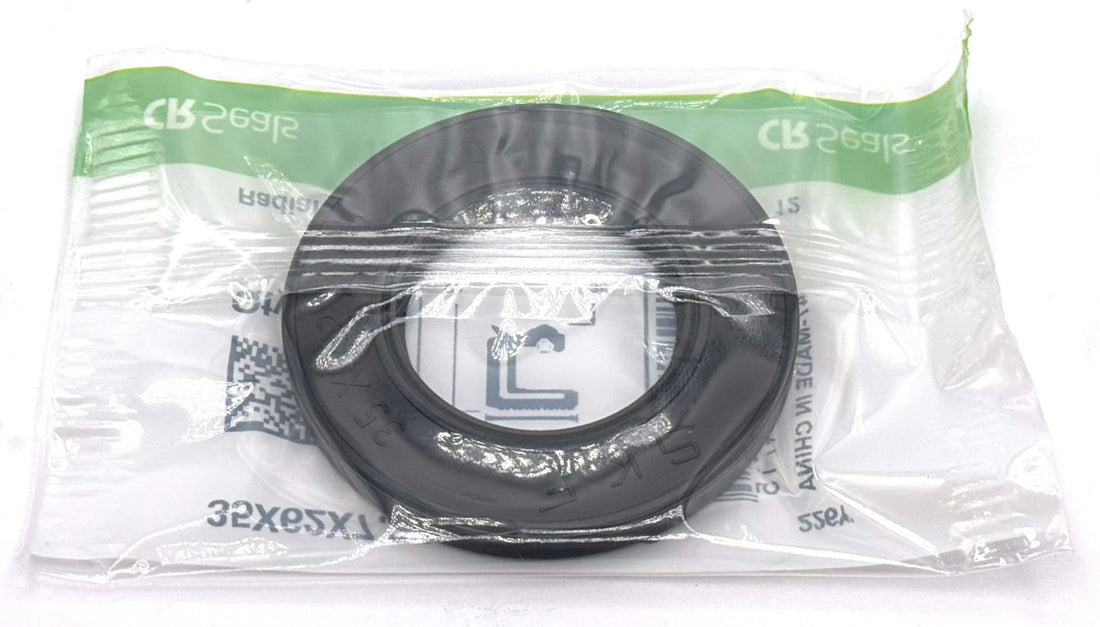

  SKF 35X62X7.2 HMSA10 RG Radial Shaft Seal

  Brand: SKF
  Item Number: 35X62X7.2 HMSA10 RG SKF
  Category: Radial Shaft Seal / Oil Seal
  Seal Design: HMSA10
  Type: Double Lip Seal
  Application: Oil or Grease Sealing
  Unit System: Metric
  Compliance Standard: ISO 6194 / DIN 3760

  Product Description

  SKF 35X62X7.2 HMSA10 RG is a radial shaft seal designed for use between rotating and stationary machine components, or between components in relative motion.

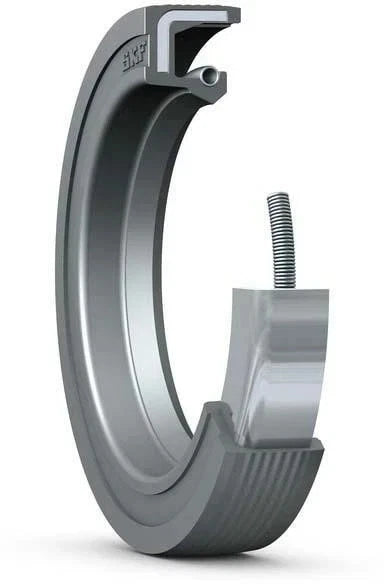

  The HMSA10 design features a rubber outside diameter, a conventional elastomer sealing lip, a garter spring, and a non-contacting auxiliary lip. This helps optimize sealing performance against the shaft and improves contamination exclusion in polluted environments.

  Key Features

  Rubber Outside Diameter: Helps provide reliable sealing in the housing bore
  Auxiliary Dust Lip: Helps improve contamination exclusion
  Garter Spring: Helps maintain proper sealing contact against the shaft
  High Pumping Rate: Designed for efficient sealing performance
  Misalignment Capability: Designed to accommodate minor misalignment
  Suitable For: Oil or grease applications

  Dimensions

  Shaft Diameter: 35 mm
  Housing Bore Diameter: 62 mm
  Seal Width: 7.2 mm
  Dimensions: 35 x 62 x 7.2 mm

  Performance

  Limiting Speed: 3,480 r/min
  Rotational Speed: 3,480 r/min
  Permissible Circumferential Speed: 6.4 m/s
  Maximum Operating Temperature: 100°C
  Minimum Operating Temperature: -40°C

  Material & Properties

  Sealing Lip Material: Nitrile Rubber / NBR
  Operating Temperature Range: -40°C to 100°C
  Outside Diameter Type: Rubber, metal reinforced
  Auxiliary Lip: Yes
  Seal Type: Double lip seal
  Weight: 0.025 kg

  Classification Codes

  eClass Code: 23-07-08-01
  UNSPSC Code: 31181602













Package Includes: ONE (1) SKF Seal 35x62x7.2 mm
