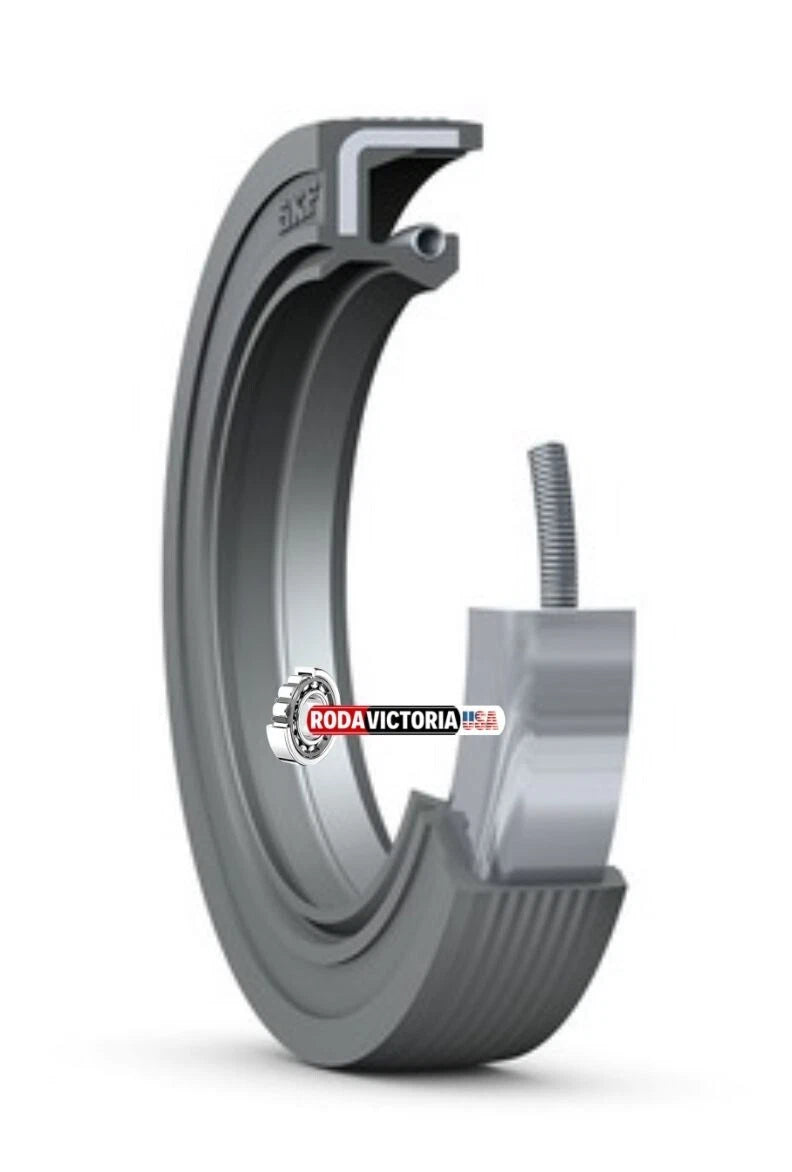

SKF 16X30X7 HMSA10 RG Double Lip Oil Seal Nitrile Rubber 16x30x7mm

Item Specifics:
Brand: SKF
Model / Item Number: 16X30X7HMSA10RG
Also Written As: 16X30X7 HMSA10 RG
EAN: 7316572548530
Category: Oil Seal / Radial Shaft Seal
Seal Type: Double Lip Oil Seal
Design: HMSA10
Material: Nitrile Rubber / NBR
Sealing Material: Nitrile Rubber, -30°C to +100°C
Outside Diameter Type: Rubber Outside Diameter
Reinforcement Ring: Carbon Steel Reinforcement Ring
Auxiliary Lip: Yes
Garter Spring: Carbon Steel or Stainless Steel Garter Spring
Operating Temperature: -40°C to +100°C
Maximum Velocity: 3,840 rpm
Permissible Circumferential Speed: 3.22 m/s
Weight: 0.010 kg approx.

Dimensions:
Inner Diameter: 16 mm / 0.6299"
Outer Diameter: 30 mm / 1.1811"
Width: 7 mm / 0.2756"

Suffix Description:
HMSA10: Seal with rubber outside diameter, carbon steel reinforcement ring, auxiliary contacting lip, and either a carbon or stainless steel garter spring
RG: Nitrile rubber

Description:
This listing is for one SKF 16X30X7 HMSA10 RG radial shaft oil seal.

The HMSA10 design is a rubber outside diameter radial shaft seal used between rotating and stationary machine components, or between components in relative motion. It features a conventional elastomer sealing lip, garter spring, and auxiliary lip.

The auxiliary lip helps provide additional protection against dust, dirt, and external contamination, making this seal suitable for polluted or demanding environments. The garter spring helps maintain sealing pressure against the shaft during operation.

The RG suffix indicates nitrile rubber material, commonly used for general oil and grease sealing applications.

Main Features:

·         Genuine SKF 16X30X7 HMSA10 RG oil seal

·         Double lip radial shaft seal

·         Nitrile rubber / NBR material

·         Rubber outside diameter

·         Auxiliary protective lip

·         Garter spring design

·         Helps retain lubricant

·         Helps protect against dust and contamination

·         16 mm shaft size

·         30 mm outside diameter

·         7 mm width

·         Operating temperature: -40°C to +100°C

·         Maximum velocity: 3,840 rpm

·         Suitable for industrial and mechanical sealing applications

Please verify all dimensions, part number, material, lip style, and specifications before purchasing to make sure this item fits your application.

 Package Includes: One (01)  SKF Seal 16x30x7 HMSA10 RG
