BRAND: NTN

ID: 4T-36690/36620

MADE IN: JAPAN

DESCRIPTION:

• Also known as 36690/36620
  36690/620
  36690-20024 / 36620-20024
  36690-99401
  4T-36690/620
• EAN 4547359531756
• Category Tapered Roller Bearing Single Row

Weight and Dimensions

• Inner (d) MM 146,05
• Outer (D) MM 193,68
• Width (B) MM 28,58
• Inner (d) Inch 5.75
• Outer (D) Inch 7.625
• Width (B) Inch 1.125
• Weight (kg) 2.26

Product Properties

• Precision Standard Precision

Product description

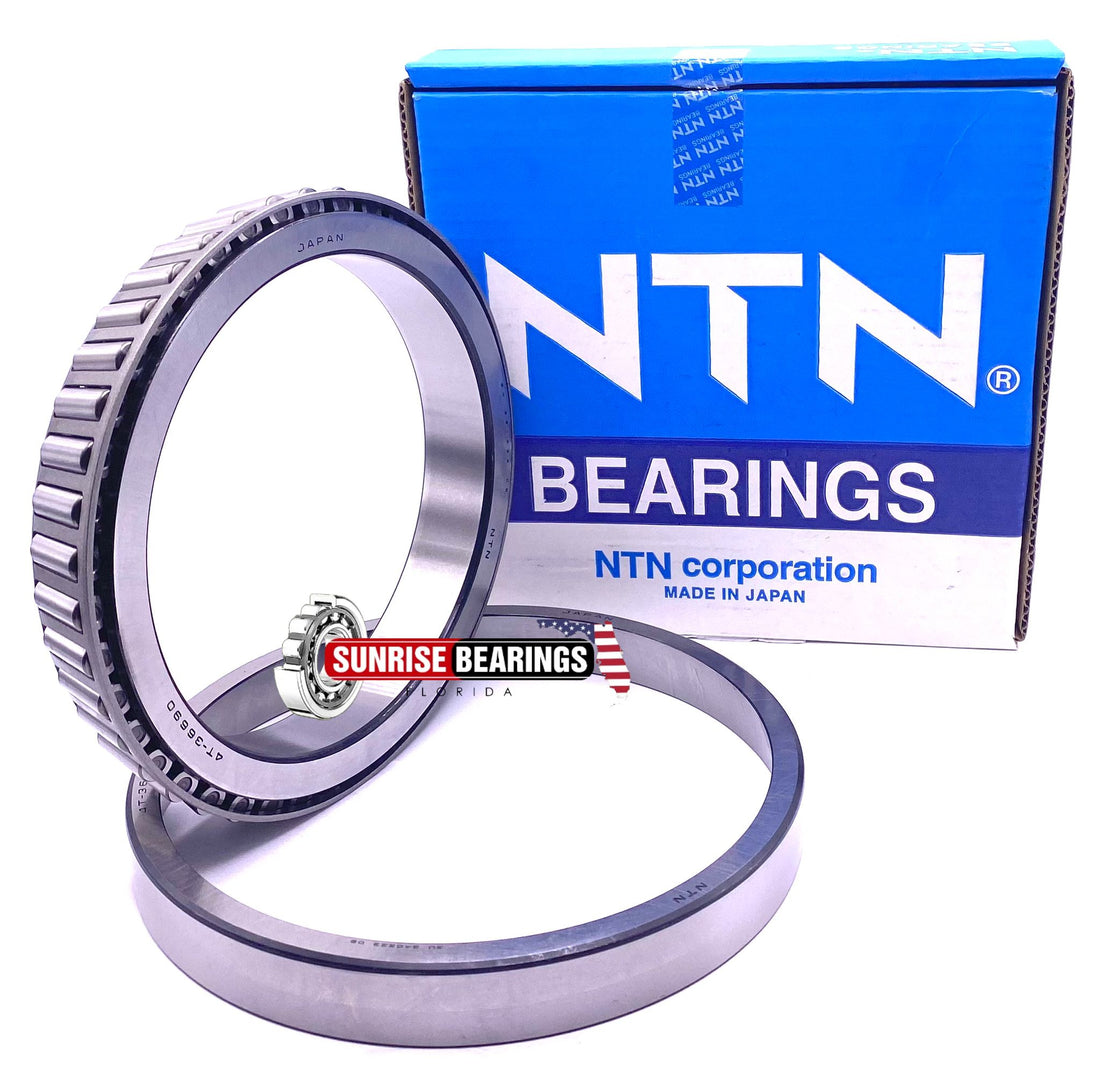

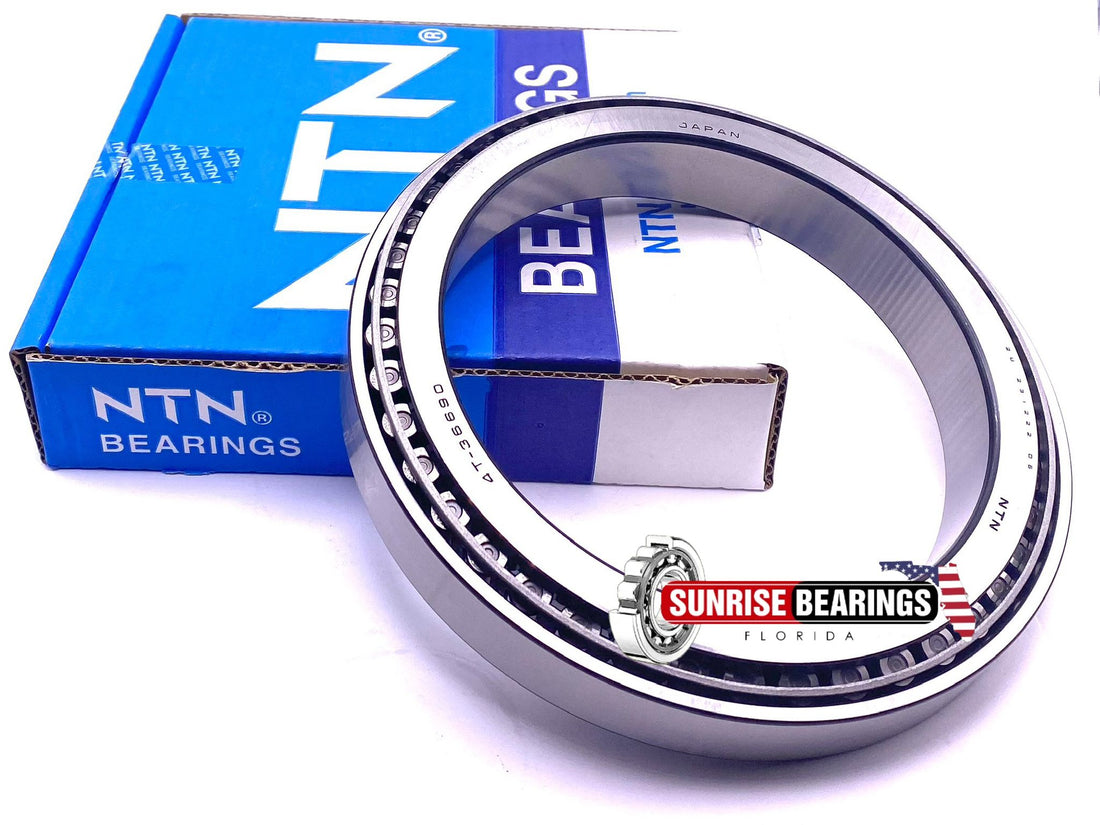

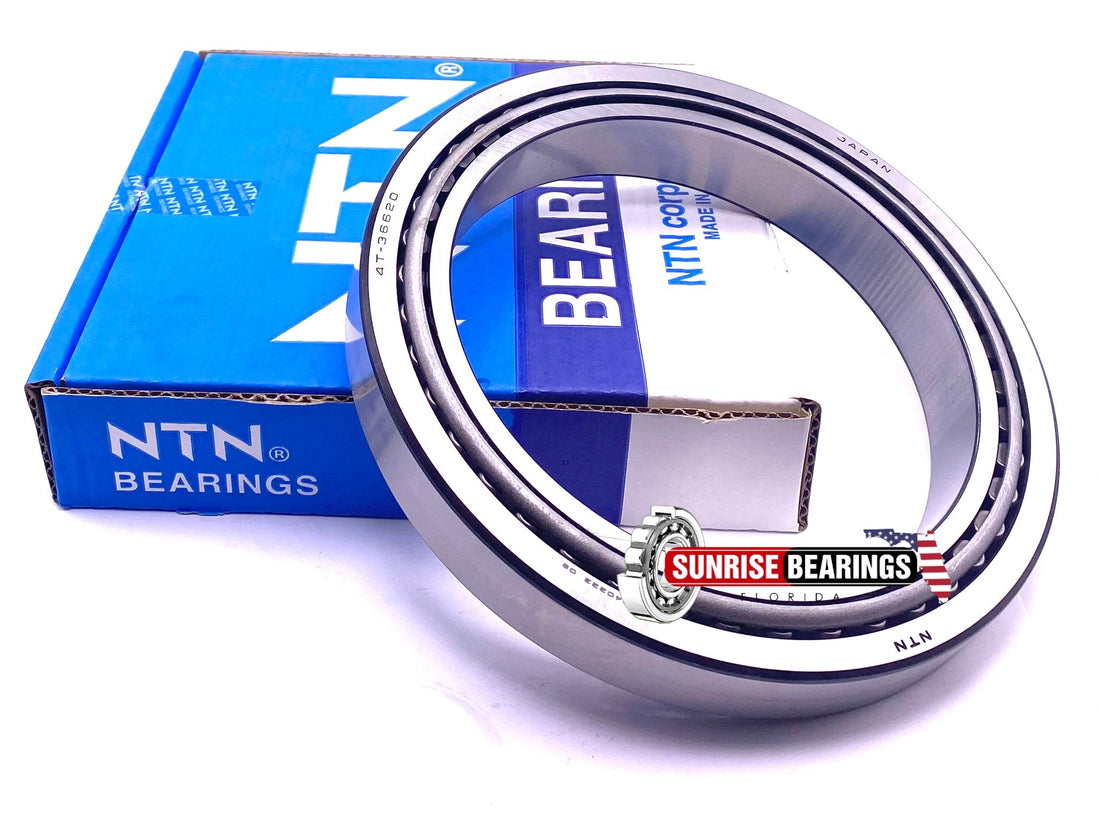

The 4T-36690/36620 NTN is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

The 4T-36690/36620 NTN is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.

Package Included: ONE NTN Bearing 36690 / 36620
