BRAND: NTN

ID: 2205

MADE IN: JAPAN

DESCRIPTION:

Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

• Inner (d) MM25,00

• Outer (D) MM52,00

• Width (B) MM18,00

• Inner (d) Inch0.9843

• Outer (D) Inch2.0472

• Width (B) Inch0.7087

• Weight (kg)0.163

Product Properties

• BoreC - Cylindrical Bore

• Seal No Seal

• Cage Type S - Steel or Standard Cage

• Radial Internal Play Cn Normal Internal Play

• Precision Standard Precision

• Lubrication Standard Lubrication

• Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

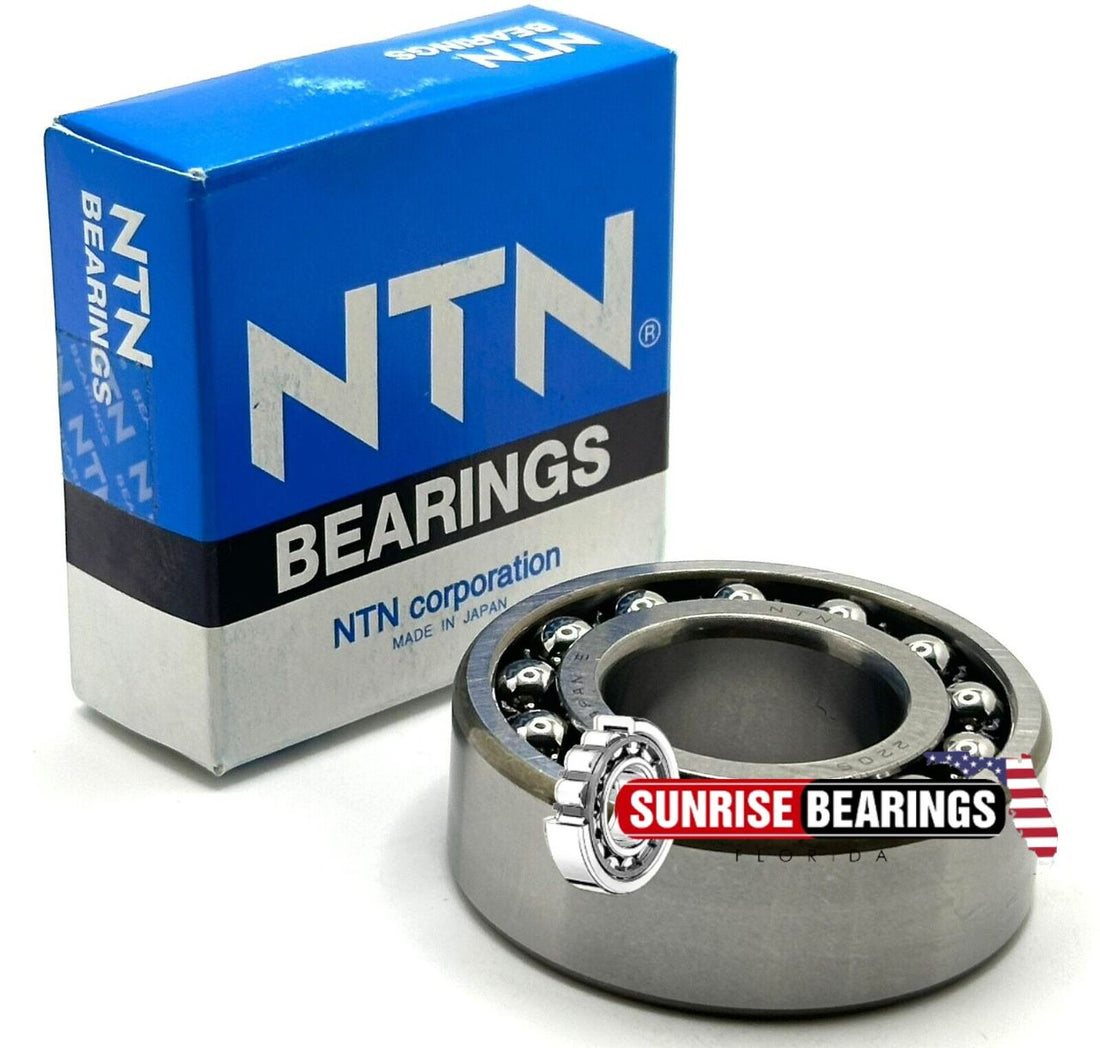

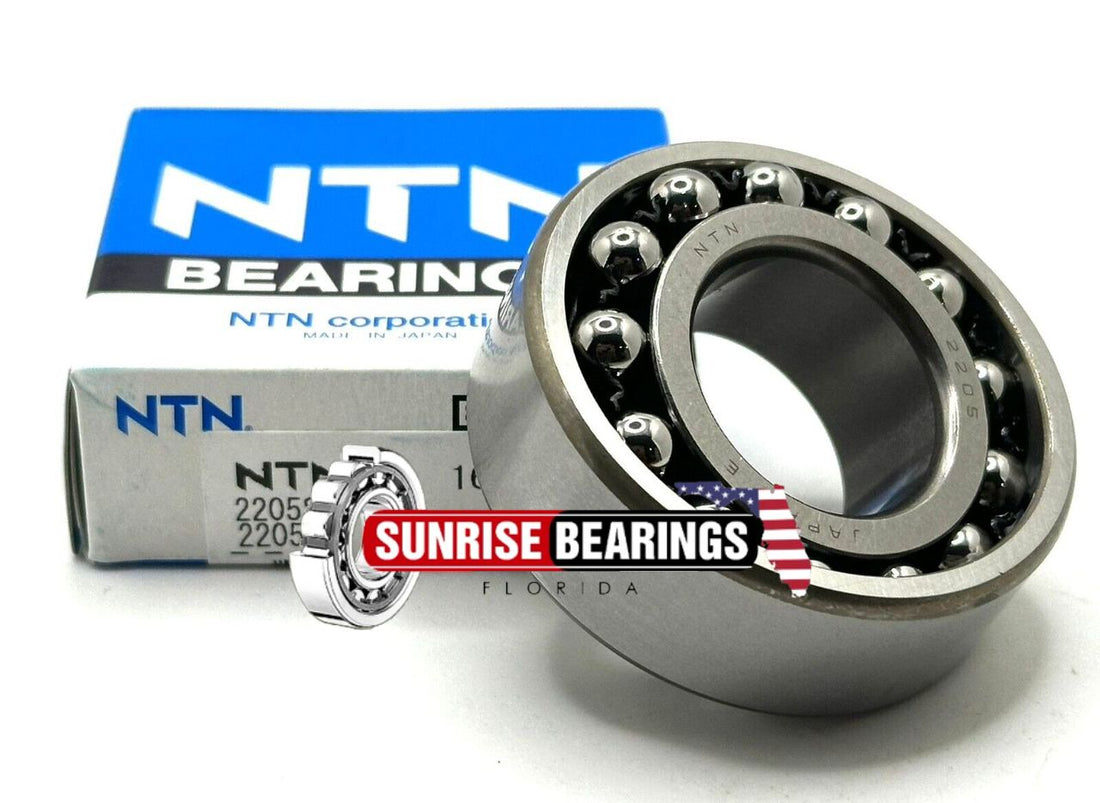

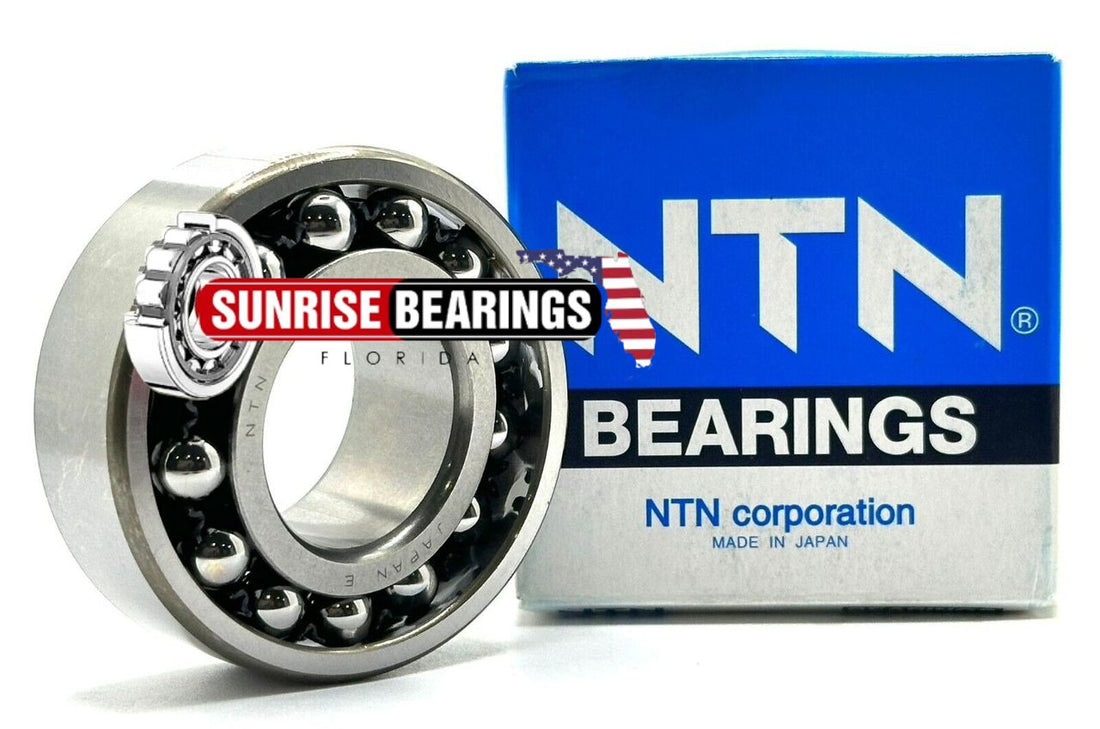

Product description

The 2205 NTN belongs to the group of double-row self-aligning deep-groove ball bearings. This bearing type without a seal is a double-row bearing. Both rows are housed in a spherical raceway in the outer ring. This construction allows the bearing to be self-aligning. This means that any misalignment of the shaft relative to the bearing housing does not adversely affect performance.

These features make the 2205 NTN highly suitable for applications where substantial misalignment or shaft deflections may occur. Also, self-aligning bearings have the lowest friction of all rolling-element bearings. Even at higher speeds, there is only limited frictional heat. These bearings are capable of handling high radial loads. To a lesser extent, they can be axially loaded in both directions.

PACKAGE INCLUDES: ONE NTN 2205
