NSK 2907 — Thrust Ball Bearing (Single Direction)

Specifications

• Brand: NSK
• Item Number / MPN: 2907
• EAN: 00029176061523
• Category: Thrust Ball Bearing — Single Direction (Axial Deep Groove Ball Bearing)

Dimensions & Weight

• Bore (d): 35 mm (1.3780 in)
• Outside Diameter (D): 55 mm (2.1654 in)
• Width (B): 16 mm (0.6299 in)
• Weight: 0.145 kg (≈ 0.32 lb)

Product Properties

• Cage Type: S — steel / standard cage (sheet steel cage)
• Precision: Standard precision (P0 / PN2 / ABEC 1)
• Material: Standard bearing steel
• Operating Temperature Range: -30°C to +150°C
• Operating Direction: Single direction (axial load in one direction only)
• Angular Adjustment: Not self-aligning / non-angle adjustable

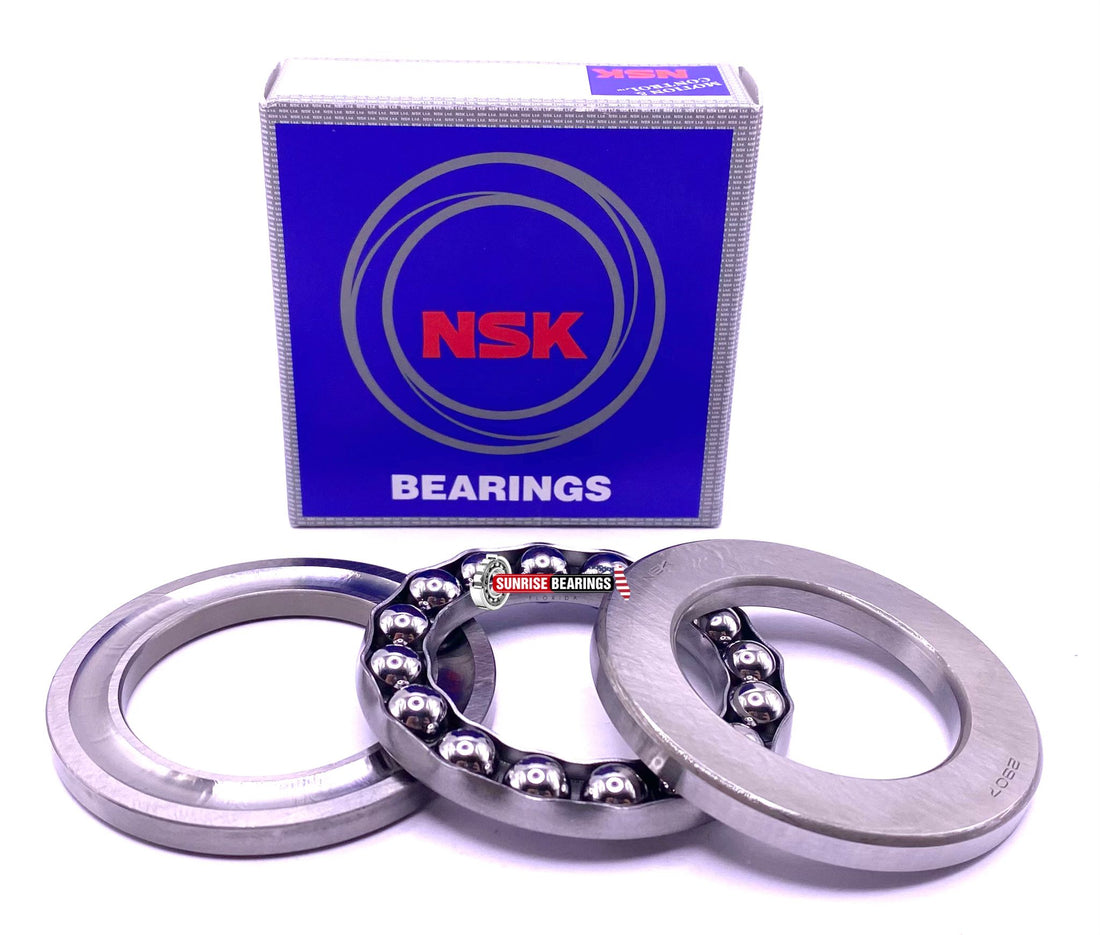

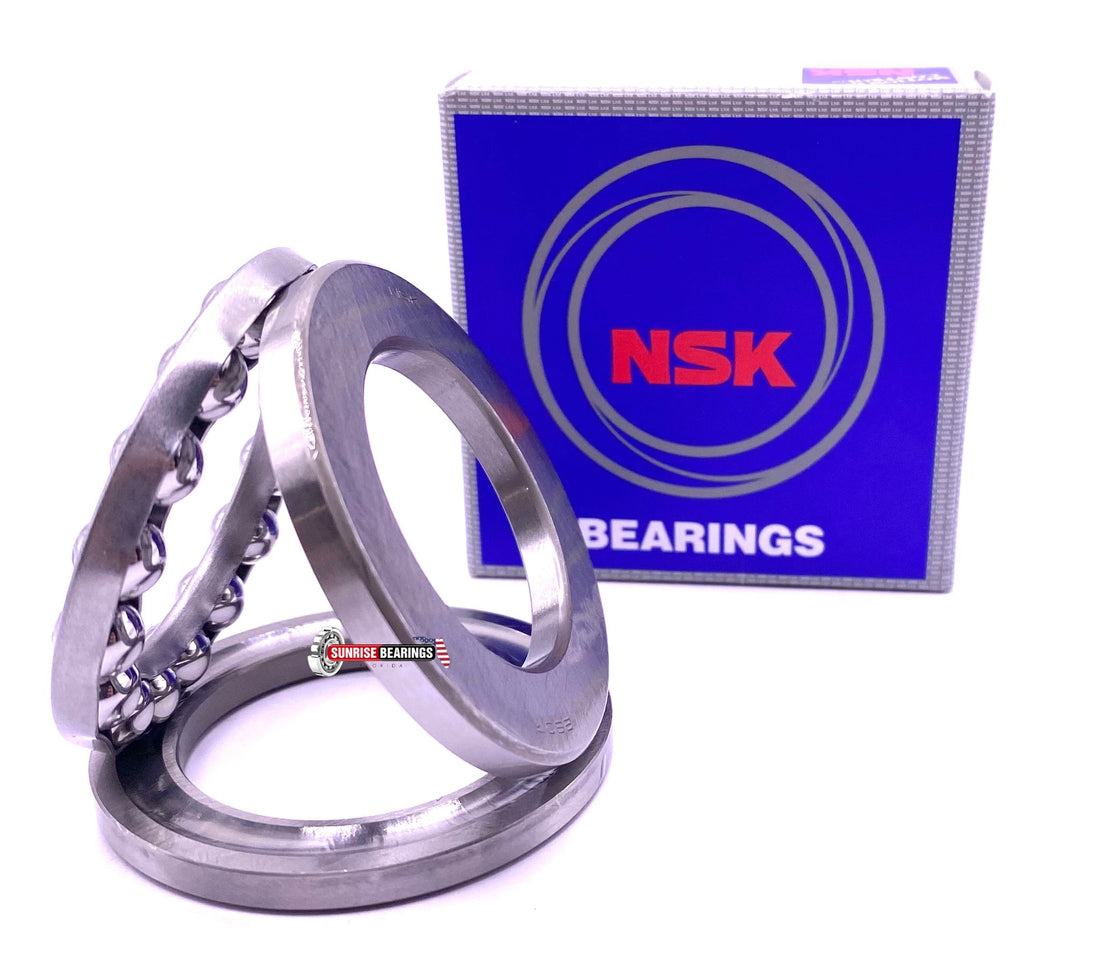

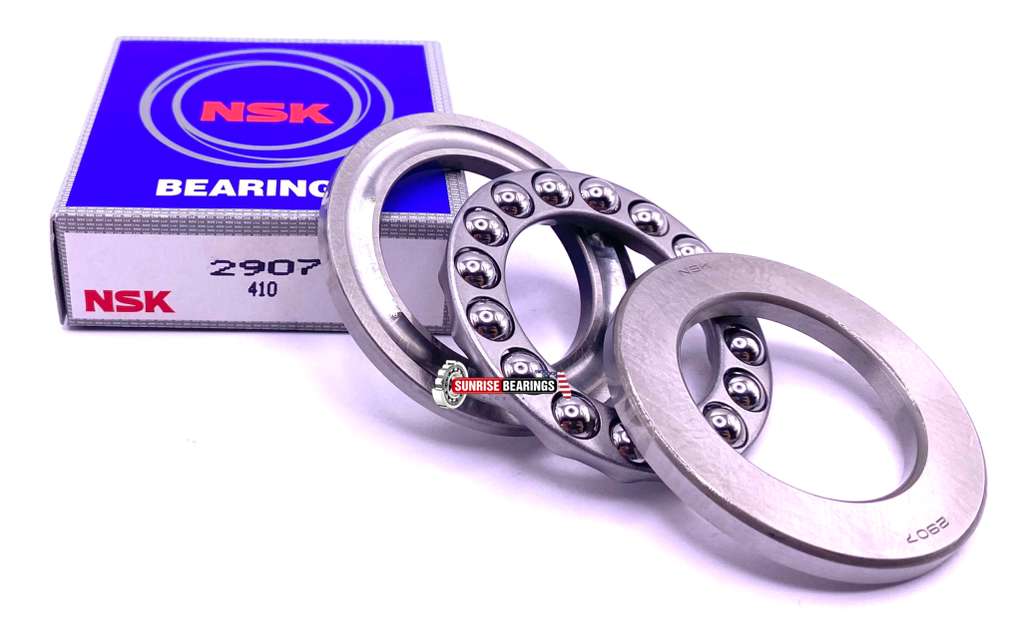

NSK 2907 single-direction thrust ball bearing (axial deep groove ball bearing), size 35 x 55 x 16 mm. Open design with a steel cage for high-speed axial load applications. Carries axial load in one direction only and should not be subjected to radial loading. The bearing is separable into a shaft ring, housing ring, and ball/cage assembly for easier installation (do not mix up the rings during assembly).

   PACKAGE INCLUDES: ONE (1) NSK Bearing 2907
