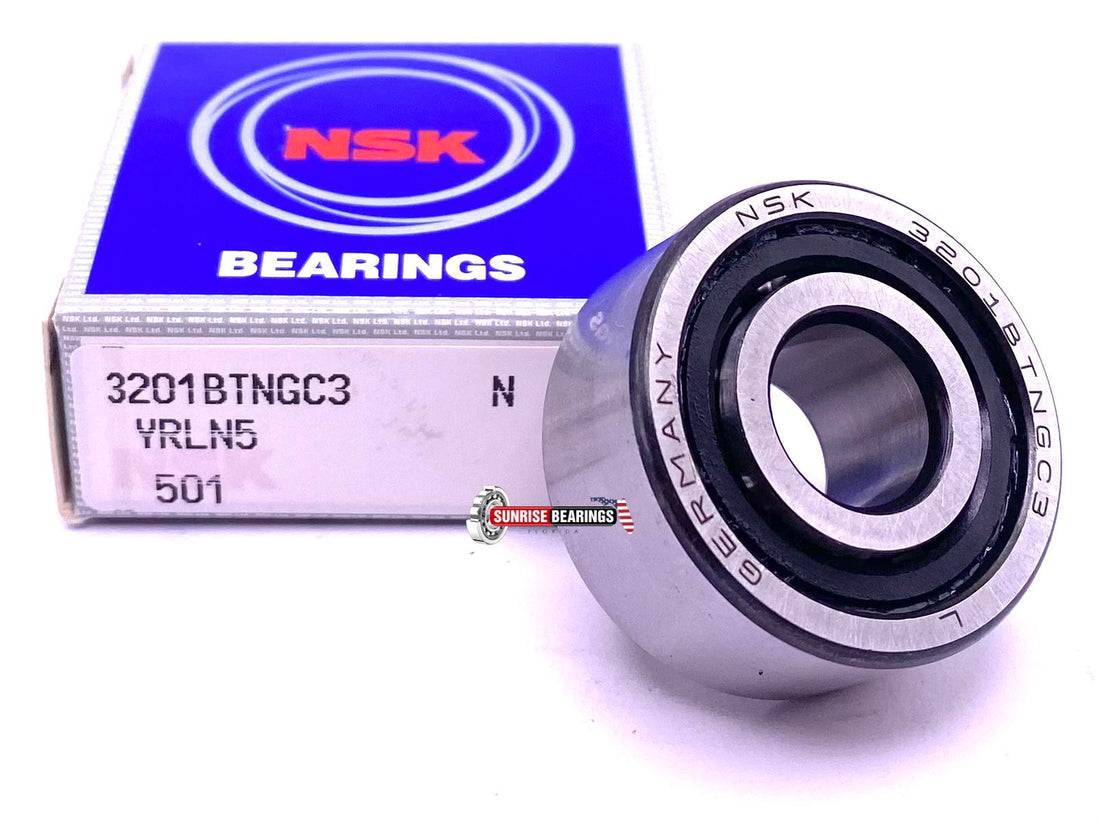

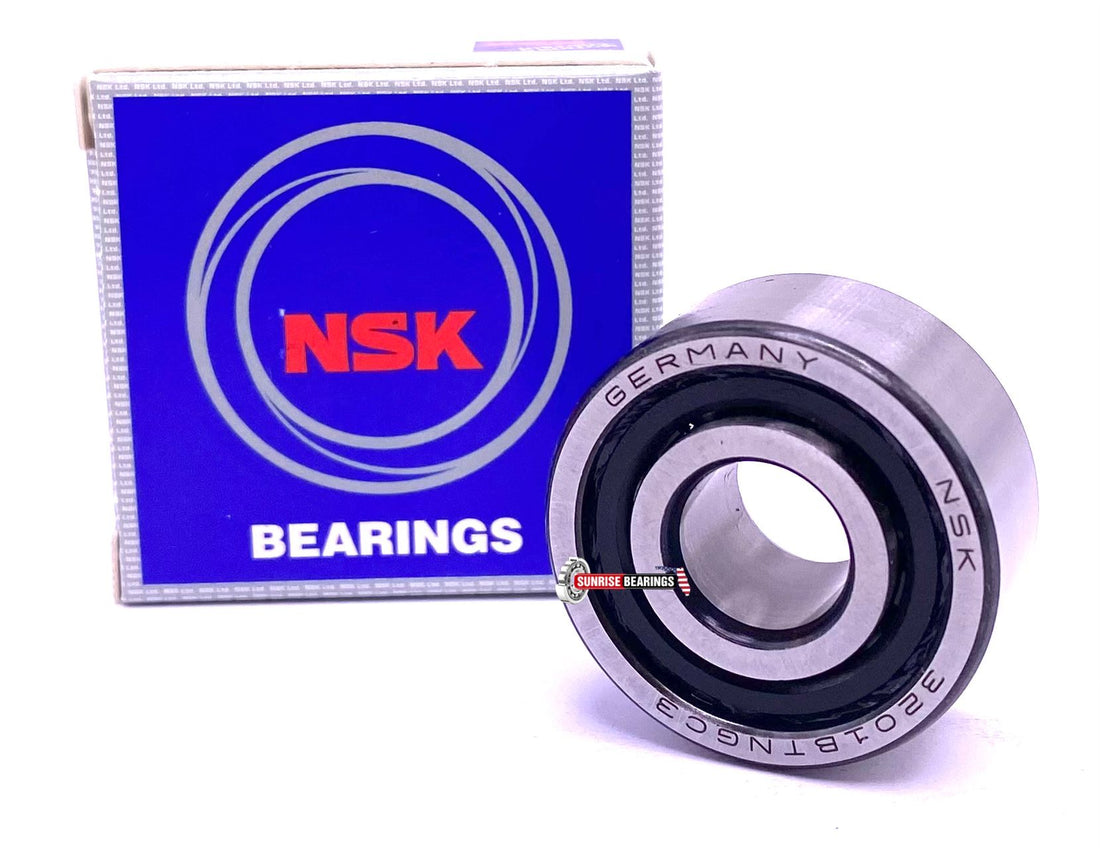

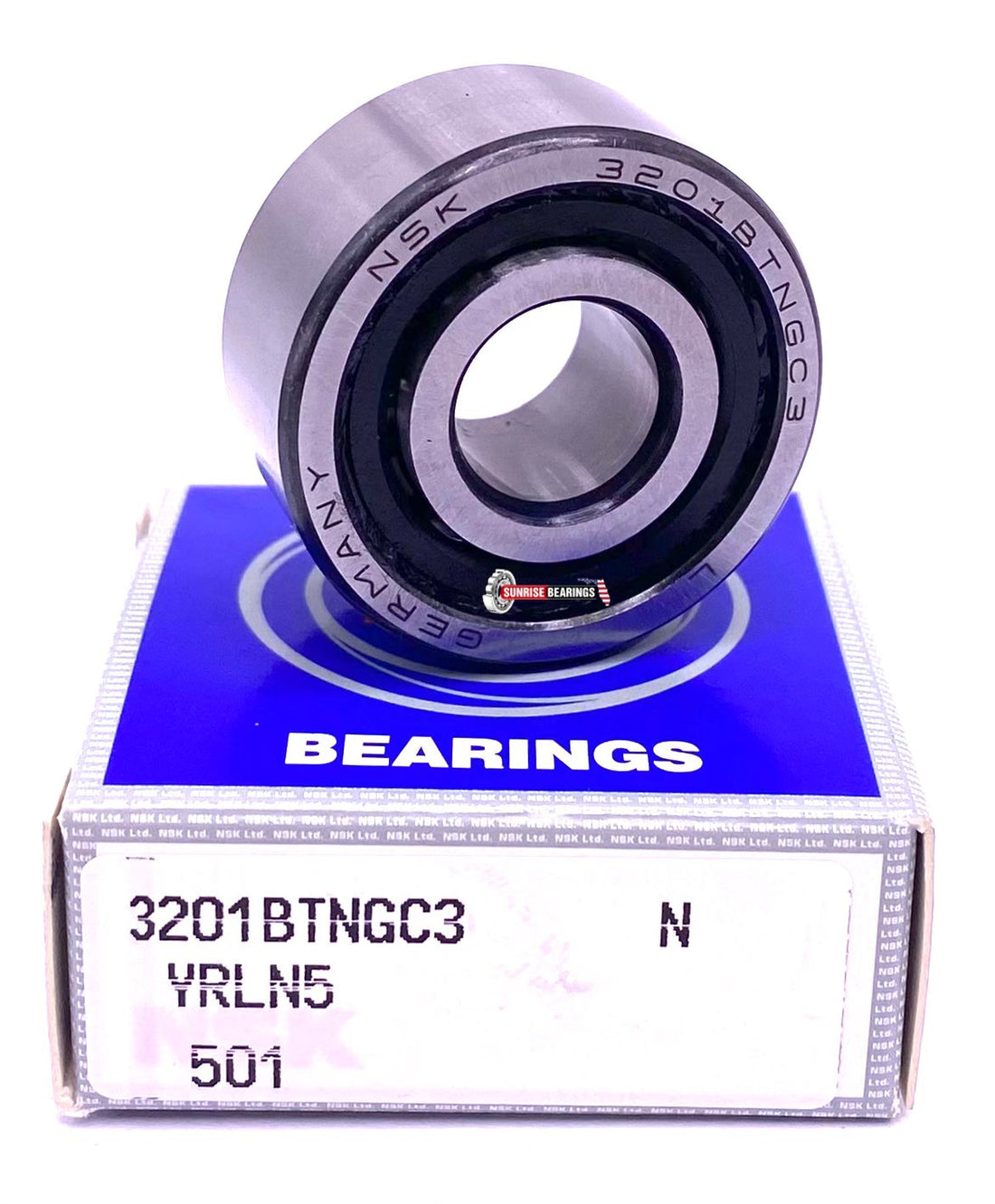

NSK 3201BTNGC3 — Technical Specifications

Brand: NSK
Product Type: Angular Contact Ball Bearing
Category: Double Row Angular Contact Ball Bearing

Identification

• Item / Part Number: 3201BTNGC3
• EAN: 00029176421426
• Customs Tariff Number: 8482 1090
• Country of Origin: Germany
• Product ID: 10097385

Dimensions & Weight

• Bore (d): 12 mm (0.4724 in)
• Outside Diameter (D): 32 mm (1.2598 in)
• Width (B): 15.9 mm (0.626 in)
• Weight: 0.06 kg

Design & Features

• Ball Rows: Double row
• Bore Type: Cylindrical bore
• Seal Type: Open (No seal)
• Cage: Glass-fibre reinforced polyamide 66 cage (Suffix TNG)
• Radial Internal Play / Clearance: C3 (increased internal clearance; higher than CN)
• Precision: Standard precision (P0 / PN2 / ABEC 1)
• Lubrication: Standard lubrication
• External Modification: None
• Split Inner / Outer Ring: Standard

Operating Conditions

• Temperature Range: -20°C to +120°C
• Heat Stabilization: No heat stabilization (up to 120°C)

Suffix Meanings

• B: 25° contact angle
• TNG: Cage made of glass-fibre reinforced polyamide 66
• C3: Internal clearance larger than normal
