Description:

Koyo

MADE IN USA

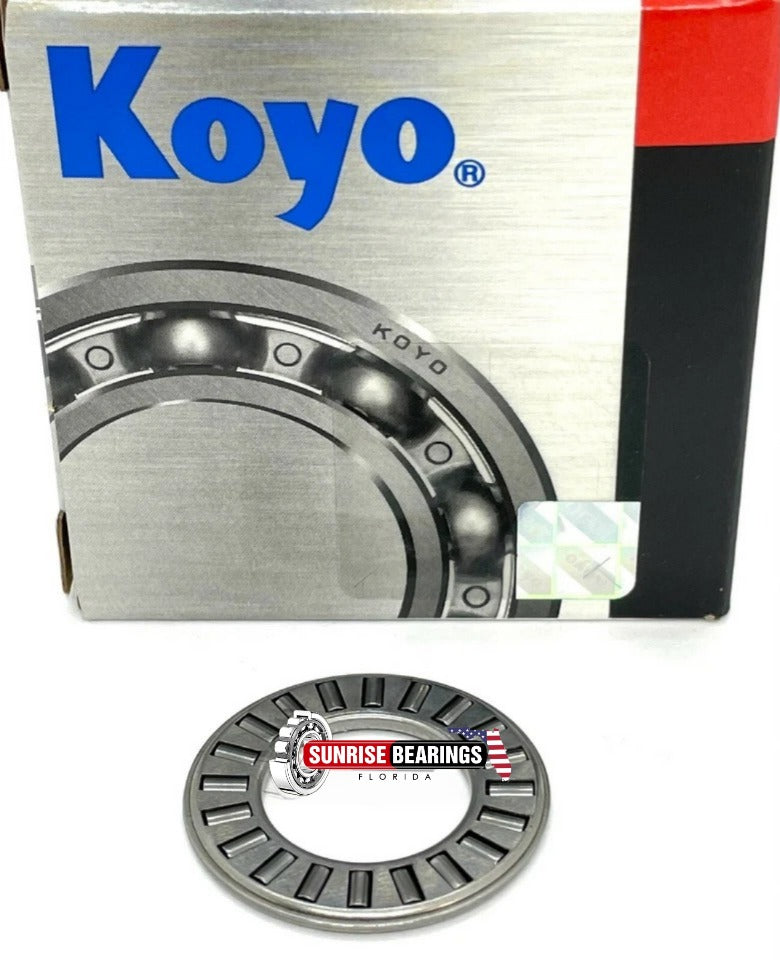

NTA-1423

Needle Roller Thrust Bearing - 7/8 in Bore, 1-7/16 in OD, 5/64 in Width

OVERVIEW

Needle roller and cage thrust assemblies are complements of small diameter needle rollers arranged in a spoke-like configuration

Needle rollers are equally spaced by means of a cage whose web section separates the rollers and provides guidance to keep them tracking in an orbital path

The purpose of these assemblies is to transmit a thrust load between two relatively rotating objects while greatly reducing friction

Unsealed closure

SPECIFICATIONS

Bore Diameter 7/8 in

Outside Diameter 1-7/16 in

Bearing Width 5/64 in

Thrust Bearing Type Roller & Cage Assembly

Bearing Material Steel

Static Load Capacity 49.82 kN

Dynamic Load Capacity 13.43 kN

Cage Material Steel

Maximum RPM 12000 RPM

Compatible Washer TRA-1423

Overall Width 5/64 in

Series NTA

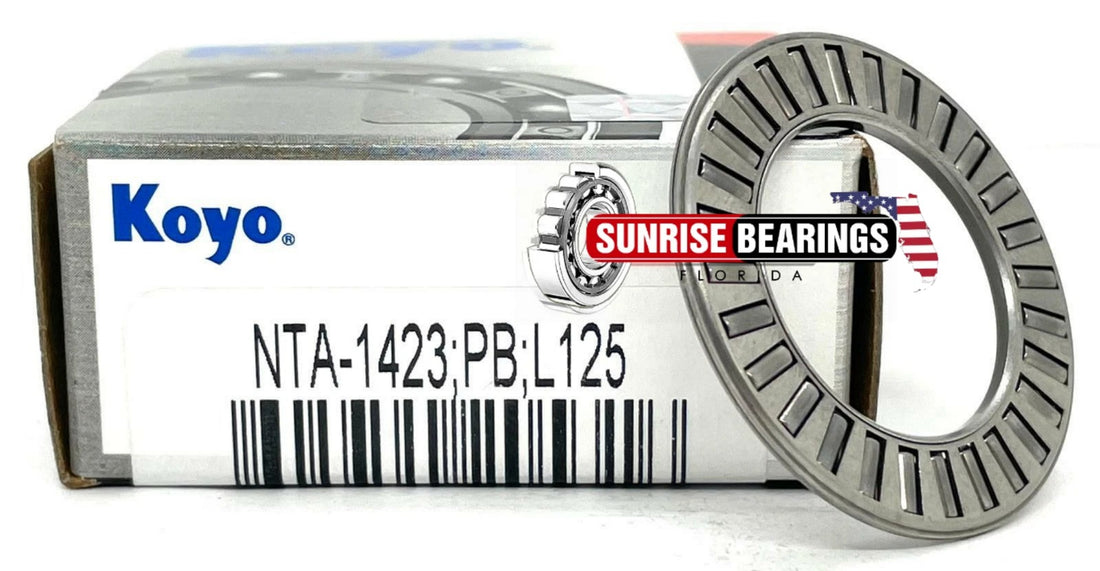

Package Includes :One (1) BEARING NTA1423 PB L125
