BRAND; KOYO

ID: 69/22 2RS

Description:

•

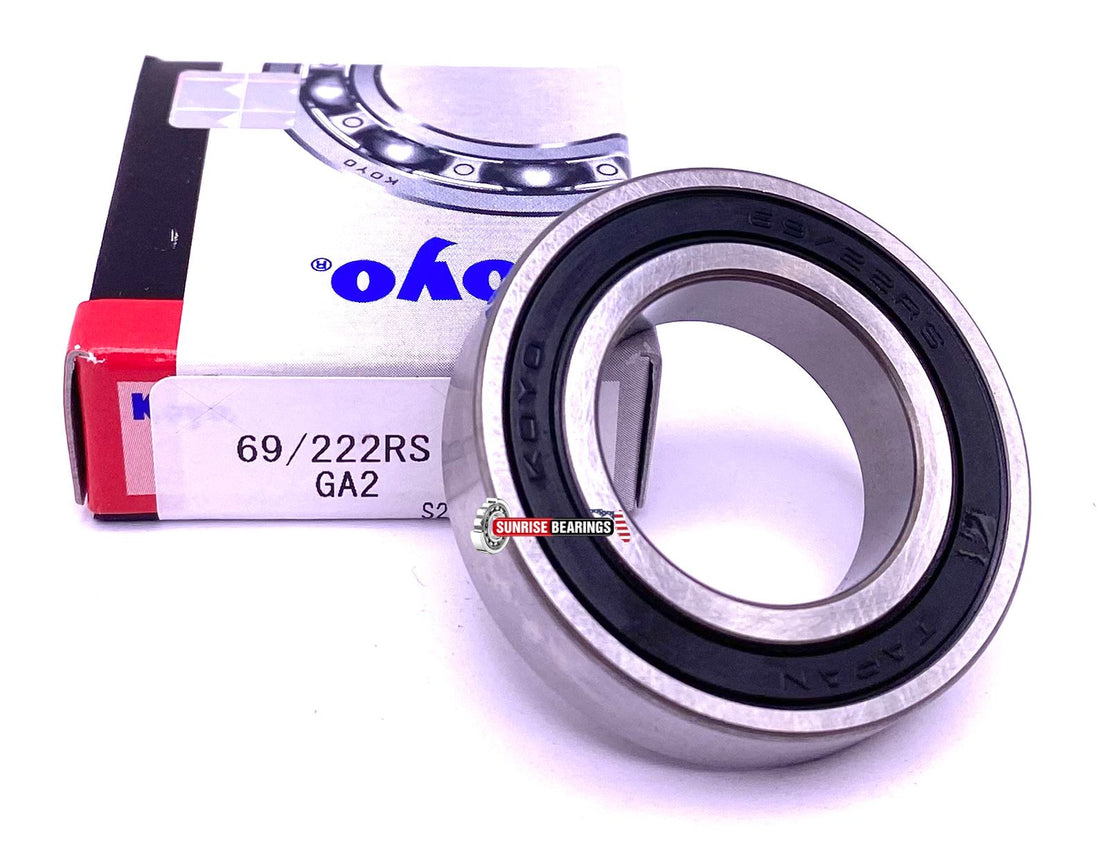

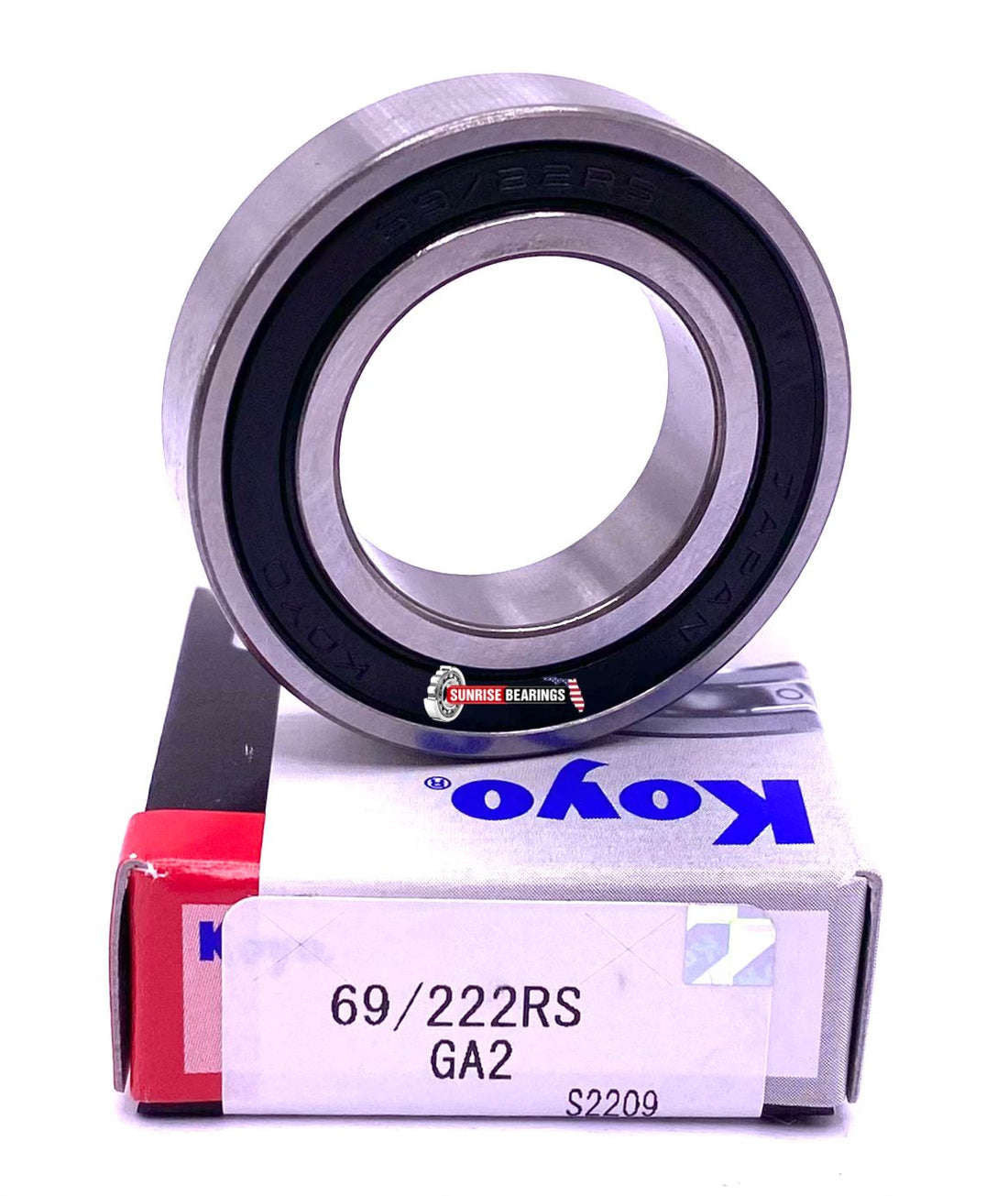

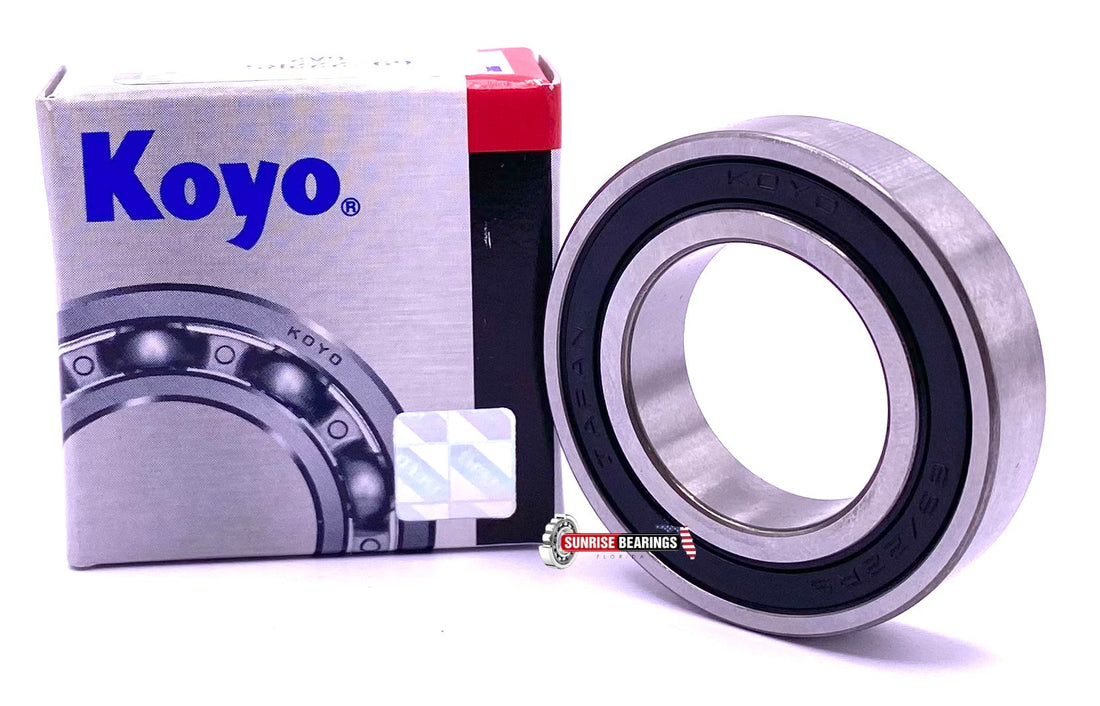

   Koyo 69/22 2RS Deep Groove Ball Bearing 22x39x9 mm, Double Rubber Seals, Single Row – Made in Japan

  ---

  Short Description

  The Koyo (JTEKT) 69/22 2RS is a single-row deep groove ball bearing with rubber seals on both sides. With a 22 mm bore, 39 mm outer diameter, and 9 mm width, it is ideal for compact applications requiring protection against dust and moisture. Made in Japan, this bearing features normal internal clearance, a steel cage, and standard factory lubrication.

  ---

  Specifications

  General

  • Brand: Koyo (JTEKT)
  • Country of origin: Japan
  • Item number: 69/22 2RS Koyo (JTEKT)
  • EAN: 4549250181207
  • Category: Deep groove ball bearing, single row

  ---

  Weight and Dimensions

  Metric

  • Inner diameter (d): 22 mm
  • Outer diameter (D): 39 mm
  • Width (B): 9 mm
  • Weight: 0.039 kg

  Inch

  • Inner diameter (d): 0.8661 in
  • Outer diameter (D): 1.5354 in
  • Width (B): 0.3543 in

  ---

  Product Properties

  • Bore type: C – Cylindrical bore
  • Seal: 2RS – Rubber seals on both sides
  • Cage type: S – Steel / standard cage
  • Radial internal play: CN – Normal internal clearance
  • Precision: Standard precision
  • Lubrication: Standard factory lubrication (grease)
  • Heat stabilization: None – suitable up to approx. 120 °C
  • Special treatment: None
  • External modification: None

  ---

  Suffix Description

  • 2RS – Rubber seals on each side of the bearing, providing good protection against dust and contaminants.



Package Includes: ONE (1) KOYO Bearing 69/22 2RS
