Brand: INA
Item Number: K12X15X10-TV
Manufacturer Part Number: 000243175-6063
EAN: 4054369216479
Category: Needle Roller and Cage Assembly

Dimensions

Inner Diameter (d): 12 mm (0.4724 in)
Outer Diameter (D): 15 mm (0.5906 in)
Width (B): 10 mm (0.3937 in)
Weight: 0.002–0.004 kg (approx.)

Key Features

Bearing Type: Needle Roller and Cage Assembly
Needle Rows: Single Row
Seal: None (Open Design)
Cage Material: Polyamide
Operating Temperature Range: -20°C to +120°C
Customs Tariff Number: 8482 9900

Suffix Meaning

TV: Polyamide cage

Product Description

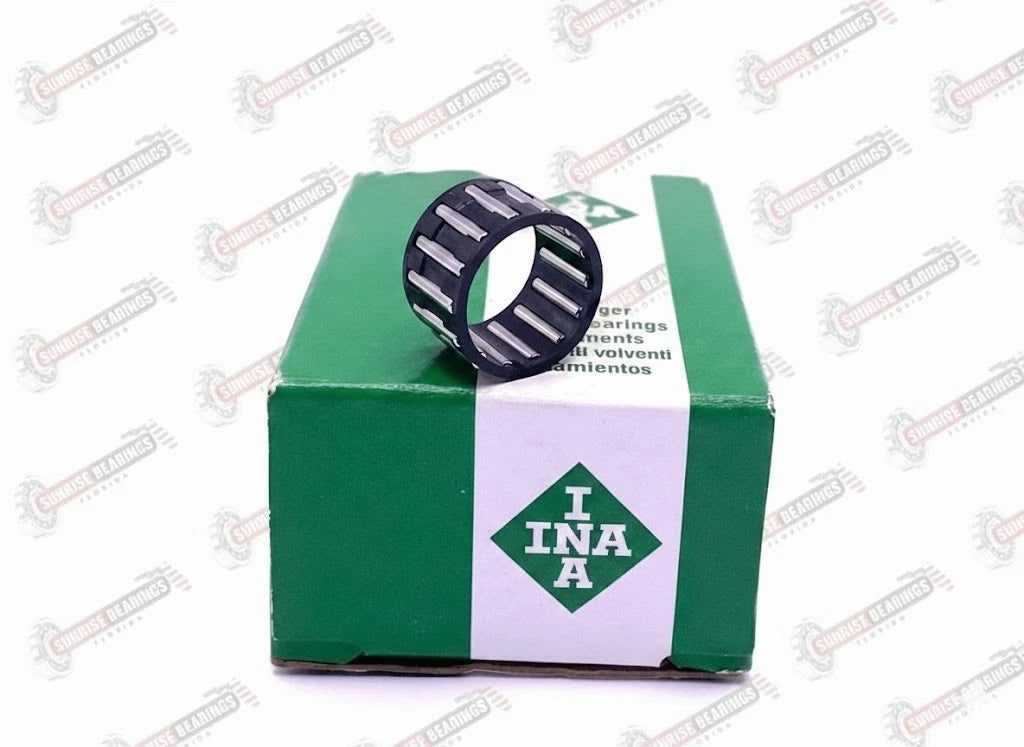

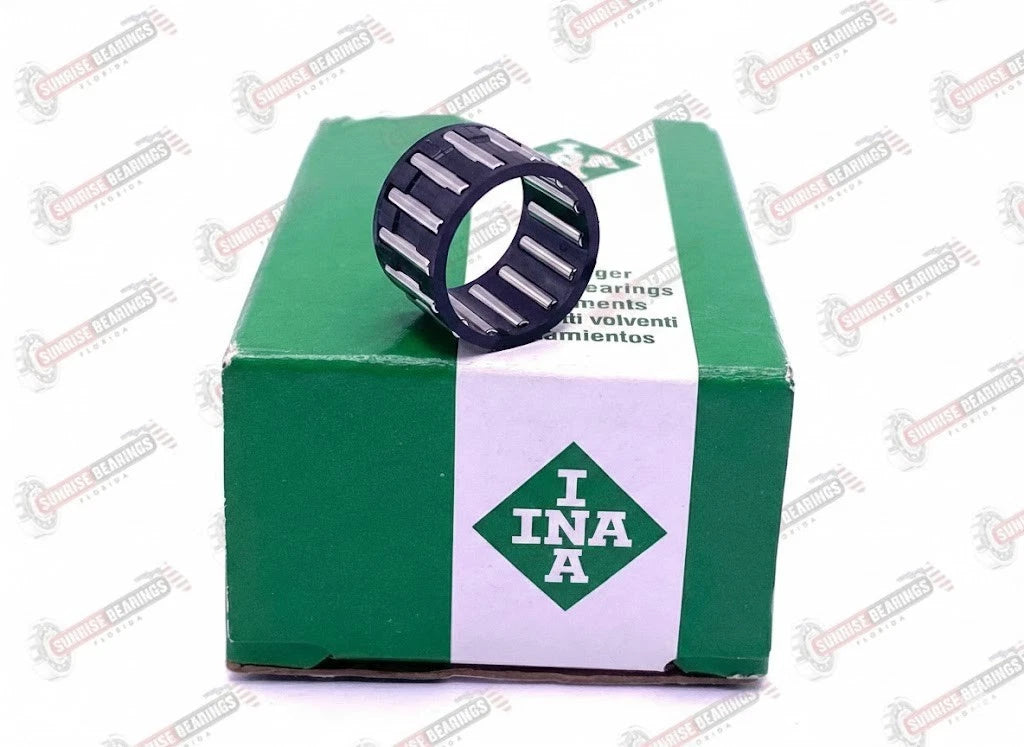

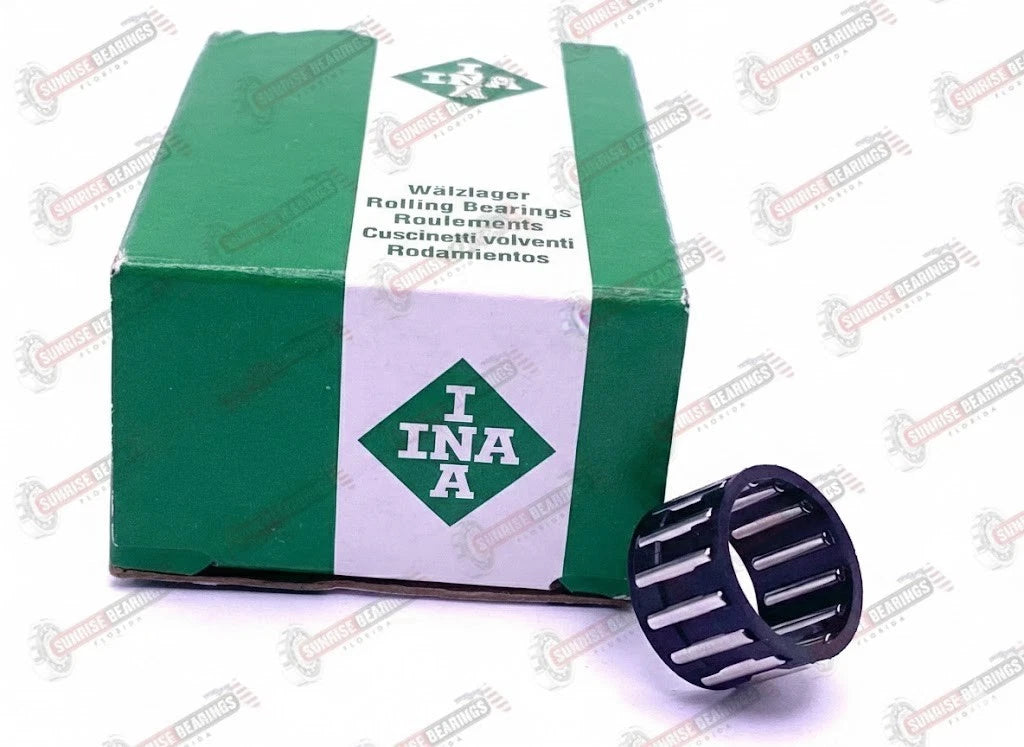

The INA K12X15X10-TV is a single-row needle roller and cage assembly designed for applications where compact radial space and high load capacity are required.

This assembly consists of precision needle rollers retained by a polyamide cage, which ensures proper roller guidance and reduced friction. It must be used in combination with hardened and ground shaft and housing raceways, as it does not include inner or outer rings.

Ideal for lightweight, high-speed, and space-saving applications in industrial and mechanical systems.

PACKAGE INCLUDES: ONE (1) INA Bearing K12x15x10 TV
