INA 3810-2RS Double Row Angular Contact Ball Bearing

Genuine INA double-row angular contact ball bearing manufactured by the Schaeffler Group. This bearing features rubber seals on both sides, normal internal clearance, a durable polyamide cage, and standard precision.

Designed to support combined radial and axial loads, it is suitable for a wide range of industrial and mechanical applications.

Specifications

• Brand: INA
• Manufacturer: Schaeffler Group
• Part Number: 3810-2RS
• Manufacturer Part Number: 0009721500000
• Alternative MPN: 000972150-0000
• EAN: 4012802029208
• Product ID: 10204174
• Category: Double Row Angular Contact Ball Bearing
• Quantity Included: 1 Bearing

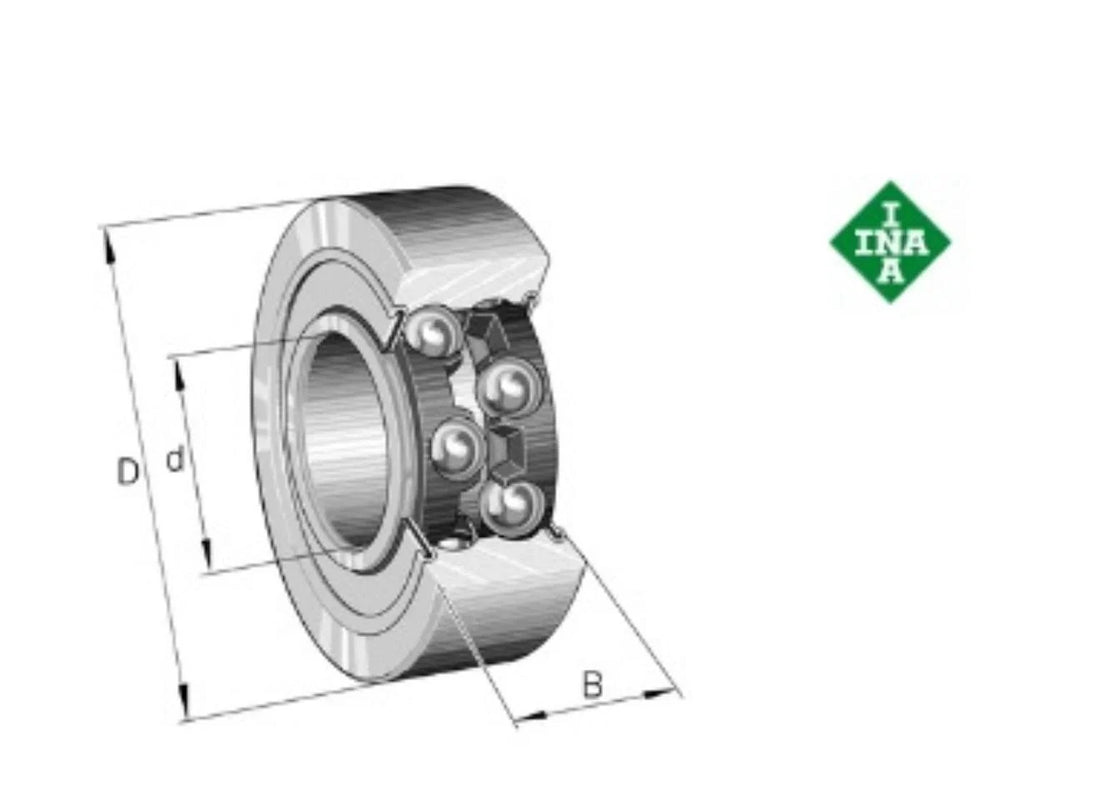

Dimensions

• Inner Diameter: 50 mm / 1.9685 in
• Outer Diameter: 65 mm / 2.5591 in
• Width: 12 mm / 0.4724 in
• Weight: Approximately 0.09 kg

Product Features

• Number of Ball Rows: Double Row
• Bearing Material: Standard Bearing Steel
• Bore Type: Cylindrical Bore
• Seal Type: 2RS — Rubber Lip Seals on Both Sides
• Outer Ring: Without Flange or Groove
• Internal Clearance: CN / C0 Normal Clearance
• Cage Material: Polyamide
• Precision Class: P0 / PN / ABEC 1
• Contact Angle: 25°
• Arrangement: Standard Version
• Snap Ring: No
• External Modification: None
• Lubrication: Standard Lubrication
• Heat Stabilization: Standard, suitable for temperatures up to 120°C
• Operating Temperature Range: -20°C to +120°C

Load and Speed Ratings

• Dynamic Load Rating: 8,500 N
• Static Load Rating: 10,200 N
• Limiting Speed: 4,800 RPM

Additional Information

• Genuine INA / Schaeffler bearing
• Double-row angular contact design
• Rubber seals protect both sides of the bearing
• Pre-lubricated for standard operation
• Suitable for combined radial and axial loads
• Metric-size bearing
• Please verify the part number, dimensions, and specifications before purchasing

Country of Origin

India

Customs Information

• Customs Tariff Number: 8482.1090
• ECLASS Number: 23-05-08-03

 PACKAGE INCLUDES: ONE (1) INA Bearing 3810 2RS
