Description:

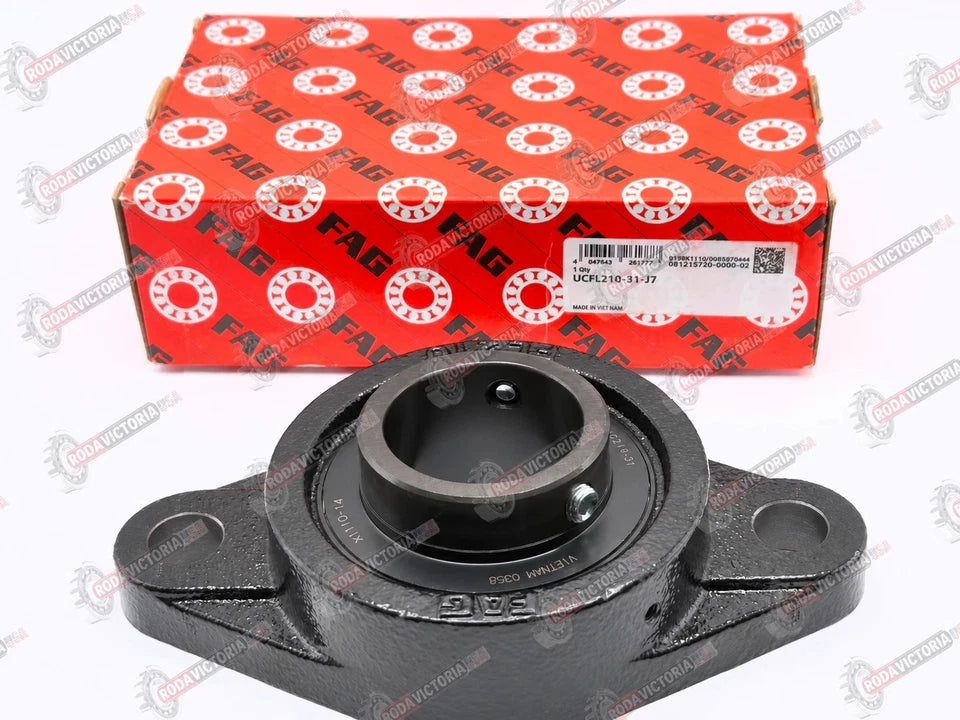

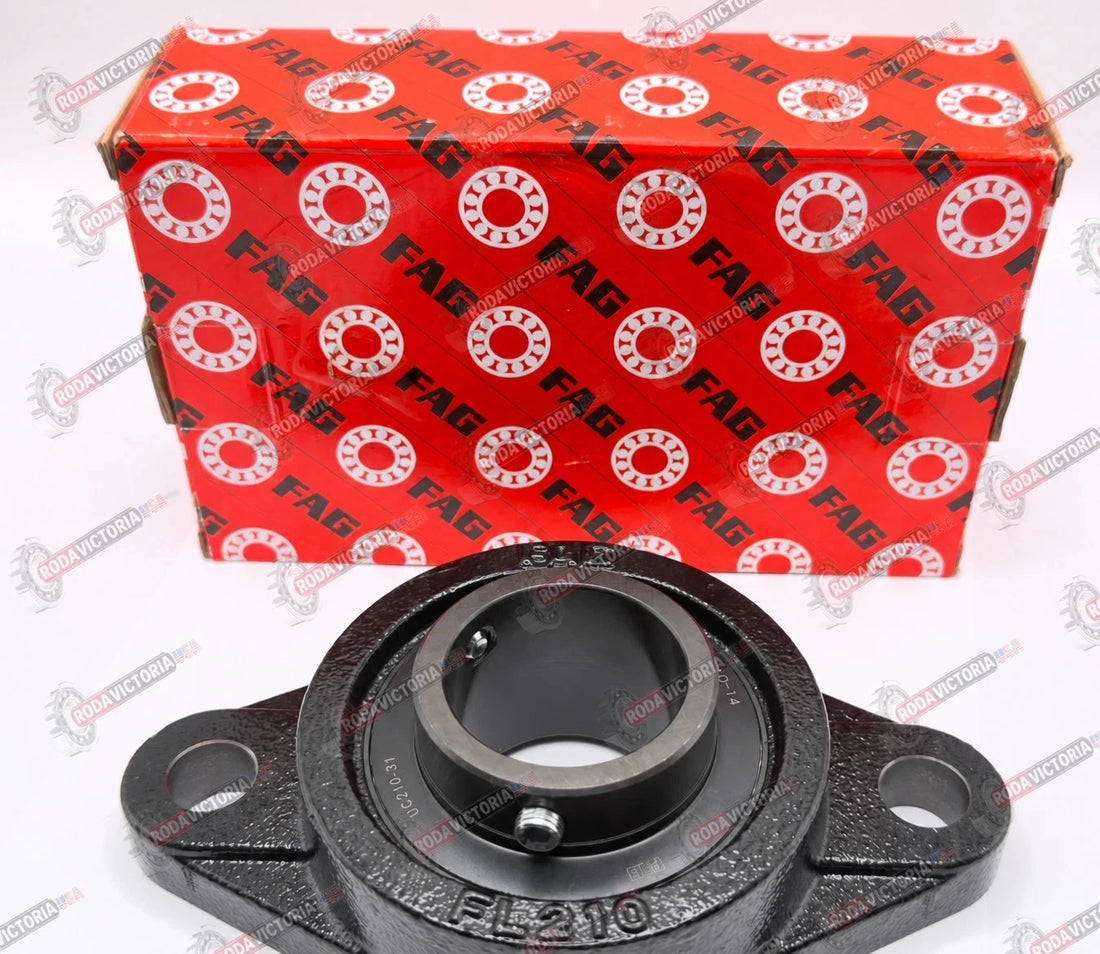

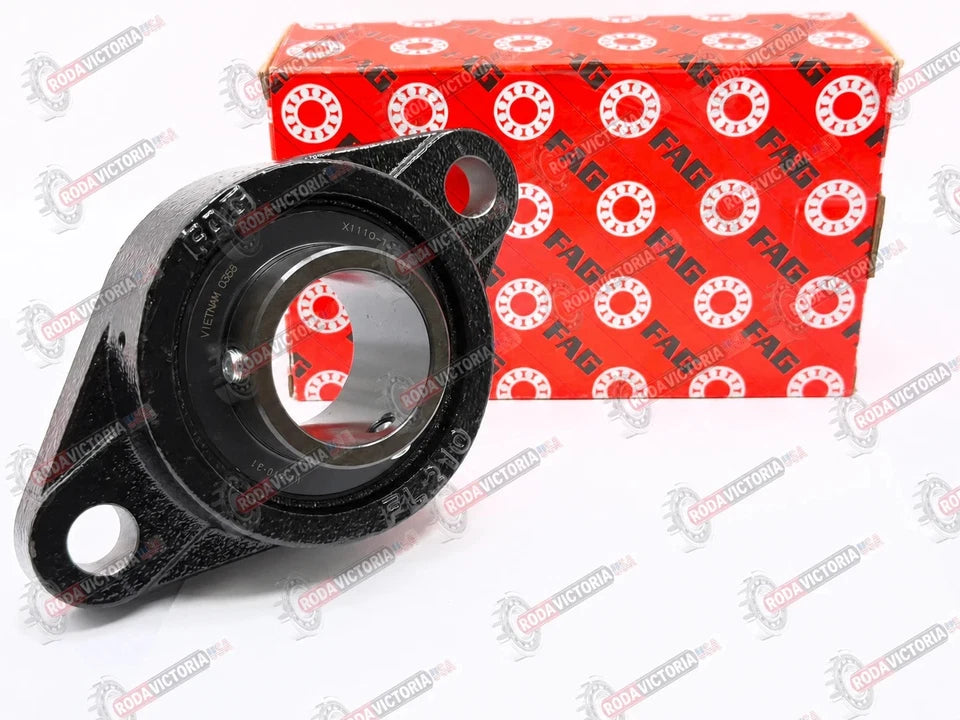

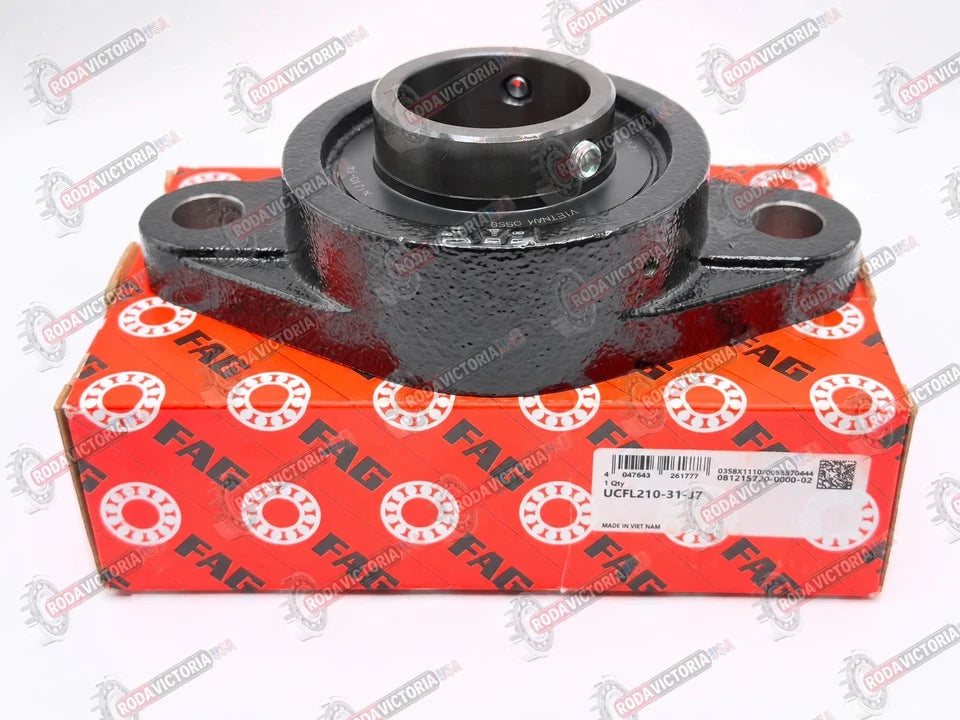

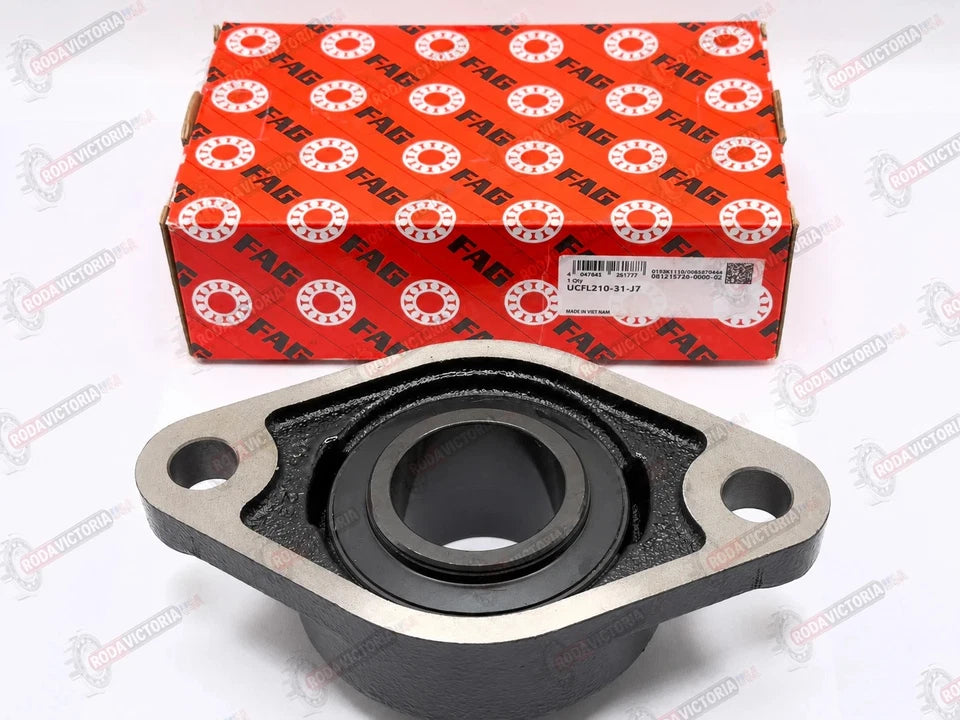

FAG UCFL210-31-J7 Black Series Flanged Bearing Unit 1-15/16" Bore

Item Specifics:
Brand: FAG
Model / Item Number: UCFL210-31-J7
Manufacturer Part Number: 0812157200000
Also Known As: FYTBJ1.15/16TF, UC210-31 + FL210
EAN: 4047643261777
Category: Housing and Bearing Assembly
Bearing Unit Type: Flanged Housing Unit
Housing Type: Cast Iron Bearing Unit
Product Series: Black Series
Bore Size: 1-15/16"
Seal Type: 2F - Standard Seal for Y-Bearings
Sealing Design: Double-sided lip seal with steel sheet washers and outer flinger shield with corrosion protection
Cage Type: Polyamide Cage
Lubrication: Standard Lubrication
Special Treatment: No Special Treatment
ECLASS Number: 23-05-16-02
Weight: 2.2 kg approx.

Dimensions:
Bore / Inner Diameter: 49.21 mm / 1.9375"
Overall Length / Height Flange: 197 mm / 7.7559"
Flange Width: 115 mm
Total Height Unit / Width: 54.6 mm / 2.1496"

Load Ratings:
Radial Dynamic Load Rating: 37,500 N
Radial Static Load Rating: 23,200 N

Suffix Description:
31: 1-15/16" bore size
J7: Standard suffix with improved fitting in the housing

Description:
This listing is for one FAG UCFL210-31-J7 Black Series flanged housing bearing unit.

The UCFL210-31-J7 FAG is a complete housing and bearing assembly. The bearing and housing components are matched to each other for reliable operation, making this unit ready for installation.

This flanged housing unit helps simplify bearing and shaft installation while supporting and protecting the bearing during operation. The housing design also helps make maintenance easier and can contribute to longer bearing service life in suitable applications.

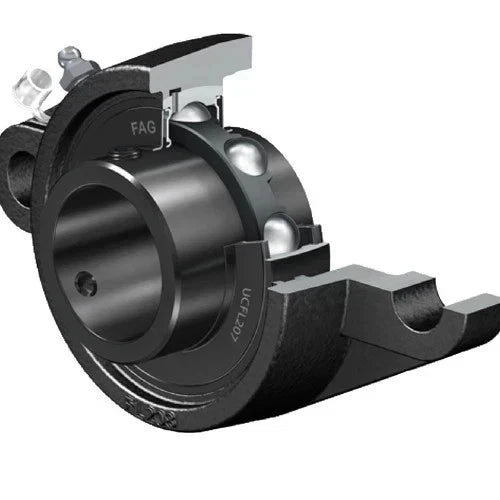

This unit features a cast iron housing, 1-15/16" bore insert bearing, standard lubrication, and 2F sealing. The sealing system includes double-sided lip seals covered with steel sheet washers and an outer flinger shield for corrosion protection.

Main Features:

·         Genuine FAG UCFL210-31-J7 bearing unit

·         Complete housing and bearing assembly

·         Black Series cast iron bearing unit

·         1-15/16" bore size

·         Also known as FYTBJ1.15/16TF

·         Includes UC210-31 bearing and FL210 housing

·         2F standard Y-bearing seal

·         Double-sided lip seal with steel washers

·         Outer flinger shield with corrosion protection

·         Polyamide cage

·         Standard lubrication

·         Flange height / overall length: 197 mm

·         Flange width: 115 mm

·         Total unit height / width: 54.6 mm

·         Dynamic load rating: 37,500 N

·         Static load rating: 23,200 N

·         Ready to install

·         Suitable for industrial, agricultural, conveyor, machinery, and equipment applications

Please verify all dimensions, part number, bore size, housing style, seal type, and application requirements before purchasing to make sure this item fits your application.











 PACKAGE INCLUDES: ONE (1) FBJ Flanged Housing Unit UCFL210-31 J7
