Description:

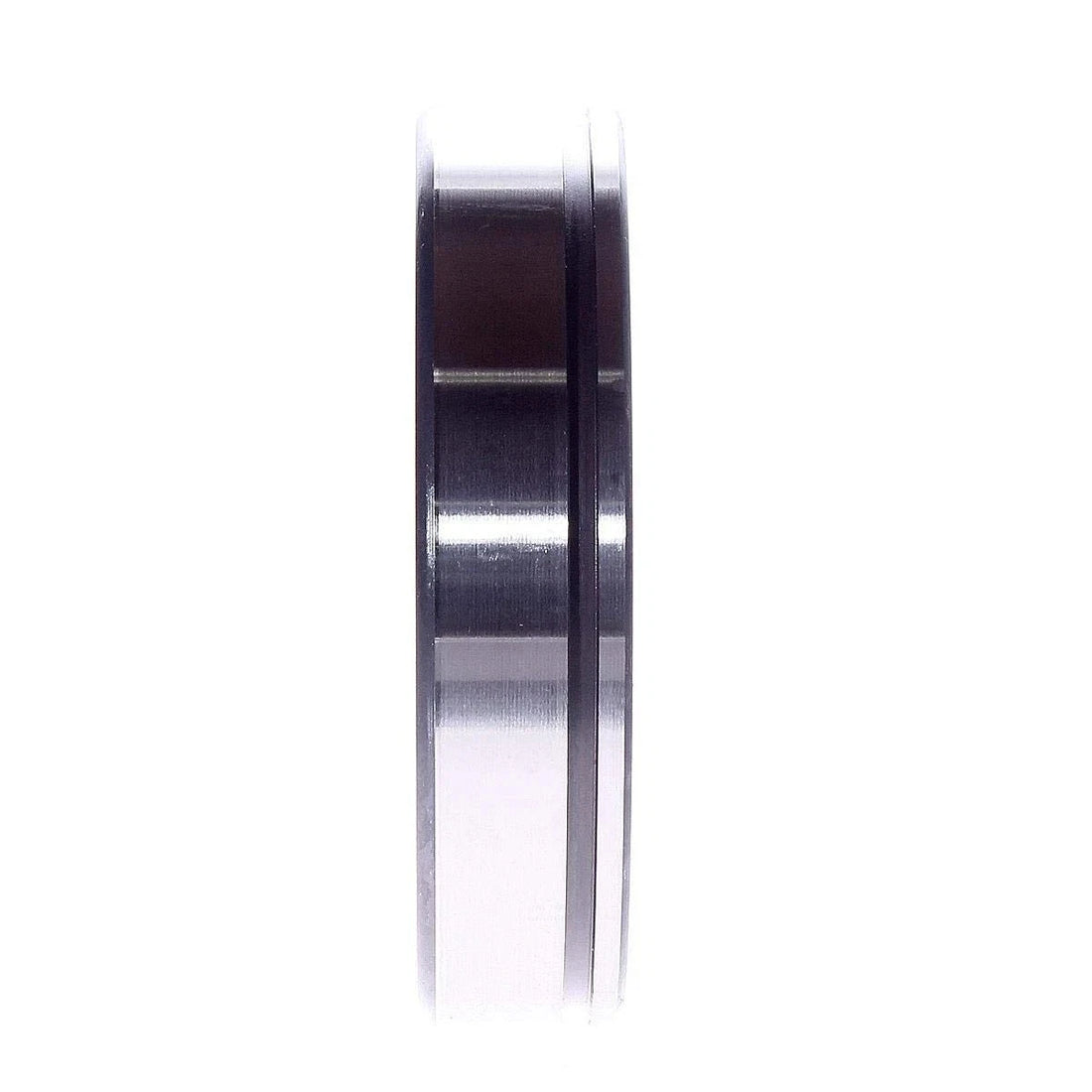

FAG 16006-A-2Z Deep Groove Ball Bearing – Made in Turkey

Brand: FAG
Item Number: 16006-A-2Z FAG
Manufacturer Part Number: 0604616320000 / 060461632-0000
EAN: 4012802334715
Category: Single Row Deep Groove Ball Bearing

Dimensions:
Inner Diameter: 30 mm / 1.1811 in
Outer Diameter: 55 mm / 2.1654 in
Width: 9 mm / 0.3543 in
Weight: 0.09 kg

Product Properties:
Seal Type: 2Z / ZZ – Two Metallic Shields
Bore Type: Cylindrical Bore
Cage Type: Sheet Steel Cage
Radial Internal Clearance: CN – Normal Internal Clearance
Precision: Standard Precision / P0 / PN2 / ABEC 1
Lubrication: Standard Lubrication
Temperature Range: -20°C to +120°C
Current Insulation: No

Performance Data:
Basic Static Load Rating: 7,390 N
Limiting Speed: 15,700 rpm
Reference Speed: 10,000 rpm

Suffix Description:
A: Internal design modification
2Z: Two metallic shields
X10: Industrial packaging

Product Description:
The FAG 16006-A-2Z is a single-row deep groove ball bearing with two metallic shields. This bearing is designed for applications requiring reliable performance, low friction, and support for radial loads, with the ability to accommodate light axial loads in both directions.

The 2Z shielded design helps protect the bearing from contamination while retaining lubrication inside the bearing. It features a cylindrical bore, standard bearing steel construction, a sheet steel cage, and normal radial internal clearance.















   PACKAGE INCLUDES: ONE (1) FAG Bearing 16006 A 2Z
