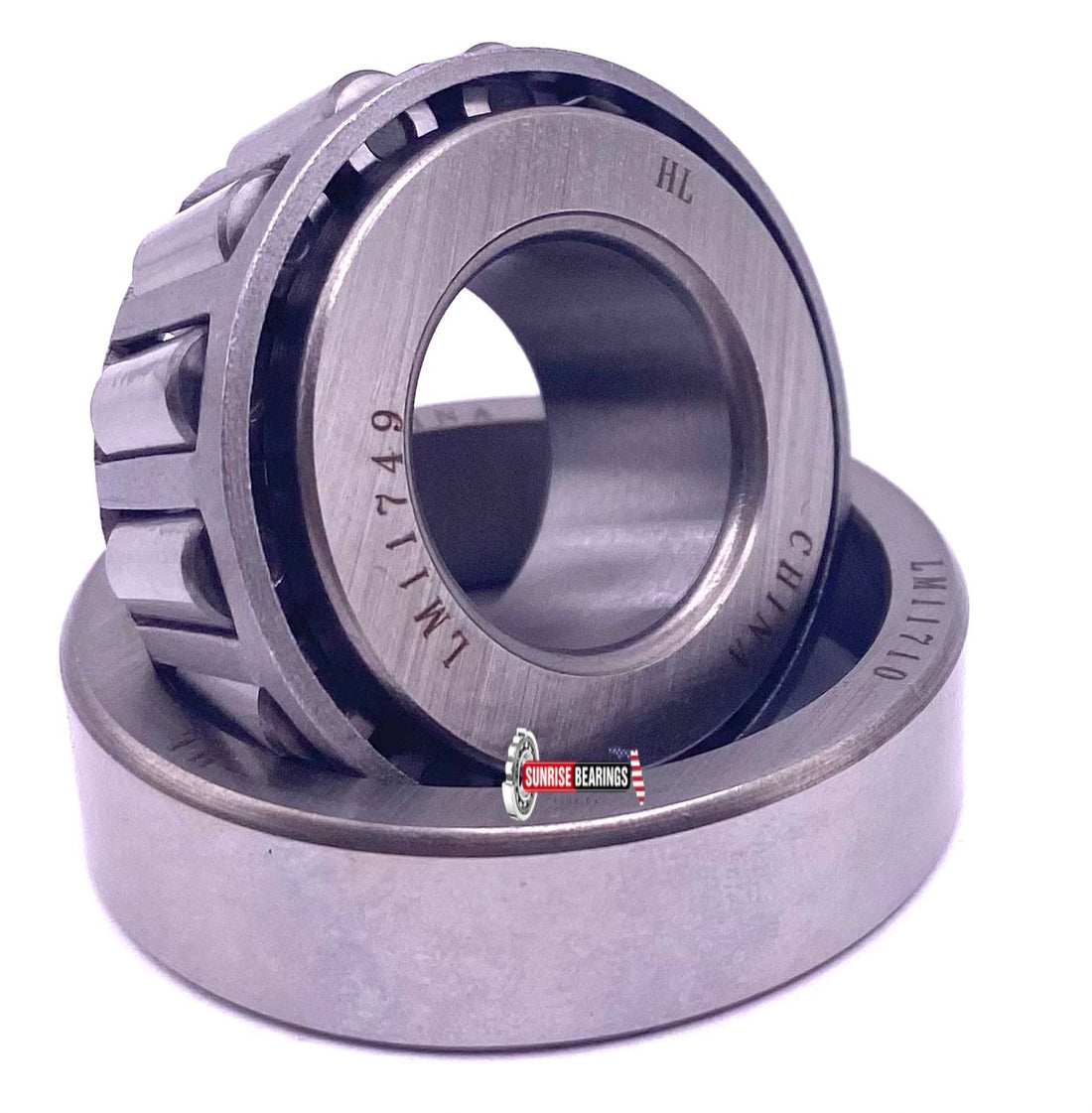

WJB LM11749 LM11710 Tapered Roller Bearing SET1 17.46x39.87x14.60 mm
$10.67
BRAND: WJB
ID: LM11749 LM11710
DESCRIPTION
- Item NumberLM11749/LM11710 Neutral
- Also known asLM11749/710
LM11749-20024 / 710-20024
LM11749-902M4
LM11749-99401
SET1 - Category Tapered Roller Bearing Single Row
Weight and Dimensions
- Inner (d) MM17,46
- Outer (D) MM39,88
- Width (B) MM13,84
- Inner (d) Inch0.6875
- Outer (D) Inch1.57
- Width (B) Inch0.545
- Weight (kg)0.09
Product Properties
- Precision Standard Precision
Product description
The LM11749/LM11710 WJB is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

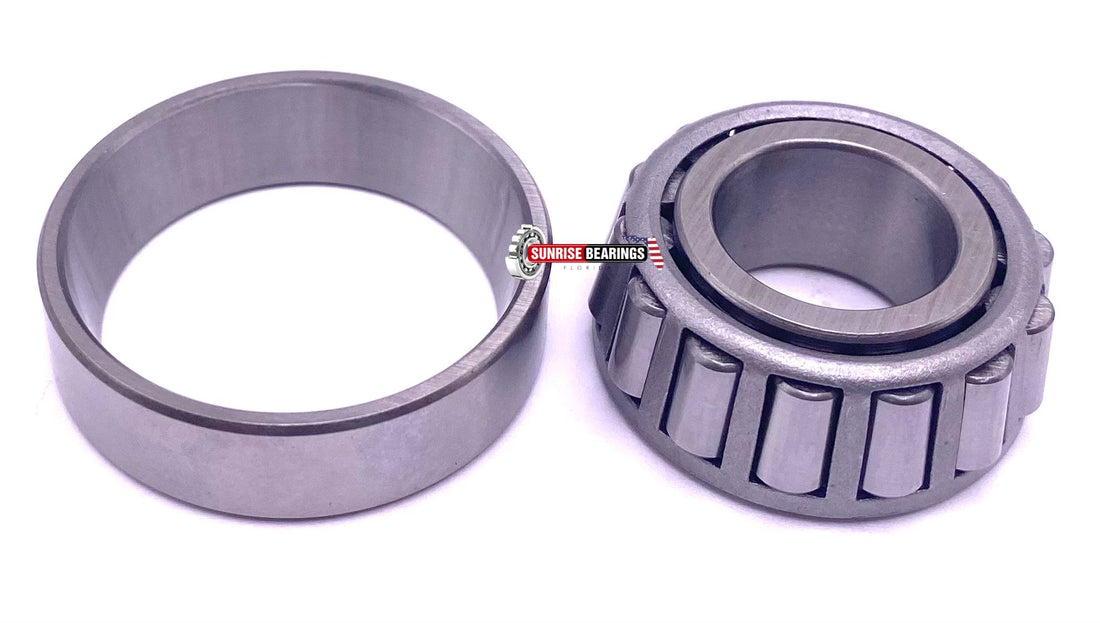

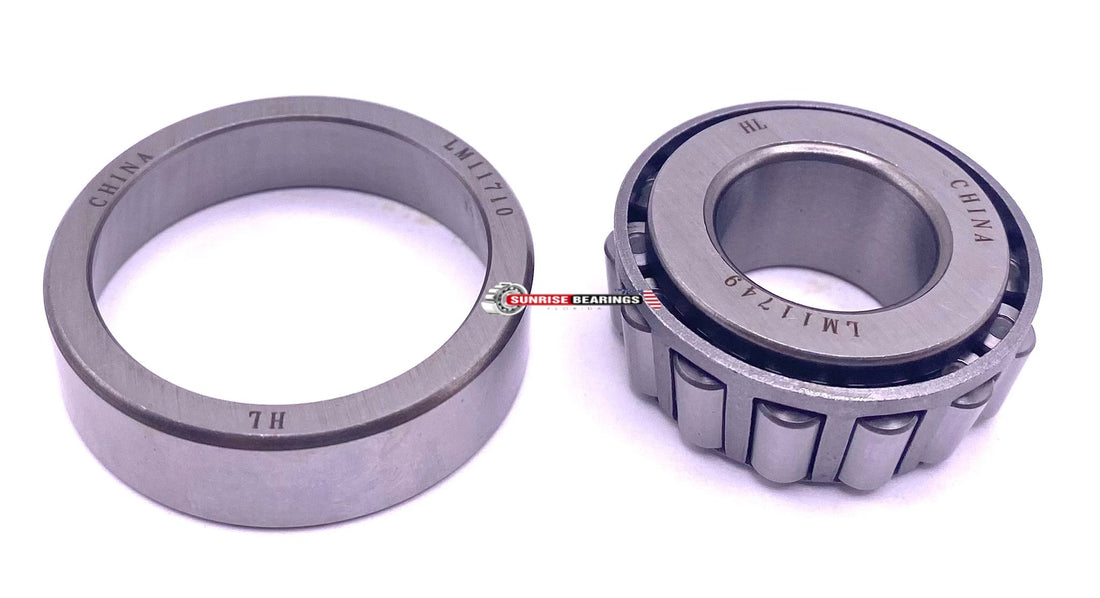

The LM11749/LM11710 WJB is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.
|
Bearing and Race Set; Includes Cup and Cone |
|
The quality of wheel bearings and seals are essential to ensure vehicle performance. WJB’s Bearings are manufactured in highly selective facility certified with ISO/TS 16949. If you’re looking for high performance bearing to ensure vehicle performance, life and safety with an affordable price, WJB Brand offers you the option. Features
|
|
OEM / Interchange Numbers: A1 |
|
WJB / INMOTION PARTS WTA1 Specifications |
|
|
Bearing Shape |
Cylindrical |
|
Inside Diameter |
0.688in |
|
Outside Diameter |
1.570in |
|
Type |
Taper Bearing |
|
Width |
0.420in |
|
Width |
0.575in |
PACKAGE INCLUDES: ONE (1) WJB Bearing A1
