BRAND: TIMKEN

ID 572/580

DESCRIPTION

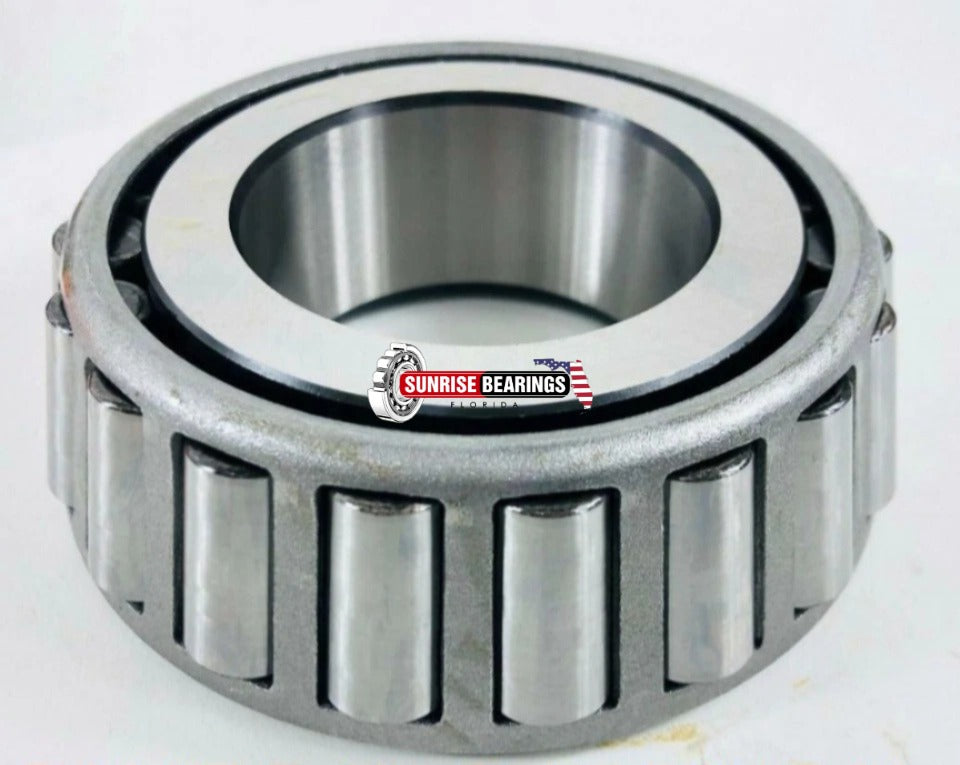

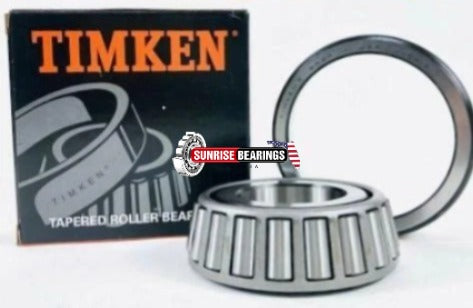

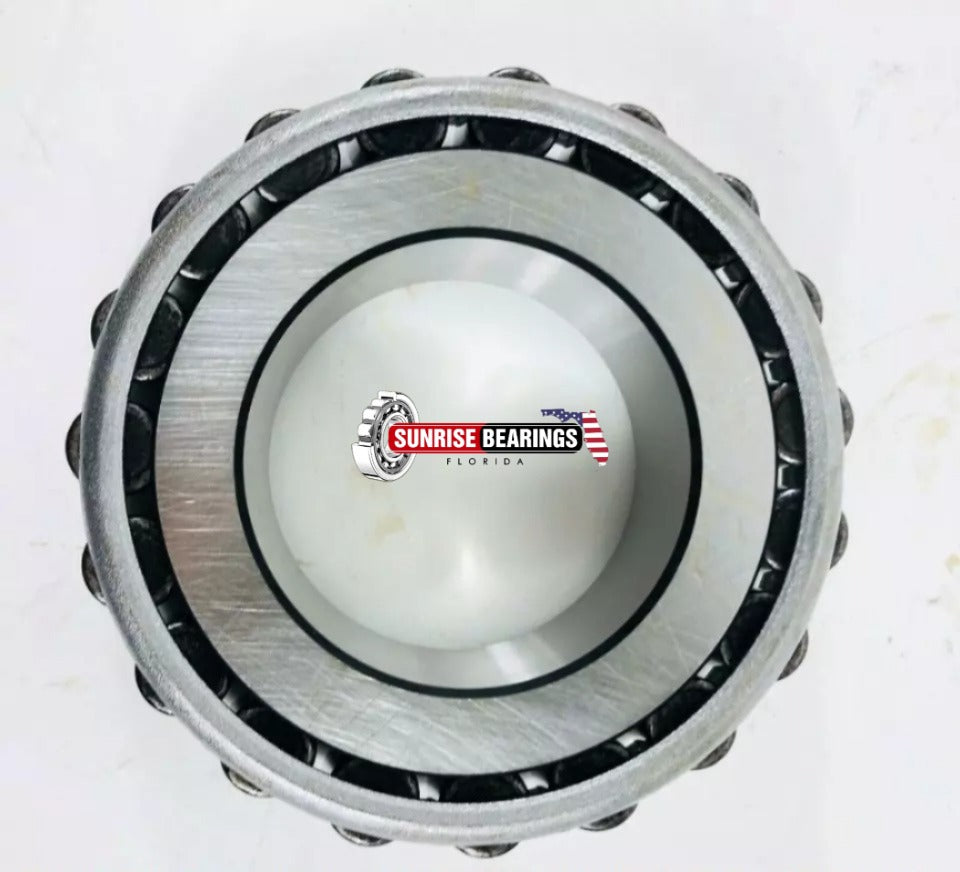

Timken Imperial taper roller bearing priced cup & cone together 3.2500 inch (82.55mm) inside x 5.115 (139.992mm) outside x 1.4375 (36.512mm) width

Timken offers the most extensive line of tapered roller bearings in the world. Tapered roller bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads

Industries:

Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.

Benefits:

Enhanced performance in demanding applications.

Dimensions

Inside diameter d: 82.55mm - 3.2500 inch

Outside diameter D: 139.992mm - 5.115 inch

Width T: 36.512mm - 1.4375 inch

Cone width B: 36.098mm - 1.4212 inch

Cup width C: 28.575mm - 1.1250 inch

Package Include :

One (1) TIMKEN BEARING SET401 (572/580) CUP AND BEARING
