Item Specifics:
Brand: SKF
Model / Item Number: YAT 204-012
EAN: 7316571504551
Manufacturer Part Number: 7316571504551
Category: Radial Insert Ball Bearing
Bearing Type: Insert Ball Bearing
Bore Type: Cylindrical Bore
Fixing: Threaded Pins / Set Screws
Outer Ring: Spherical / Rounded Outer Ring
Inner Ring: Widened Inner Ring on One Side
Seal Type: Contact Seal on Both Sides
Sealing: Double-Sided Lip Seal Covered with Plate
Material: Standard Bearing Steel
Tolerance Class: P0 / PN2 / ABEC 1
Temperature Range: -20°C to +120°C
Country of Origin: Italy
Customs Tariff Number: 8482 1090
Weight: 0.141 kg approx.

Dimensions:
Inner Diameter: 19.05 mm / 3/4"
Outer Diameter: 47 mm
Inner Ring Width: 25.5 mm
Outer Ring Width: 14 mm

Load & Speed Ratings:
Dynamic Load Rating: 12,700 N
Static Load Rating: 6,550 N
Limiting Speed: 8,500 rpm

Description:

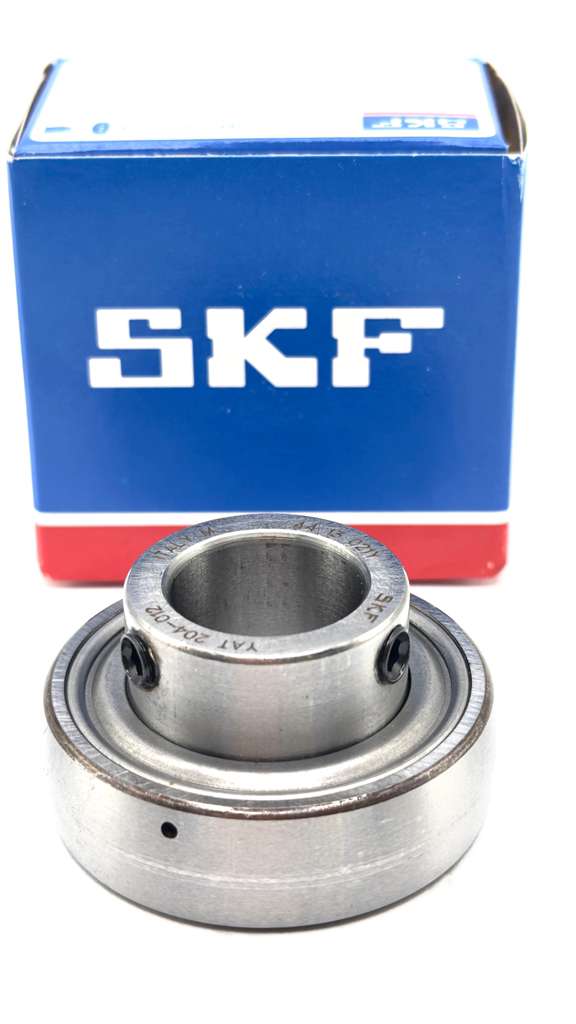

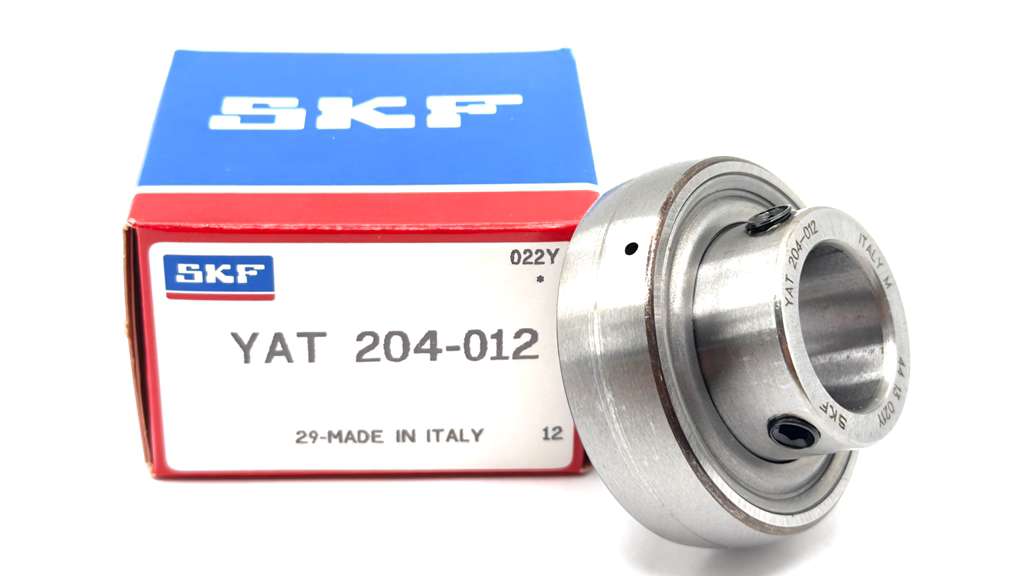

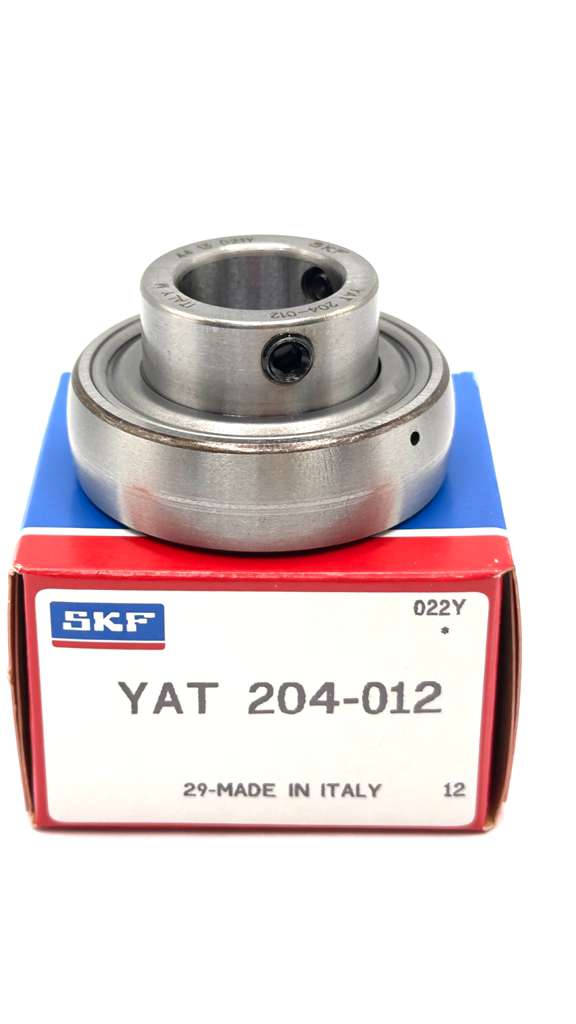

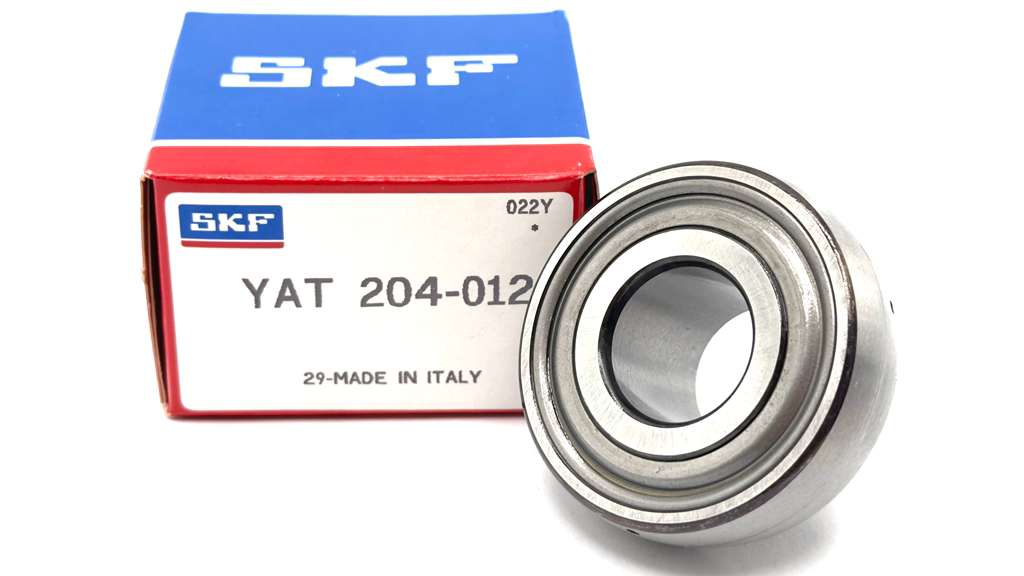

This listing is for one SKF YAT 204-012 insert ball bearing.

The YAT 204-012 is a radial insert ball bearing with a 3/4" bore, spherical outer ring, widened inner ring on one side, and threaded pin fixing. It is equipped with contact seals on both sides, helping protect the bearing from contamination while retaining lubricant.

Insert ball bearings are commonly used in mounted bearing units, agricultural equipment, conveyors, industrial machinery, and general mechanical applications where reliable shaft support is required.

Main Features:

·         Genuine SKF YAT 204-012 bearing

·         Insert ball bearing

·         3/4" bore size

·         Spherical / rounded outer ring

·         Widened inner ring on one side

·         Threaded pin / set screw locking

·         Double-sided lip seal covered with plate

·         Dynamic load rating: 12,700 N

·         Static load rating: 6,550 N

·         Limiting speed: 8,500 rpm

·         Made in Italy

Please verify all dimensions, part number, and specifications before purchasing to make sure this item fits your application.

   PACKAGE INCLUDES: ONE (1) SKF Bearing YAT204-012
