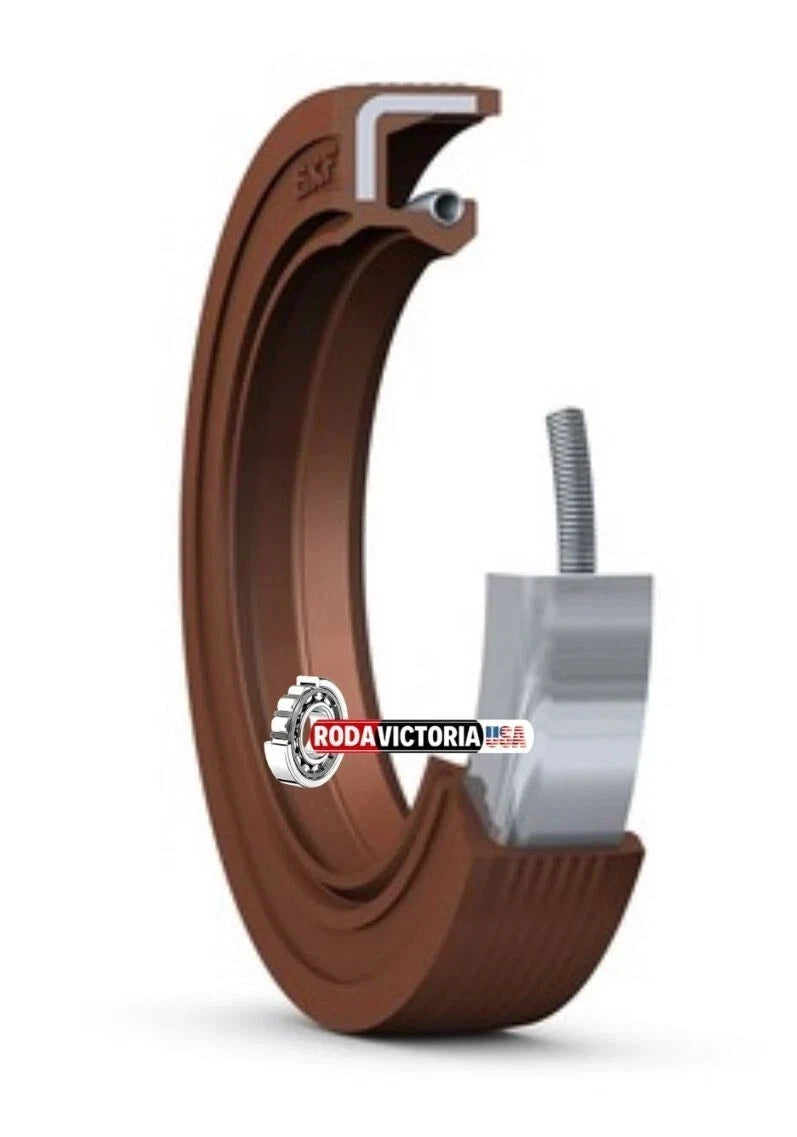

SKF 70X90X10 HMSA10 V Double Lip Oil Seal FPM 70x90x10 mm

Item Specifics:
Brand: SKF
Model / Item Number: 70X90X10HMSA10V
Alternate Format: 70X90X10 HMSA10 V
EAN: 7316572035313
Category: Oil Seal / Radial Shaft Seal
Seal Type: Double Lip Seal with Spring Ring
Design Type: HMSA10
Construction: Radial Shaft Seal
Outside Diameter Design: Rubber Outside Diameter
Lip Material: FPM Fluoro Rubber
Lubricant Type: Oil or Grease
Garter Spring: Yes
Auxiliary Lip: Yes
Maximum Speed: 7,920 rpm
Permissible Circumferential Speed: 29 m/s
Operating Temperature Range: -25°C to +200°C
Sealing Material Temperature Range: -20°C to +200°C
Weight: 0.054 kg approx.

Dimensions:
Shaft Diameter / Inner Diameter: 70 mm / 2.7559"
Outside Diameter: 90 mm / 3.5433"
Width: 10 mm / 0.3937"

Suffix Description:
HMSA10: SKF radial shaft seal design with rubber outside diameter, conventional elastomer sealing lip, auxiliary contacting lip, and garter spring
V: Fluoro rubber / FPM sealing material for high-temperature applications

Description:
This listing is for one SKF 70X90X10 HMSA10 V radial shaft oil seal.

The SKF 70X90X10 HMSA10 V is a double lip radial shaft seal designed for sealing applications between rotating and stationary machine components, or between components in relative motion.

The HMSA10 design features a rubber outside diameter, a conventional sealing lip made of elastomer, a garter spring, and a non-contacting auxiliary lip. The garter spring helps maintain proper radial load against the shaft, while the auxiliary lip helps optimize sealing performance and improve protection in polluted or contaminated environments.

This version uses V fluoro rubber / FPM sealing material, making it suitable for applications requiring higher temperature resistance compared with standard nitrile rubber seals.

This seal measures 70 mm shaft diameter, 90 mm outside diameter, and 10 mm width.

Typical Applications:
Gearboxes, speed reducers, transmissions, motors, pumps, wheel ends, rollers, industrial equipment, agricultural machinery, and automotive applications.

Main Features:

·         Genuine SKF 70X90X10 HMSA10 V oil seal

·         Double lip radial shaft seal

·         HMSA10 seal design

·         Rubber outside diameter

·         FPM fluoro rubber sealing material

·         Auxiliary lip for added protection

·         Includes garter spring

·         70 mm shaft diameter

·         90 mm outside diameter

·         10 mm width

·         Maximum speed: 7,920 rpm

·         Permissible circumferential speed: 29 m/s

·         Operating temperature range: -25°C to +200°C

·         Suitable for oil or grease sealing applications

·         Suitable for gearboxes, transmissions, pumps, motors, wheel ends, and industrial machinery

Please verify all dimensions, part number, seal design, sealing material, and application requirements before purchasing to make sure this item fits your application.

   PACKAGE INCLUDES: ONE (1) SKF Seal 70x90x10 HMSA10 V
