Brand: SKF
Item Number: 51308 SKF
Category: Thrust Ball Bearing (Single Direction) / a
EAN: 7316577058393
Manufacturer Part Number: 7316577058393

Weight: 0.55 kg (approx.)
Cage Type: S – Steel / Standard Cage
Precision: Standard Precision
Tolerance Class: P0 / PN2 / ABEC 1
Material: Standard bearing steel
Temperature Range: -30°C to +150°C
Operating Direction: Single direction (axial load only)
Angular Adjustment: Non-angle adjustable (cannot compensate misalignment)

Dimensions (Metric):

·         Inner Diameter (d): 40.00 mm

·         Outer Diameter (D): 78.00 mm

·         Width (B): 26.00 mm

Dimensions (Inch):

·         Inner Diameter (d): 1.5748 in

·         Outer Diameter (D): 3.0709 in

·         Width (B): 1.0236 in

Product Details / Description:

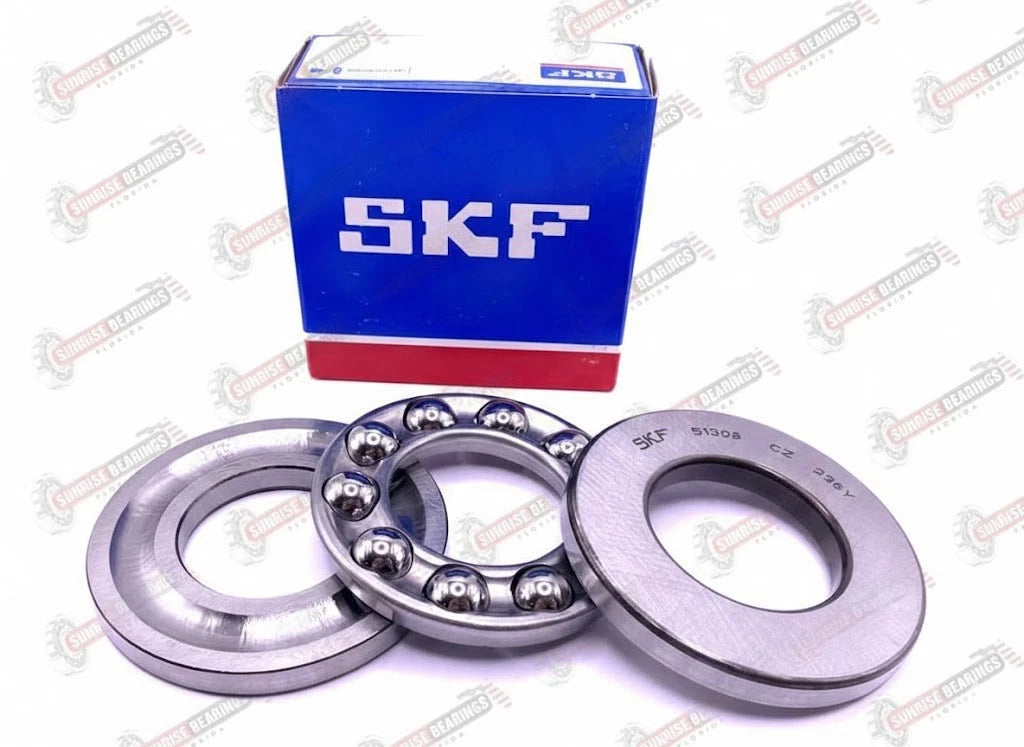

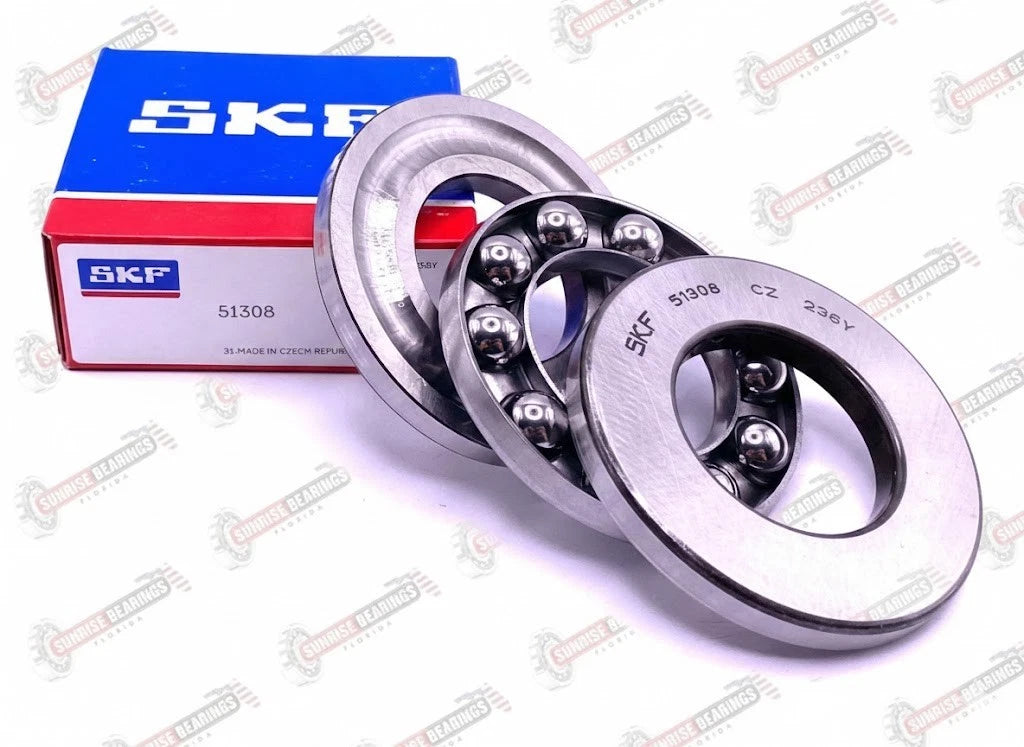

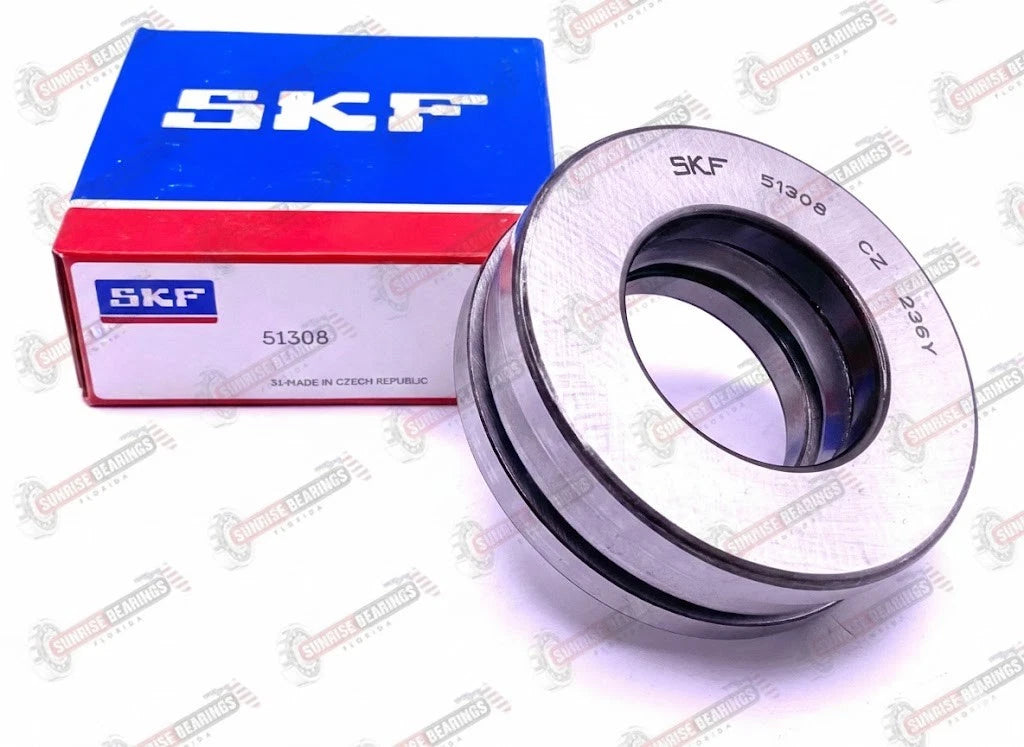

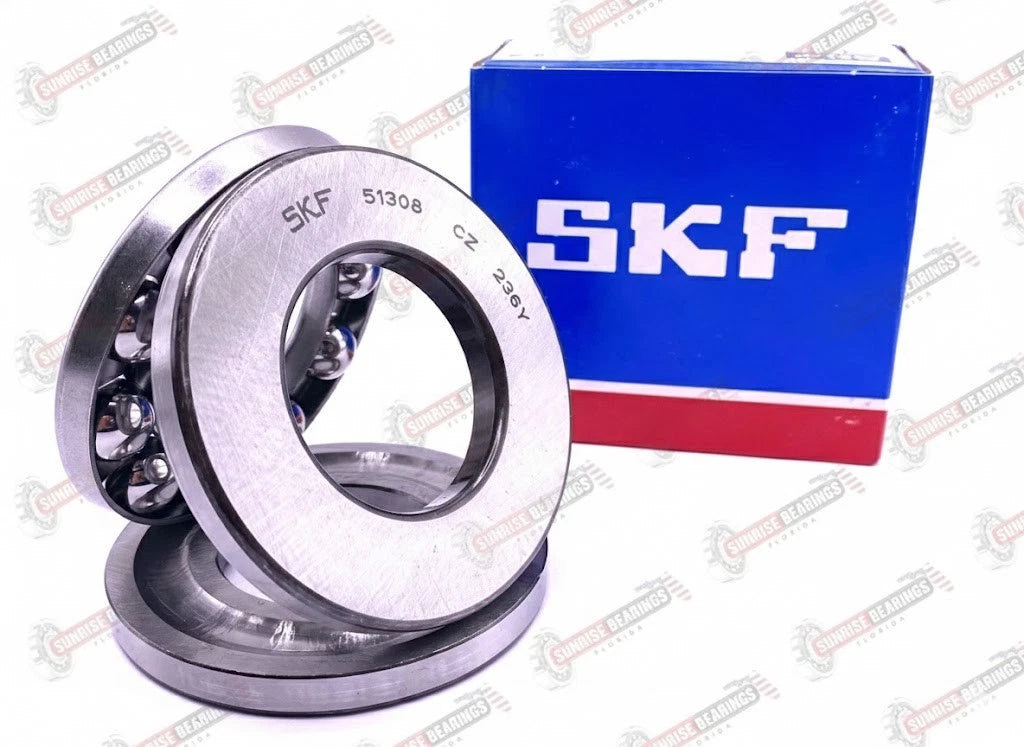

·         Single direction thrust ball bearing made up of shaft ring + housing ring + ball/cage assembly

·         Open design and suitable for high rotational speeds

·         Can carry axial loads in one direction only (locks the shaft in one direction)

·         Must not be radially loaded

·         Separable design: rings and assembly can be mounted separately (avoid mixing shaft ring vs. housing ring)

·         The housing ring has a flat seat, so it does not accommodate misalignment between shaft and housing

Country of Origin: Czech Republic
Customs Tariff Number: 8482 1090









PACKAGE INCLUDES: ONE (1) SKF Bearing 51308
