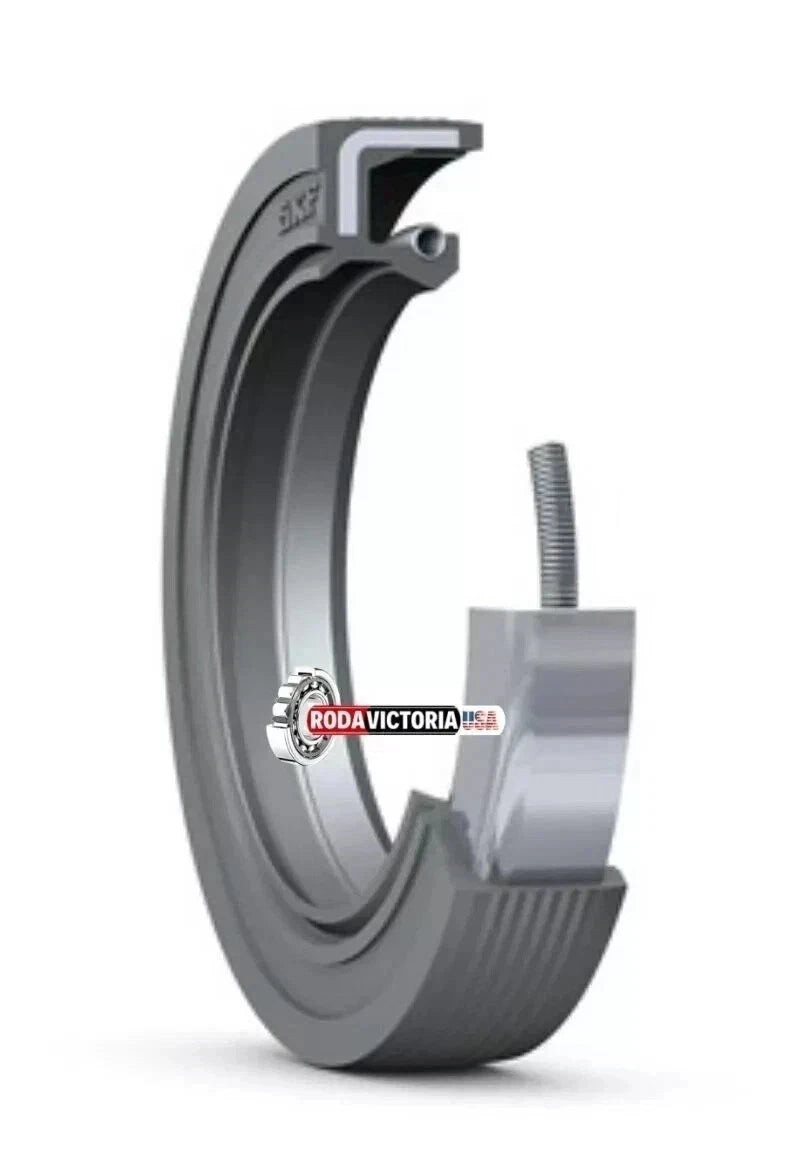

SKF 40X72X10 HMSA10 RG Double Lip Oil Seal NBR 40x72x10 mm

Item Specifics:
Brand: SKF
Model / Item Number: 40X72X10 HMSA10 RG
EAN: 7316572551851
Category: Oil Seal / Radial Shaft Seal
Seal Type: Double Lip Seal
Design: HMSA10
Sealing Material: RG - Nitrile Rubber / NBR
Outside Diameter Design: Rubber Outside Diameter
Reinforcement Ring: Carbon Steel
Auxiliary Lip: Yes
Garter Spring: Yes
Operating Temperature Range: -40°C to +100°C
Sealing Material Temperature Range: -30°C to +100°C
Maximum Speed: 3,300 rpm
Permissible Circumferential Speed: 6.93 m/s
Weight: 0.041 kg approx.

Dimensions:
Shaft / Inner Diameter: 40 mm
Housing Bore / Outer Diameter: 72 mm
Width: 10 mm

Suffix Description:
HMSA10: SKF radial shaft seal design with rubber outside diameter, carbon steel reinforcement ring, conventional elastomer sealing lip, auxiliary contacting lip, and garter spring
RG: Nitrile rubber / NBR sealing material

Description:
This listing is for one SKF 40X72X10 HMSA10 RG radial shaft oil seal.

The SKF HMSA10 design is used between rotating and stationary machine components, or between components in relative motion. This seal features a rubber outside diameter, a conventional elastomer sealing lip, an auxiliary lip, and a garter spring to help maintain proper radial load against the shaft.

The auxiliary lip helps improve protection in applications where dirt, dust, or contamination may be present. The RG nitrile rubber / NBR material is suitable for oil and grease sealing applications within the specified operating temperature range.

This seal measures 40 mm shaft diameter, 72 mm housing bore diameter, and 10 mm width.

Main Features:

·         Genuine SKF 40X72X10 HMSA10 RG oil seal

·         Double lip radial shaft seal

·         Rubber outside diameter

·         Nitrile rubber / NBR sealing material

·         Auxiliary contacting lip

·         Carbon steel reinforcement ring

·         Includes garter spring

·         40 mm shaft diameter

·         72 mm housing bore diameter

·         10 mm width

·         Maximum speed: 3,300 rpm

·         Operating temperature range: -40°C to +100°C

·         Suitable for industrial, automotive, agricultural, and machinery applications

Please verify all dimensions, part number, seal design, sealing material, and application requirements before purchasing to make sure this item fits your application.

 Package Includes: One (01)  SKF Seal 40x72x10 HMSA10 RG
