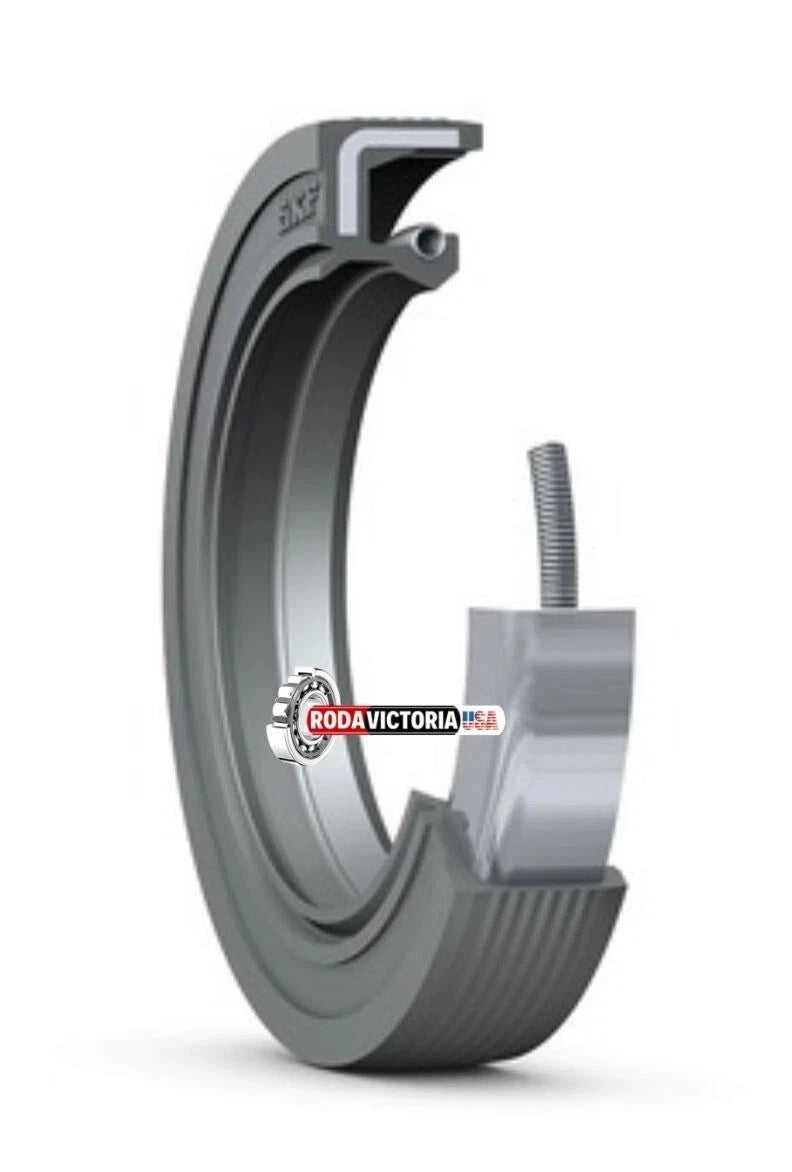

SKF 35X72X12 HMSA10 RG Double Lip Oil Seal NBR 35x72x12 mm

Item Specifics:
Brand: SKF
Model / Item Number: 35X72X12HMSA10RG
Alternate Format: 35X72X12 HMSA10 RG
EAN / UPC: 7316572551837
Category: Oil Seal / Radial Shaft Seal
Seal Type: Double Lip Seal
Design Type: HMSA10
Construction: Radial Shaft Seal
Outside Diameter Design: Rubber Outside Diameter
Lip Material: Nitrile Rubber / NBR
Reinforcement Ring: Carbon Steel
Auxiliary Lip: Yes
Garter Spring: Yes
Maximum Speed: 3,480 rpm
Permissible Circumferential Speed: 6.39 m/s
Operating Temperature Range: -40°C to +100°C
Sealing Material Temperature Range: -30°C to +100°C
Weight: 0.048 kg approx.

Dimensions:
Shaft Diameter / Inner Diameter: 35 mm / 1.378"
Outside Diameter: 72 mm / 2.8346"
Width: 12 mm / 0.4724"

Cross Reference / OE Reference:
Krone 009363371

Suffix Description:
HMSA10: SKF radial shaft seal design with rubber outside diameter, carbon steel reinforcement ring, conventional elastomer sealing lip, auxiliary contacting lip, and garter spring
RG: Nitrile rubber / NBR sealing material

Description:
This listing is for one SKF 35X72X12 HMSA10 RG radial shaft oil seal.

The SKF 35X72X12 HMSA10 RG is a double lip radial shaft seal designed for sealing applications between rotating and stationary machine components, or between components in relative motion.

The HMSA10 design features a rubber outside diameter, a conventional elastomer sealing lip, an auxiliary contacting lip, and a garter spring. The garter spring helps maintain proper radial load against the shaft, while the auxiliary lip helps improve sealing performance and protection in contaminated or dusty environments.

This seal uses RG nitrile rubber / NBR sealing material, suitable for oil and grease sealing applications within the specified operating temperature range.

This seal measures 35 mm shaft diameter, 72 mm outside diameter, and 12 mm width.

Typical Applications:
Gearboxes, transmissions, motors, pumps, machinery, industrial equipment, agricultural equipment, automotive applications, and other rotary shaft sealing applications.

Main Features:

·         Genuine SKF 35X72X12 HMSA10 RG oil seal

·         Double lip radial shaft seal

·         HMSA10 seal design

·         Rubber outside diameter

·         Nitrile rubber / NBR sealing material

·         Auxiliary contacting lip

·         Includes garter spring

·         Carbon steel reinforcement ring

·         35 mm shaft diameter

·         72 mm outside diameter

·         12 mm width

·         Maximum speed: 3,480 rpm

·         Operating temperature range: -40°C to +100°C

·         Cross references Krone 009363371

·         Suitable for oil or grease sealing applications

Please verify all dimensions, part number, seal design, sealing material, and cross references before purchasing to make sure this item fits your application.

 Package Includes: One (01)  SKF Seal 26x37x7 35x72x12 RG
