SKF 25X52X8 HMSA10 RG Double Lip Oil Seal Nitrile 25x52x8 mm

Item Specifics:
Brand: SKF
Model / Item Number: 25X52X8HMSA10RG
Also Written As: 25X52X8 HMSA10 RG
EAN: 7316572272022
Category: Oil Seal / Radial Shaft Seal
Seal Type: Rubber Oil Seal with Spring Ring
Design: HMSA10
Lip Design: Main Sealing Lip with Auxiliary Lip
Sealing Material: RG - Nitrile Rubber
Outside Diameter Material: Rubber Covered OD
Reinforcement Ring: Carbon Steel
Application Type: Oil or Grease Shaft Seal
Weight: 0.018 kg approx.

Dimensions:
Shaft Diameter / Inner Diameter: 25 mm / 0.9843"
Housing Bore / Outer Diameter: 52 mm / 2.0472"
Width: 8 mm / 0.315"

Operating Data:
Operating Temperature: -40°C to +100°C
Nitrile Rubber Temperature Range: -30°C to +100°C
Maximum Velocity: 3,840 rpm
Permissible Circumferential Speed: 5.03 m/s

Suffix Description:
HMSA10: Seal with rubber outside diameter, carbon steel reinforcement ring, auxiliary lip, and garter spring
RG: Nitrile rubber sealing material

Description:
This listing is for one SKF 25X52X8 HMSA10 RG radial shaft oil seal.

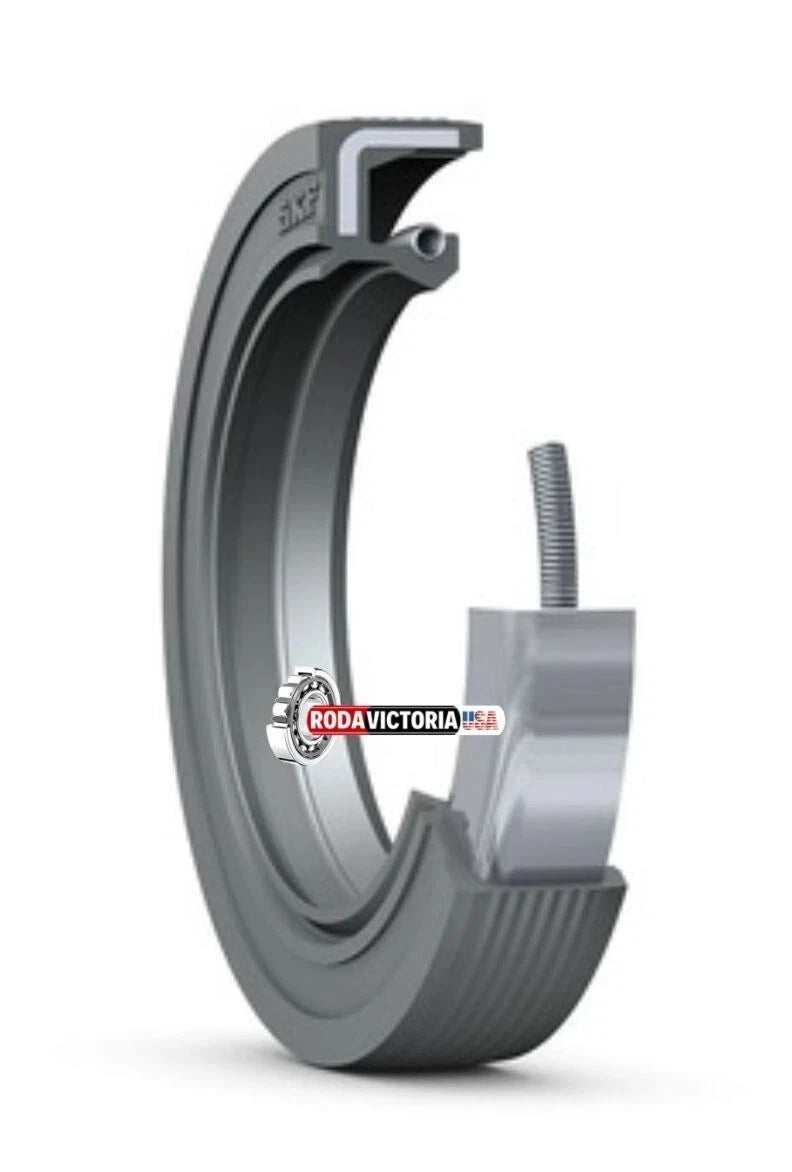

The 25X52X8HMSA10RG is a rubber outside diameter shaft seal designed for use between rotating and stationary machine components, or between components in relative motion. It features a conventional elastomer sealing lip, garter spring, and auxiliary lip to help improve sealing performance in contaminated environments.

This seal is designed to help retain lubricant while helping exclude dirt, dust, moisture, and other contaminants from the sealing area. It is commonly used in pumps, gearboxes, electric motors, shafts, transmissions, agricultural equipment, industrial machinery, and general mechanical sealing applications.

Main Features:

·         Genuine SKF 25X52X8 HMSA10 RG seal

·         Radial shaft oil seal

·         Rubber outside diameter

·         Main sealing lip with auxiliary lip

·         Spring-loaded sealing design

·         Nitrile rubber sealing material

·         Carbon steel reinforcement ring

·         Suitable for oil or grease applications

·         25 mm shaft diameter

·         52 mm housing bore / outside diameter

·         8 mm width

·         Operating temperature up to 100°C

·         Maximum velocity: 3,840 rpm

·         Permissible circumferential speed: 5.03 m/s

·         Helps retain lubricant

·         Helps protect against dust and contaminants

·         Suitable for industrial and mechanical applications

Please verify all dimensions, part number, sealing material, lip design, temperature range, and application requirements before purchasing to make sure this item fits your application.











 Package Includes: One (01)  SKF Seal 25x52x8 HMSA10 RG
