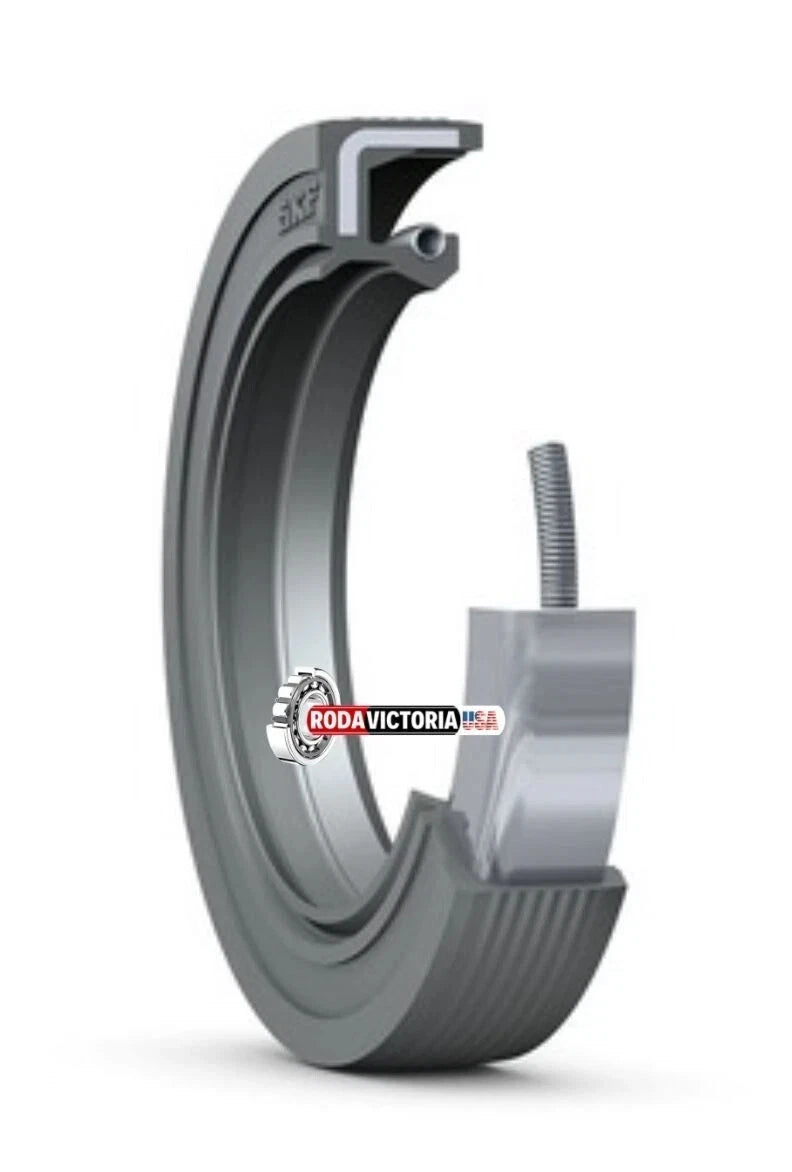

SKF 120X140X12 HMSA10 RG Double Lip Oil Seal 120x140x12 mm

Item Specifics:
Brand: SKF
Model / Item Number: 120X140X12HMSA10RG
Also Written As: 120X140X12 HMSA10 RG
EAN: 7316572553428
Category: Oil Seal / Radial Shaft Seal
Seal Type: Rubber Double Lip Oil Seal with Spring Ring
Design: HMSA10
Material: RG - Nitrile Rubber
Outside Diameter Type: Rubber Outside Diameter
Reinforcement Ring: Carbon Steel Reinforcement Ring
Lip Design: Main Contacting Lip with Auxiliary Lip
Spring Type: Carbon Steel or Stainless Steel Garter Spring
Application Type: Rotating Shaft / Radial Shaft Sealing
Weight: 0.094 kg approx.

Dimensions:
Shaft Diameter / Inner Diameter: 120 mm / 4.7244"
Housing Bore / Outer Diameter: 140 mm / 5.5118"
Width: 12 mm / 0.4724"

Operating Data:
Maximum Speed: 1,832 rpm
Permissible Circumferential Speed: 11.32 m/s
Operating Temperature: -40°C to +100°C
Sealing Material Temperature Range: Nitrile Rubber, -30°C to +100°C

Suffix Description:
HMSA10: Seal with rubber outside diameter, carbon steel reinforcement ring, auxiliary lip, and garter spring
RG: Nitrile rubber

Description:
This listing is for one SKF 120X140X12 HMSA10 RG radial shaft oil seal.

The HMSA10 RG is a double lip radial shaft seal designed for use between rotating and stationary machine components, or between components in relative motion. It features a rubber outside diameter, a conventional elastomer sealing lip, a garter spring, and an auxiliary lip to help improve sealing performance in contaminated or polluted environments.

The nitrile rubber sealing material provides reliable lubricant retention and contaminant exclusion in many standard industrial and mechanical applications.

This seal measures 120 mm shaft diameter, 140 mm housing bore diameter, and 12 mm width.

Main Features:

·         Genuine SKF 120X140X12 HMSA10 RG oil seal

·         Radial shaft seal

·         Double lip seal design

·         Rubber outside diameter

·         Nitrile rubber sealing material

·         Carbon steel reinforcement ring

·         Auxiliary lip for added protection

·         Garter spring for improved shaft sealing

·         120 mm shaft size

·         140 mm outside diameter

·         12 mm width

·         Maximum speed: 1,832 rpm

·         Operating temperature: -40°C to +100°C

·         Helps retain lubricant

·         Helps exclude dirt, dust, and contaminants

·         Suitable for industrial, mechanical, gearbox, motor, pump, and shaft sealing applications

Please verify all dimensions, part number, seal design, material, speed rating, temperature range, and application compatibility before purchasing to make sure this item fits your application.

 Package Includes: One (01)  SKF Seal 120x140x12 HMSA10 RG
