BRAND: NTN

ID:5308 C3

Description:

•

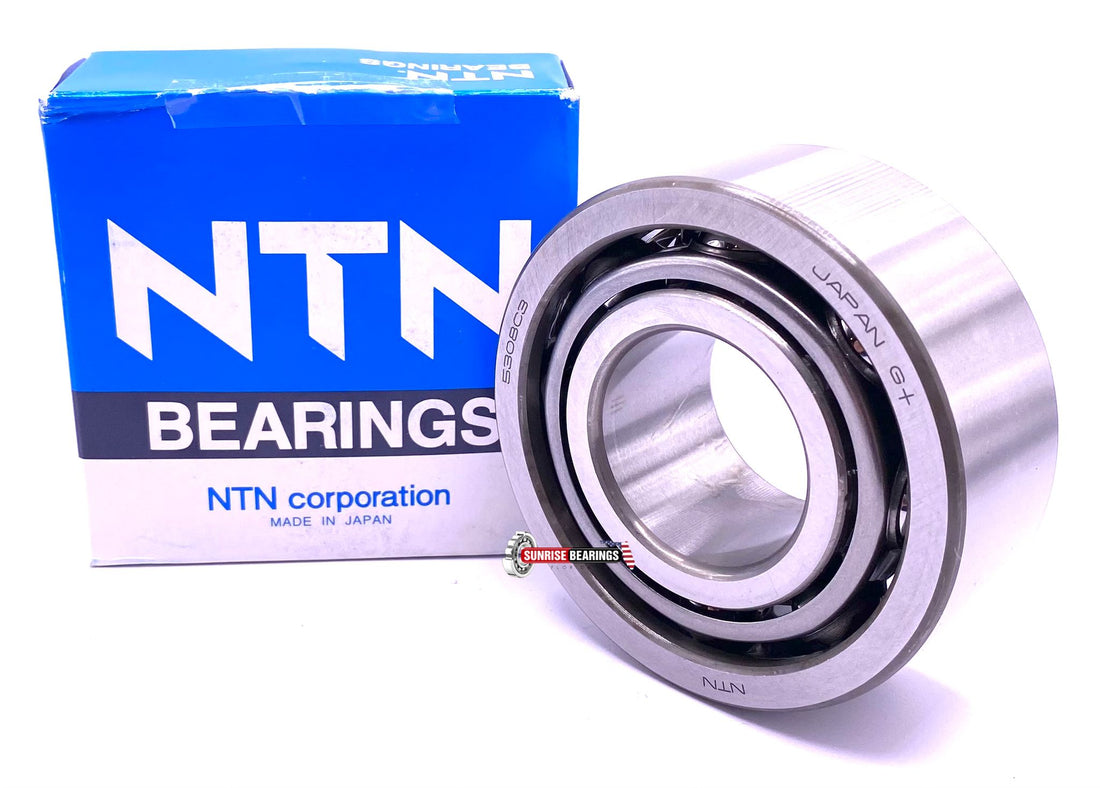

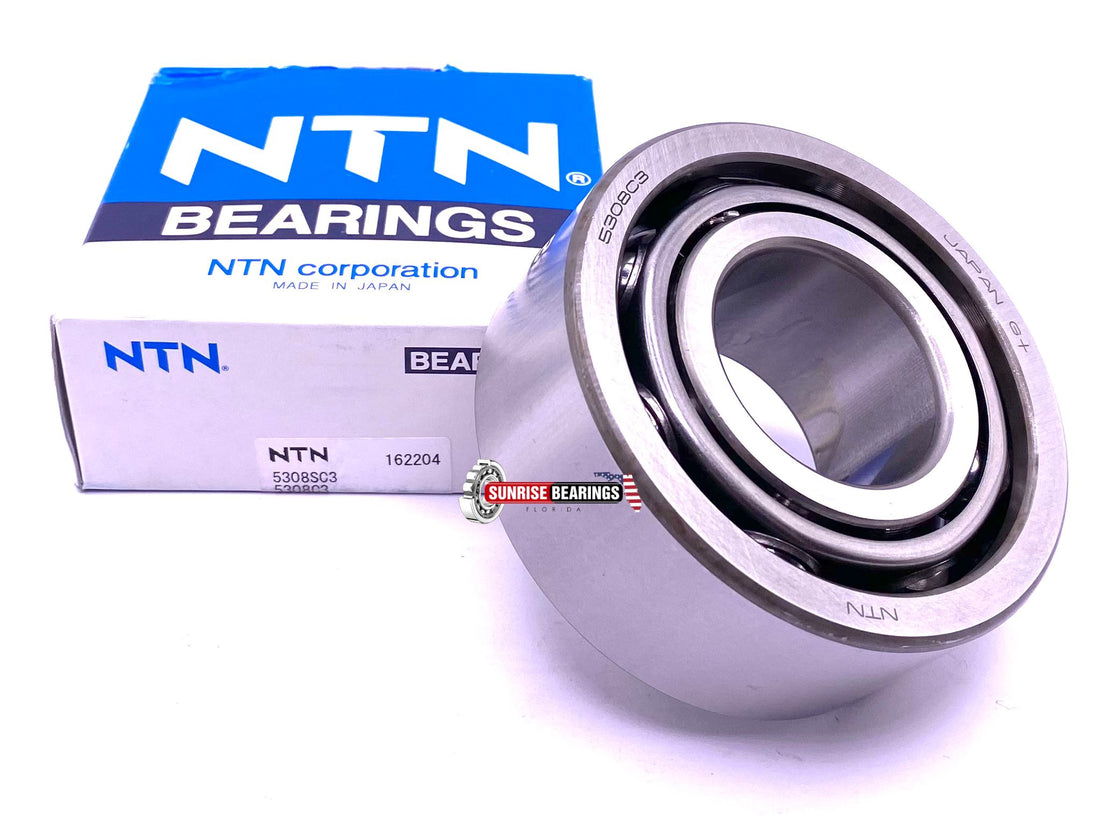

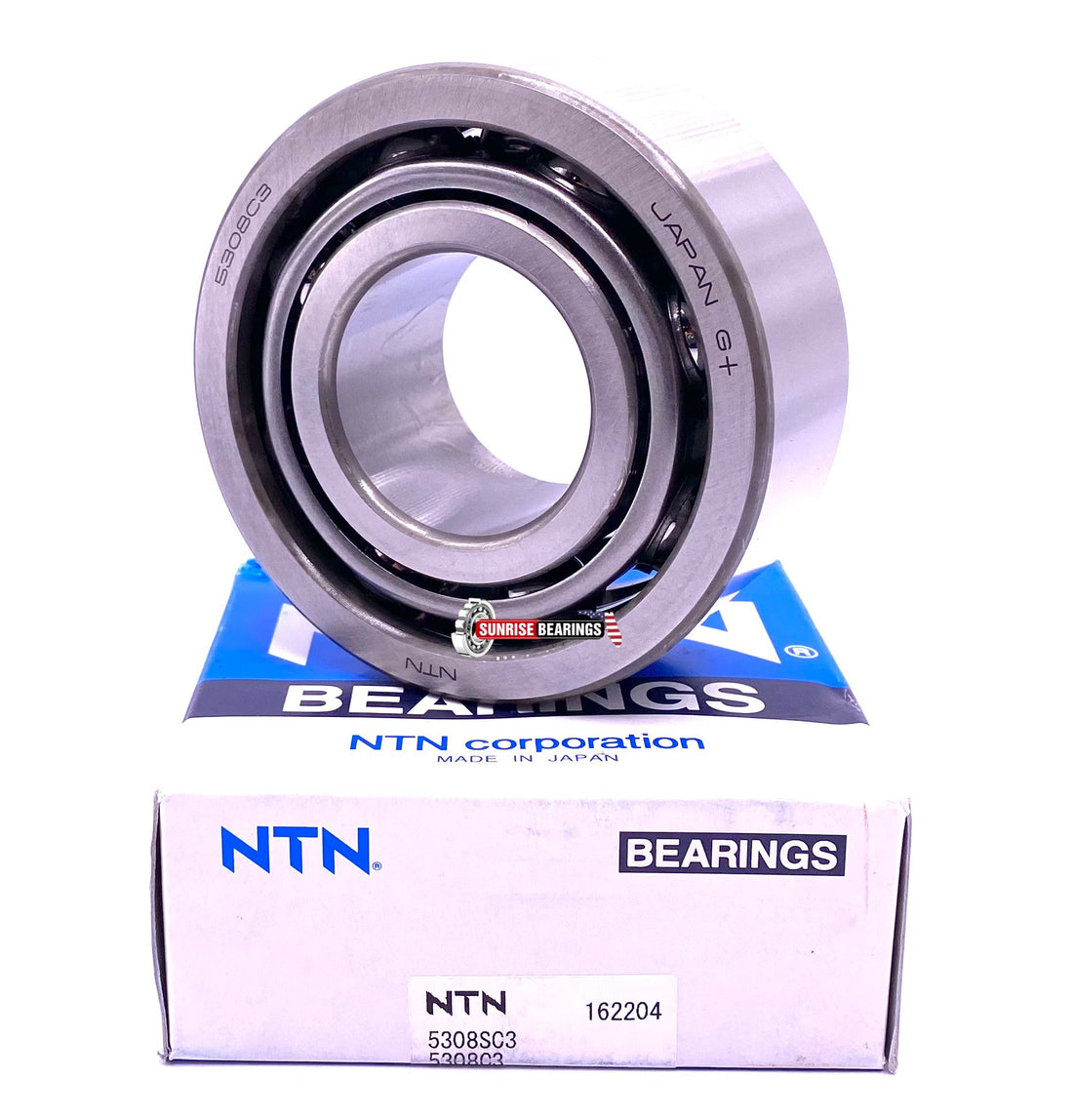

   NTN 5308 C3 – Double Row Angular Contact Ball Bearing

  General Information

  • Brand: NTN
  • Item Number: 5308 C3
  • EAN: 4547359539585
  • Category: Double row angular contact ball bearing
  • Country of Origin: Japan

  ---

  Dimensions & Weight

  • Inner Diameter (d): 40 mm / 1.5748 in
  • Outer Diameter (D): 90 mm / 3.5433 in
  • Width (B): 36.5 mm / 1.437 in
  • Weight: 0.981 kg

  ---

  Bearing Properties

  • Bore Type: C – Cylindrical bore
  • Rows: Double row
  • Seals: None (open bearing)
  • Cage Type: S – Steel / standard cage
  • Radial Internal Clearance: C3 – Larger than normal (CN)
  • Precision Class: Standard precision
  • Lubrication: Standard factory lubrication (re-lubrication possible depending on application)
  • Heat Stabilization: Not heat stabilized – suitable up to 120 °C
  • Split Inner/Outer Ring: Standard (non-split rings)
  • External Modification: None

  ---

  Suffix Description

  • C3: Internal clearance larger than normal, suitable for higher speeds, temperature rise, or interference fits.

  ---

  Product Description

  The NTN 5308 C3 is a double row angular contact ball bearing designed to carry combined radial and axial loads in both directions. The double row construction provides:

  • Higher load capacity than a single row bearing of the same size
  • Increased rigidity and better support for overhung loads

  Because of its C3 internal clearance, this bearing is well suited for:

  • Applications with higher operating speeds
  • Fits with interference on shaft and/or housing
  • Conditions where internal temperatures may increase during operation

  The open design with a steel cage ensures good lubricant flow and stable guidance of the balls, making it suitable for general industrial and power transmission applications.

  ---

  Typical Applications

  • Electric motors and large pumps
  • Gearboxes and reducers
  • Industrial machinery with combined radial and axial loads
  • Conveyors, fans, and drive systems





Package Includes: ONE (1) NTN Bearing 5308 C3
