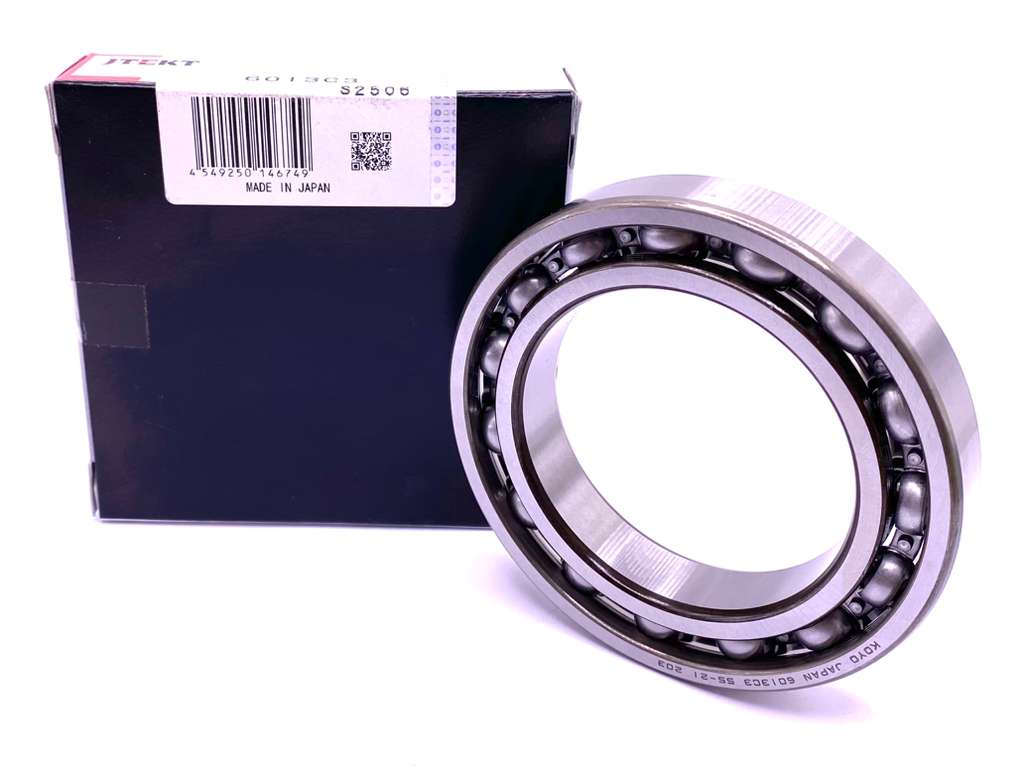

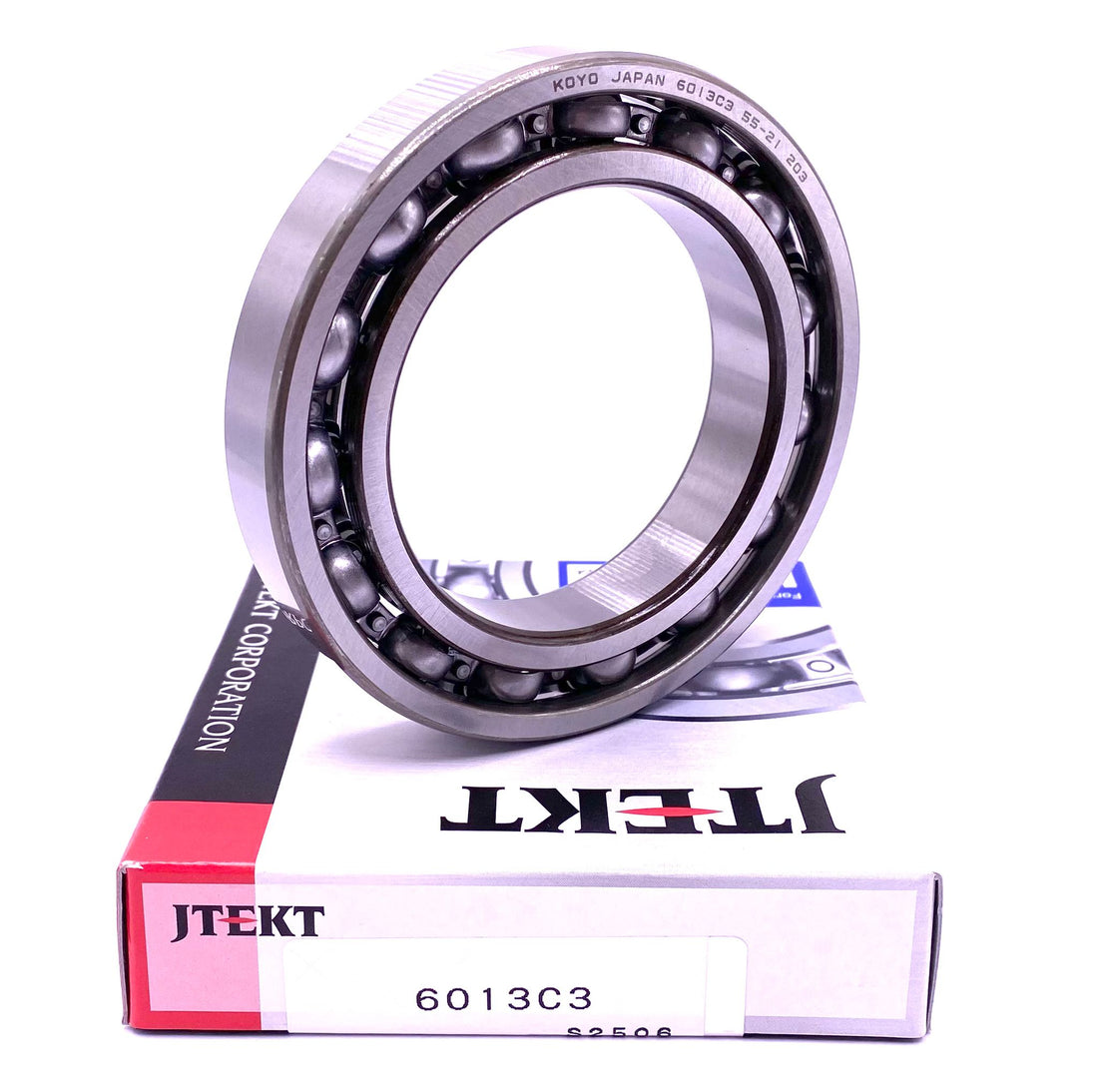

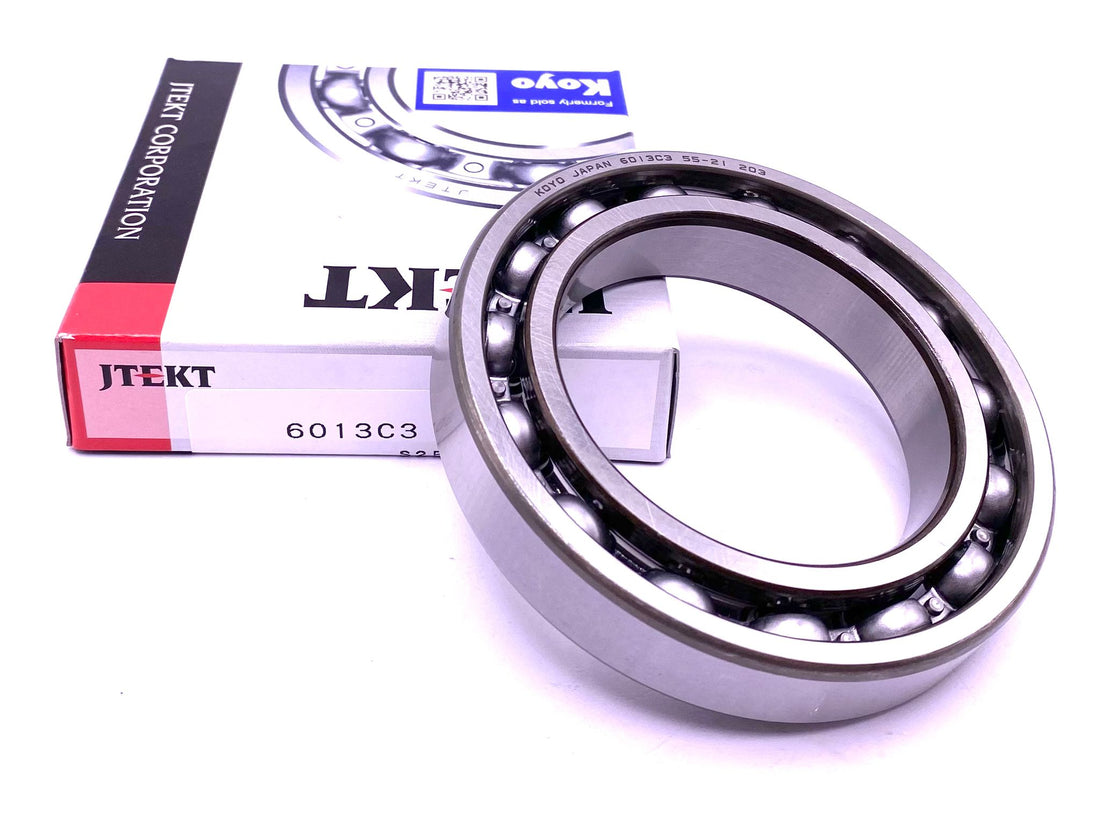

Brand: Koyo (JTEKT)
Item Number: 6013C3 Koyo (JTEKT)
Category: Deep Groove Ball Bearing (Single Row)
EAN: 4549250146749

Material: Standard bearing steel (rings & rolling elements)
Ball Rows: Single row
Bore: C – Cylindrical Bore
Seal / Shield: None (Open bearing)
Cage Type: S – Steel / Standard Cage
Radial Internal Clearance: C3 (higher than CN / slightly increased clearance)
Precision / Tolerance Class: Standard Precision (P0 / PN2 / ABEC 1)
Lubrication: Standard lubrication
Heat Stabilization: None (up to 120°C)
Temperature Range: -20°C to +150°C
Current Insulation: None
External Modification: None
Special Treatment: None

Weight: 0.435–0.442 kg (approx., depending on catalog source)

Dimensions (Metric):

·         Inner Diameter (d): 65.00 mm

·         Outer Diameter (D): 100.00 mm

·         Width (B): 18.00 mm

Dimensions (Inch):

·         Inner Diameter (d): 2.5591 in

·         Outer Diameter (D): 3.9370 in

·         Width (B): 0.7087 in

Suffix Meaning:

·         C3 = Internal clearance larger than normal (greater than CN)

PACKAGE INCLUDES: ONE (1) KOYO Bearing 6013 C3
