BRAND: KBS

ID:  562398A

DESCRIPTION:

 Also known :

Z-562398.06.RDL, BAH 0012, 562398AA, BAHB 633531, 633531, DAC 3772 W-2 SH2 CS75, GB 12807 S10, F-113175

BA2B309639

• Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

• Inner (d) MM37

• Outer (D) MM72

• Width (B) MM37

• Weight (kg)0.575

Product Properties

• Bore C - Cylindrical Bore

• Seal2RS - Rubber Seal on Two Sides

• Cage Type S - Steel or Standard Cage

• External Modification No External Modification

• Radial Internal Play Cn Normal Internal Play

• Precision Standard Precision

• Lubrication Standard Lubrication

• Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

• Split Innering / Outerring S

• Detailed

• The 562398 KBS is a double row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single row angular contact ball bearings in O-arrangement but is slightly narrower. Also, the contact angle and the design of the bearing rings are different. double row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

• The 562398 KBS has a split inner ring. This bearing type combines a large number of balls with a large contact angle. This design makes the bearing suitable for higher axial loads in both directions. Bearings with split inner rings generally have a tighter fit than bearings with single-piece inner rings.

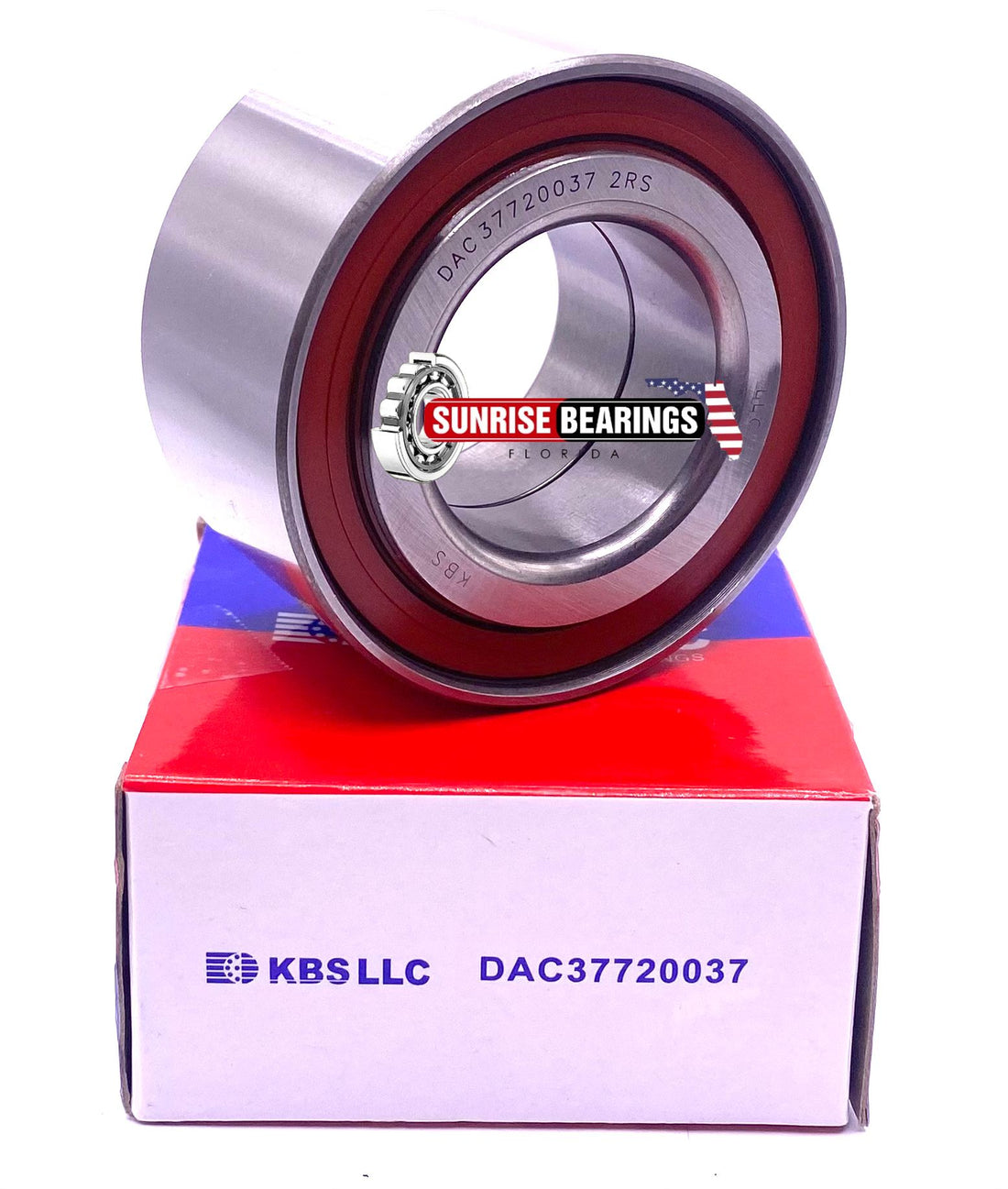

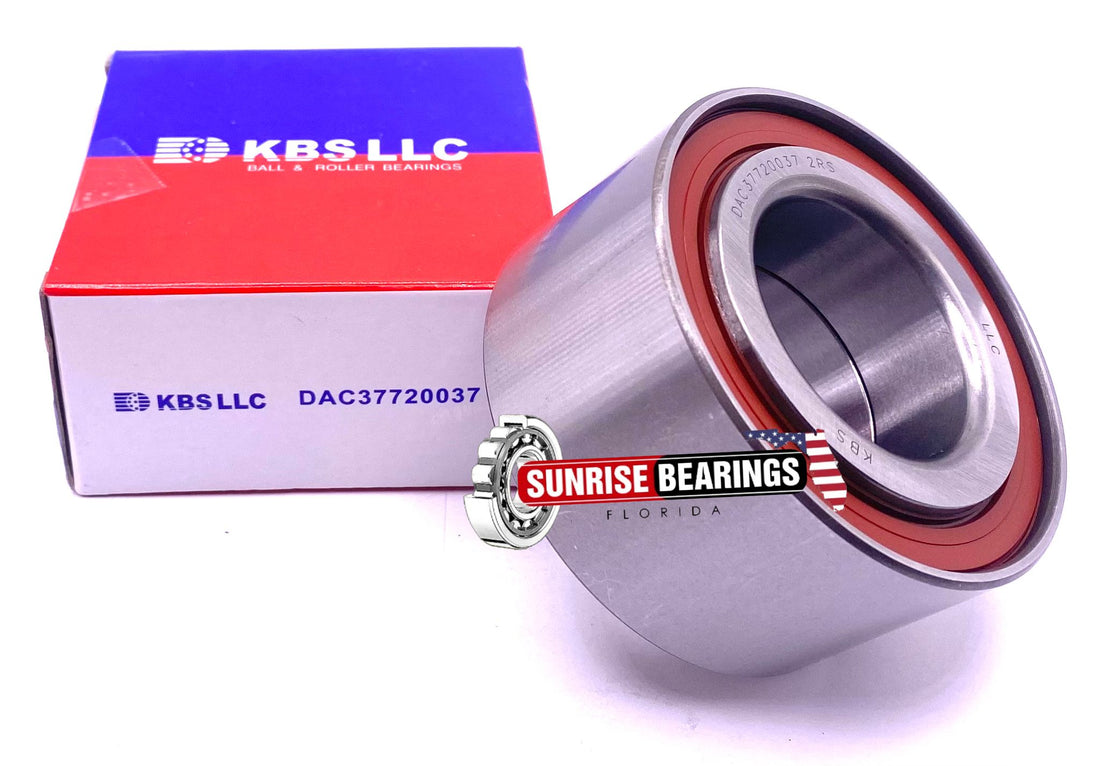

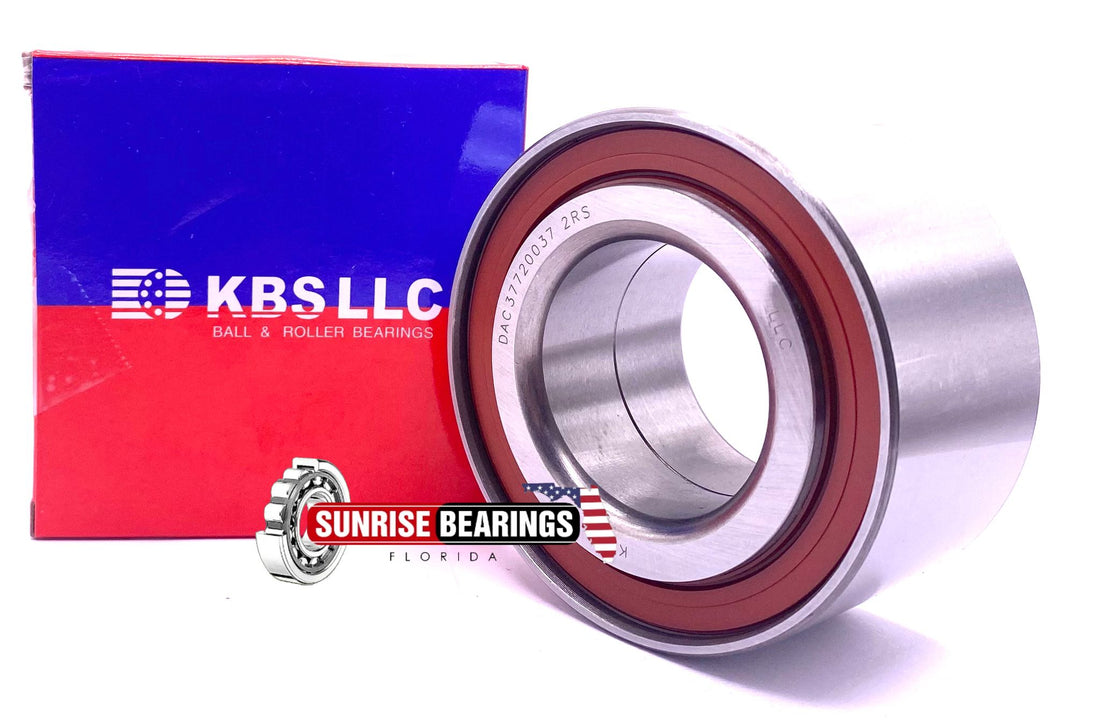

Package Include : KBS 562398 New Double Row Ball Bearing 37*72*37 mm
