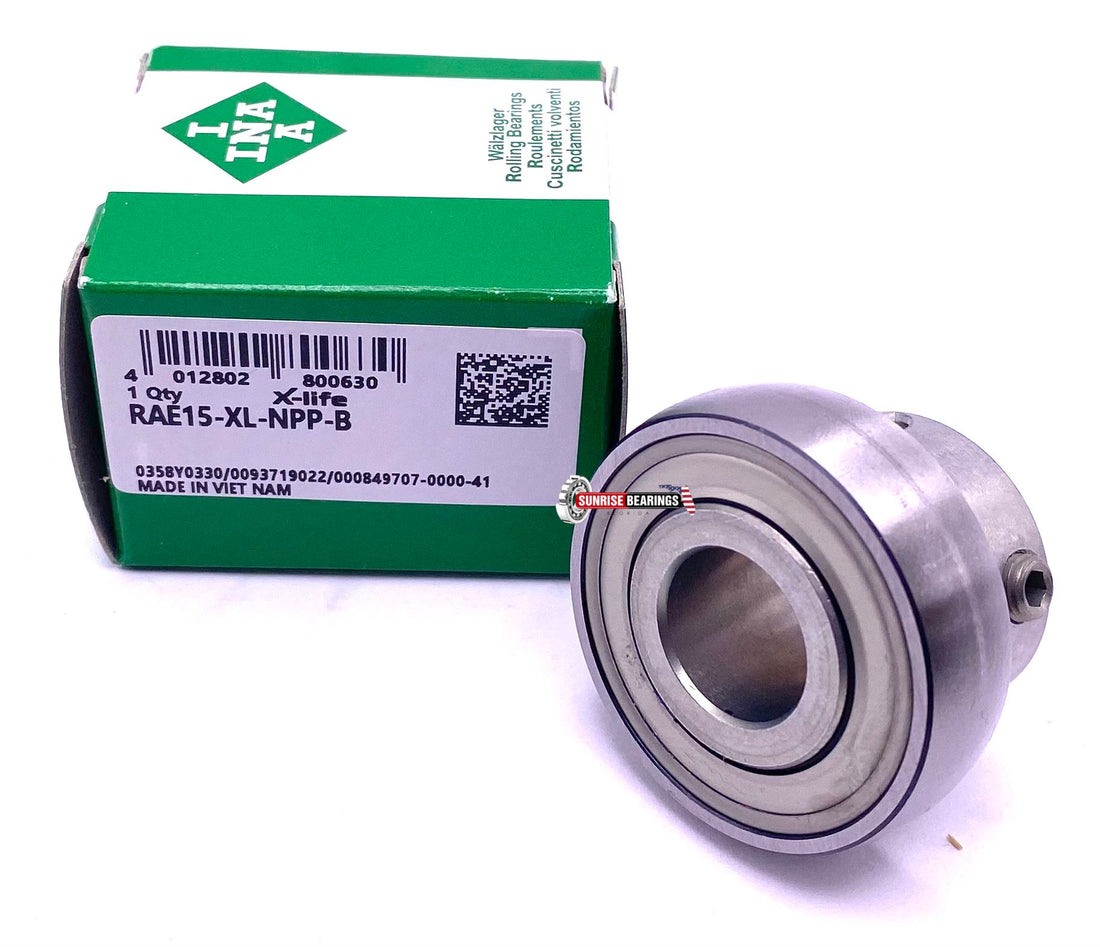

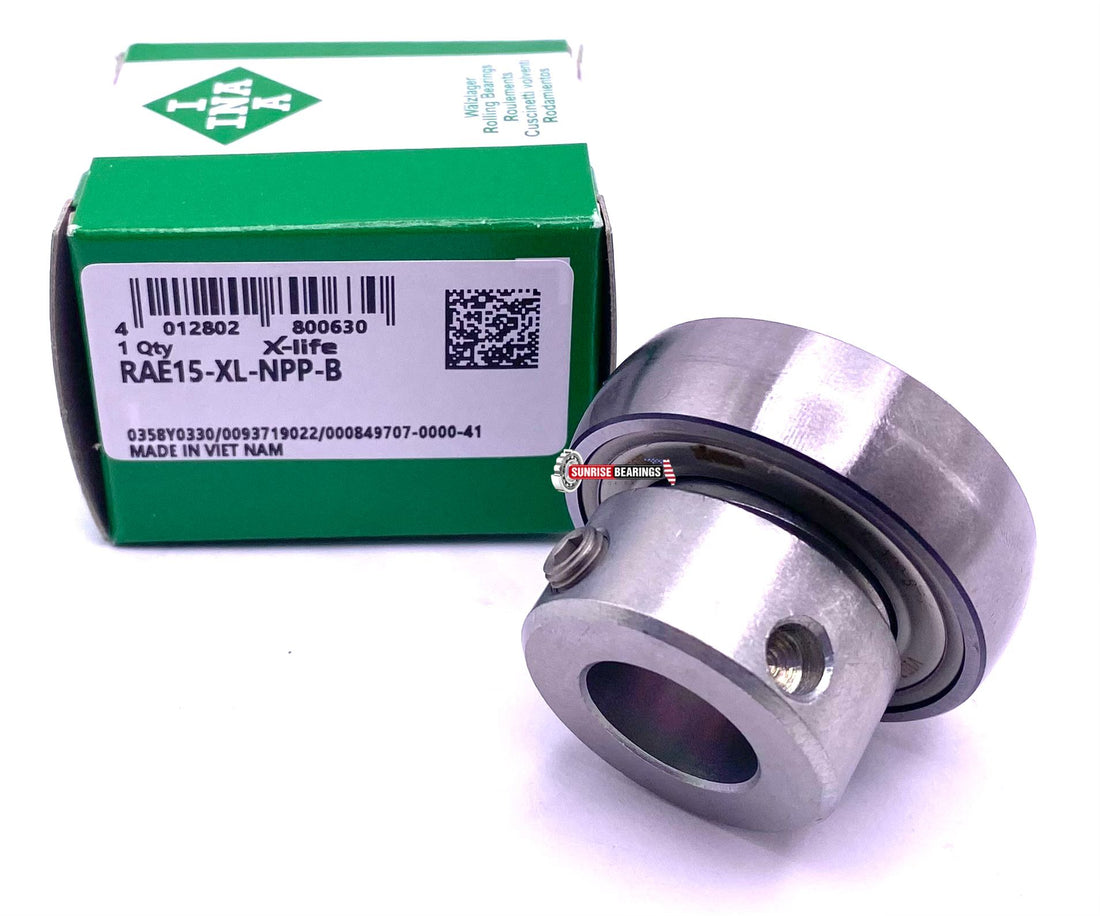

Item Number: RAE15-XL-NPP-B INA

·         Manufacturer Part Number: 0008497070000

·         Also known as: RAE15-NPP-B, YET203/15

·         EAN: 4012802800630

·         Category: Bearings for Housings

Weight and Dimensions

·         Inner Diameter (d): 15 mm / 0.5906 inch

·         Outer Diameter (D): 40 mm / 1.5748 inch

·         Width (B): 28.6 mm / 1.126 inch

·         Weight: 0.12 kg

Product Properties

·         Seal: 2F - Standard Seal for Y-bearings

·         Lubrication: Non-Regreaseable

·         Special Treatment: None

Data from Schaeffler (medias)

·         Outside Diameter (D SP): 40 mm

·         Width (b): 19 mm

·         Locking collar total width (B 1): 28.6 mm

·         Radial Static Load Rating (C0r): 4750 N

·         Radial Dynamic Load Rating (Cr): 10100 N

·         Basic Static Load Rating, Radial (C 0r): 4750 N

·         ECLASS number: 23-05-08-02

·         Medias description: Radial insert ball bearing RAE..-XL-NPP-B

Suffix description

·         XL: X-Life

·         NPP: Lip Seals On Both Sides

·         B: Bearing With Spherical Outer Ring

·         FA106: Special Noise Testing Approved

·         L460: NSF-H1 Approved Lubricants
