Brand: INA
Item Number: NK22/20-XL

Manufacturer Part Number: 050754050-0000

Other Part Numbers / Interchange: NB223020, NK22/20, RNA223020, TAF223020

Product Type: Needle Roller and Cage Assembly

Series: NK, Light Series

Design: Machined needle roller bearing

Needle Rows: Single row

Seal Type: Open / No Seal

Cage Type: Sheet steel cage

Inner Ring: Without inner ring

Lubrication: Groove with lubrication hole(s)

Clearance: Normal radial clearance

Tolerance Class: P0 / PN / ABEC 1

X-Life Design: Yes

Bore Diameter (d): 22 mm
Outer Diameter (D): 30 mm
Width (B): 20 mm

Bore Diameter (d): 0.8661 in
Outer Diameter (D): 1.1811 in
Width (B): 0.7874 in

Under Roller Diameter (Fw): 22 mm

Dynamic Load Rating (Cr): 20,000 N

Static Load Rating (C0r): 27,000 N

Limiting Speed: 20,000 rpm

Reference Speed: 11,700 rpm

Operating Temperature Range: -20 °C to +100 °C

Weight: 0.037 kg

EAN: 4012802284805

Customs Tariff Number: 8482 4000

Country of Origin: Slovakia

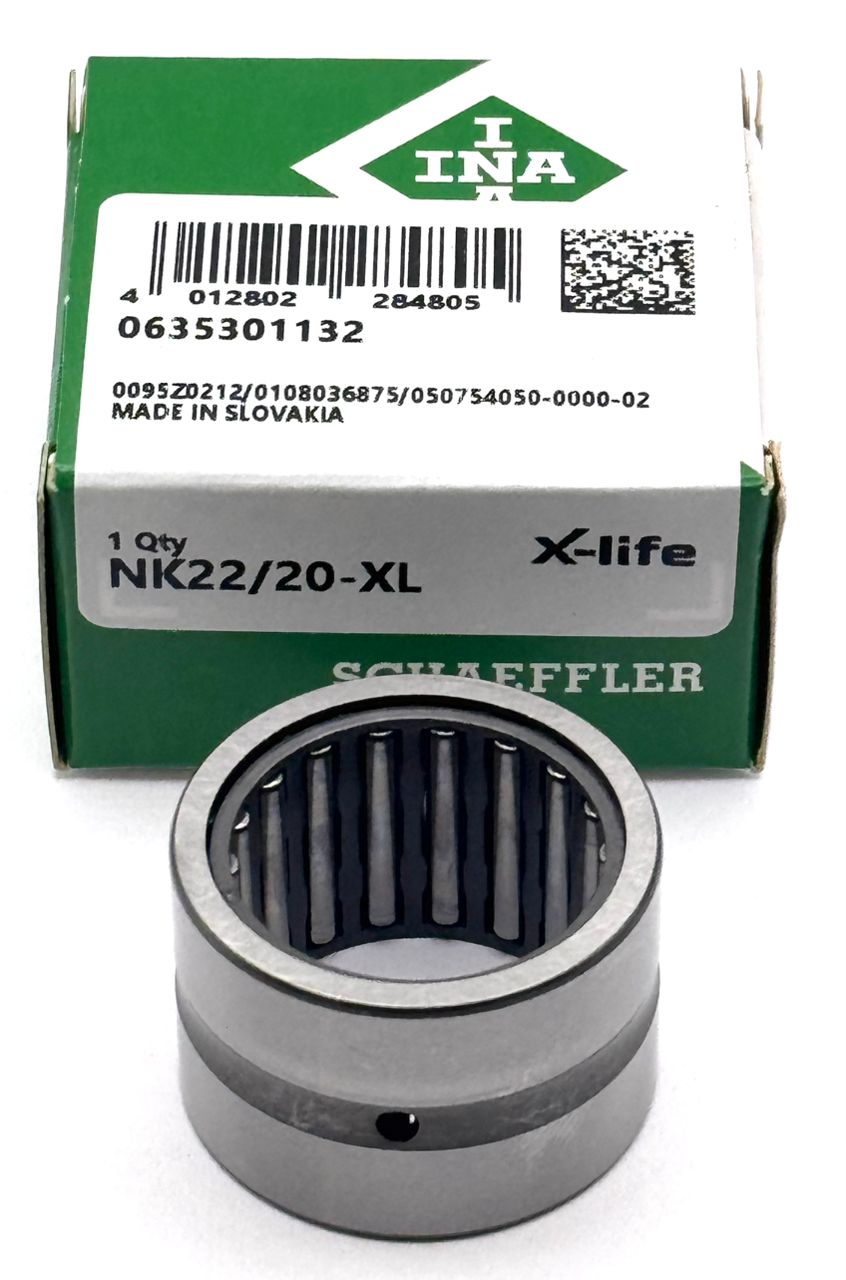

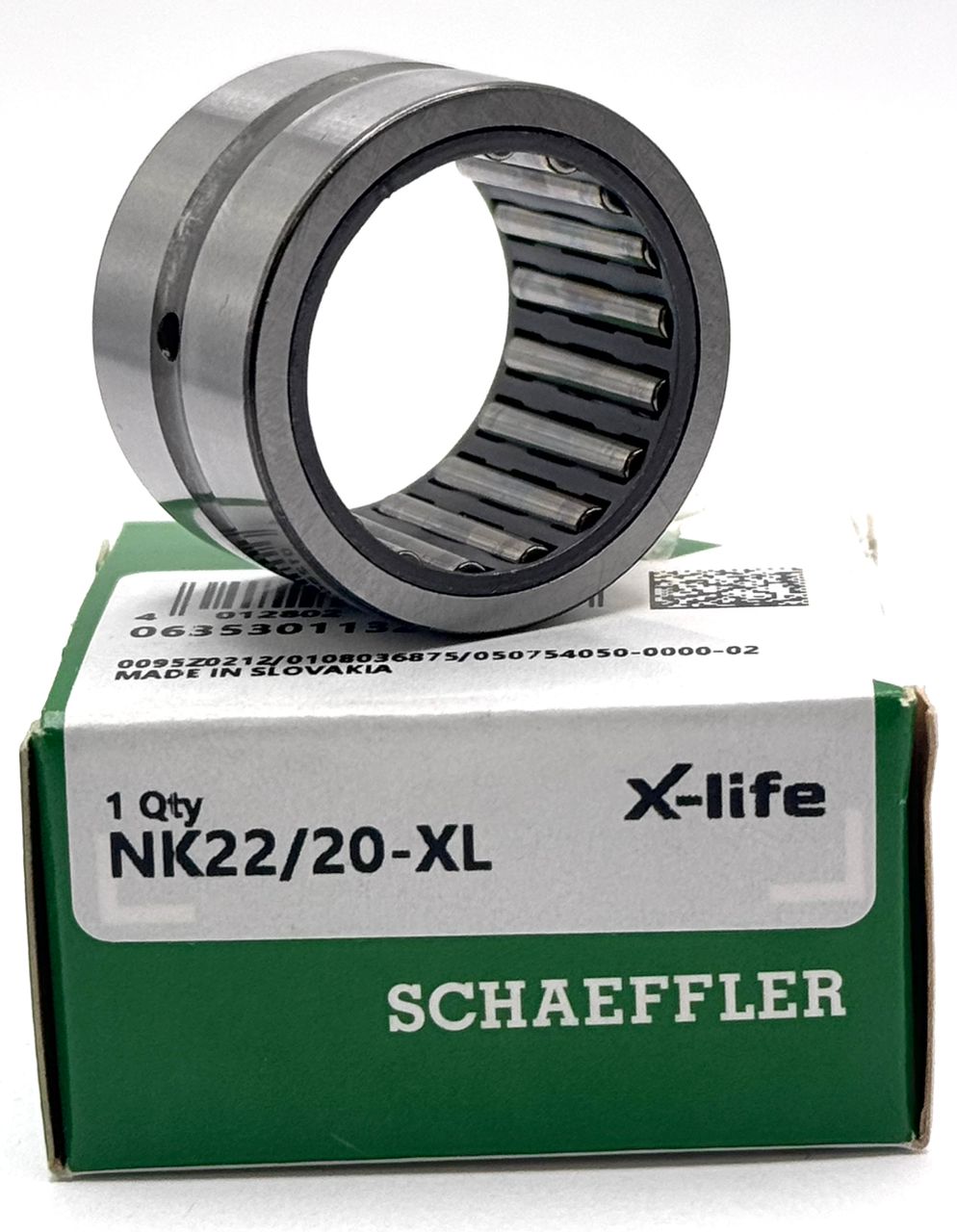

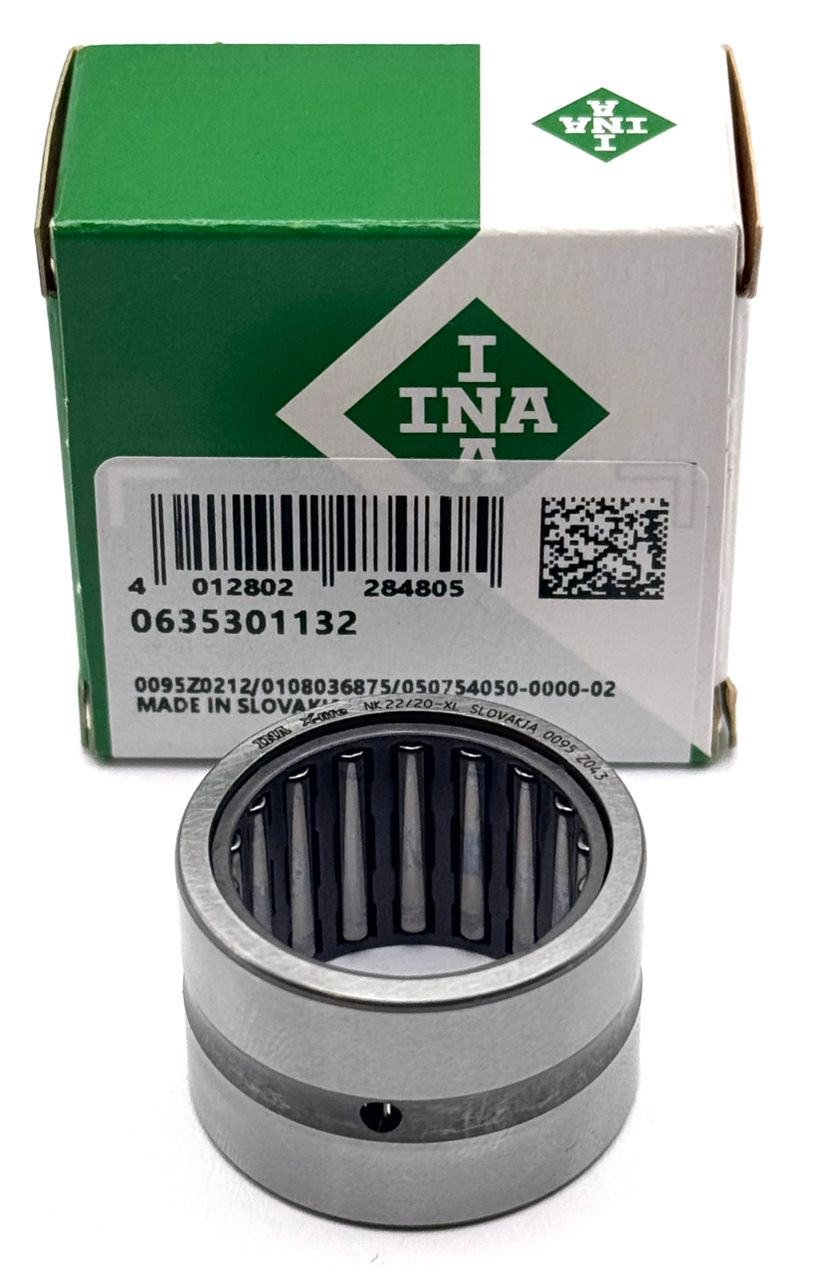

Description: INA NK22/20-XL needle roller and cage assembly, light series, single-row design, open type, without inner ring, with sheet steel cage and lubrication groove with lubrication hole(s). Designed for compact radial applications requiring high load capacity and reliable performance.

PACKAGE INCLUDES: ONE (1) INA Bearing NK22/20
