Item Specifics:
Brand: INA
Model / Item Number: KRV35-PP-A
Manufacturer Part Number: 0055918130000
EAN: 4012802423259
Category: Cam Follower / Stud Type Track Roller
Bearing Type: Needle Roller Cam Follower
Design: Full Complement Needle Roller Set
Mounting Type: Solid Threaded Stud
Seal Type: PP / Lip Seals on Both Sides
Axial Guidance: With Axial Guidance
Running Surface: Standard
Rolling Element Type: Needle Rollers
Construction: Full Complement Design
ECLASS Number: 23-05-15-02
Quantity Available: 151 pcs
Weight: 0.173 kg approx.

Dimensions:
Stud / Fit Diameter: 16 mm / 0.6299"
Roller Outside Diameter: 35 mm / 1.378"
Roller Width: 18 mm / 0.7087"
Overall Width: 52 mm

Load & Speed Ratings:
Basic Dynamic Load Rating, Radial: 12,700 N
Basic Static Load Rating, Radial: 23,400 N
Speed on Permanent Grease Lubrication: 1,600 rpm

Suffix Description:
PP: Lip seals on both sides. P-type seal design with two zinc-plated sheet steel washers and intermediate NBR section, with axially preloaded seal lip. Temperature range approximately -30°C to +100°C.
A: Alteration in internal construction, identical to old notation.

Description:

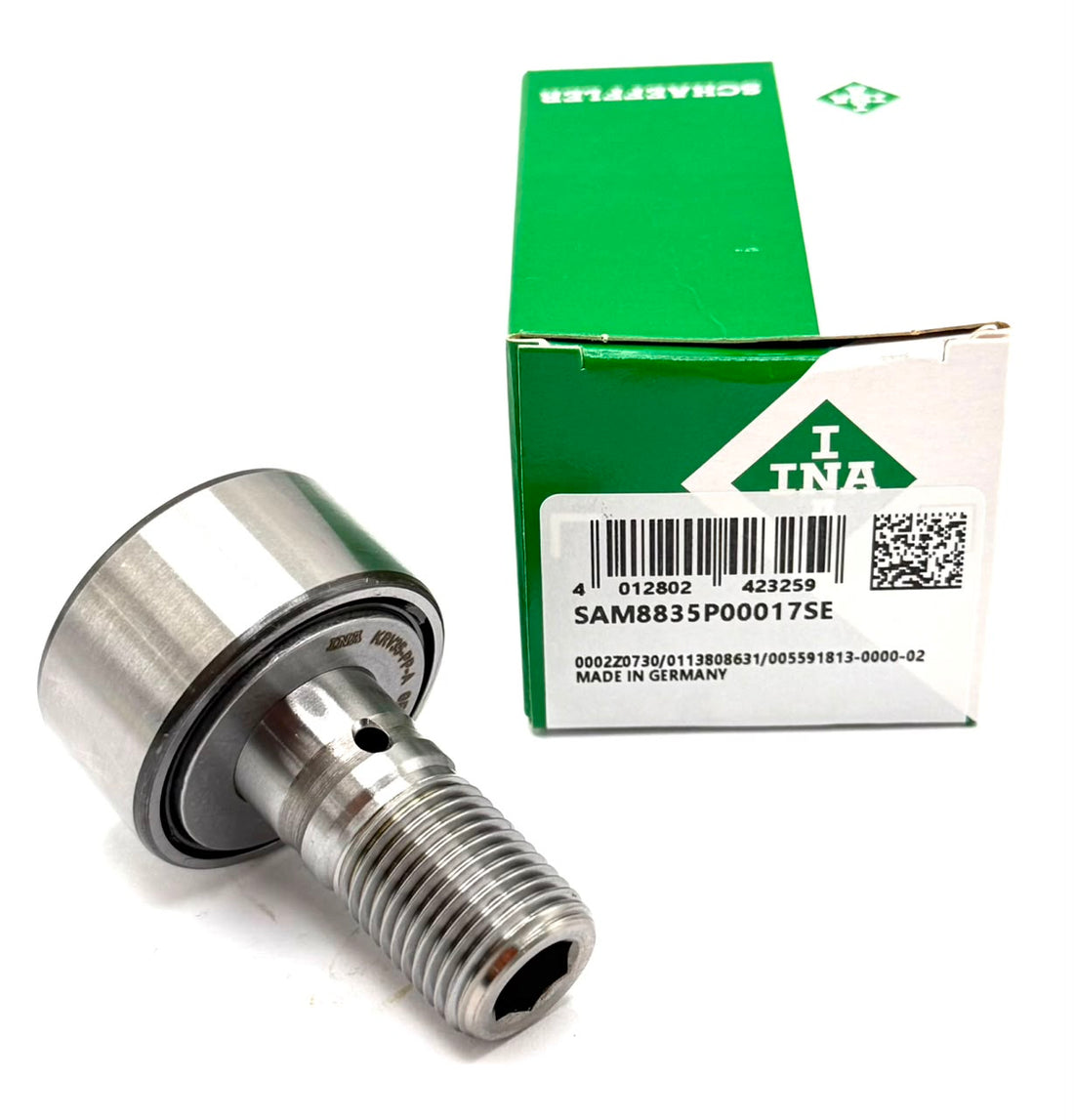

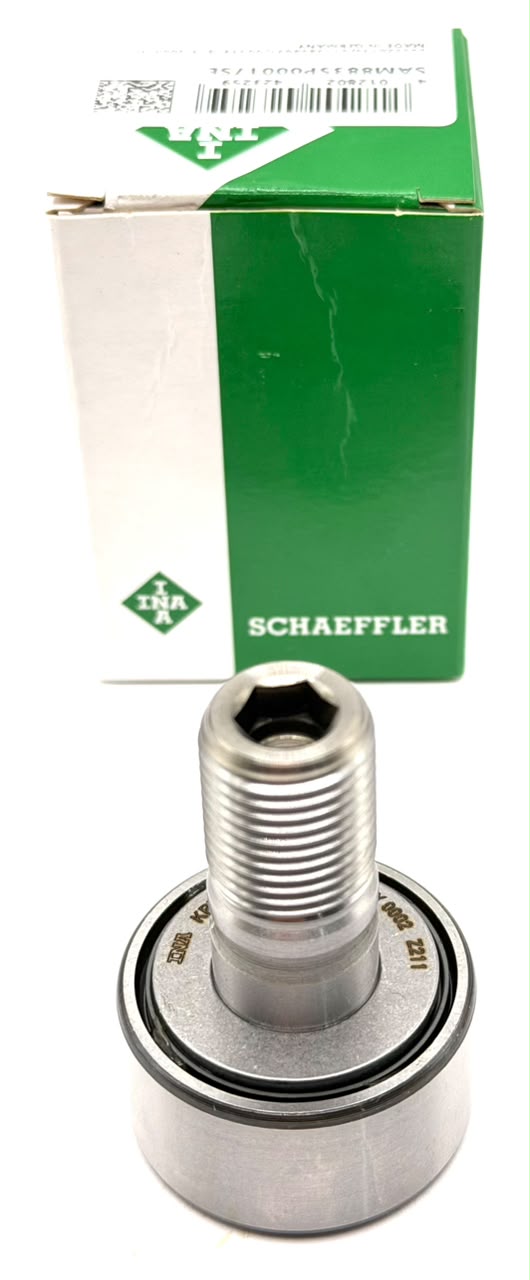

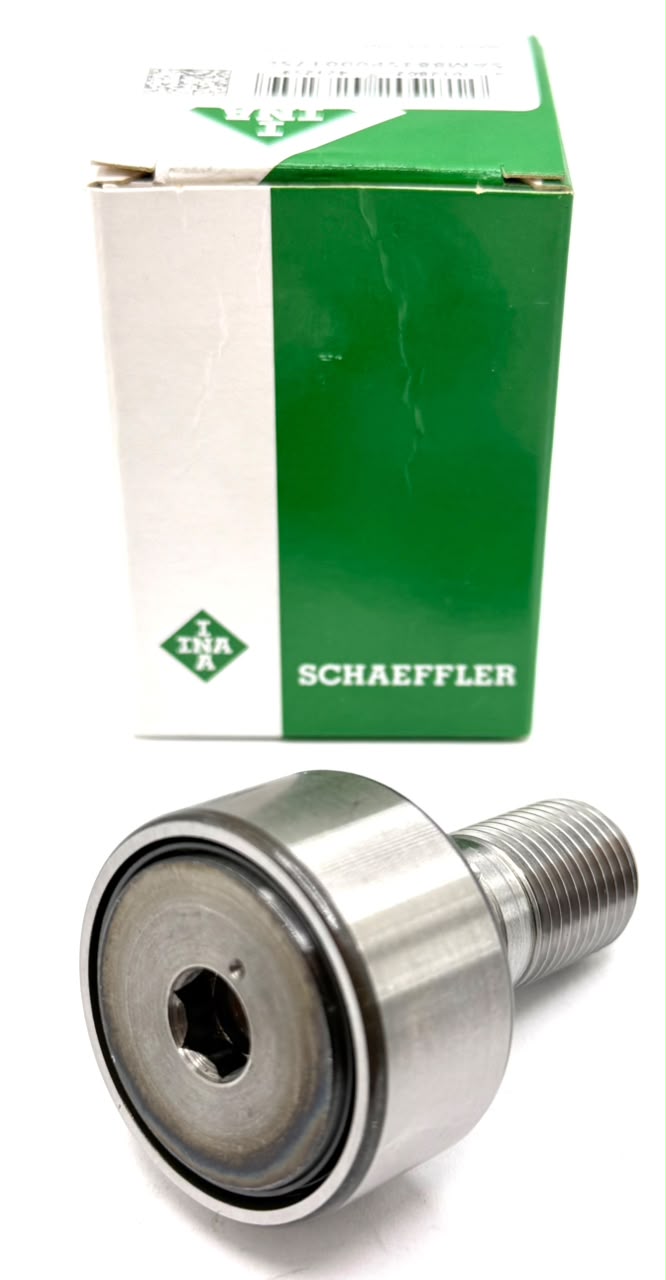

This listing is for one INA KRV35-PP-A cam follower / stud type track roller.

The KRV35-PP-A is a stud type cam follower with full complement needle rollers. Instead of a separate inner ring, this bearing features a solid threaded stud for easy mounting. It is designed for use with tracks, guide rails, cam mechanisms, conveyor systems, and linear guidance applications.

The full complement needle roller design allows a larger number of rolling elements inside the bearing, providing high radial load capacity in a compact design. This construction is also more resistant to shock loads compared with caged versions, although maximum speed is lower than caged cam followers.

The PP suffix indicates lip seals on both sides, helping protect the internal rolling elements and retain lubricant during operation. The thick-walled outer ring is designed to support high radial loads and operate against a flat counter track.

Main Features:

·         Genuine INA KRV35-PP-A cam follower

·         Stud type track roller

·         Full complement needle roller design

·         Solid threaded stud for mounting

·         PP lip seals on both sides

·         With axial guidance

·         Standard running surface

·         16 mm stud / fit diameter

·         35 mm roller outside diameter

·         18 mm roller width

·         High radial load capacity

·         Shock-resistant full complement construction

·         Suitable for cam mechanisms, tracks, conveyor systems, and linear guidance applications

Please verify all dimensions, part number, seal type, mounting style, load ratings, and specifications before purchasing to make sure this item fits your application.

Package Includes: One (01)  INA Bearing KRV35 PPA
