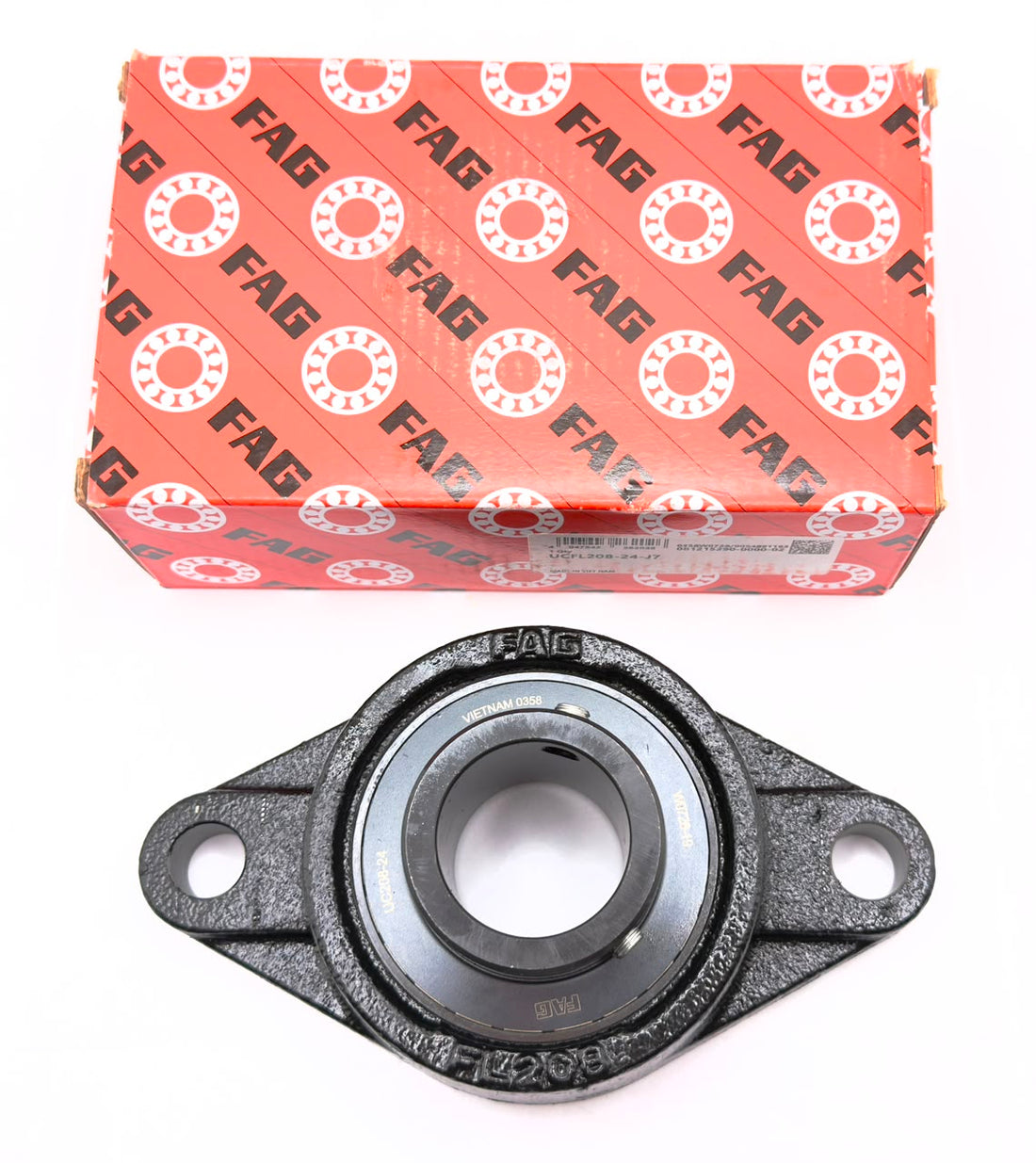

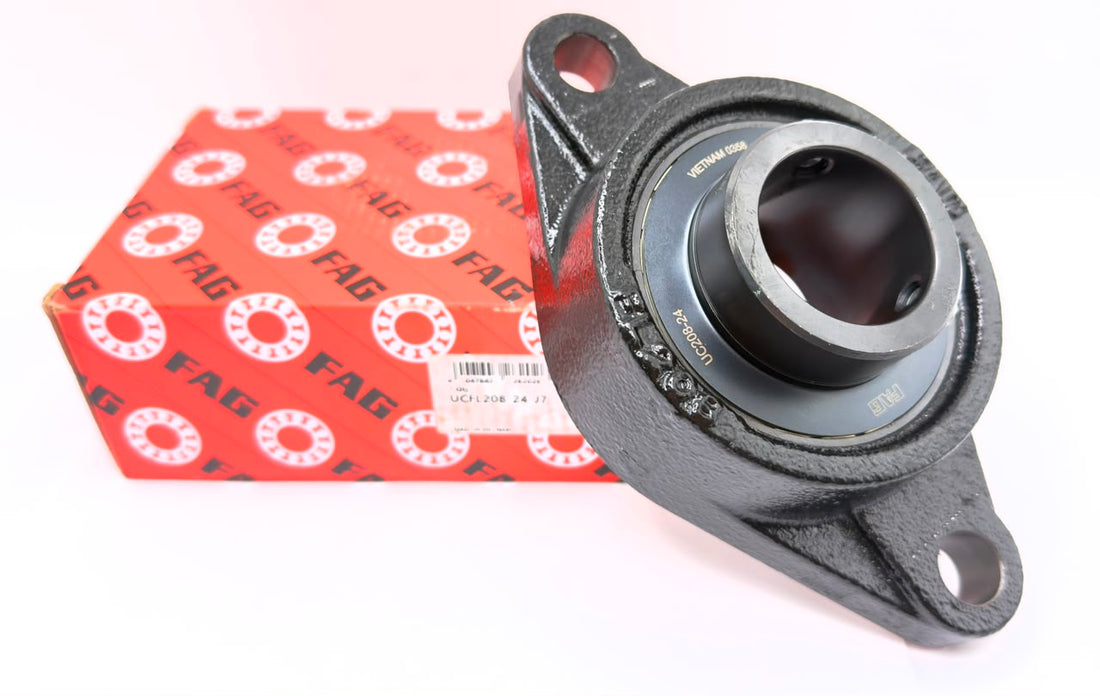

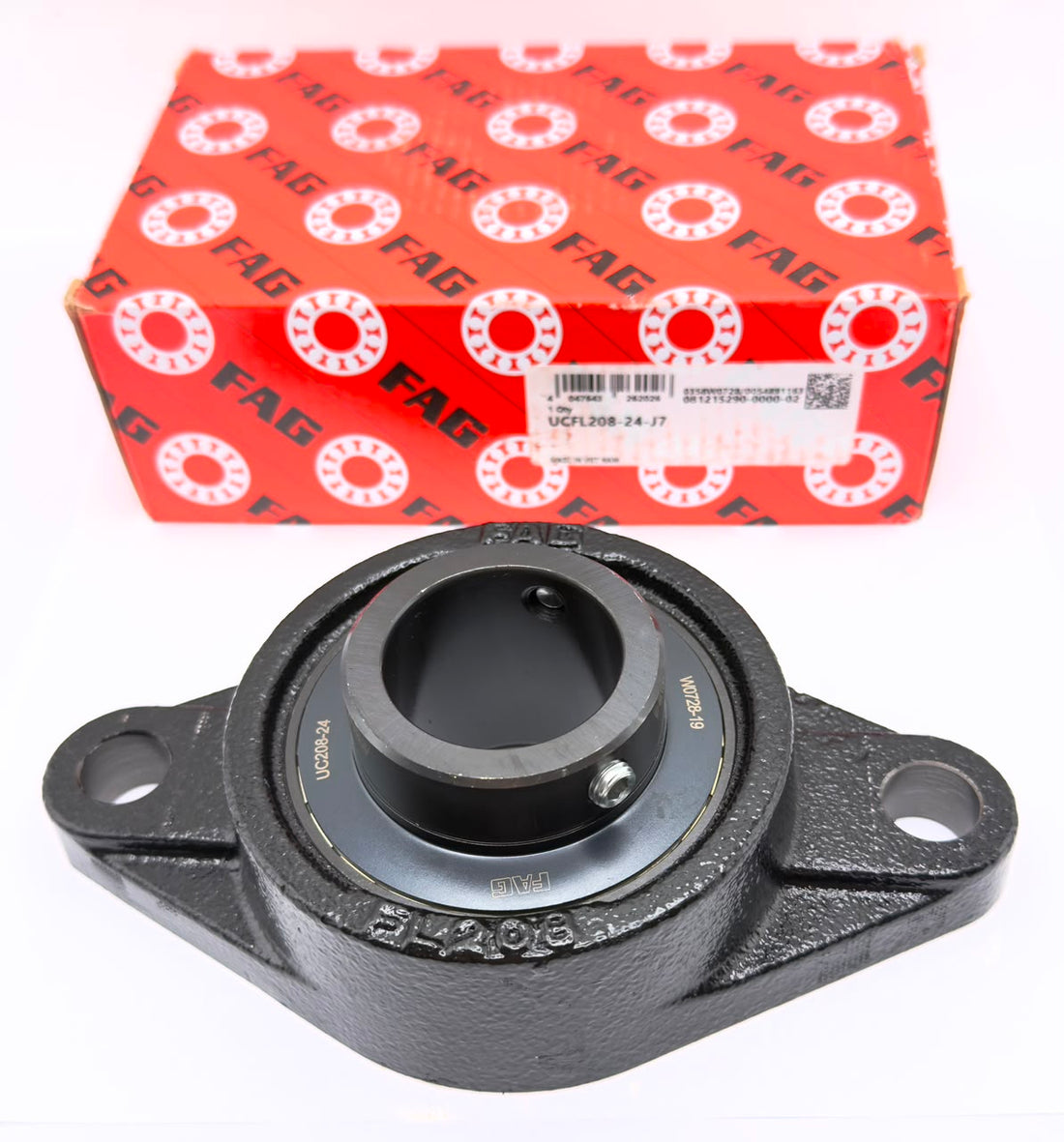

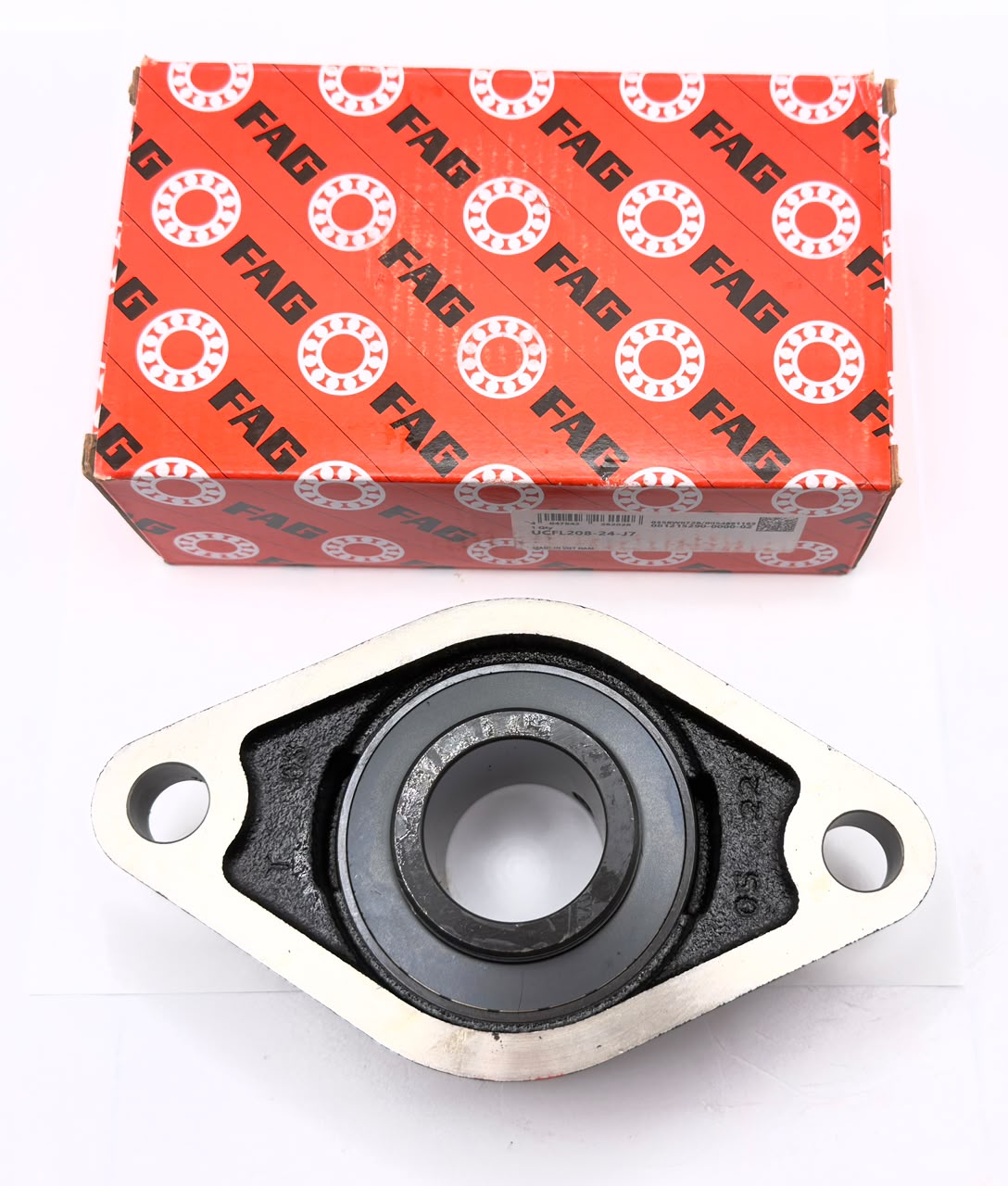

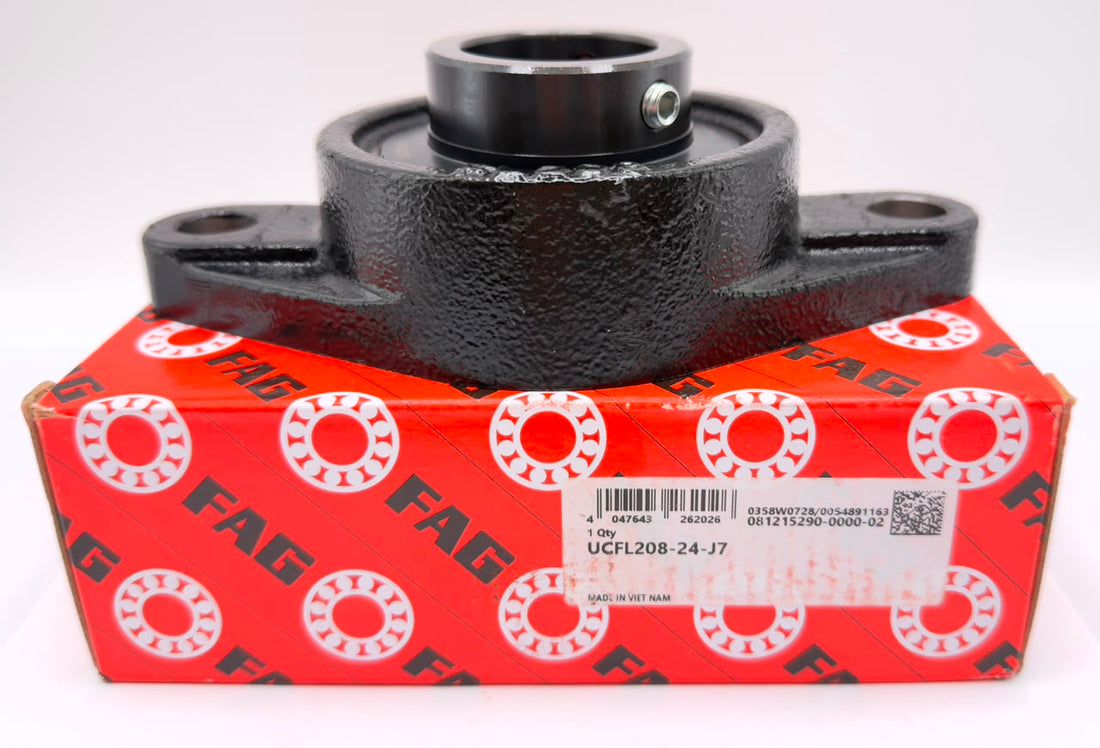

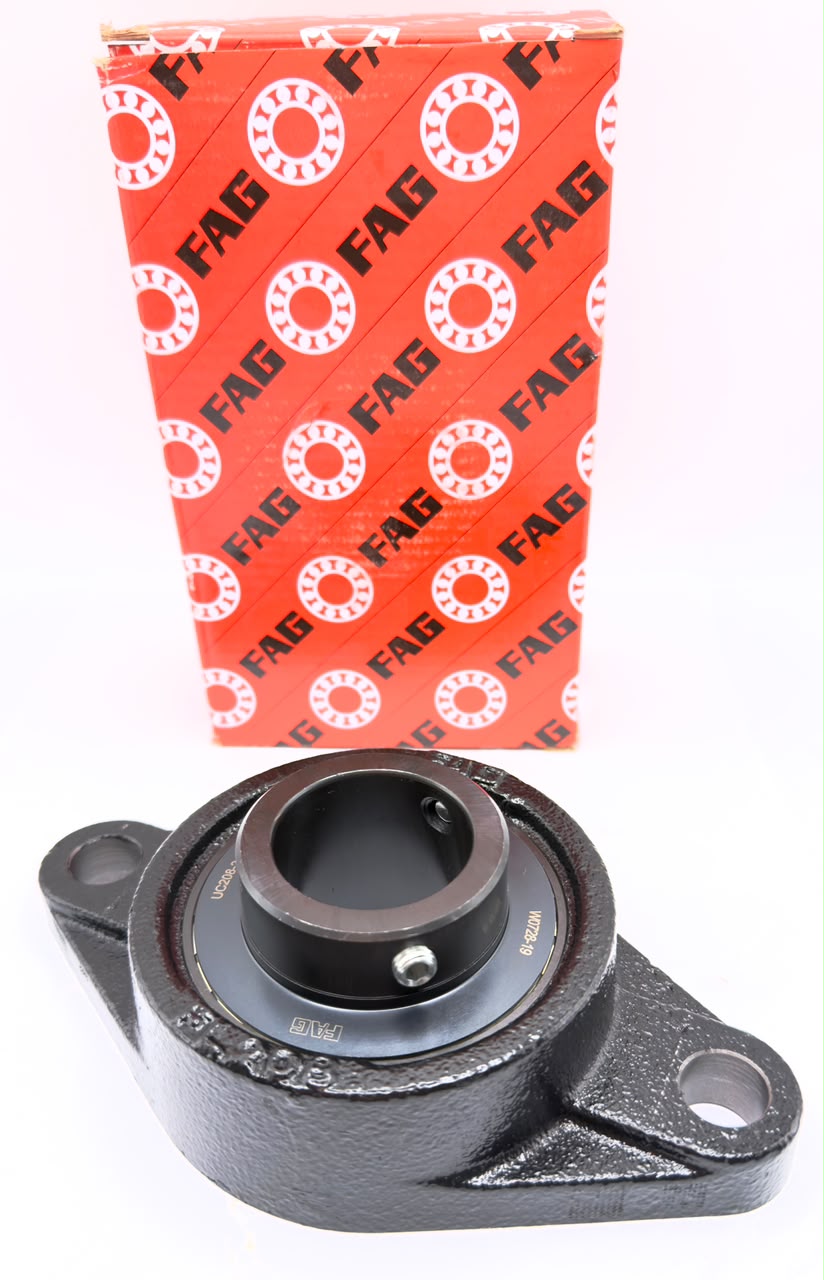

FAG UCFL208-24 J7 Flanged Bearing Unit 1-1/2" Bore

Item Specifics:
Brand: FAG
Model / Item Number: UCFL208-24-J7
Manufacturer Part Number: 0812152900000
Also Known As: FYTBJ1.1/2TF / UC208-24-J7 + FL208
EAN: 4047643262026
Category: Housing and Bearing Assembly
Bearing Unit Type: Flanged Housing Unit UCFL
Housing Type: Cast Iron Bearing Unit
Product Series: Black Series
Bore Size: 1-1/2"
Seal Type: 2F - Standard Seal for Y-Bearings
Seal Design: Double-Sided Lip Seal with Steel Sheet Washers and Outer Flinger Shield
Lubrication: Standard Lubrication
Special Treatment: No Special Treatment
Radial Internal Clearance: C3 - Greater Than Normal
Cage Material: Polyamide
Housing Fit Tolerance: J7 - Tighter Fit in Housing, Standard for FAG
ECLASS Number: 23-05-16-02
Weight: 1.53 kg approx.

Dimensions:
Bore Diameter: 38.1 mm / 1.5"
Overall Length: 175 mm / 6.8898"
Total Height / Width: 51.2 mm / 2.0157"
Flange Width: 100 mm
Height Flange: 175 mm
A: 36 mm
A1: 16 mm
J: 144 mm
L: 175 mm
L2: 100 mm

Load Ratings:
Radial Dynamic Load Rating Cr: 34,500 N
Radial Static Load Rating C0r: 19,800 N

Suffix Description:
24: 1-1/2" bore
J7: Standard FAG housing fit with better fitting in the housing

Description:
This listing is for one FAG UCFL208-24-J7 flanged housing and bearing assembly.

The UCFL208-24-J7 is a complete mounted bearing unit consisting of a bearing insert and matching flanged housing. The components are matched together for reliable operation, easy installation, and proper bearing support. Housing units simplify installation on shafts while helping protect the bearing and extend service life.

This FAG Black Series cast iron bearing unit has a 1-1/2" bore, double-sided lip seals with steel sheet washers, outer flinger shield protection, C3 internal clearance, polyamide cage, and standard lubrication. The J7 suffix indicates a tighter and improved housing fit, which is standard for FAG units.

This unit is commonly used in agricultural equipment, conveyors, industrial machinery, material handling equipment, fans, packaging equipment, and general mounted bearing applications where this exact part number, bore size, and housing style are required.

Main Features:

·         Genuine FAG UCFL208-24-J7 bearing unit

·         Complete housing and bearing assembly

·         Also known as FYTBJ1.1/2TF

·         Includes UC208-24-J7 bearing with FL208 housing

·         1-1/2" bore size

·         Cast iron flanged housing unit

·         FAG Black Series

·         Double-sided lip seals

·         Steel sheet washer protection

·         Outer flinger shield with corrosion protection

·         C3 internal clearance

·         Polyamide cage

·         J7 housing fit for better fitting in the housing

·         Radial dynamic load rating: 34,500 N

·         Radial static load rating: 19,800 N

·         Suitable for industrial, agricultural, conveyor, and machinery applications

Please verify all dimensions, part number, bore size, housing style, load requirements, and application compatibility before purchasing to make sure this item fits your application.

PACKAGE INCLUDES: ONE (1) FAG Flanged Bearing Unit UCFL208-24 J7
