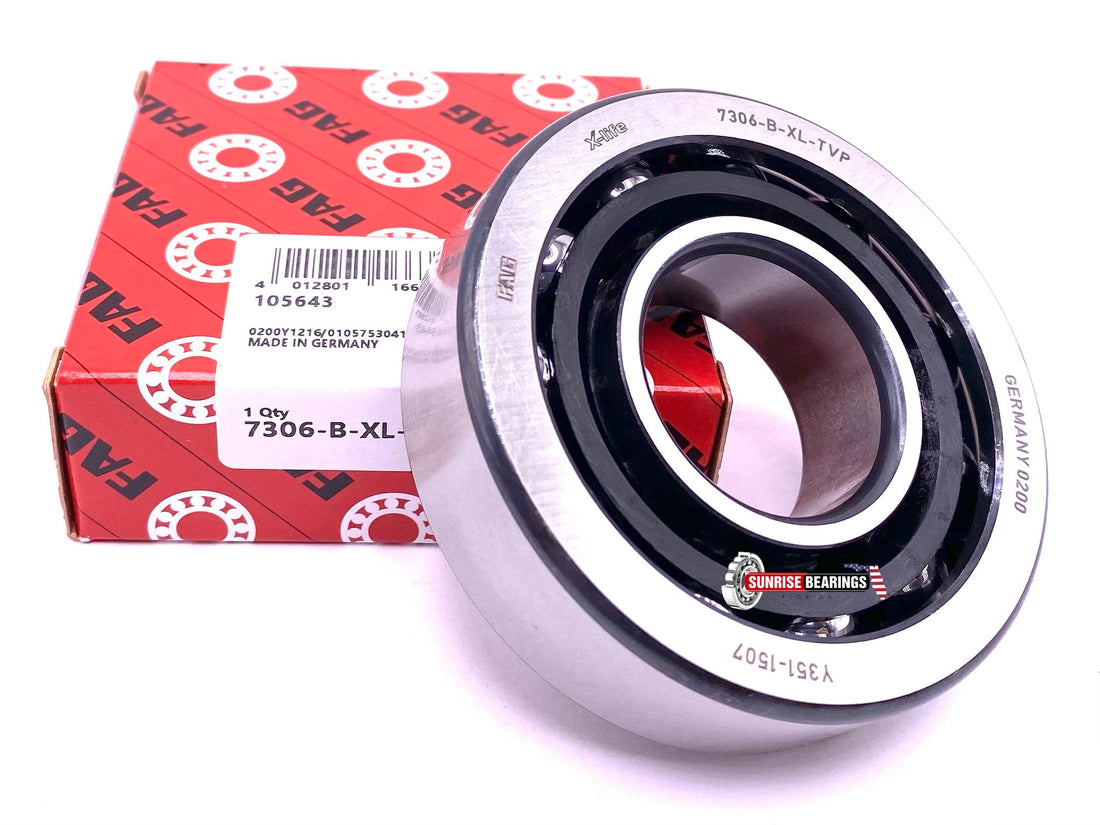

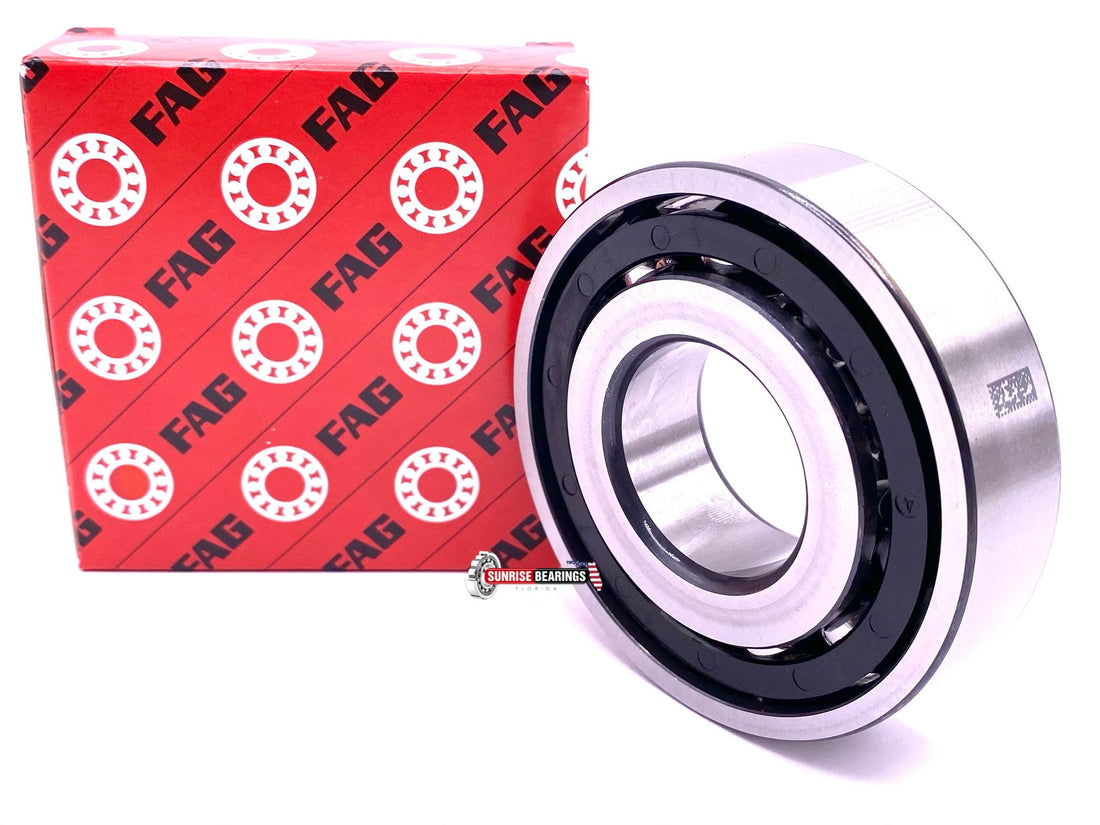

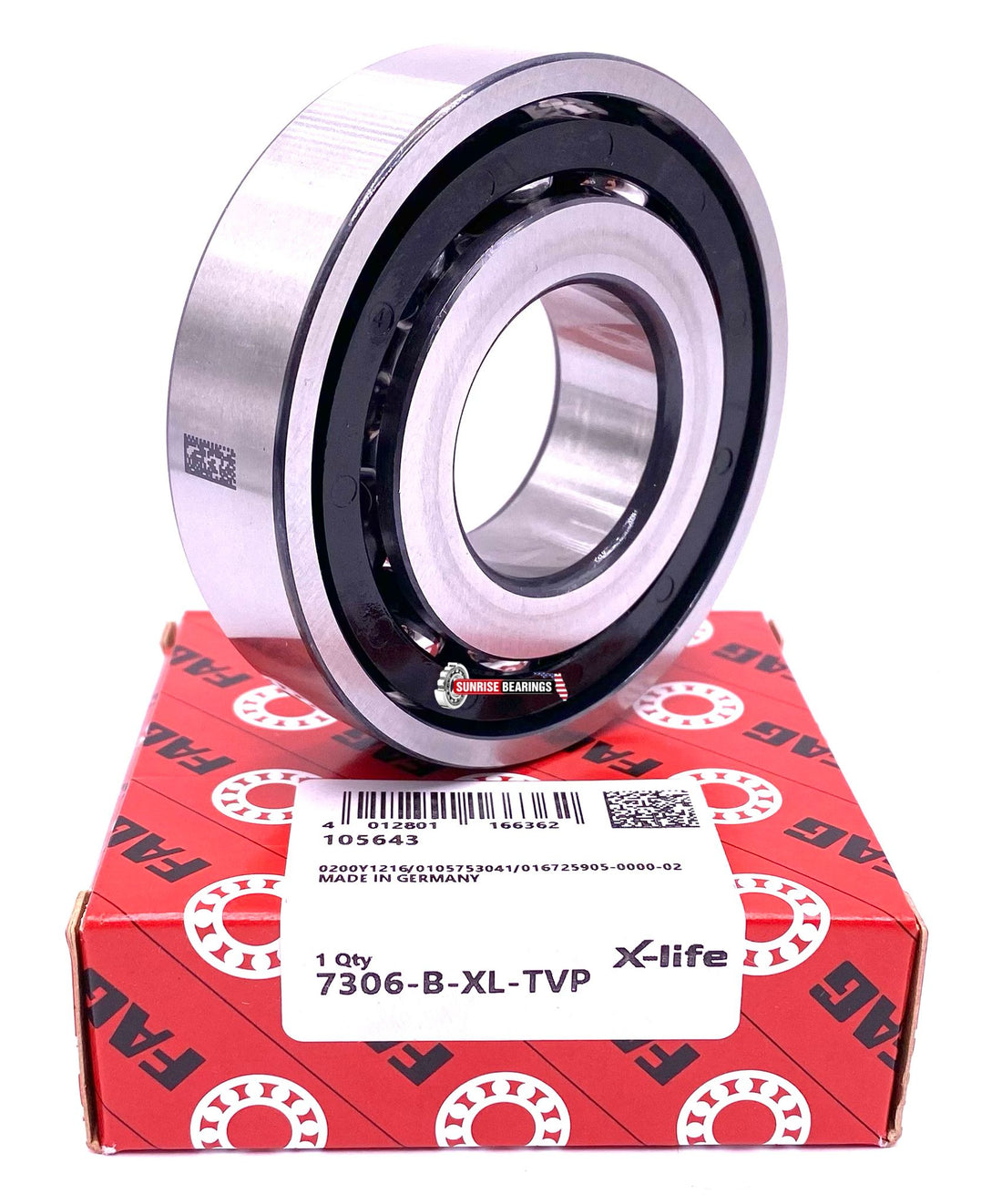

FAG 7306 B XL TVP Angular Contact Ball Bearing 30x72x19 mm

Brand: FAG
ID: 7306 -B-XL-TVP
MADE IN: GERMANY

DESCRIPTION

Category:Angular contact ball b.

Ball rows:Single row bearing

Material:Standard bearing steel

Outer ring:Without flange/groove

Seal:None, open bearing

Clearance:Normal radial clearance

Cage:Polyamide cage

Temperature range:-20 to +120 °C

Tolerance class:Tolerance class P0/PN2 / ABEC 1

Arrangement:Standard version

Contact angle:40 degree

Weight:0,342 kg

ProductID:10037999

Country of origin:Germany

Customs tariff number:8482 1090

EAN:4012801166362

Manufacturer part number:016725905-0000

Dimensions

Inner dimension: 30,000 mm

Outer dimension: 72,000 mm

Width: 19,000 mm

PACKAGE INCLUDES: ONE (1) FAG Bearing 7306 B XL TVP
