Description:

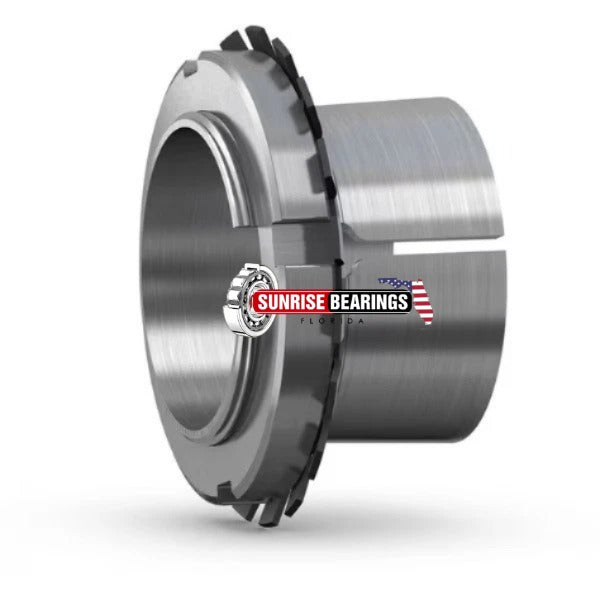

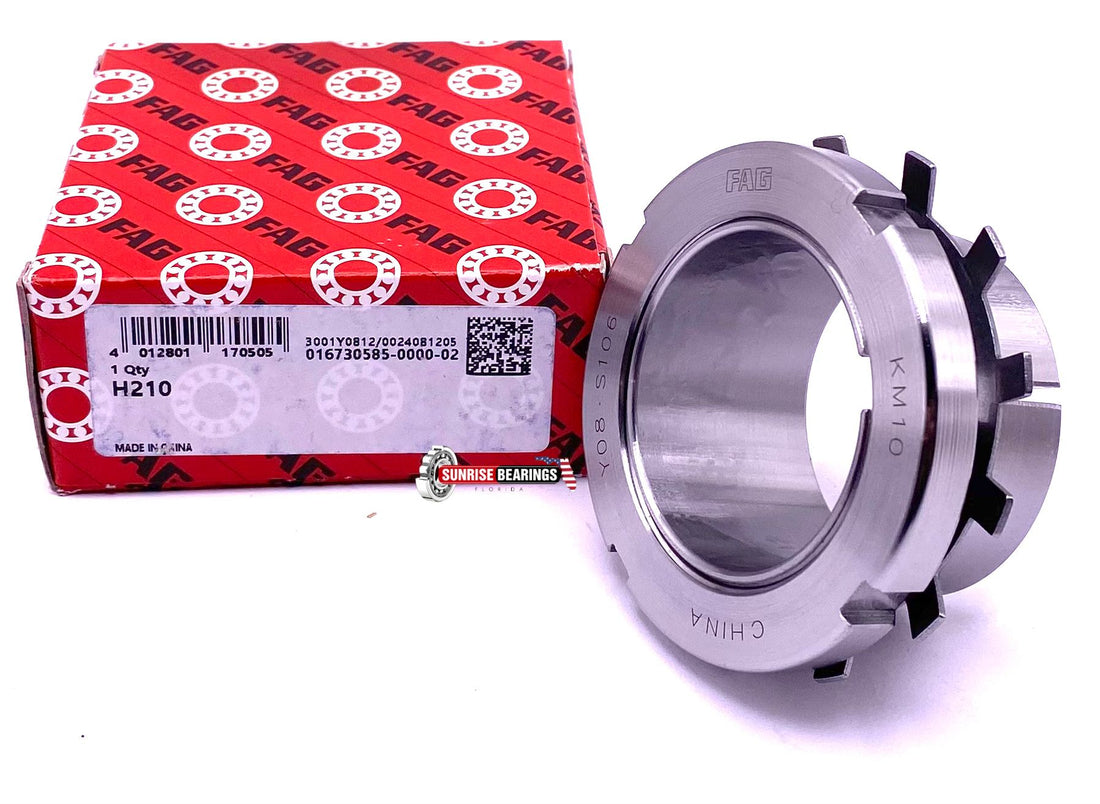

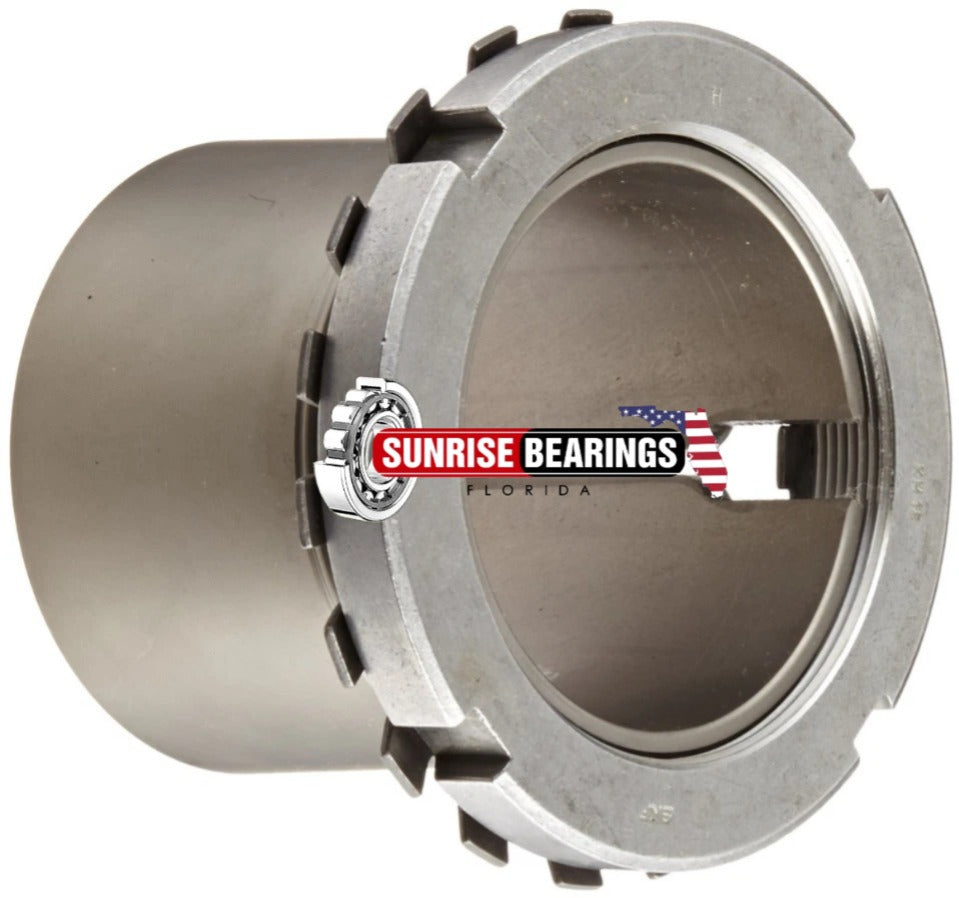

FAG H210 – Adapter Sleeve (Standard Version)

Brand: FAG (Schaeffler Group)

Item Number: H210

Manufacturer Part Number: 016730585-0000 / 0167305850000

EAN: 4012801170505

Category: Adapter / Withdrawal Sleeve

Product ID: 10200438

Customs Tariff Number: 8482 9900

Weight: 0.25–0.264 kg

________________________________________

Dimensions

Specification Metric Inch

Inner Diameter (d) 45.000 mm 1.7717 in

Outer Diameter (D) 70.000 mm 2.7559 in

Width / Sleeve Length (B / B1) 35.000 mm 1.378 in

________________________________________

Design & Features

• Design Type: Standard Version

• Cone Taper: 1:12

• Shaft Type: For Metric Shafts

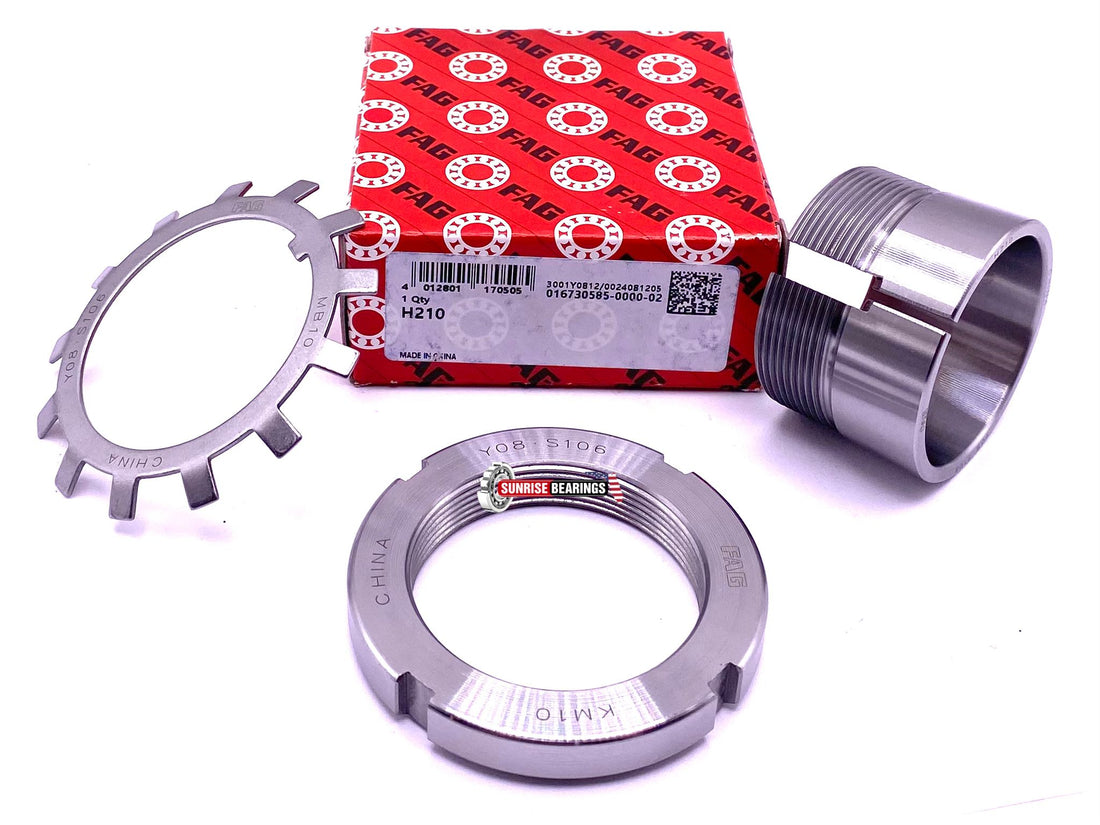

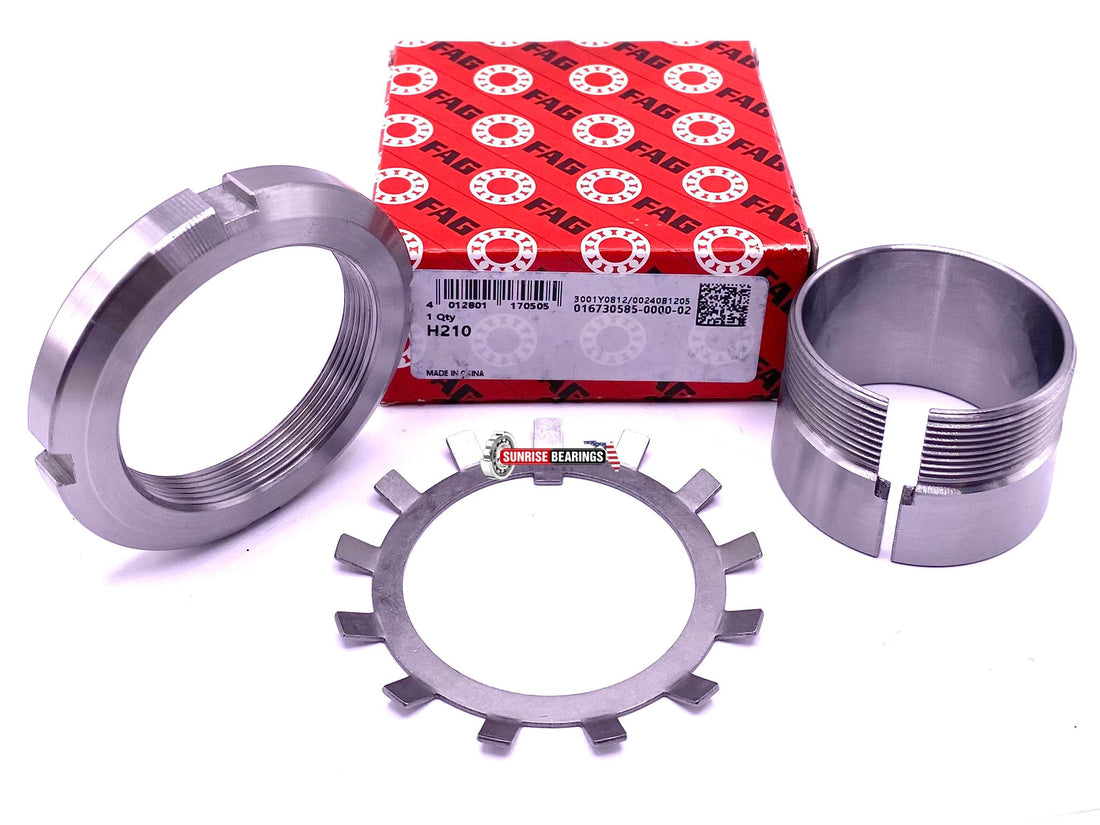

• Scope of Delivery: Supplied complete with locking washer and groove nut

• Material: High-grade steel (FAG standard)

• ECLASS Number: 23-05-92-01

________________________________________

Technical Description

Adapter sleeves are used for mounting bearings with a tapered bore onto cylindrical shafts. The FAG H210 enables easy installation and removal while providing precise centering and secure axial positioning of the bearing.

________________________________________

Advantages

• Simple and reliable method for mounting tapered-bore bearings on cylindrical shafts

• Supplied ready-to-install with nut and washer

• Interchangeable with SKF, NSK, NTN, and other ISO-standard adapter sleeves

________________________________________

Applications

Ideal for:

• Electric motors

• Pumps and compressors

• Conveyor systems

• Agricultural and industrial machinery

PACKAGE INCLUDES: ONE (1) FAG Adapter Sleeve H210
