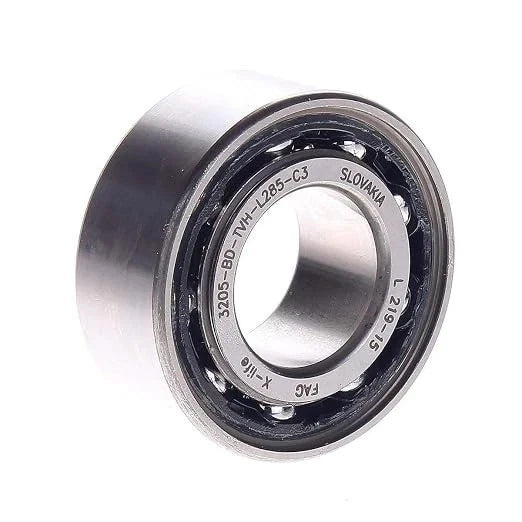

FAG 3205-BD-TVH-L285 Double Row Angular Contact Bearing 25x52x20.6 mm

Item Specifics:
Brand: FAG
Model / Item Number: 3205-BD-TVH-L285
Manufacturer Part Number: 0697028530000
EAN: 4012802632637
Category: Angular Contact Ball Bearing Double Row
Bearing Type: Double Row Angular Contact Ball Bearing
Design: Standard Version
Ball Rows: Double Row Bearing
Bore Type: Cylindrical Bore
Seal Type: Open / No Seal
Outer Ring: Without Flange / Groove
Cage Type: TVH - Molded Polyamide Cage
Cage Guidance: Rolling Element Riding
Radial Internal Clearance: CN Normal Radial Clearance
Contact Angle: 30°
Tolerance Class: P6 / ABEC 3
Lubrication: Greased
Grease Type: L285 - Renolit GA3 Grease Fill
Temperature Range: -20°C to +120°C
Customs Tariff Number: 8482 1090
Quantity Available: 1 pc
Weight: 0.179 kg approx.

Dimensions:
Inner Diameter: 25 mm
Outer Diameter: 52 mm
Width: 20.6 mm

Suffix Description:
BD: Modified internal construction, 30° contact angle, without filling slot
TVH: Molded polyamide cage, snap type, rolling element riding
L285: Renolit GA3 grease fill, 25-40%, temperature range -30°C to +120°C

Description:
This listing is for one FAG 3205-BD-TVH-L285 double row angular contact ball bearing.

The 3205-BD-TVH-L285 is a double row angular contact ball bearing with solid inner and outer rings, open design, molded polyamide cage, CN normal radial clearance, and 30° contact angle. The design is similar to two single row angular contact ball bearings arranged back-to-back, but in a more compact double row construction.

Double row angular contact ball bearings are designed to support high radial loads and axial loads in both directions. The 30° contact angle provides strong axial load capacity while maintaining smooth rotational performance.

This bearing is supplied with L285 Renolit GA3 grease fill, making it suitable for applications requiring this specific lubrication specification.

This bearing is commonly used in pumps, gearboxes, compressors, electric motors, agricultural machinery, industrial machinery, and other applications requiring combined radial and axial load support.

Main Features:

·         Genuine FAG 3205-BD-TVH-L285 bearing

·         Double row angular contact ball bearing

·         30° contact angle

·         BD modified internal construction

·         Open design, no seals

·         Molded polyamide cage

·         CN normal radial clearance

·         P6 / ABEC 3 tolerance class

·         L285 Renolit GA3 grease fill

·         25 mm bore size

·         52 mm outside diameter

·         20.6 mm width

·         Supports radial loads and axial loads in both directions

·         Compact double row design

·         Suitable for pumps, gearboxes, motors, compressors, and industrial machinery

Please verify all dimensions, part number, cage type, contact angle, grease specification, tolerance class, and application requirements before purchasing to make sure this item fits your application.

 PACKAGE INCLUDES: ONE (1) FAG Bearing 3205 BD XL TVH L285
