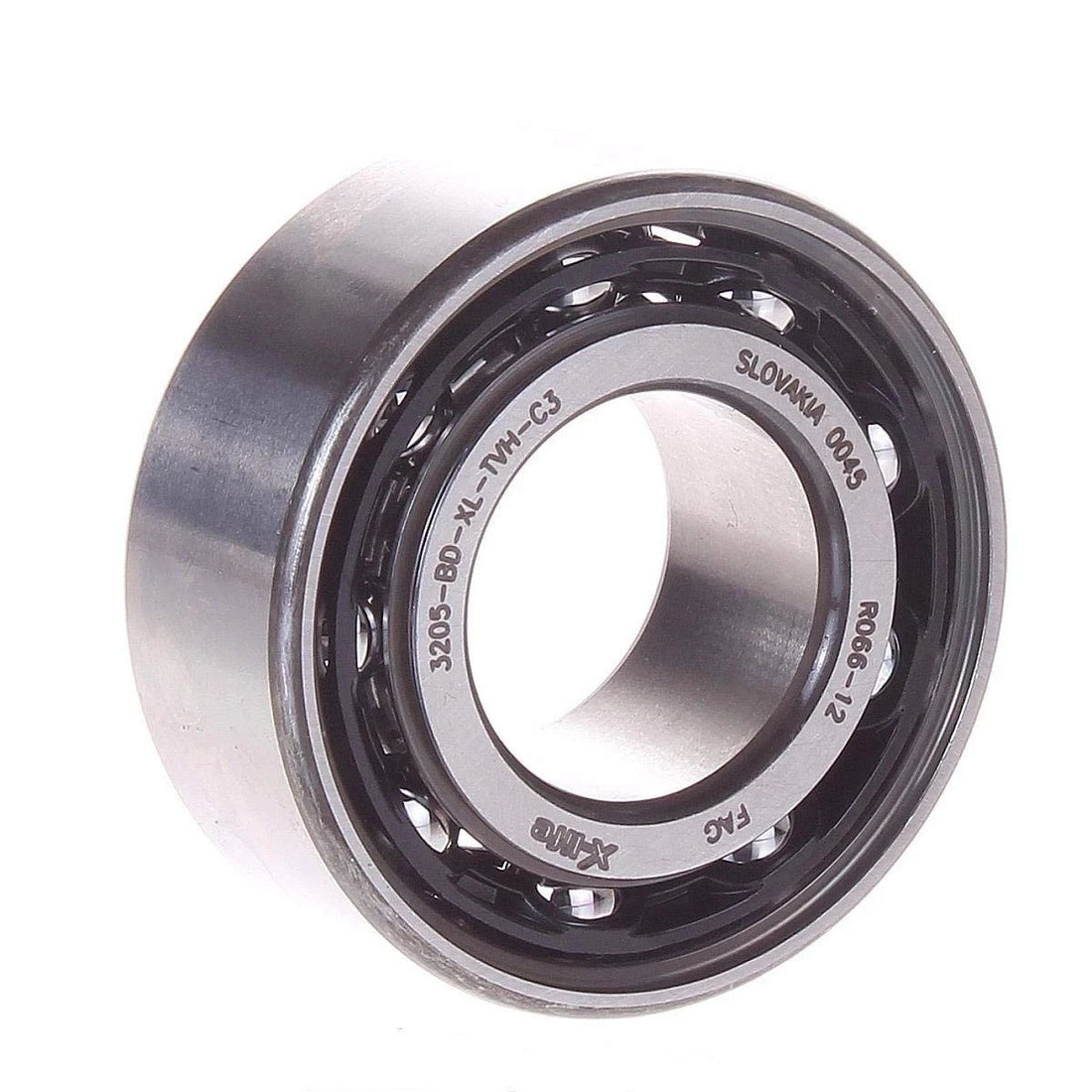

FAG 3205-BD-XL-TVH Double Row Angular Contact Ball Bearing 25x52x20.6 mm

Item Specifics:
Brand: FAG
Model / Item Number: 3205-BD-XL-TVH
Also Known As: 3205-BD-TVH
Manufacturer Part Number: 0636895610000
EAN: 4064327676436
Category: Angular Contact Ball Bearing Double Row
Bearing Type: Double Row Angular Contact Ball Bearing
Design: Standard Version
Ball Rows: Double Row Bearing
Bore Type: Cylindrical Bore
Seal Type: Open / No Seal
Outer Ring: Without Flange / Groove
Cage Type: TVH - Molded Polyamide Cage
Cage Guidance: Rolling Element Riding
Radial Internal Clearance: CN Normal Radial Clearance
Contact Angle: 30°
Tolerance Class: P6 / ABEC 3
Material: Standard Bearing Steel
Temperature Range: -20°C to +120°C
Customs Tariff Number: 8482 1090
Quantity Available: 500 pcs
Weight: 0.174 kg approx.

Dimensions:
Inner Diameter: 25 mm
Outer Diameter: 52 mm
Width: 20.6 mm

Suffix Description:
BD: Modified internal construction, 30° contact angle, without filling slot
XL: X-Life premium performance design
TVH: Molded polyamide cage, snap type, rolling element riding

Description:
This listing is for one FAG 3205-BD-XL-TVH double row angular contact ball bearing.

The 3205-BD-XL-TVH is a double row angular contact ball bearing with solid inner and outer rings, open design, polyamide cage, and 30° contact angle. This design resembles two single row angular contact ball bearings arranged back-to-back, but in a more compact double row construction.

Double row angular contact ball bearings are designed to support high radial loads and axial loads in both directions. The 30° contact angle provides strong axial load capacity while maintaining smooth rotational performance.

The FAG 3205-BD-XL-TVH is an X-Life bearing. FAG X-Life bearings are designed with improved internal construction, higher-quality contact surfaces, optimized rolling elements, and enhanced performance compared with standard angular contact ball bearings. This can provide higher load capacity, longer service life, reduced heat generation, and longer maintenance intervals in suitable applications.

This bearing is commonly used in pumps, gearboxes, compressors, electric motors, agricultural machinery, industrial machinery, and other applications requiring combined radial and axial load support.

Main Features:

·         Genuine FAG 3205-BD-XL-TVH bearing

·         Double row angular contact ball bearing

·         30° contact angle

·         BD modified internal construction

·         XL X-Life premium design

·         Open design, no seals

·         Molded polyamide cage

·         CN normal radial clearance

·         P6 / ABEC 3 tolerance class

·         25 mm bore size

·         52 mm outside diameter

·         20.6 mm width

·         Supports radial loads and axial loads in both directions

·         Compact double row design

·         Suitable for pumps, gearboxes, motors, compressors, and industrial machinery

Please verify all dimensions, part number, cage type, contact angle, tolerance class, and application requirements before purchasing to make sure this item fits your application.

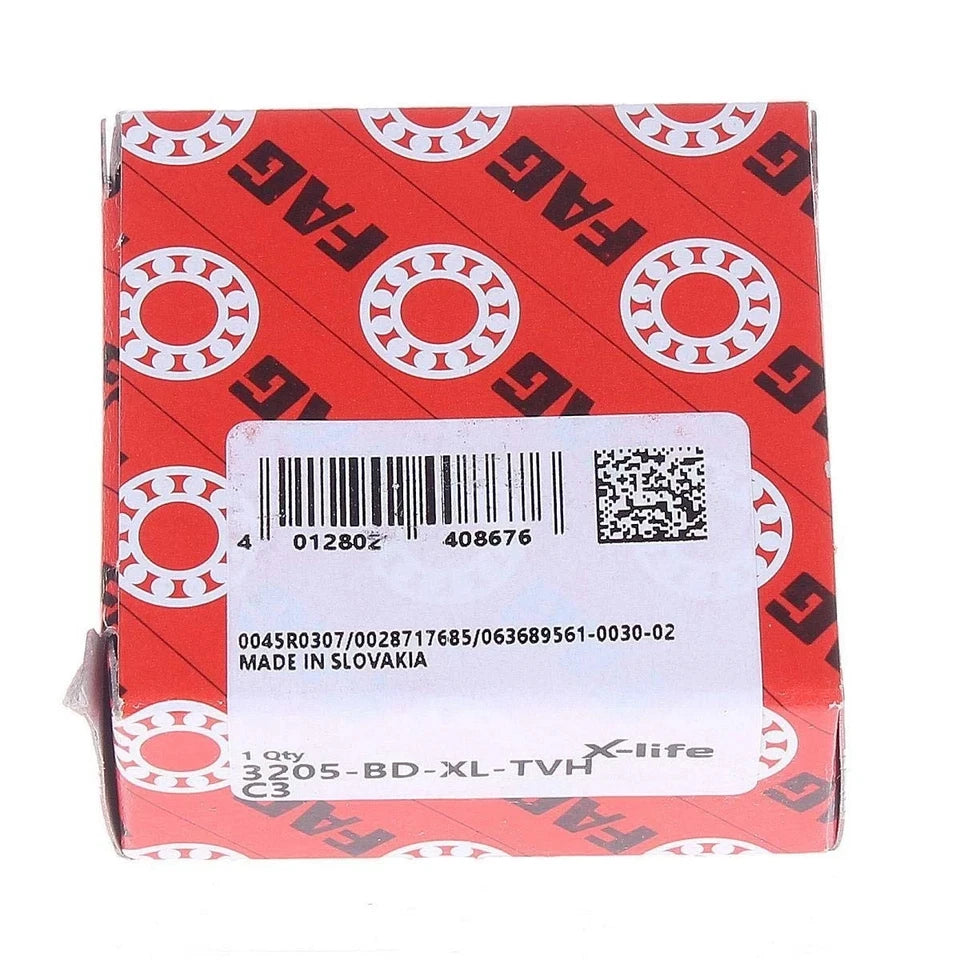

 PACKAGE INCLUDES: ONE (1) FAG Bearing 3205 BD XL TVH
