FAG 3205-BD-XL-TVH-C3 Double Row Angular Contact 25x52x20.6 mm

Item Specifics:
Brand: FAG
Model / Item Number: 3205-BD-XL-TVH-C3
Also Known As: 3205-BD-TVH-C3
Manufacturer Part Number: 0636895610030
EAN: 4064327676467
Category: Angular Contact Ball Bearing Double Row
Bearing Type: Double Row Angular Contact Ball Bearing
Design: Standard Version
Ball Rows: Double Row Bearing
Bore Type: Cylindrical Bore
Seal Type: Open / No Seal
Outer Ring: Without Flange / Groove
Cage Type: TVH - Molded Polyamide Cage
Cage Guidance: Rolling Element Riding
Radial Internal Clearance: C3 - Internal Clearance Larger Than Normal
Contact Angle: 30°
Tolerance Class: P6 / ABEC 3
Precision: Standard Precision
Lubrication: Standard Lubrication
Heat Stabilization: No Heat Stabilization, temperatures up to 120°C
Split Inner Ring / Outer Ring: Standard
Customs Tariff Number: 8482 1090
ECLASS Number: 23-05-08-03
Quantity Available: 27 pcs
Weight: 0.173 kg approx.

Dimensions:
Inner Diameter: 25 mm / 0.9843"
Outer Diameter: 52 mm / 2.0472"
Width: 20.6 mm / 0.811"

Load & Speed Ratings:
Radial Dynamic Load Rating: 22,000 N
Radial Static Load Rating: 15,200 N
Limiting Speed: 14,300 rpm
Reference Speed: 12,500 rpm

Suffix Description:
BD: Modified internal construction, 30° contact angle, without filling slot
XL: X-Life premium performance design
TVH: Molded polyamide cage, snap type, rolling element riding
C3: Internal clearance larger than normal

Description:

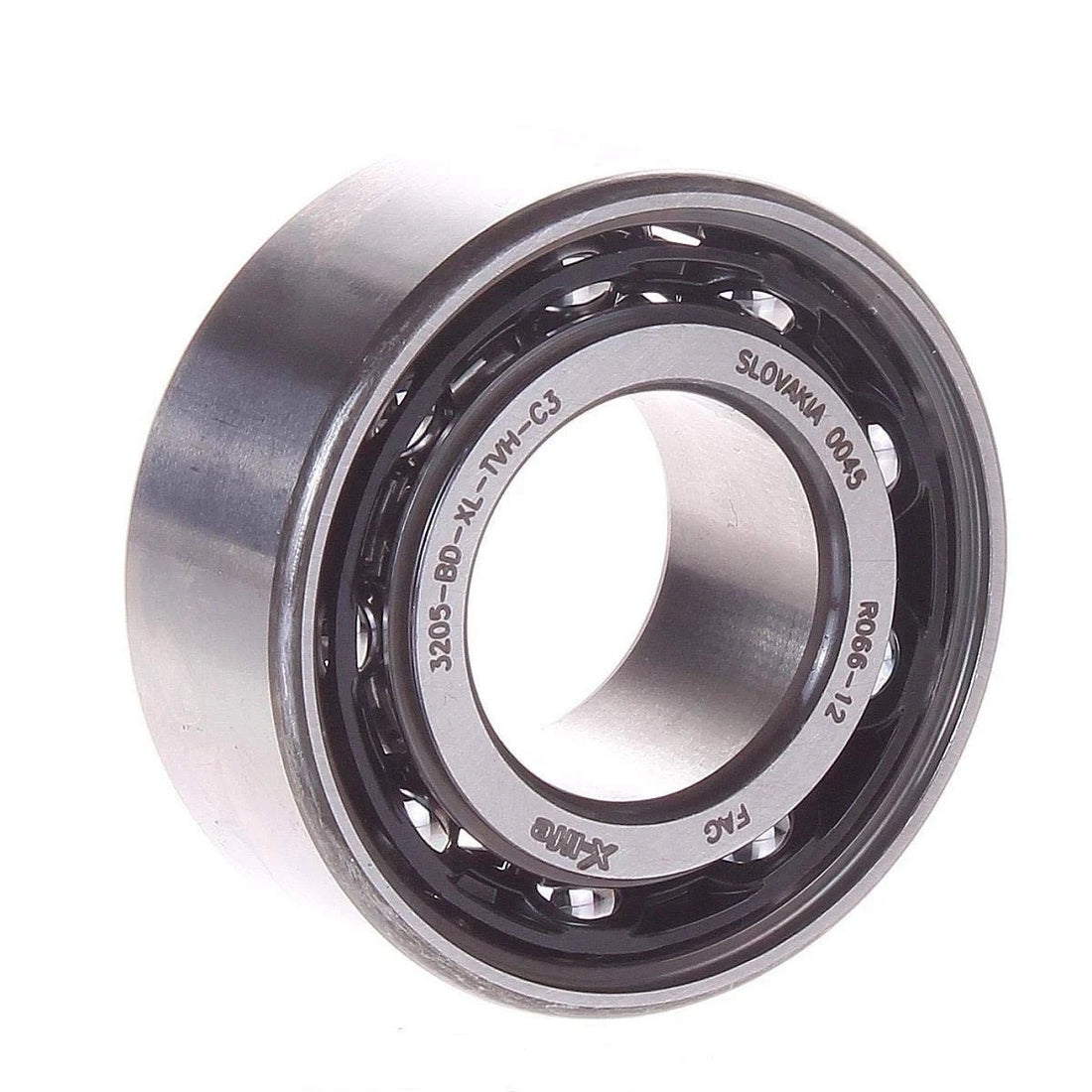

This listing is for one FAG 3205-BD-XL-TVH-C3 double row angular contact ball bearing.

The 3205-BD-XL-TVH-C3 is a double row angular contact ball bearing with solid inner and outer rings, open design, polyamide cage, C3 internal clearance, and 30° contact angle. This design resembles two single row angular contact ball bearings arranged back-to-back, but in a more compact double row construction.

Double row angular contact ball bearings are designed to support high radial loads and axial loads in both directions. The 30° contact angle provides strong axial load capacity while maintaining smooth rotational performance.

The C3 clearance provides internal play larger than normal, making this bearing suitable for applications where additional clearance is required due to operating temperature, shaft fit, speed, or specific operating conditions.

The FAG 3205-BD-XL-TVH-C3 is an X-Life bearing. FAG X-Life bearings are designed with improved internal construction, higher-quality contact surfaces, optimized rolling elements, and enhanced performance compared with standard angular contact ball bearings. This can provide higher load capacity, longer service life, reduced heat generation, and longer maintenance intervals in suitable applications.

This bearing is commonly used in pumps, gearboxes, compressors, electric motors, agricultural machinery, industrial machinery, and other applications requiring combined radial and axial load support.

Main Features:

·         Genuine FAG 3205-BD-XL-TVH-C3 bearing

·         Double row angular contact ball bearing

·         30° contact angle

·         BD modified internal construction

·         XL X-Life premium design

·         C3 internal clearance

·         Open design, no seals

·         Molded polyamide cage

·         P6 / ABEC 3 tolerance class

·         25 mm bore size

·         52 mm outside diameter

·         20.6 mm width

·         Dynamic load rating: 22,000 N

·         Static load rating: 15,200 N

·         Limiting speed: 14,300 rpm

·         Reference speed: 12,500 rpm

·         Supports radial loads and axial loads in both directions

·         Suitable for pumps, gearboxes, motors, compressors, and industrial machinery

Please verify all dimensions, part number, cage type, clearance, contact angle, tolerance class, and application requirements before purchasing to make sure this item fits your application.

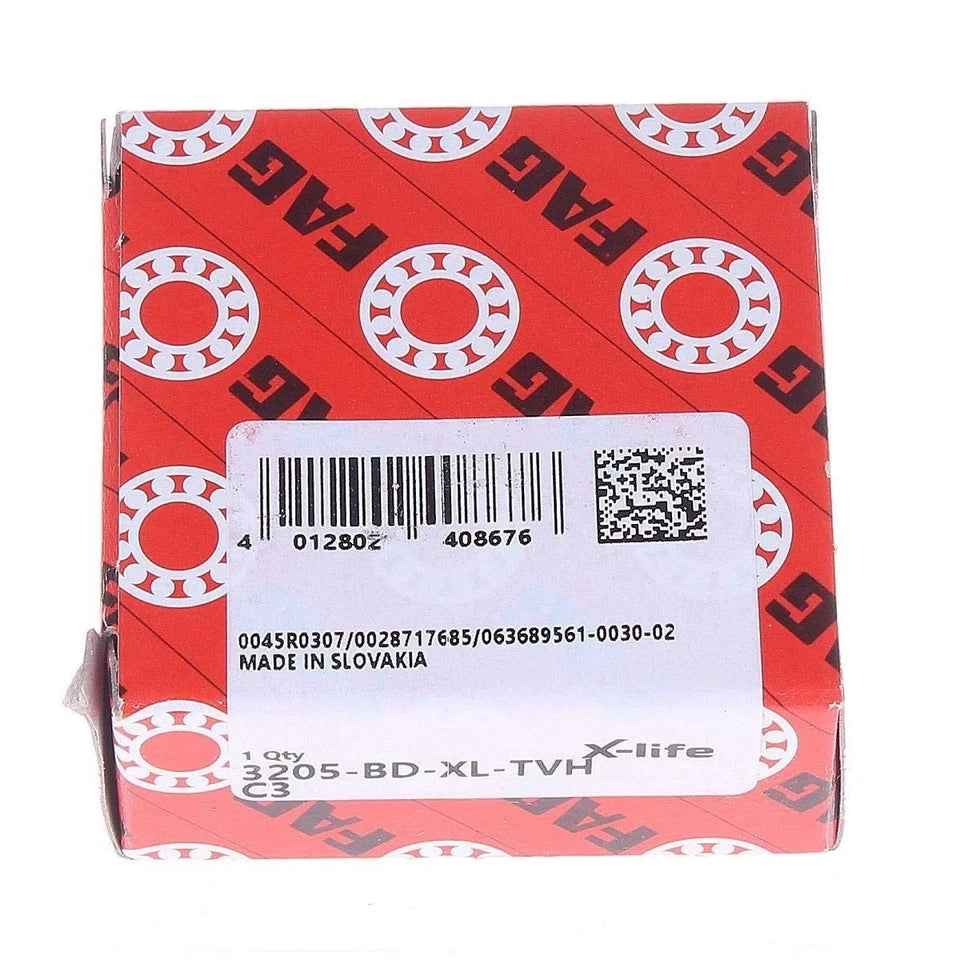

 PACKAGE INCLUDES: ONE (1) FAG Bearing 3205 BD XL TVH C3
