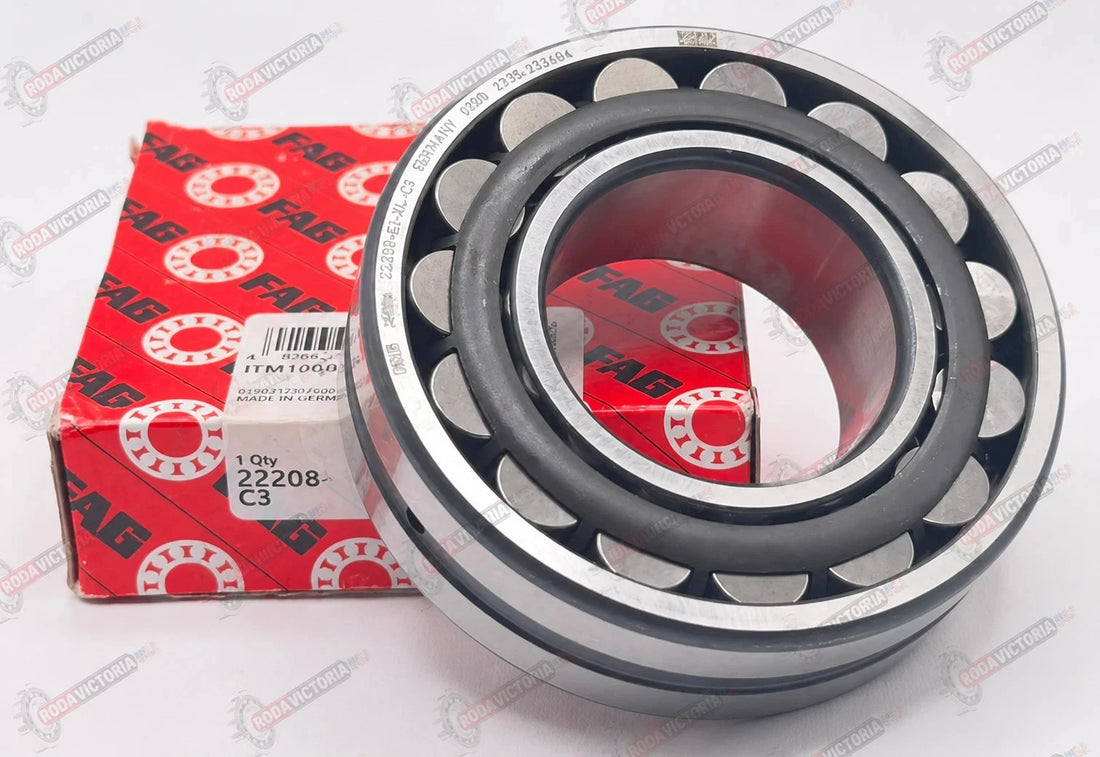

FAG 22208 E1 XL K C3 Spherical Roller Bearing Tapered Bore 40x80x23mm

Item Specifics:
Brand: FAG
Model / Item Number: 22208-E1-XL-K-C3
Also Known As: 22208-E1-K-C3
Manufacturer Part Number: 0167034050030
EAN: 4026677804716
Category: Spherical Roller Bearing
Bearing Type: Spherical Roller Bearing
Design: Standard Version
Bore Type: K - Tapered Bore, Taper 1:12
Seal Type: Open / No Seal
Cage Type: Sheet Steel / Standard Cage
Outer Ring: Lubrication Groove with Lubrication Holes
Lubrication Enhancement: W33 - Lubrication Groove and 3 Holes
Radial Internal Clearance: C3 - Internal Clearance Larger Than Normal
Precision: Standard Precision / P0 / PN2 / ABEC 1
Vibrating Screen Execution: Non Vibrating Screen Execution
Temperature Range: -30°C to +200°C
Country of Origin: Germany
Customs Tariff Number: 8482 3000
ECLASS Number: 23-05-09-11
Quantity Available: 24 pcs
Weight: 0.48 kg approx.

Dimensions:
Inner Diameter: 40 mm / 1.5748"
Outer Diameter: 80 mm / 3.1496"
Width: 23 mm / 0.9055"

Load & Speed Ratings:
Radial Dynamic Load Rating: 101,000 N
Radial Static Load Rating: 91,000 N
Limiting Speed: 10,500 rpm
Reference Speed: 6,200 rpm

Suffix Description:
E1: Increased capacity design
XL: X-Life premium performance design
K: Tapered bore, taper 1:12
C3: Internal clearance larger than normal
W33: Lubrication groove and 3 lubrication holes in the outer ring

Description:
This listing is for one FAG 22208-E1-XL-K-C3 spherical roller bearing.

The 22208-E1-XL-K-C3 is a double-row spherical roller bearing with a 1:12 tapered bore, open design, sheet steel cage, C3 internal clearance, and lubrication groove with lubrication holes on the outer ring.

Spherical roller bearings are designed with two rows of symmetrical rollers and a spherical raceway in the outer ring. This design allows the bearing to compensate for misalignment and shaft deflection while supporting very high radial loads and axial loads in both directions.

The C3 clearance provides internal play larger than normal, making this bearing suitable for applications where additional clearance is required due to operating conditions, shaft fit, temperature, speed, or heavy-duty service.

The FAG 22208-E1-XL-K-C3 is an X-Life bearing. FAG X-Life bearings are designed for higher load capacity, longer service life, reduced heat generation, improved running performance, and extended maintenance intervals compared with standard spherical roller bearings.

This bearing is commonly used in gearboxes, conveyors, elevators, cranes, textile machinery, food processing equipment, agricultural machinery, heavy equipment, and other industrial applications where high radial load capacity, axial load capacity, and misalignment compensation are required.

Main Features:

·         Genuine FAG 22208-E1-XL-K-C3 bearing

·         Spherical roller bearing

·         E1 increased capacity design

·         XL X-Life premium design

·         K tapered bore, taper 1:12

·         C3 internal clearance

·         Open design, no seals

·         Lubrication groove and 3 holes on outer ring

·         Sheet steel cage

·         40 mm bore size

·         80 mm outside diameter

·         23 mm width

·         Dynamic load rating: 101,000 N

·         Static load rating: 91,000 N

·         Designed for high radial and axial loads

·         Compensates for misalignment and shaft deflection

·         Suitable for heavy-duty industrial applications

·         Made in Germany

Please verify all dimensions, part number, tapered bore requirement, clearance, lubrication groove requirement, load rating, and application compatibility before purchasing to make sure this item fits your application.

 PACKAGE INCLUDES: ONE (1) FAG Bearing 22208 E1 XL K C3
