Item Specifics:
Brand: Dichtomatik
Model / Item Number: W40-56-8 BASL
Manufacturer Part Number: 49383743
EAN: Not Available
Category: Oil Seal
Seal Type: Radial Shaft Oil Seal
Material: NBR / Perbunan
Version: Rubber Coating
Dust Lip / Protective Lip: With Protective Lip
Tension Spring: Non-Alloy Steel
Pressure Resistance: Up to 0.5 bar max.
Temperature Range: -30°C to +100°C
Customs Tariff Number: 8487 9090
Weight: 0.010 kg approx.

Dimensions:
Inner Diameter: 40 mm
Outer Diameter: 56 mm
Width: 8 mm

Description:

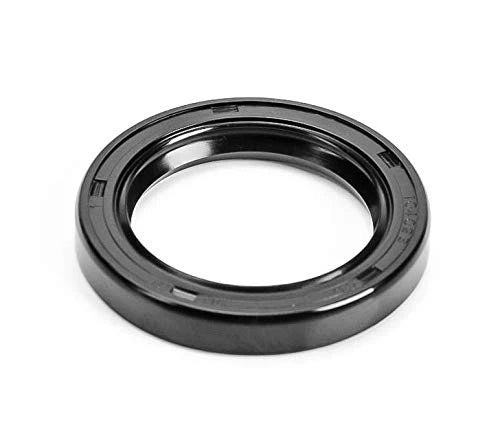

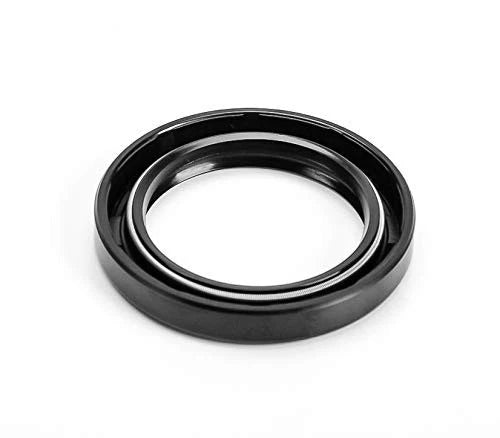

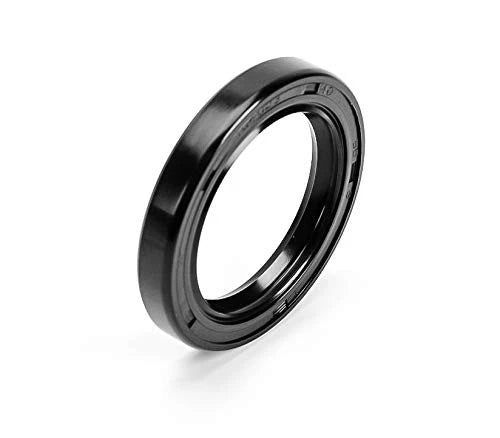

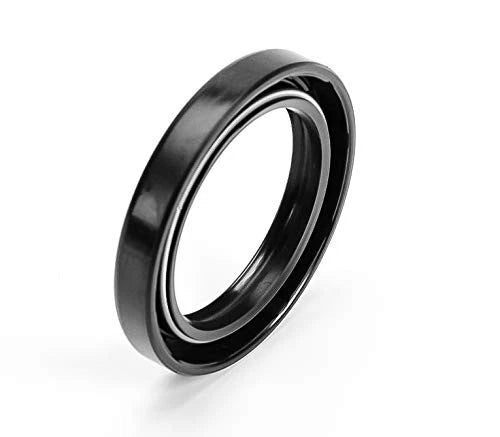

This listing is for one Dichtomatik W40-56-8 BASL radial shaft oil seal.

The W40-56-8 BASL is an NBR rubber oil seal designed for sealing rotating shafts in industrial and mechanical applications. It features a rubber-coated outside diameter, protective dust lip, and a non-alloy steel tension spring.

The NBR / Perbunan material provides good general resistance to oils, greases, and standard operating conditions. The protective lip helps provide additional protection against dust, dirt, and external contamination.

This seal measures 40 mm inner diameter, 56 mm outside diameter, and 8 mm width.

Main Features:

·         Dichtomatik W40-56-8 BASL oil seal

·         Radial shaft seal design

·         NBR / Perbunan material

·         Rubber-coated outside diameter

·         Protective dust lip

·         Non-alloy steel tension spring

·         Pressure resistance up to 0.5 bar max.

·         Temperature range: -30°C to +100°C

·         40 mm shaft size

·         56 mm outside diameter

·         8 mm width

·         Suitable for industrial and mechanical sealing applications

Please verify all dimensions, part number, material, lip style, and specifications before purchasing to make sure this item fits your application.

Package Includes: One (01)  DICHTOMATIK Oil Seal 40x56x8 mm
