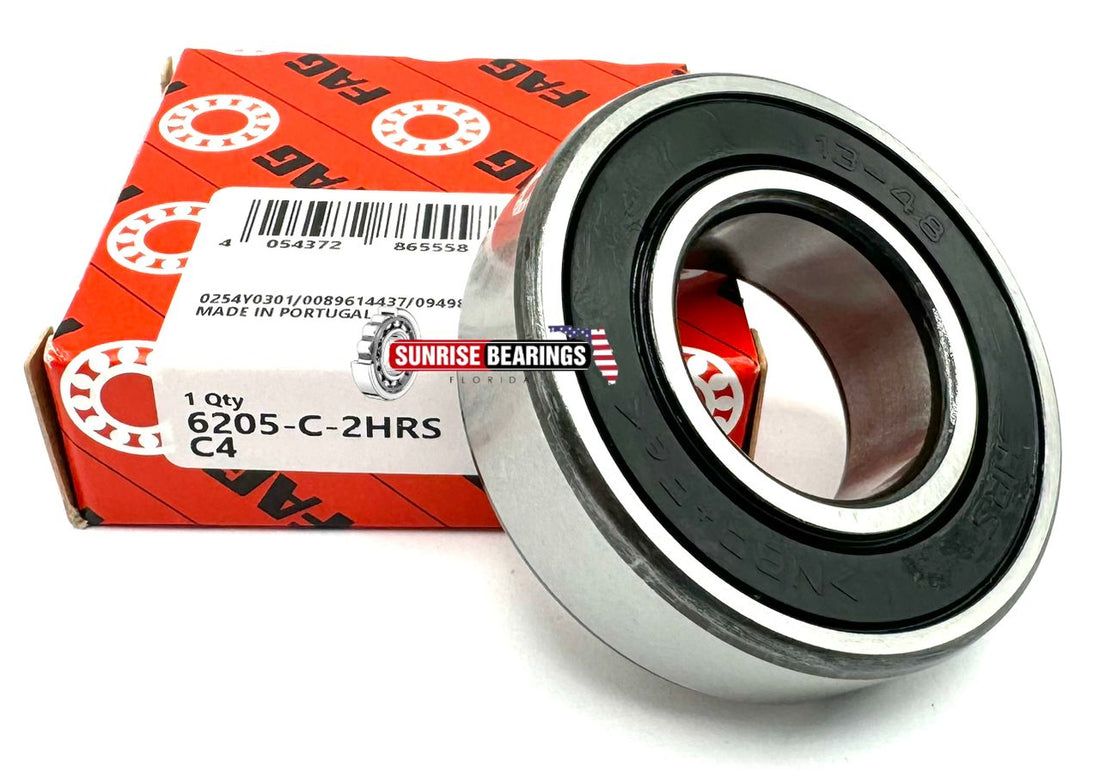

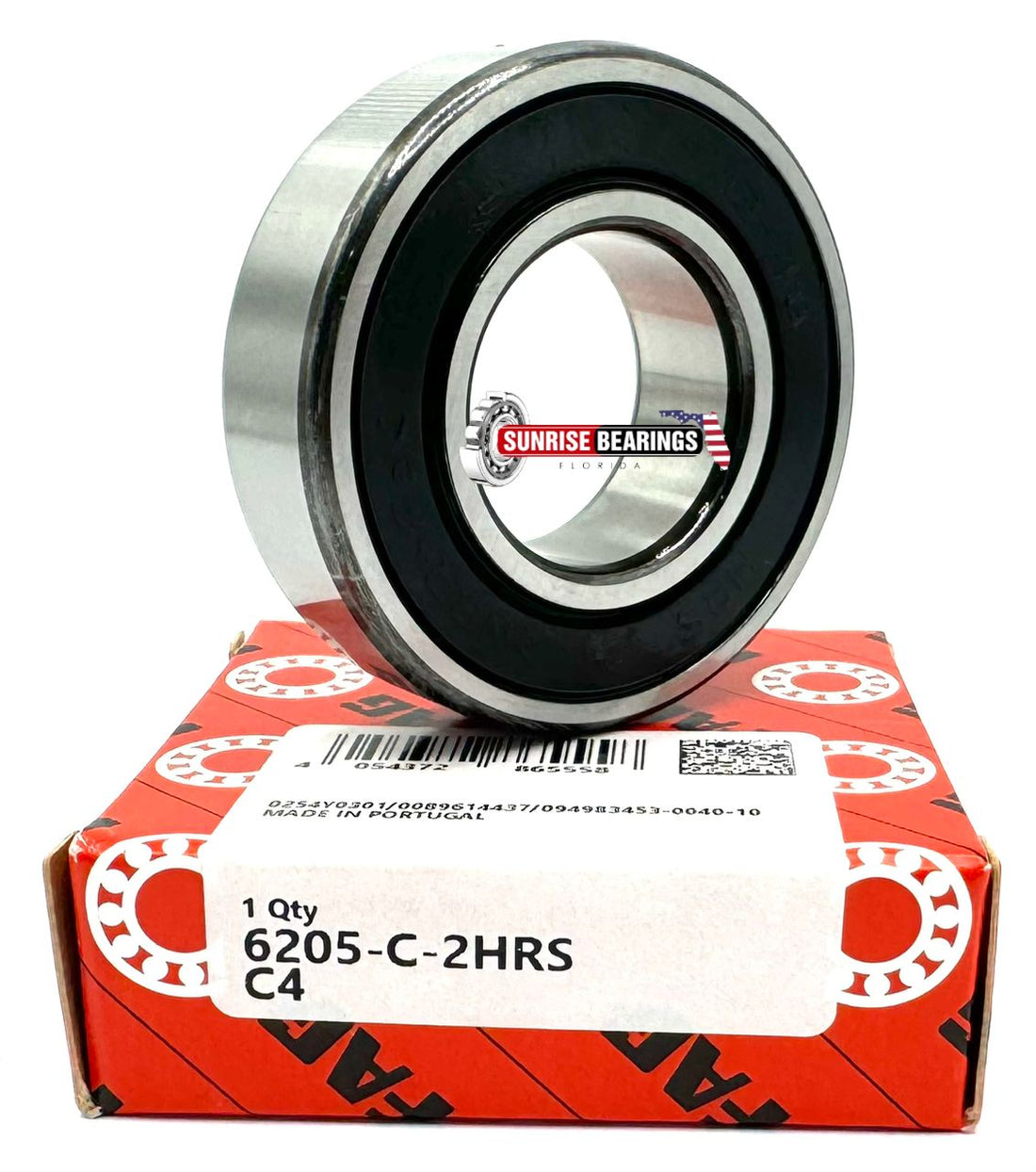

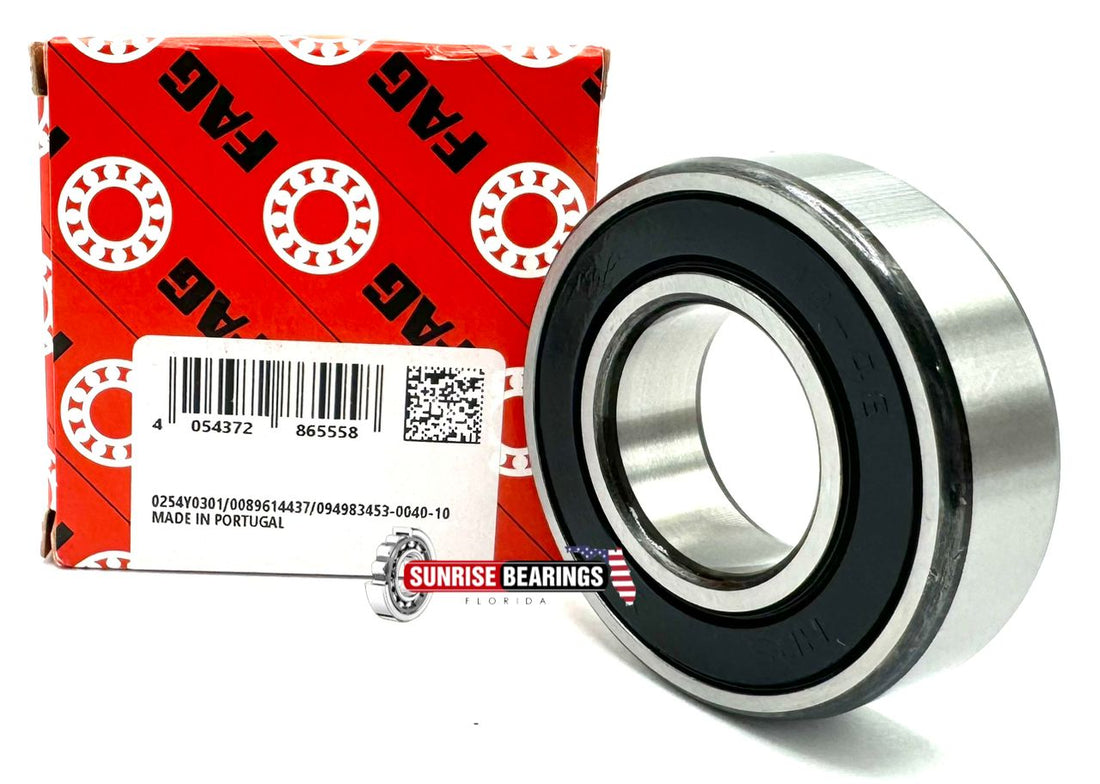

BRAND : FAG

ID: 6205 2HRS C4

MADE IN: PORTUGAL

DESCRIPTION:

•    CategoryDeep Groove Ball Bearings Single Row
Weight and Dimensions
•    Inner (d) MM25,00
•    Outer (D) MM52,00
•    Width (B) MM15,00
•    Inner (d) Inch0.9843
•    Outer (D) Inch2.0472
•    Width (B) Inch0.5906
•    Weight (kg)0.125
Product Properties
•    Bore C - Cylindrical Bore
•    Seal 2RH - High Speed Low Friction Seal on Two Sides
•    Cage Type S - Steel or Standard Cage
•    External Modification No External Modification
•    Radial Internal PlayC4 Internal Play (Higher than C3)
•    Precision Standard Precision
•    Lubrication Standard Lubrication
•    Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
•    Special Treatment No Special Treatment
Data from Schaeffler (medias)
•    Width (b) mm15,00
•    Basic static load rating, radial (C 0r)"7800.0000"
•    Limiting speed (n G)"12200.0000"
Suffix description
•    CDeep Groove Ball Bearings Of Generation C, Modified Internal Construction
•    2HRSLip Seals On Both Sides Made From Nitrile Butadiene Rubber, These Designs Are Lubricated For Life Using A High Quality Grease And Are Suitable For Moderate Speeds. The Frictional Torque And Heat Generation Are Lower Than With The Previous RSR Seal
•    C4Bearing Internal Clearance Greater Than C3
•    >V100% Identical Regardless Of Production Location
Product description
Suffix >V is an internal coding from Schaeffler. There are no different product features. This bearing is fully interchangeable with similar model variants without suffix >V.

PACKAGE INCLUDES: ONE FAG 6205 2HRS C4
