Brand: SKF
Item Number: JLM714149
Also Known As: JLM714149-N0000
EAN: 0085311057462
Category: Tapered Roller Bearing Cone (Single Row)

Inner Diameter (d): 75.00 mm / 2.9528 in
Width (B): 25.00 mm / 0.9843 in
Weight: 0.61 kg

Cross Reference Part #s: 1458JLM714149, 183734, 183735, 274841, 330235001, 4086597, 5000055926

Product Description:

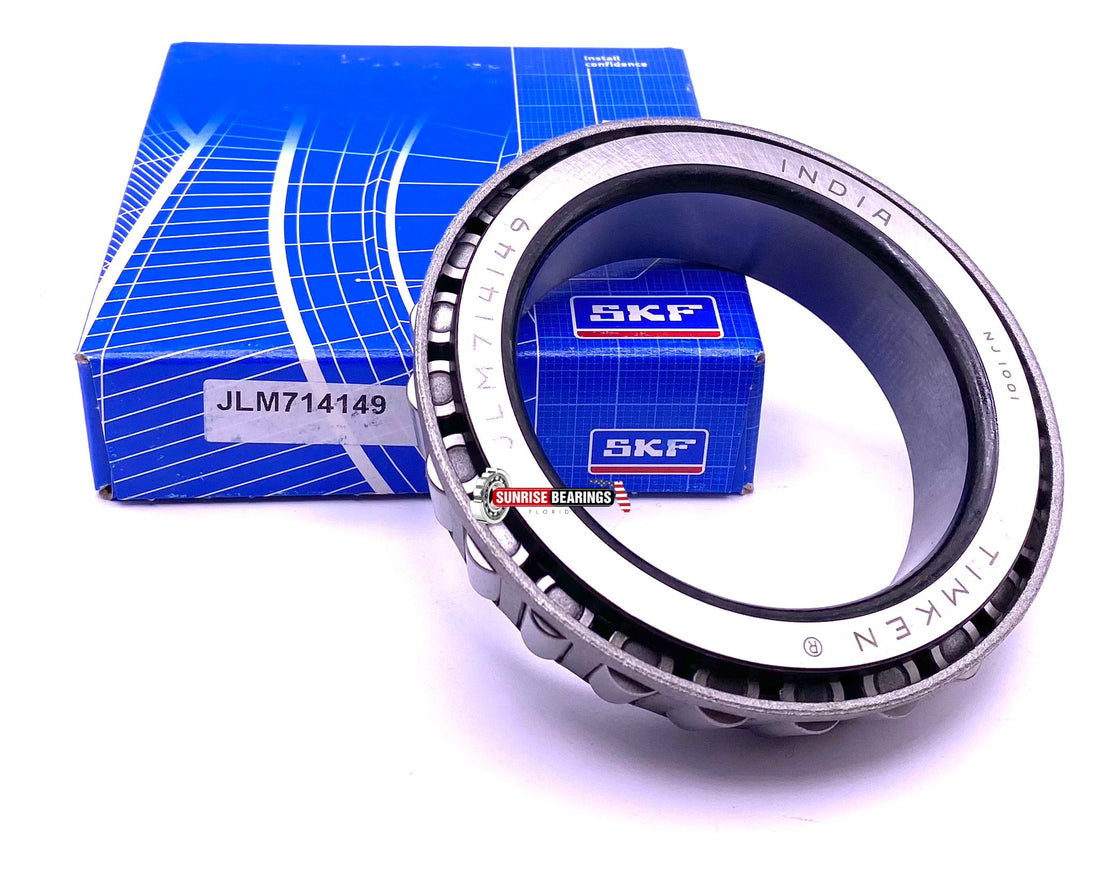

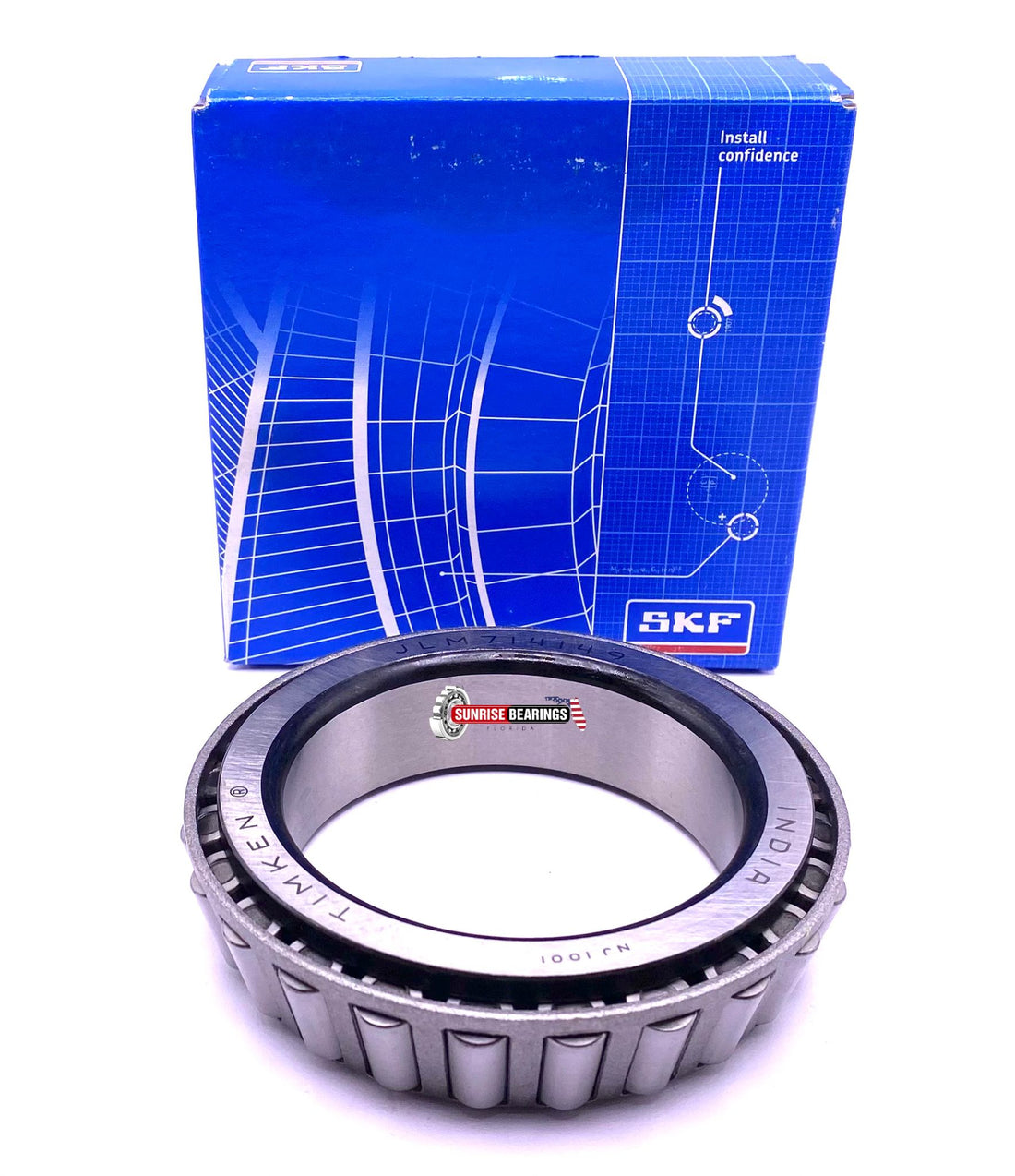

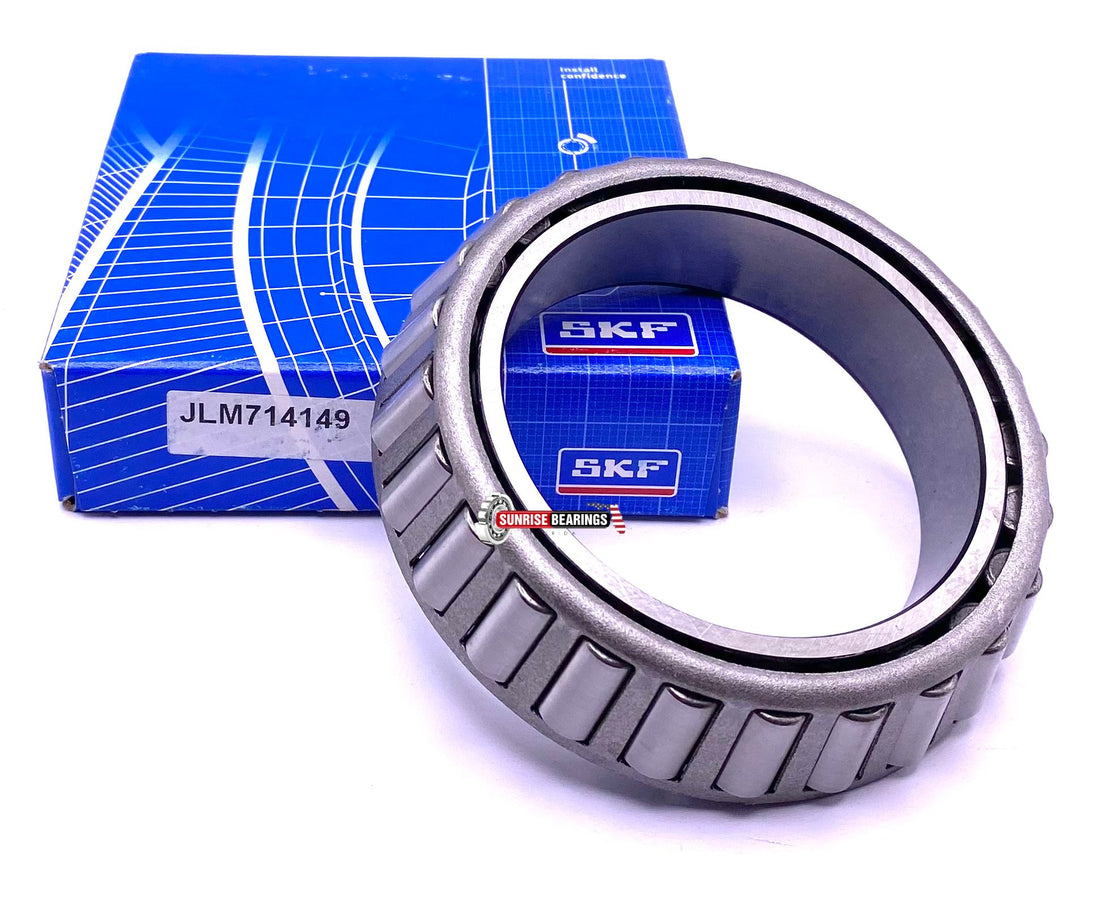

The SKF JLM714149 is a tapered roller bearing cone for a single-row tapered roller bearing. The cone is the removable assembly consisting of the inner ring and tapered rollers. Used together with a separately supplied cup (outer ring), it forms a complete tapered roller bearing set. The tapered raceways and rollers allow the bearing to support high radial loads and axial load in one direction.

Because the cone and cup are separable, installation is easier and end play (axial clearance) or preload can be adjusted during assembly by shifting the components axially. For best performance and proper internal geometry match, it’s recommended to replace cone and cup together and use a matching SKF cup.

   PACKAGE INCLUDES: ONE (1) SKF Bearing JLM714149
