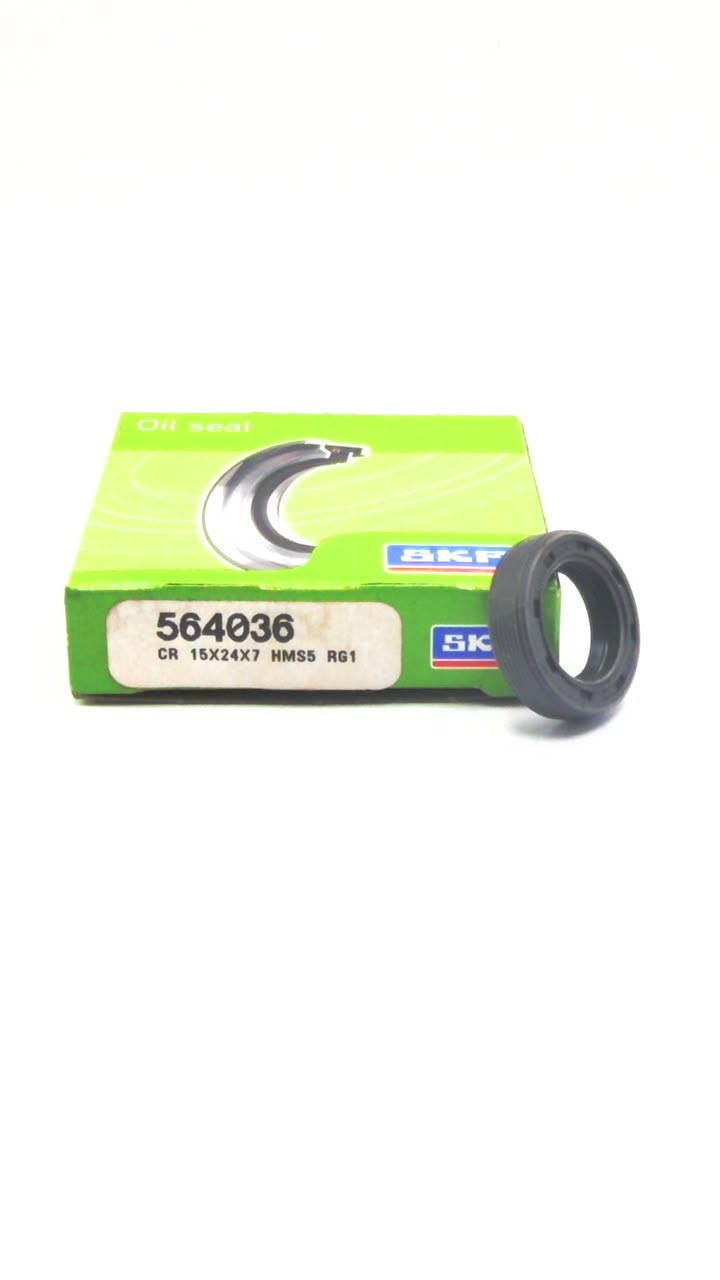

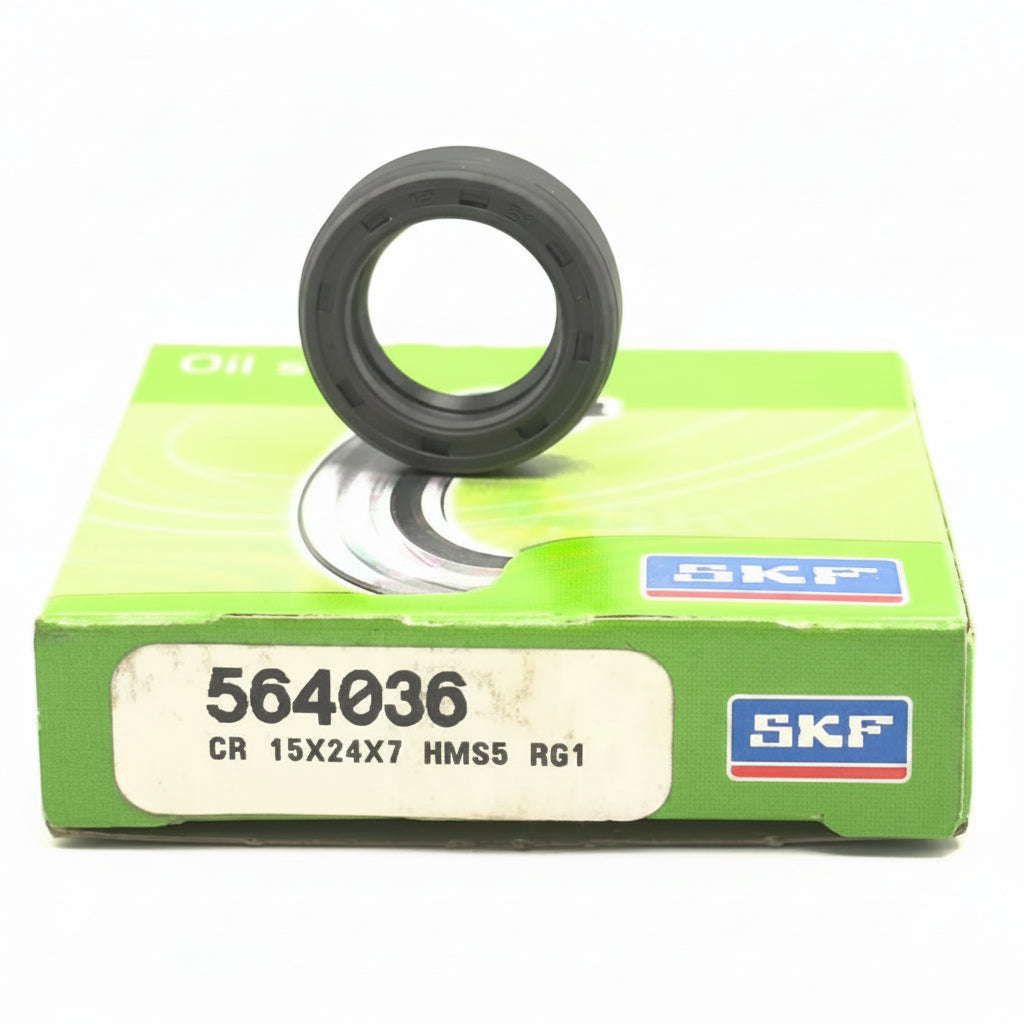

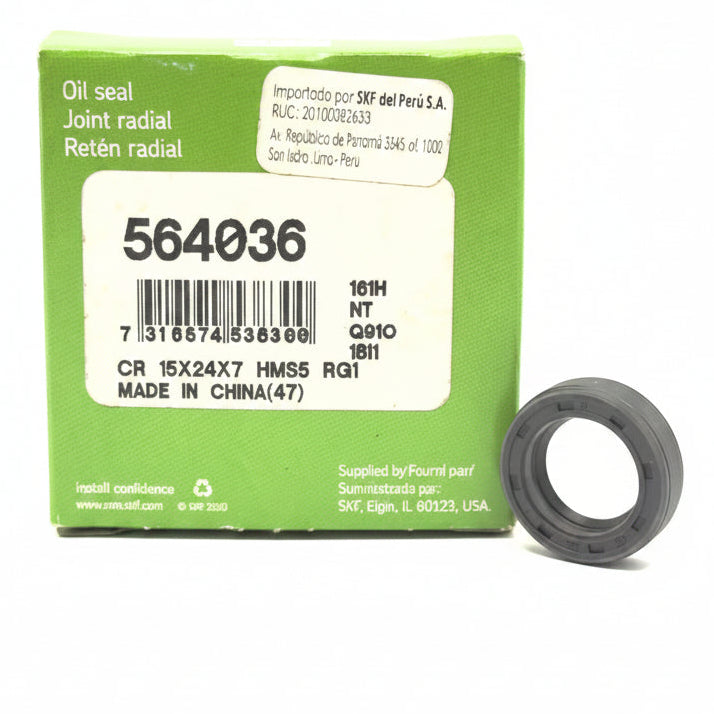

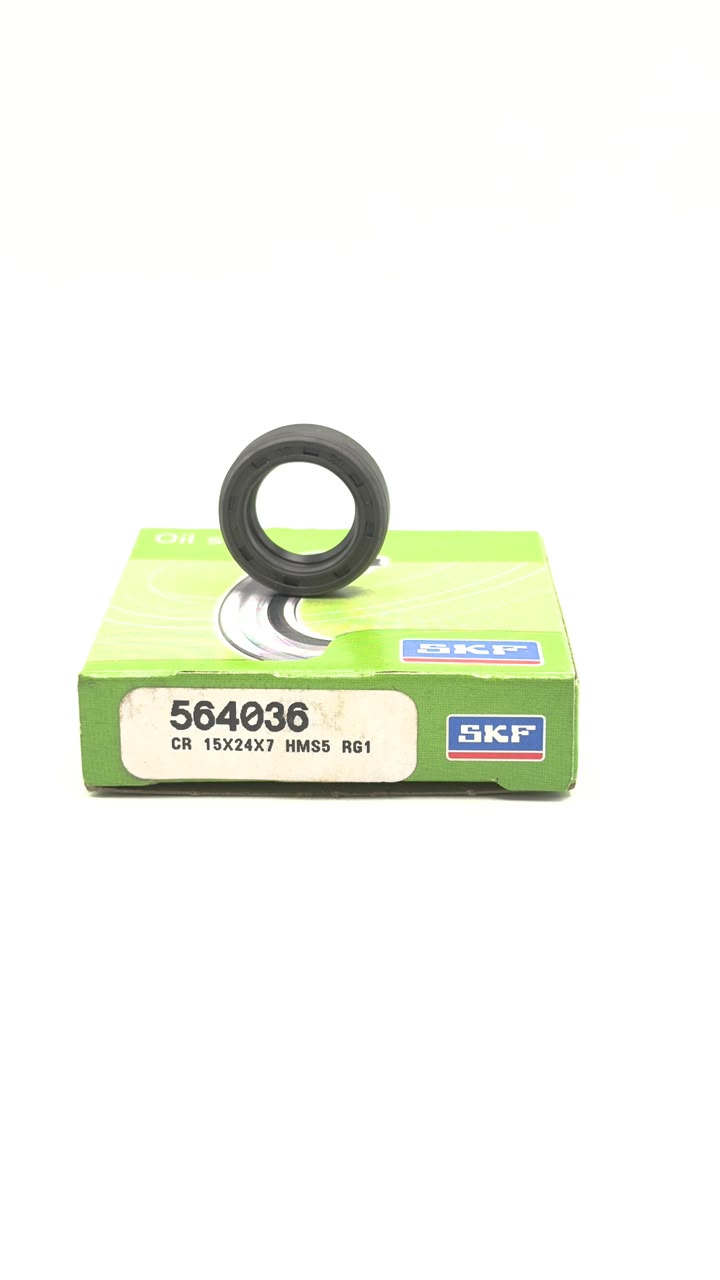

SKF 15X24X7 HMS5 RG1 Single Lip Oil Seal NBR Rubber 564036 15x24x7 mm

Item Specifics:
Brand: SKF
Model / Item Number: 15X24X7HMS5RG1
Also Written As: 15X24X7 HMS5 RG1
EAN: 7316574538300
Category: Oil Seal Rubber Single Lip with Spring Ring
Product Type: Radial Shaft Oil Seal
Seal Type: Single Lip Seal
Seal Design: HMS5
Material: Nitrile Rubber / NBR
Sealing Material: Nitrile Rubber, -30°C to +100°C
Operating Temperature: -40°C to +100°C
Maximum Velocity: 3,780 rpm
Permissible Circumferential Speed: 2.96 m/s
Weight: 0.008 kg approx.

Dimensions:
Inner Diameter: 15 mm / 0.5906"
Outer Diameter: 24 mm / 0.9449"
Width: 7 mm / 0.2756"

Suffix Description:
HMS5: Seal design
RG: Acrylonitrile-butadiene rubber, NBR
1: Seals of the same size and design that differ in execution from the basic design are identified by a number, such as R1

Description:
This listing is for one SKF 15X24X7 HMS5 RG1 single lip radial shaft oil seal.

The HMS5 design is a rubber outside diameter radial shaft seal with a conventional elastomer sealing lip and garter spring. The garter spring helps maintain the correct radial load against the shaft during operation.

The RG suffix indicates nitrile rubber material, commonly used for general oil and grease sealing applications. This seal is designed for use between rotating and stationary machine components, or between components in relative motion.

This seal measures 15 mm inner diameter, 24 mm outside diameter, and 7 mm width.

Main Features:

·         Genuine SKF 15X24X7 HMS5 RG1 oil seal

·         Single lip radial shaft seal

·         Nitrile rubber / NBR material

·         Rubber outside diameter

·         Garter spring design

·         Helps retain lubricant

·         Helps protect against leakage

·         15 mm shaft size

·         24 mm outside diameter

·         7 mm width

·         Operating temperature: -40°C to +100°C

·         Maximum velocity: 3,780 rpm

·         Suitable for industrial, mechanical, and automotive sealing applications

Please verify all dimensions, part number, material, lip style, and specifications before purchasing to make sure this item fits your application.

 Package Includes: One (01)  SKF Seal CR15x24x7 564036
