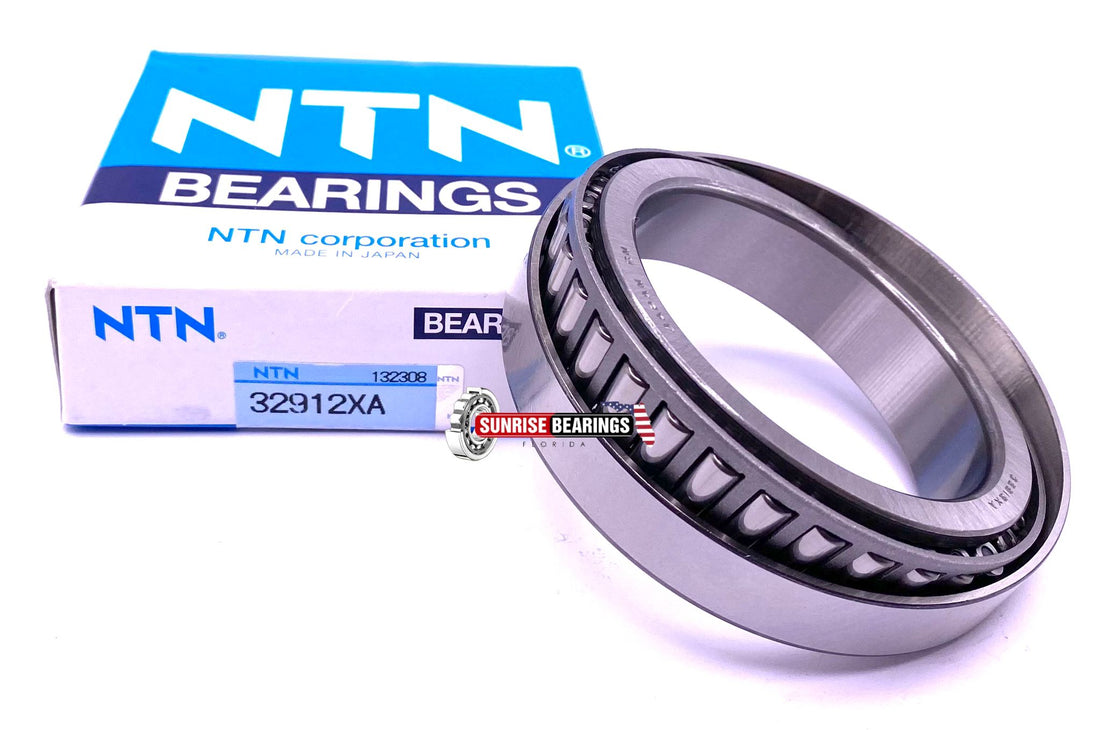

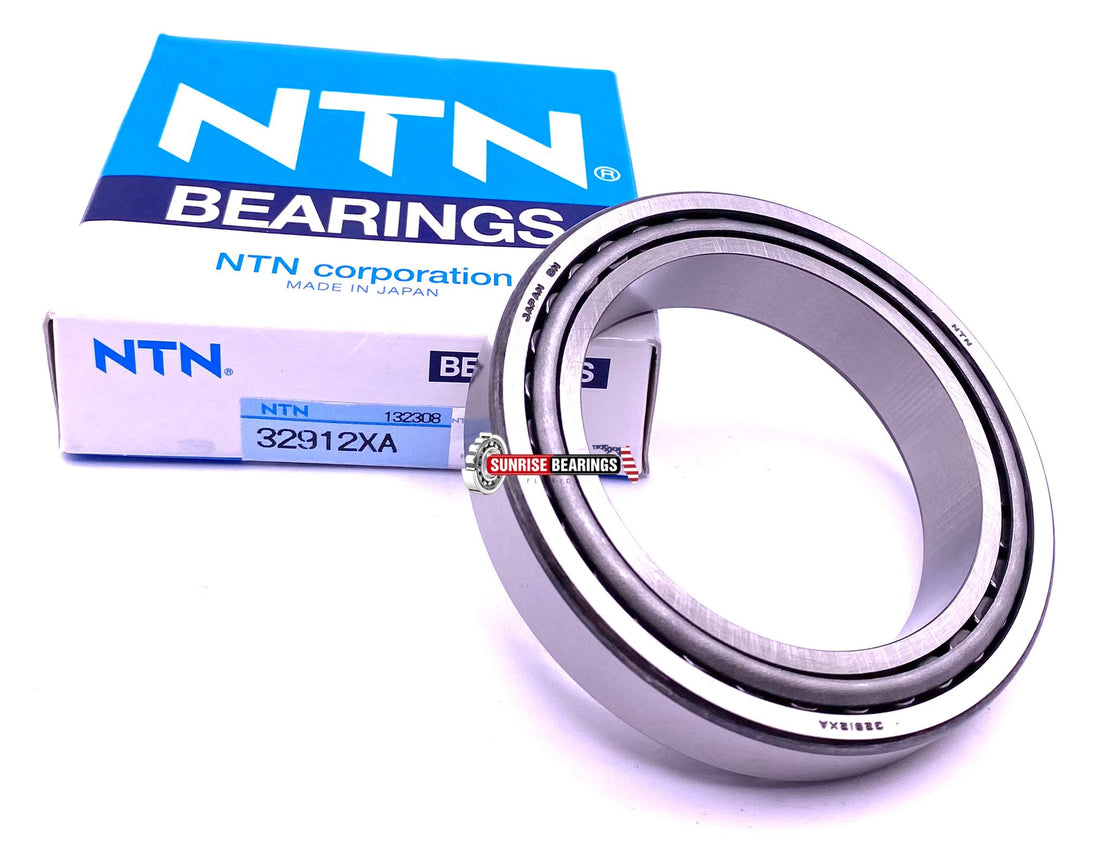

NTN 32912XA Tapered Roller Bearing Single Row 60x85x17 mm – Made in Japan

Short Description

The NTN 32912XA is a single-row tapered roller bearing designed to handle high radial loads and axial loads in one direction. With a 60 mm bore, 85 mm outer diameter, and 17 mm width, this Japanese-made bearing offers reliable performance in demanding applications. The “XA” suffix indicates altered boundary dimensions to meet ISO standards and a cup with modified outer diameter/radius/width.

Specifications

General

• Brand: NTN
• Country of origin: Japan
• Item number: 32912XA NTN
• EAN: 4547359529760
• Category: Tapered roller bearing, single row
• Precision: Standard precision

Weight and Dimensions

Metric

• Inner diameter (d): 60 mm
• Outer diameter (D): 85 mm
• Width (B): 17 mm
• Weight: 0.306 kg

Inch

• Inner diameter (d): 2.3622 in
• Outer diameter (D): 3.3465 in
• Width (B): 0.6693 in

Product Properties

• Bearing type: Single-row tapered roller bearing
• Design: Cup (outer ring) + cone (inner ring with rollers and cage)
• Construction: Open bearing
• Load capabilities:
• High radial load capacity
• High axial load capacity in one direction
• Mounting:
• Typically used together with a second tapered roller bearing
• Can be arranged in X, O, or tandem configurations for specific load and rigidity requirements

Suffix Explanation

• X – Boundary dimensions altered to conform to ISO standards
• A – Cup (outer ring) with different outer diameter, radius, or width compared to the basic part number

Product Description (longer text for listing)

The NTN 32912XA is a single-row tapered roller bearing. This bearing type uses tapered rollers running between conical raceways on the inner and outer rings. Thanks to this design, tapered roller bearings can support combined loads, handling both high radial loads and axial loads in one direction. The larger the contact angle, the higher the axial load capacity.

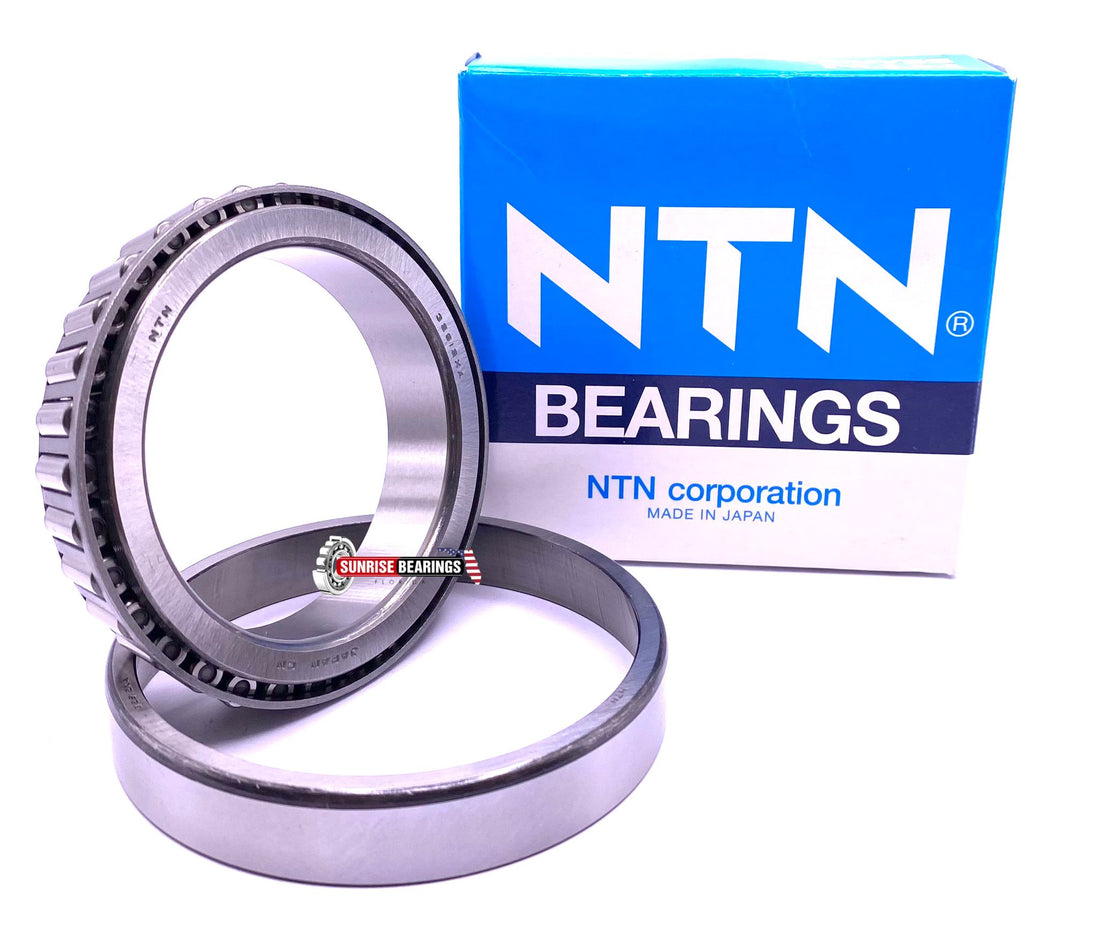

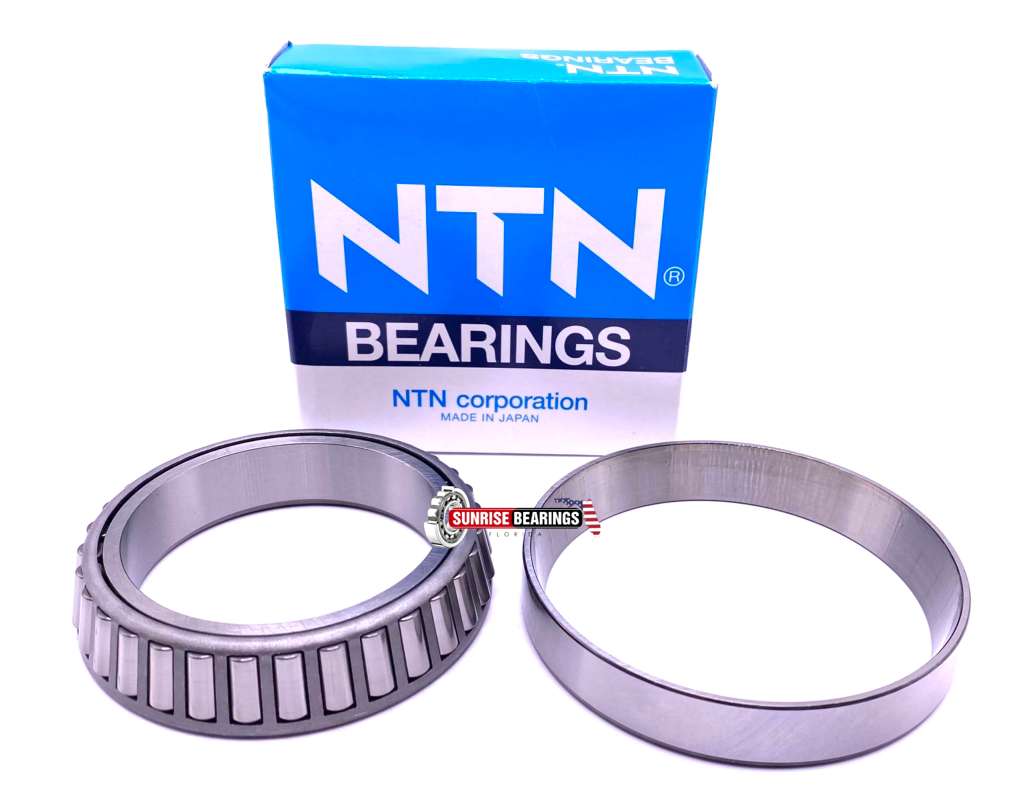

The bearing is supplied as a combination of cone and cup:

• The cone assembly consists of the inner ring, cage, and roller set.
• The cup is the outer ring.

Single-row tapered roller bearings like the 32912XA NTN have an open design. Due to their internal geometry, they are usually mounted in pairs, in mirror-image arrangement or in X, O, or tandem configurations, depending on the required load direction, stiffness, and alignment.

   PACKAGE INCLUDES: ONE (1) NTN Bearing 32912 XA
