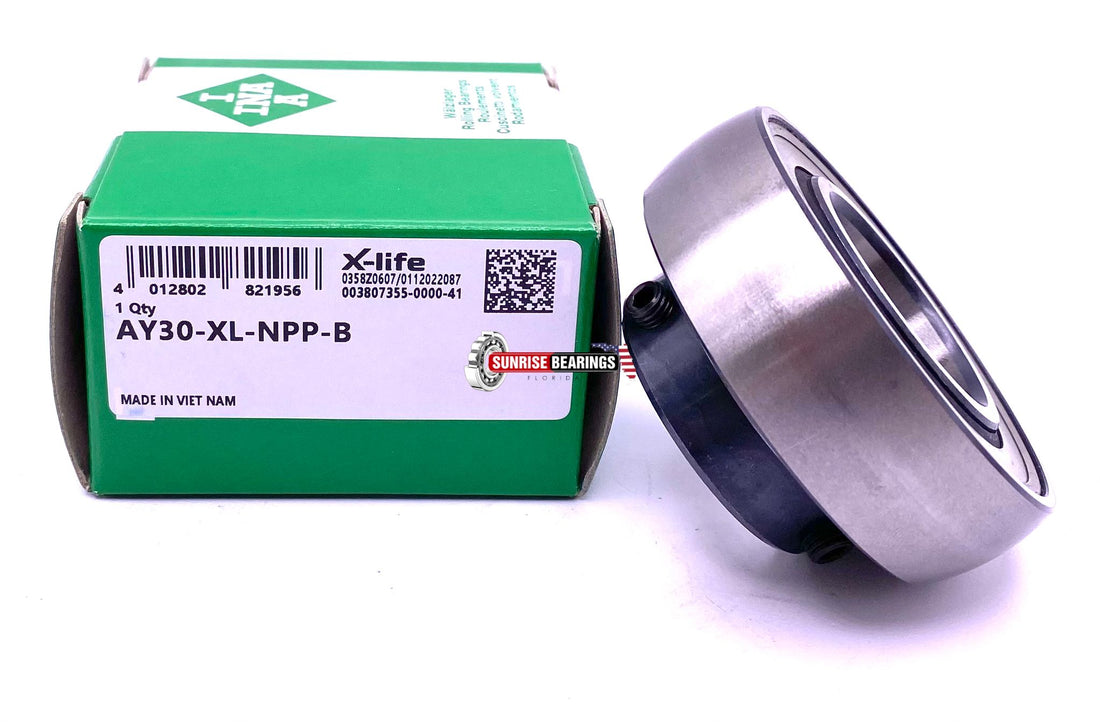

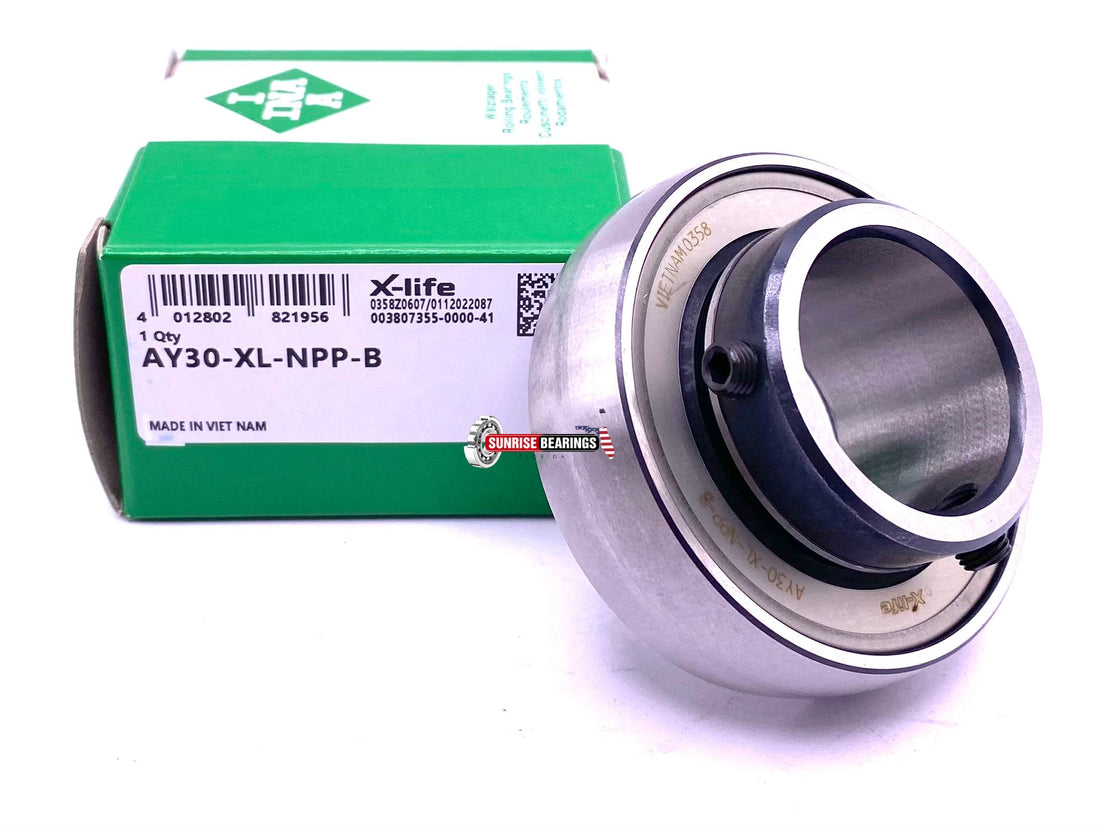

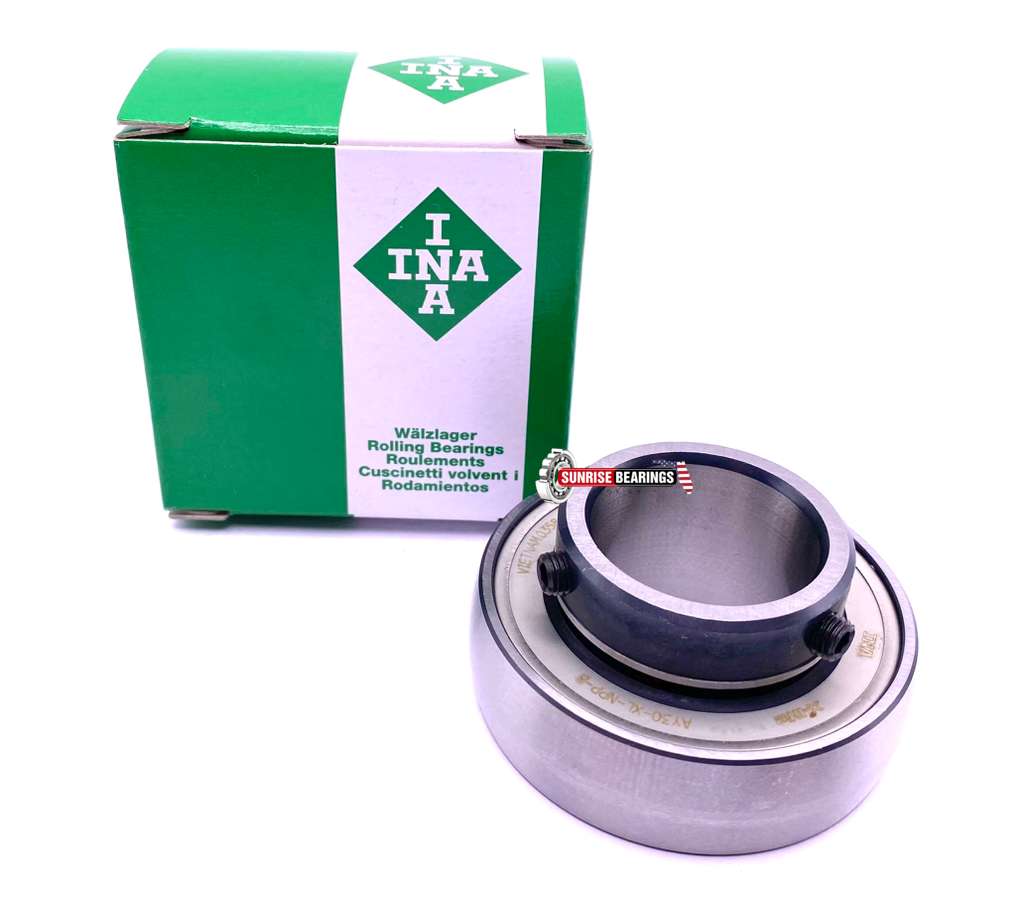

INA AY30-XL-NPP-B — Radial Insert Ball Bearing (YAT206), Spherical OD, Grub Screws, Sealed Both Sides

Specifications

• Brand: INA (Schaeffler)
• Item Number / Part Number: AY30-XL-NPP-B
• Also Known As: AY30-NPP-B, YAT206
• Manufacturer Part Number: 0038073550000
• EAN: 4012802821956
• Category: Bearings for Housings (Insert Bearings)

Dimensions & Weight

• Bore / Inner Diameter (d): 30 mm (1.1811 in)
• Outer Diameter (D): 62 mm (2.4409 in)
• Width (B): 30 mm (1.1811 in)
• Weight: 0.25 kg (≈ 0.55 lb)

Load Ratings

• Dynamic Load Rating (Cr): 20,700 N
• Static Load Rating (C0r): 11,300 N

Product Properties

• Sealing: 2L — LS seal on both sides
• Lubrication: Standard lubrication
• Special Treatment: None

Suffix / Design Meaning

• XL: X-life (enhanced performance/life)
• NPP: Lip seals on both sides (P-type): two zinc-plated sheet steel washers with an intermediate NBR element; seal lip axially preloaded
• B: Bearing with spherical outer ring (self-aligning in the housing)
• FA106: Special noise testing
• L460: NSF-H1 approval / food-grade lubrication (H1 / ISO 21469 referenced)

INA AY30-XL-NPP-B (also YAT206 / AY30-NPP-B) radial insert ball bearing for housed units. 30 mm bore, 62 mm OD, 30 mm width. Features a spherical outer ring for self-alignment in the housing, locking by grub screws, and NPP lip seals on both sides for contamination protection. X-life design. Load ratings: Cr 20,700 N, C0r 11,300 N.
