Category:Four point contact b.

Seal:None, open bearing

Clearance:Slightly increased radial clearance

Cage:Brass cage

Temperature range:-30 to +150 °C

Tolerance class:Tolerance class P0/PN2 / ABEC 1

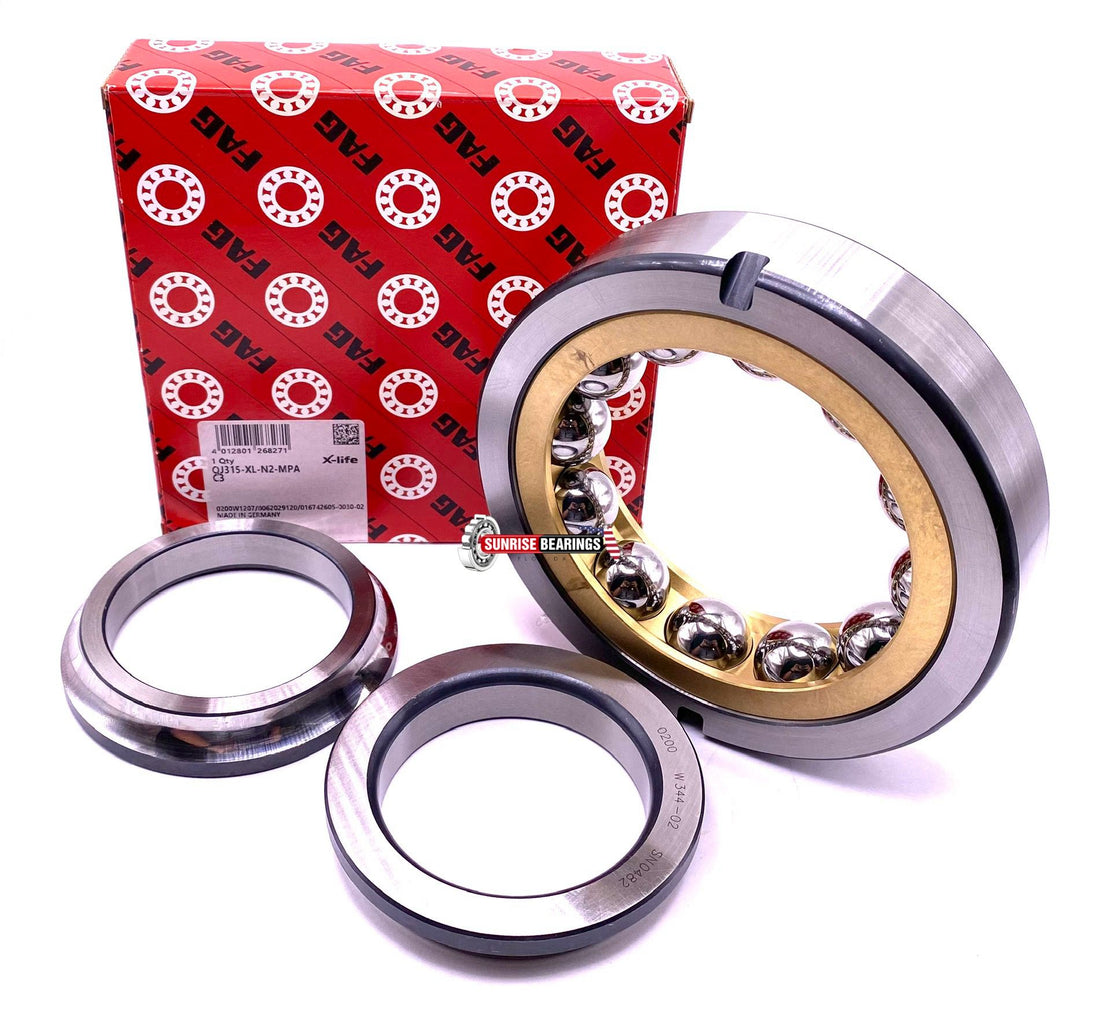

Design:Split inner ring

Groove(s) on outer ring:2 retaining grooves on outer ring shifted by 180 degrees

Weight:3,750 kg

ProductID:10071260

Country of origin:Germany

Customs tariff number:8482 1090

Manufacturer part number:016742605-0030

Dimensions

Inner dimension: 75,000 mm

Outer dimension: 160,000 mm

Width: 37,000 mm

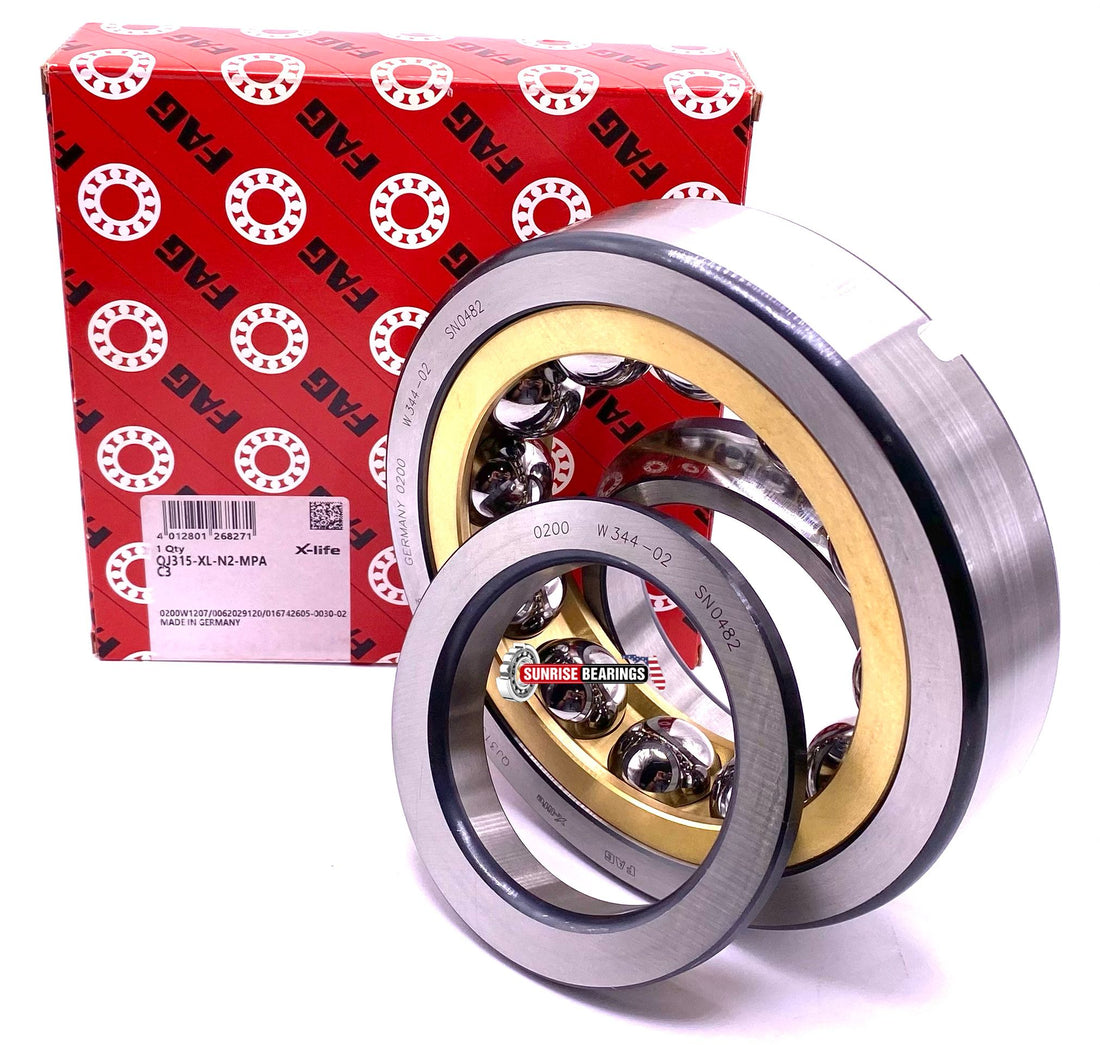

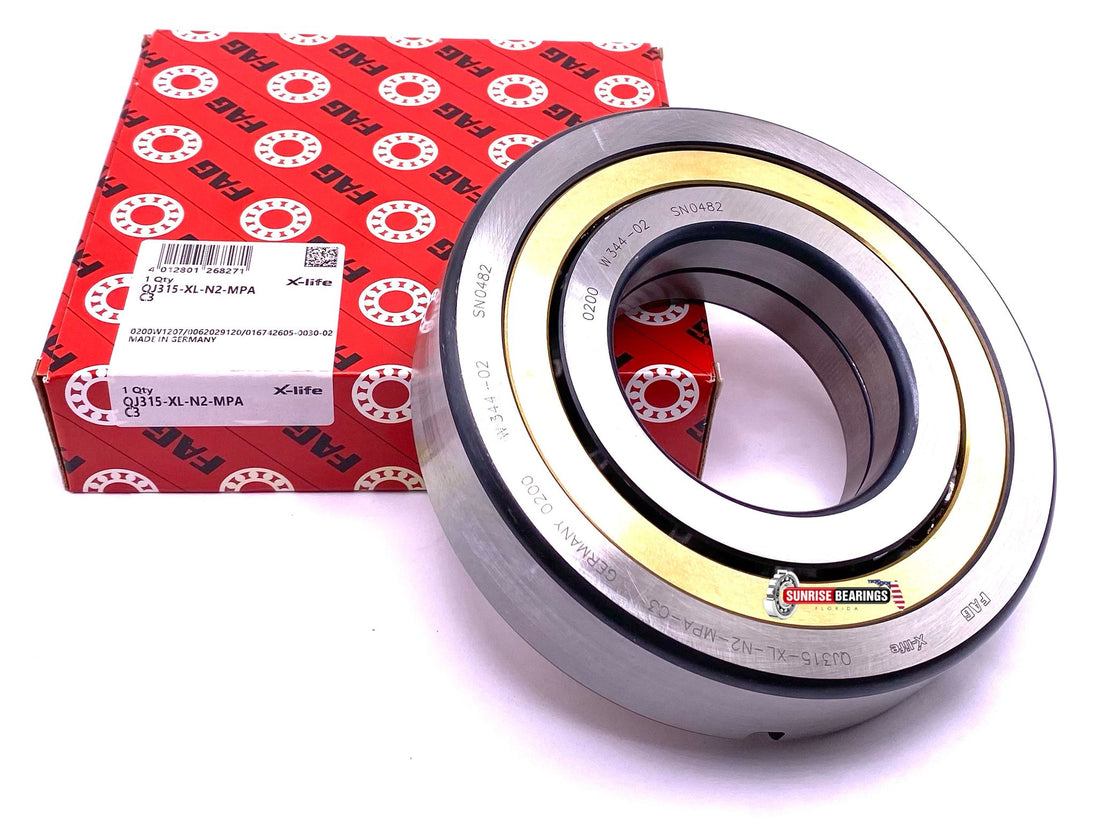

Package Includes: ONE (1) FAG Bearing QJ315 N2 MPA
