Brand: FAG
ID: 62204 -2RSR-C3
MADE IN:

DESCRIPTION

Item Number: 62204-A-2RSR-C3 FAG

Manufacturer Part Number: 0596554370030

EAN: 4012802330403

Category: Deep Groove Ball Bearings Single Row

Weight and Dimensions

Inner (d) MM: 20

Outer (D) MM: 47

Width (B) MM: 18

Inner (d) Inch: 0.7874

Outer (D) Inch: 1.8504

Width (B) Inch: 0.7087

Weight (kg): 0.14

Product Properties

Bore: C - Cylindrical Bore

Seal: 2RS - Rubber Seal on Two Sides

Cage Type: S - Steel or Standard Cage

External Modification: No External Modification

Radial Internal Play: C3 Internal Play (Higher than Cn)

Precision: Standard Precision

Lubrication: Standard Lubrication

Heat Stabilization: No Heat Stabilization - Temperatures up to 120 °C

Special Treatment: No Special Treatment

Data from Schaeffler (medias)

Width (b) mm: 18

Radial Static Load Rating C0r (N): 6600

Radial Dynamic Load Rating Cr (N): 13400

Basic static load rating, radial (C 0r): 6580.0000

Limiting speed (n G): 9400

ECLASS number: 23-05-08-01

ECLASS2 number: 23-05-08-01

Suffix Description

A: Internal Design Modification

2RSR: Rubber Seals At Each Side Of The Bearing

C3: Internal Clearance Larger Than Normal

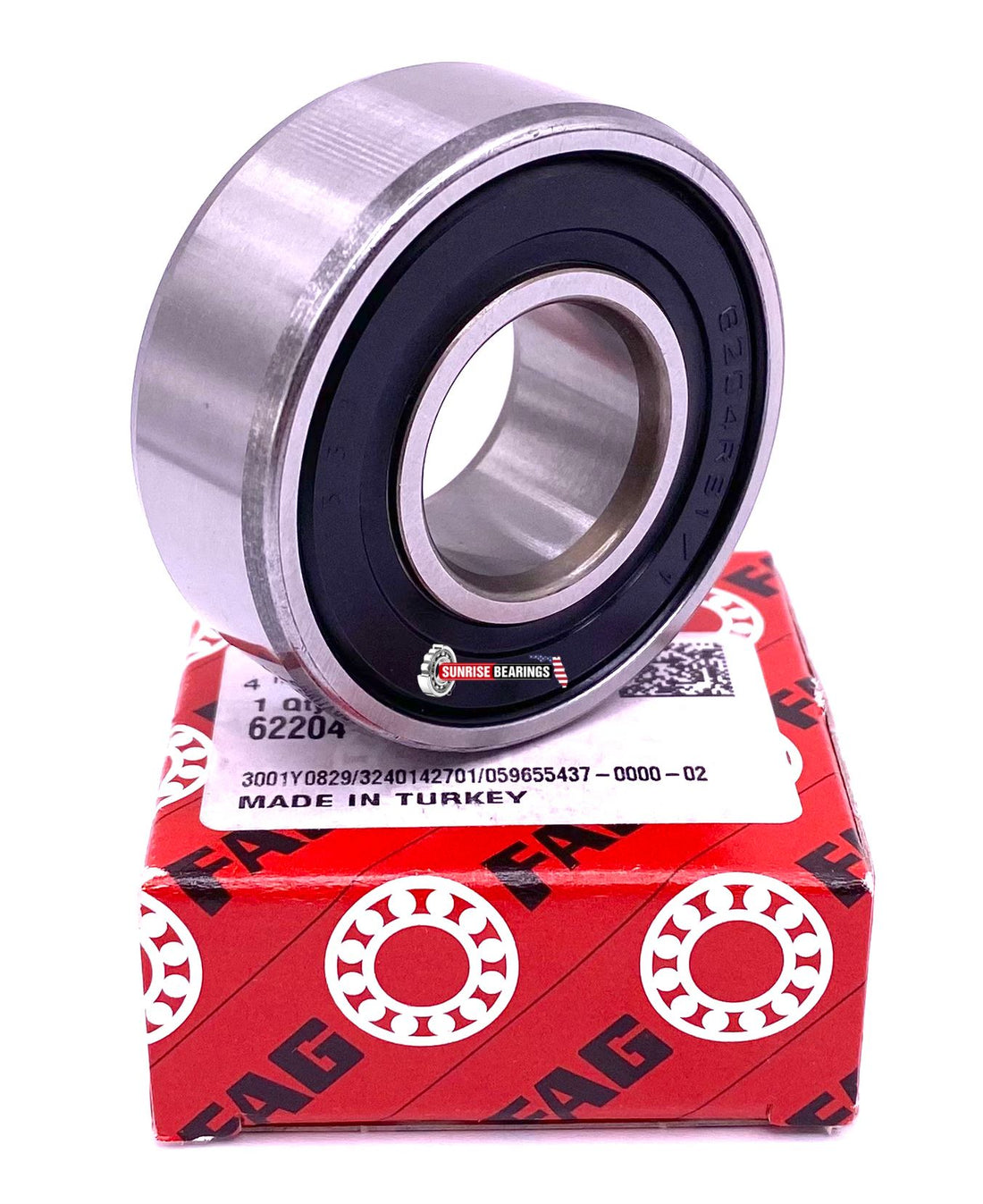

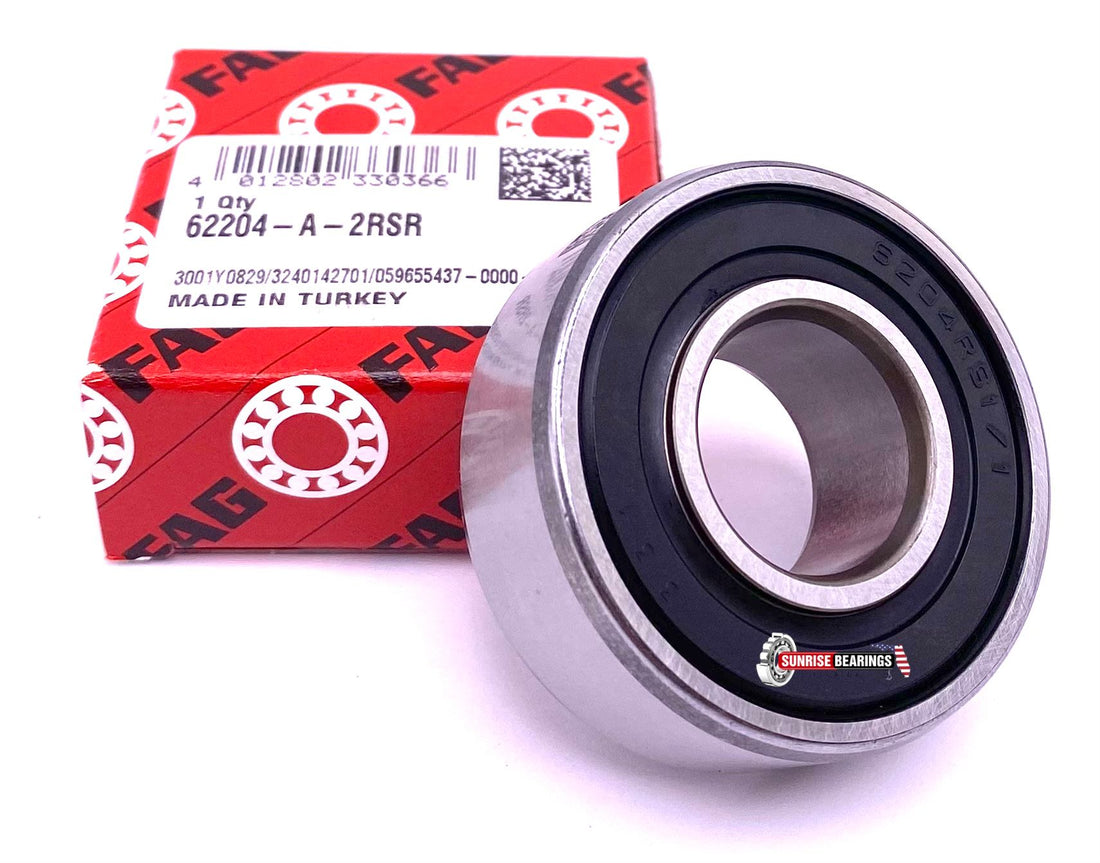

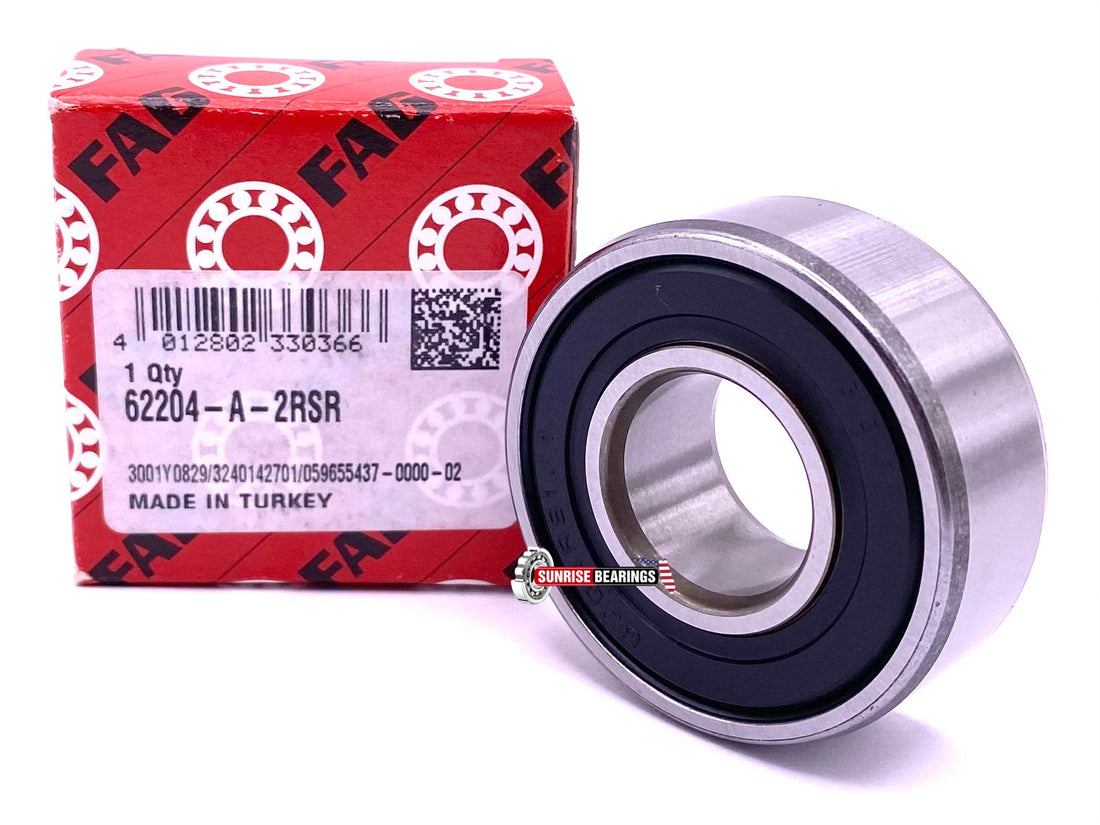

Package Includes: ONE (1) FAG Bearing 62204 2RSR C3
