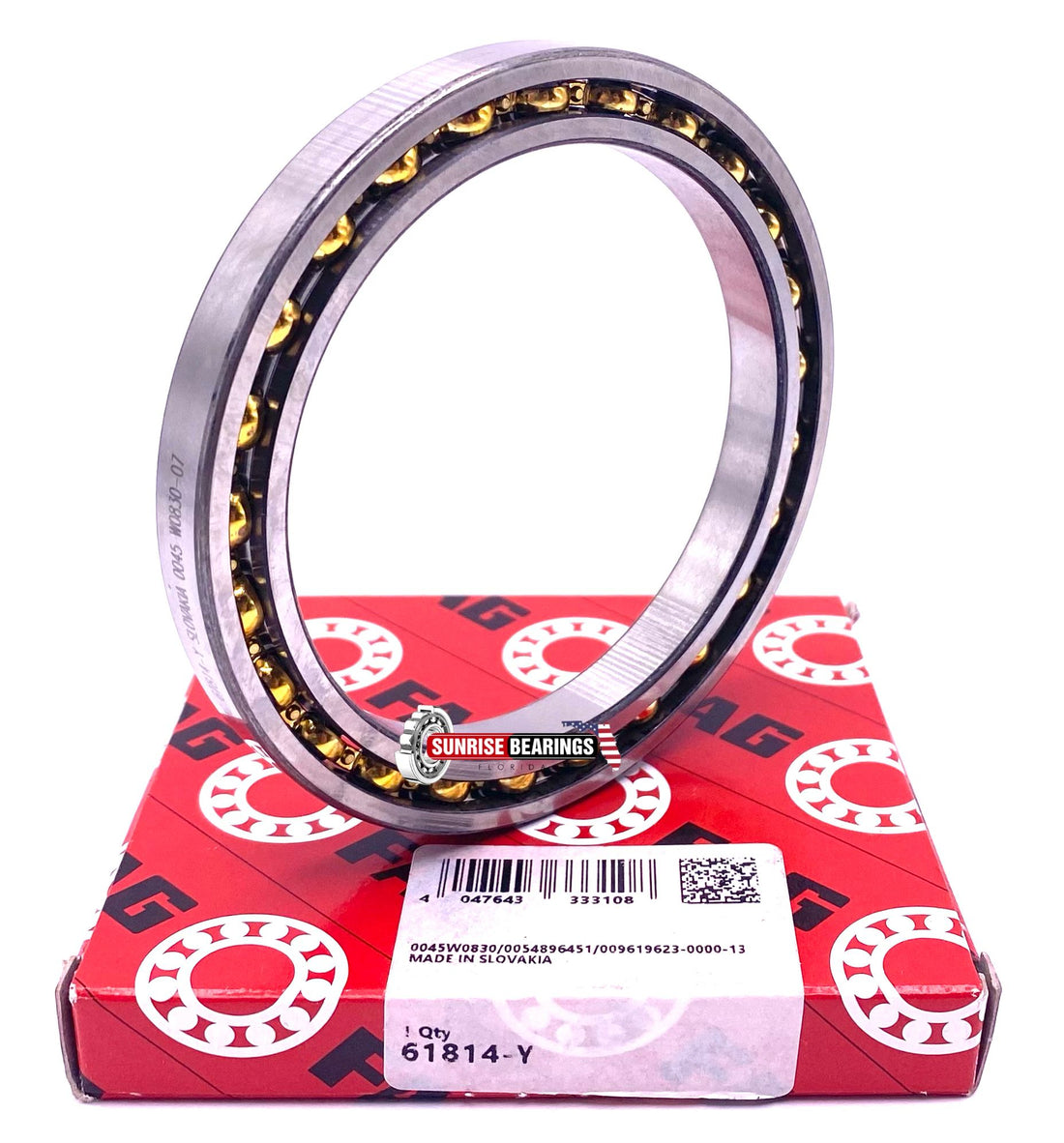

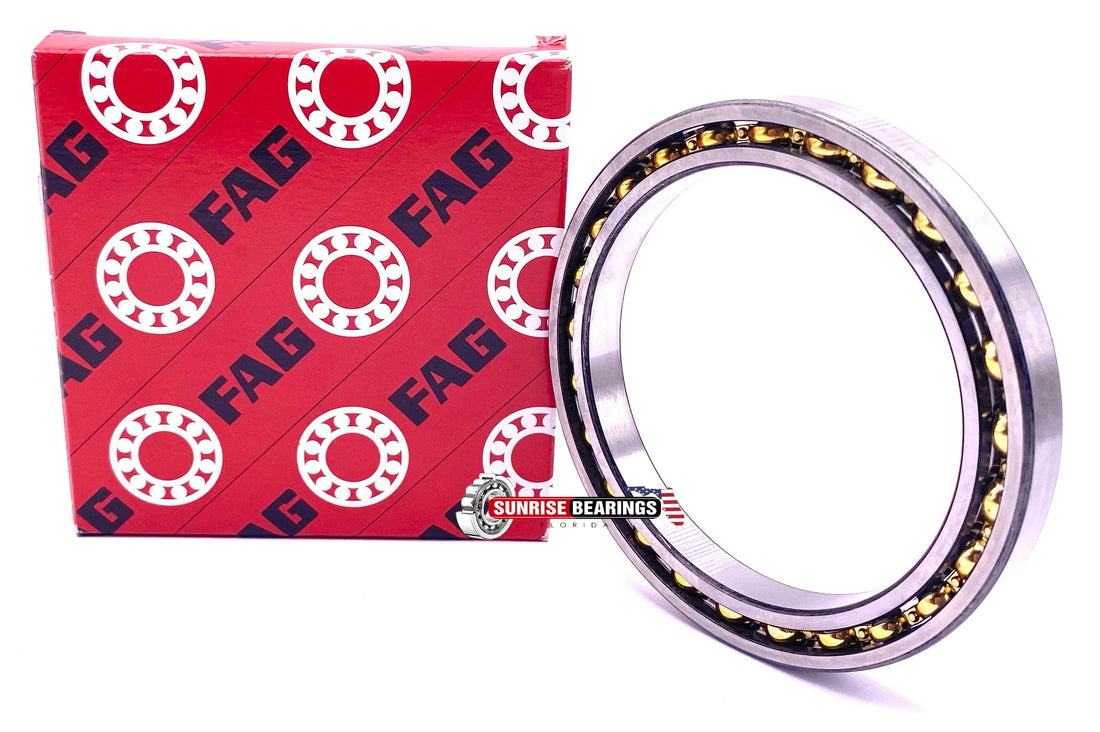

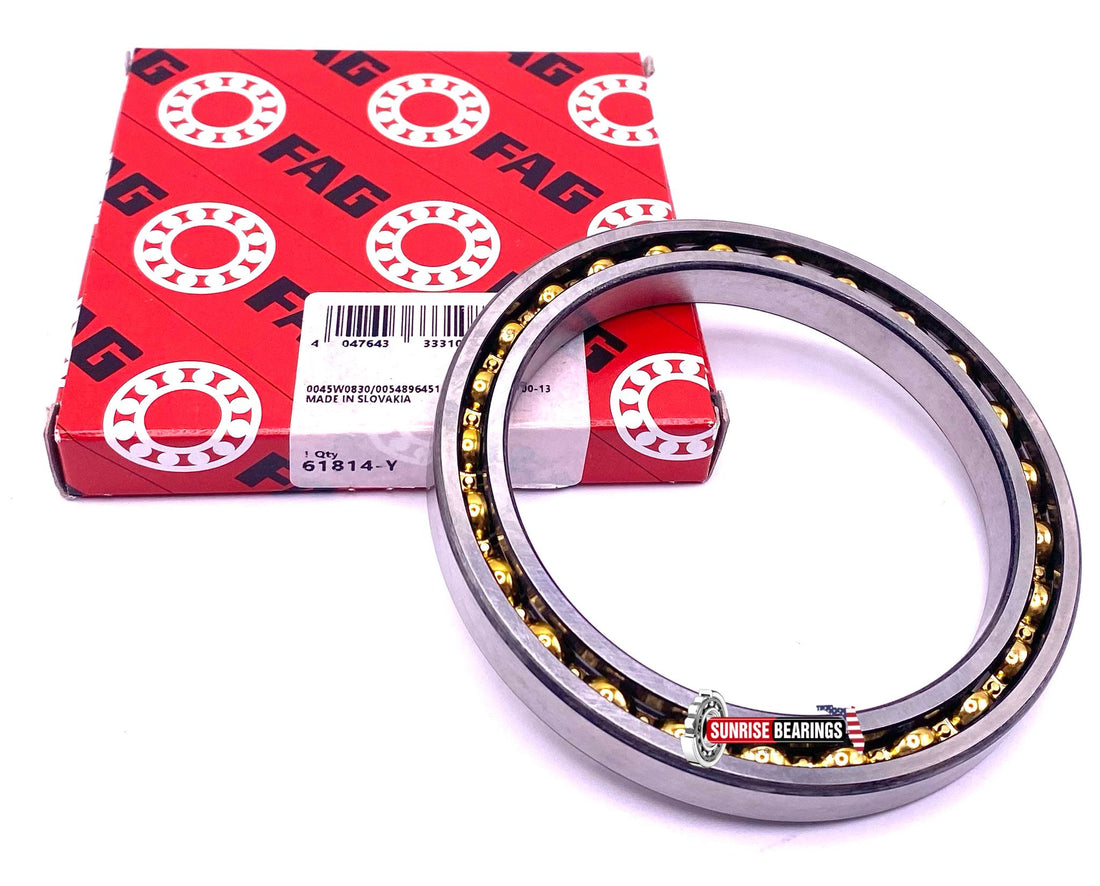

FAG 61814 Y Deep Groove Ball Bearing 70x90x10 mm
Sale price
$86.00
Regular price
$95.00
-$9.00
Brand: FAG
ID: 61814 -Y
MADE IN: SLOVAKIA
- BrandFAG
- Item Number61814-Y FAG
- Manufacturer Part Number0096196230000
- EAN4047643333108
- CategoryDeep Groove Ball Bearings Single Row
Weight and Dimensions
- Inner (d) MM70
- Outer (D) MM90
- Width (B) MM10
- Inner (d) Inch2.7559
- Outer (D) Inch3.5433
- Width (B) Inch0.3937
- Weight (kg)0.138
Product Properties
- BoreC - Cylindrical Bore
- SealNo Seal
- Cage TypeY - Pressed Brass Cage
- External ModificationNo External Modification
- Radial Internal PlayCn Normal Internal Play
- PrecisionStandard Precision
- LubricationStandard Lubrication
- Heat StabilizationNo Heat Stabilization - Temperatures up to 120 °C
- Special TreatmentNo Special Treatment
Data from Schaeffler (medias)
- Width (b) mm10
- Radial Static Load Rating C0r (N)12400
- Radial Dynamic Load Rating Cr (N)13200
- Basic static load rating, radial (C 0r)"12400.0000"
- Limiting speed (n G)13800
- Reference speed (n ϑr)5300
- ECLASS number23-05-08-01
- ECLASS2 number23-05-08-01
- Medias descriptionDeep groove ball bearings 618, main dimensions to DIN 625-1
Suffix description
- YSheet Brass Cage, Rolling Element Guided
PACKAGE INCLUDES: ONE (1) FAG BEARING 61814 Y
